Florida Plan 168-00093


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 7,100
Beds 6
Bath 6
1/2 Baths 1
Car 3
Stories 2
Width 90' 5"
Depth 78'

Floorplan Drawings

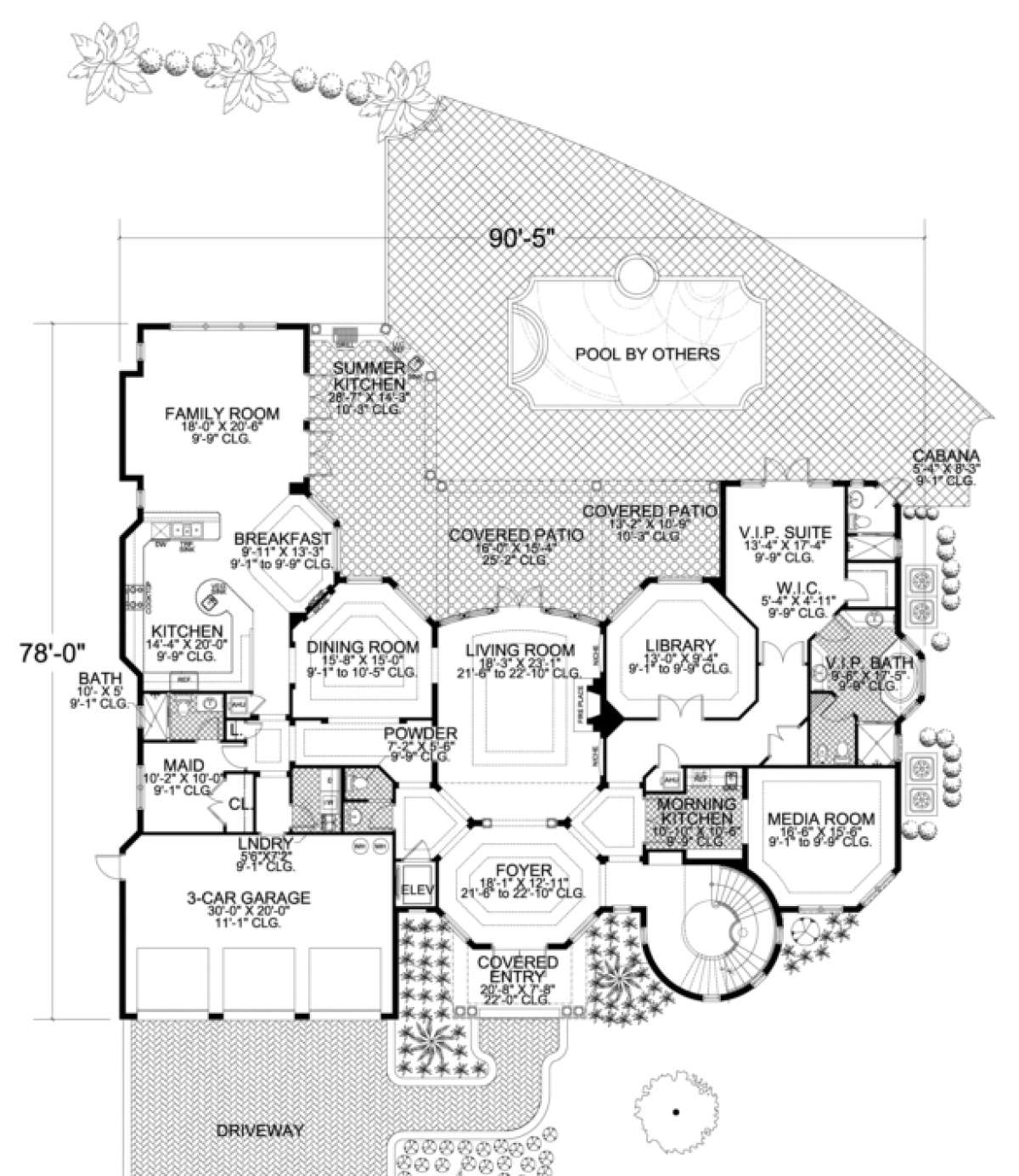

Floorplan 1
Floorplan 1 for House Plan #168-00093

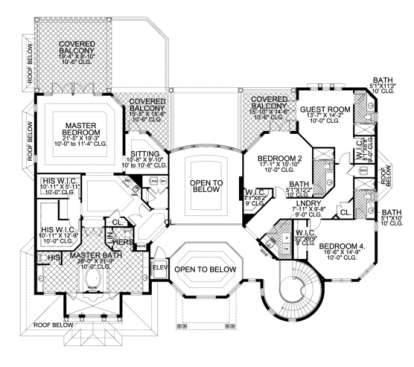

Floorplan 2
Floorplan 2 for House Plan #168-00093

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This palatial home is featured in the traditional Spanish design with an outstanding Mediterranean exterior façade and a spacious open design perfect for entertaining. Gracefully arched windows, a towering covered entrance, red tile roofing and gorgeous ironwork all combine to offer an exterior that is definitely bold and exciting. The octagon shaped foyer bodes well of things to come in this spacious floor plan with over 7,000 square feet. The foyer is flanked by the residential elevator and the amazing curved staircase and, leads to the grand living room with double step trey ceiling, fireplace, built-in cabinetry and French door access to the rear covered patio. The outdoor space in this home is outstanding and offers an enormous amount of space with a summer kitchen, cabana bath and pool design. A guest suite with has private patio access, walk-in closet and beautiful bath with dual vanities, a garden tub, separate shower and private toilet area. A large library is the perfect choice for entertaining intimate friends or business associates and sits directly across from the media room with morning kitchen. In traditional Spanish design, the gourmet kitchen and, the breakfast and family room sit at the rear of the home and provide space for family comfort and ease. The family room offers double French door access to the rear courtyard and summer kitchen for casual family dining. Another bedroom with ample closet space and private bath could functions as the maid’s quarters or additional bedroom. A laundry room, powder room and three car garage complete the main level of living.
Three additional bedrooms are situated upstairs; each has a generous footprint, walk-in closet and private bath. Two of the bedrooms have private access to the second story covered balcony. An additional laundry room is located upstairs for convenience. The master retreat is simply stunning and offers excellence in amenities and design and occupies an entire wing of the second floor. The master bedroom and adjacent sitting room have dual covered balconies and makes the ideal spot to enjoy morning coffee or relax. Oversized his and her walk-in closets line the hallway to the exquisite master bath. The large Roman spa tub is the centerpiece of the room and there is a separate, oversized shower, dual vanities and separate his and her toilet areas. This spacious and inviting home offers architectural elegance on a grand scale with a bold exterior façade and a fully functional and versatile interior floor plan.
