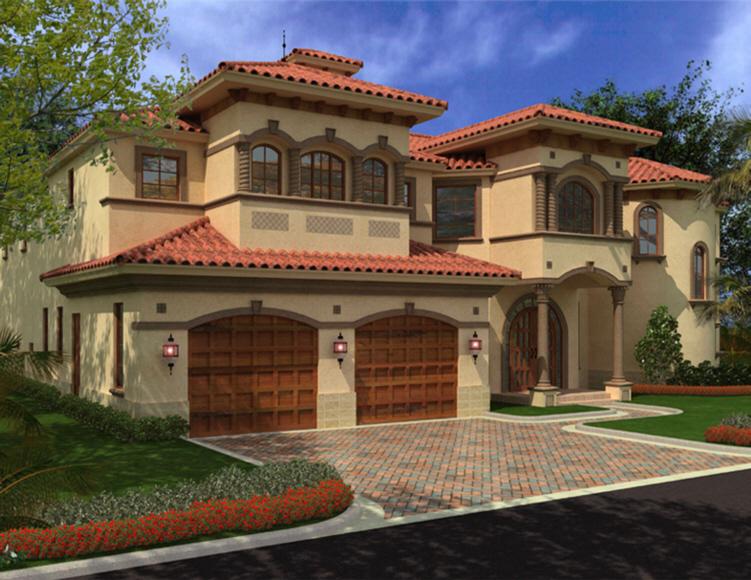

Mediterranean House Plan #168-00091 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 6,835

Beds 4

Bath 4

1/2 Baths 2

Car 3

Stories 2

Width 79' 10"

Depth 69' 10"

See What's Included

Select Package

PDF (Single Build)

$2,000.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$3,000.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

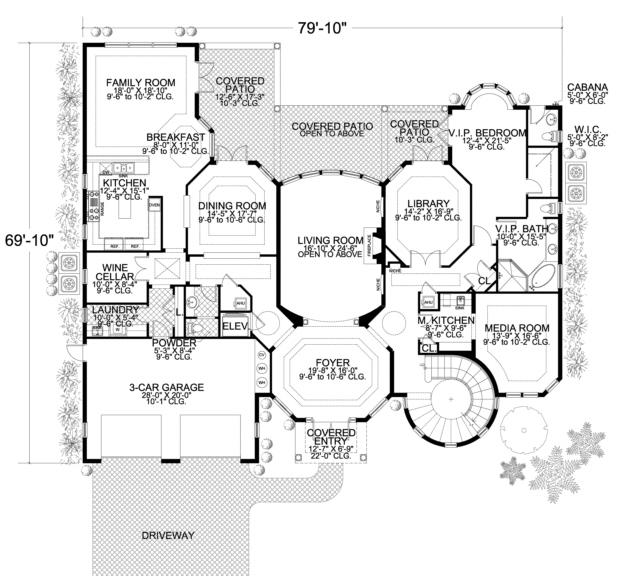

Floorplan 1

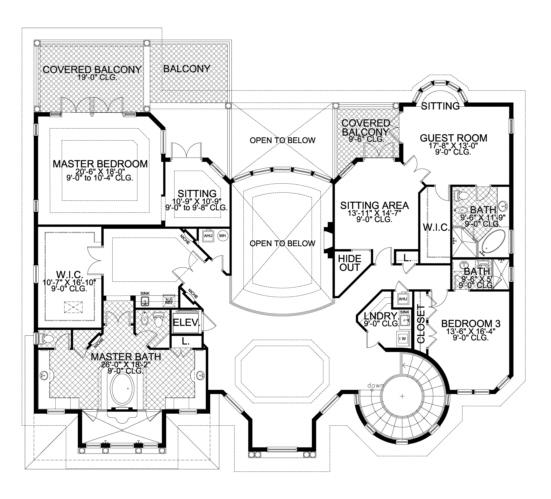

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This classic Mediterranean style home offers a spacious floor plan with approximately 6,800 square feet and an exterior façade that is architecturally stunning. The use of arched windows, stately columns, and artistically crafted balconies and brick pavers give the home an old world feeling while the interior floor plan is definitely modern and open. The two story covered entrance spills into the dramatic foyer with a unique octagon shape and amazing size. The formal living room is equally stunning with soaring ceiling heights, a magnificent fireplace and dramatic bowed window with rear patio views. The media room serves as a multi-purpose room and is ideal for casual entertaining an intimate group of family or friends and offers an adjacent morning kitchen for convenience. Additionally, there is a library with front and rear French doors leading to the rear patio. The guest suite is simply elegant which is highlighted by a dramatic bowed window, walk-in closet, cabana bath and full private bath with a garden tub and separate shower. The formal dining room has a double step trey ceiling and French doors leading to the rear patio. The gourmet kitchen features an oversized center island, coffered ceilings, dual dishwashers and is open to the breakfast room and family room which is an ideal arrangement for family members to come together in a cozy setting. A wine cellar, large utility room, half bath and elevator, which is a nice alternative to the stunning, curved staircase off the foyer, complete the main level of the home. A second guest suite or magnificent family bedroom is situated upstairs with double sitting areas, a private covered balcony, large walk-in closet and private hidden room. The guest bath features a separate shower and garden tub. Bedroom three includes double closets and a private bath. There is second utility room located on the second floor as well as the first for convenience. The master retreat is sumptuous and fit for royalty; you enter through and are beckoned to the right by the sitting room or master bedroom which features dramatic ceiling heights and double balconies accessed through double French doors. Directly in front of the master entrance is an oversized walk-in closet that many would be ecstatic to call their bedroom; it is that large. To the left of the entrance, you enter the master bath which is simply regal and enjoys an enormous footprint. It is highlighted with a roman tub, a separate shower fit for a king, separate dual vanities and his and her toilet areas.
