Florida Plan 168-00080


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 6,009
Beds 4
Bath 5
1/2 Baths 1
Car 3
Stories 2
Width 82' 8"
Depth 49' 10"

Floorplan Drawings

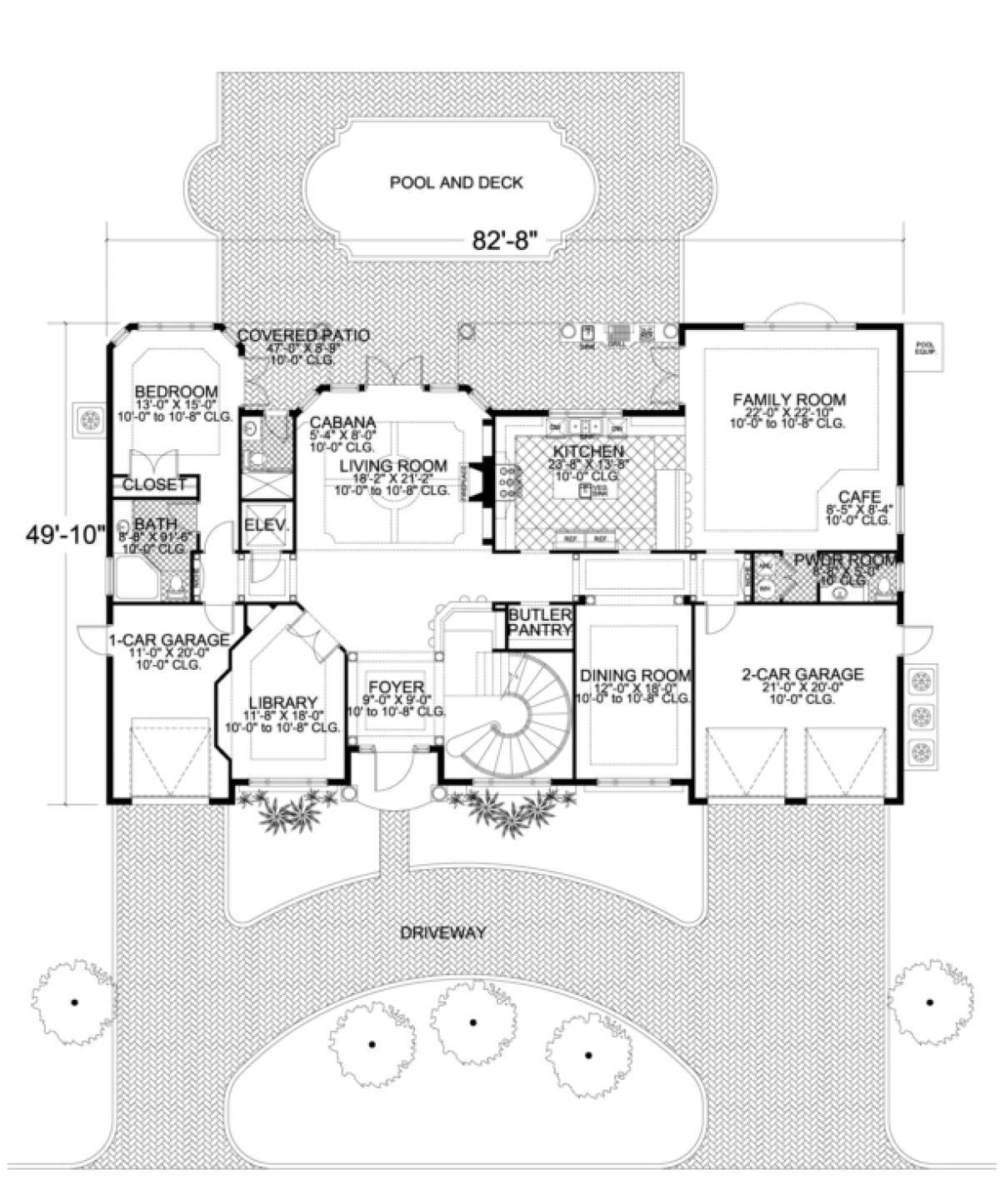

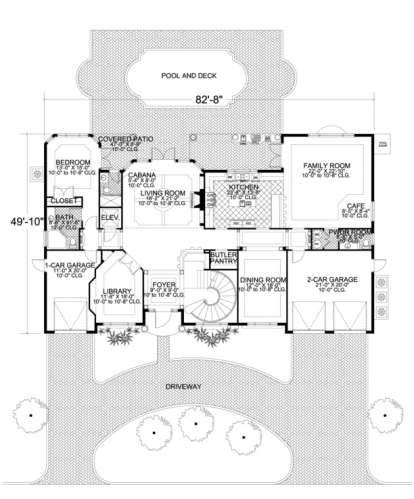

Floorplan 1
Floorplan 1 for House Plan #168-00080

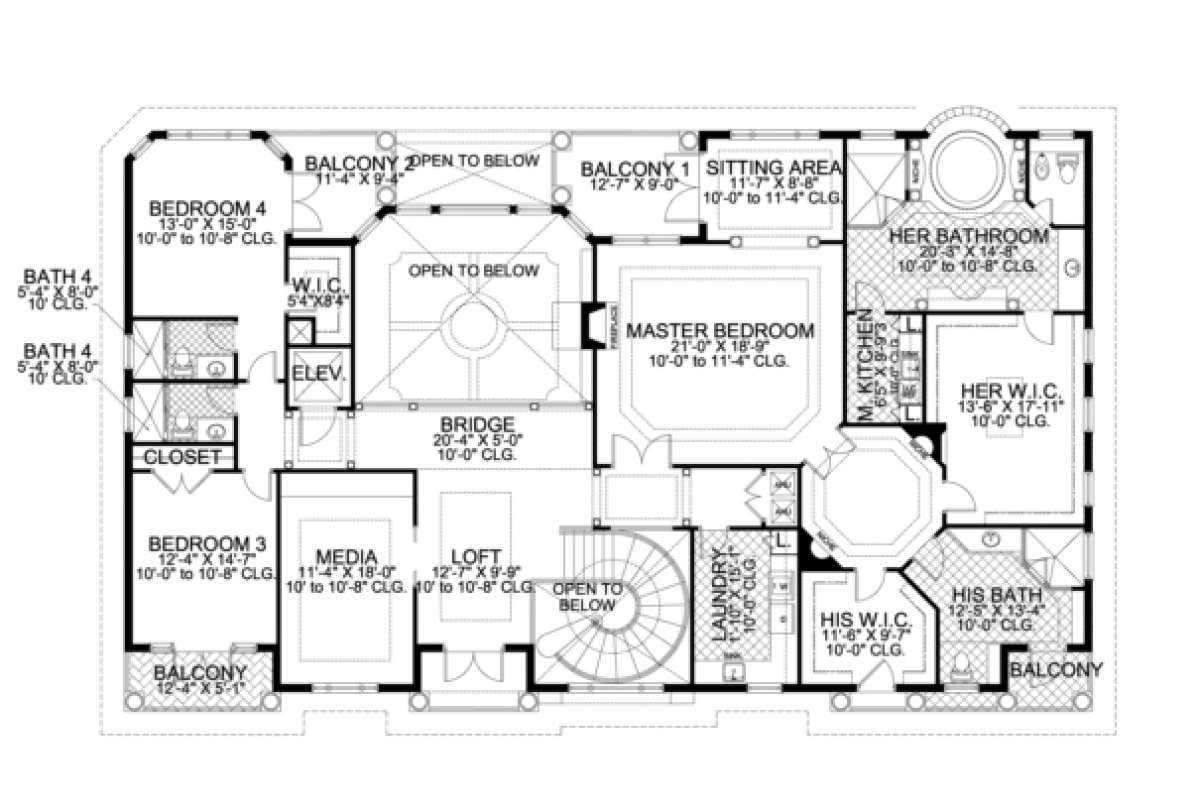

Floorplan 2
Floorplan 2 for House Plan #168-00080

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This unique house plan is evocative of traditional homes situated off the coast of the Mediterranean Sea. With its superior use of traditional Spanish elements such as tile roofing, craftsman ironwork and balconies, a stunning exterior façade is created. The beautiful open gallery entrance with 8’ French doors and arched transom accents lead to a spacious foyer with side curved staircase. A library is set off the other side of the foyer and is accessed through French doors giving this space a luxurious feel and providing an intimate space in which to entertain intimate friends and business associates. The formal living room has coffered ceilings, stately fireplace and access to the rear covered patio. The rear patio features a summer kitchen and pool/deck area which is ideal for relaxing and entertaining family and friends. A gourmet kitchen with center island, breakfast bar is situated directly opposite the large formal dining room with trey ceiling and butler’s pantry. The café and family room are at the rear of the kitchen and provide an informal family space in which to relax and unwind. A guest suite provides private access, a generous closet and private bath. A cabana bath, powder room, residential elevator along with a two bay and single bay garage complete the main level of the home. As you ascend the staircase, you are greeted with an open loft area and bridge hallway with views to the open living room. A large media room is situated off the loft and provides a more informal entertaining area for family and close friends. The laundry room is located upstairs for convenience and provides plenty of plenty of counter and closet space. Bedroom three enjoys generous closet space, access to a private bath and a private balcony while bedroom four features a walk-in closet, a private bath and private balcony. The master retreat comprises an entire wing of the second floor and is accessed through French doors into the bedroom which is oversized with soaring ceiling heights. Off the bedroom is an additional sitting room with covered balcony and a morning kitchen. Through the rotunda, you will find his and her walk-in closets and bathrooms. His bath includes an oversized shower, vanity area and private balcony access. Her bathroom features a regal, roman spa tub, separate shower, vanity area and compartmentalized toilet. This palatial home provides wide open spaces perfect for entertaining and yet, offers cozy, intimate spaces ideal for private relaxation.
