Florida House Plan 168-00059

Sq Ft4,779
Beds5
Baths5
1/2 Baths2
Stories2
Cars2
Width54' 9"
Depth75' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

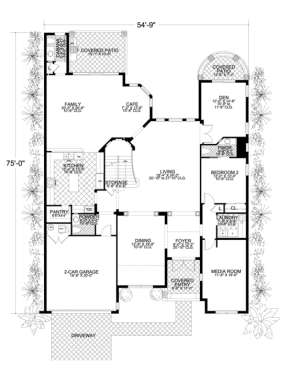

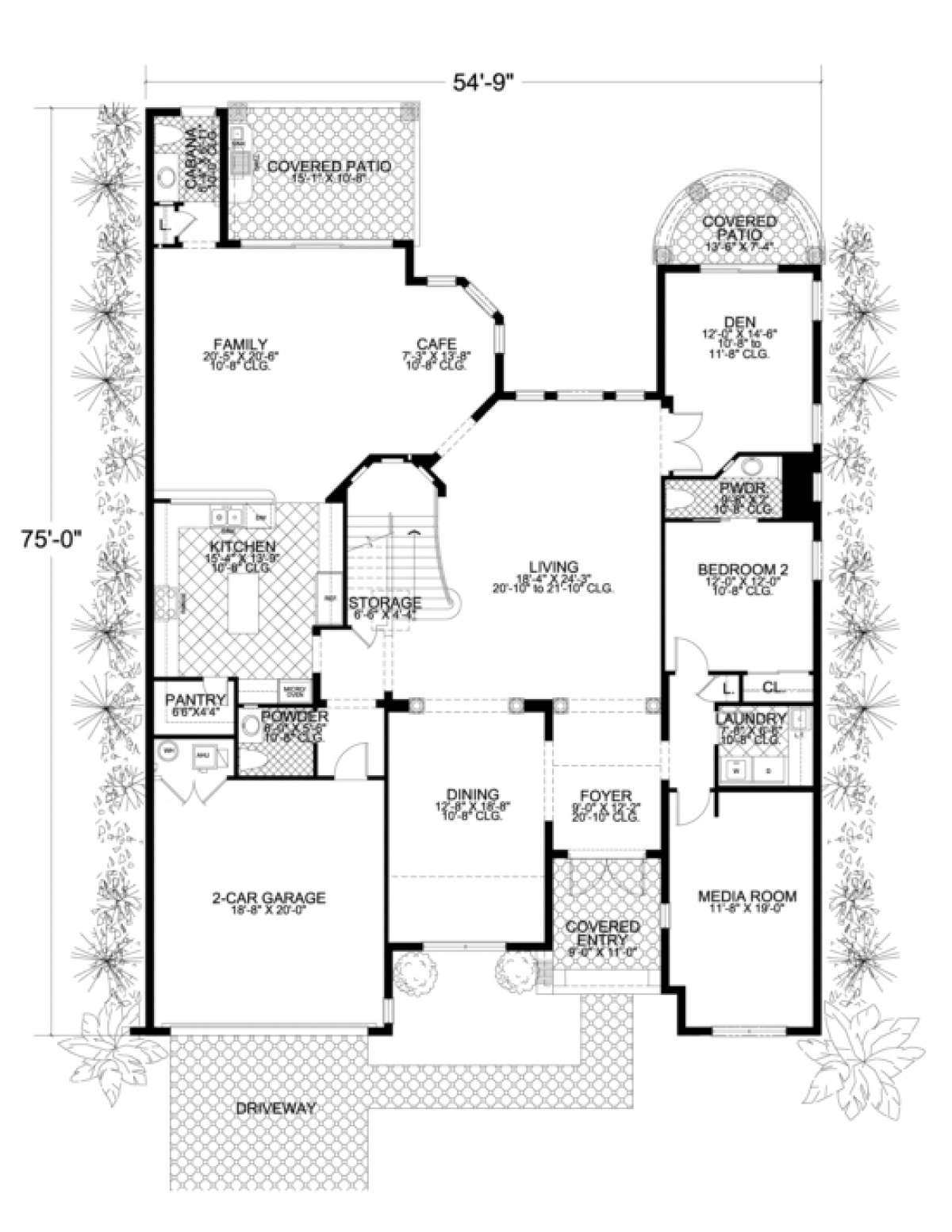

Floorplan 1 for House Plan #168-00059

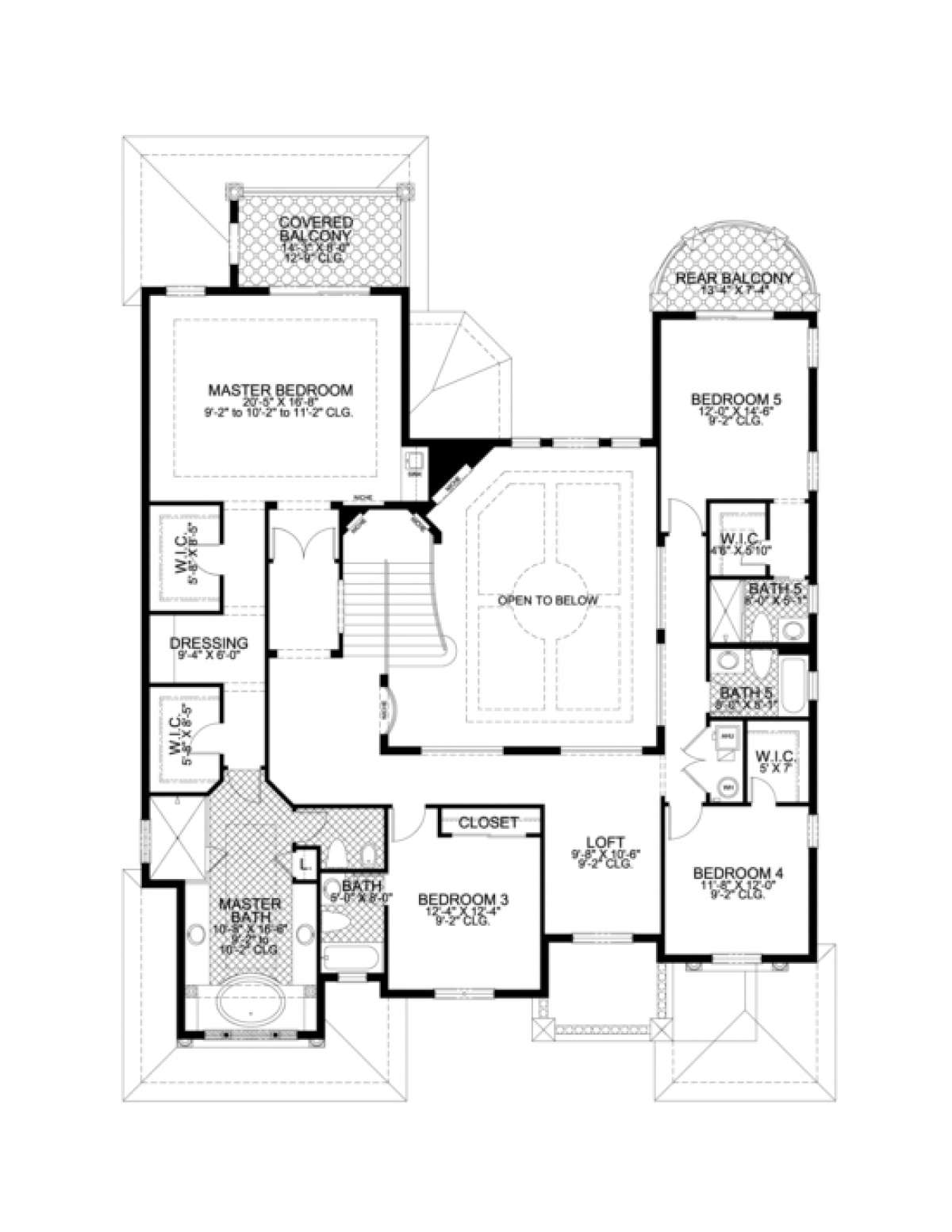

Floorplan 2 for House Plan #168-00059
Floorplan 1
Floorplan 1 for House Plan #168-00059
Floorplan 2
Floorplan 2 for House Plan #168-00059


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This magnificent Mediterranean manor has a bold and exciting exterior façade that beautifully complements the interior floor plan which includes approximately 4,800 square feet of living space. The five bedroom, five plus bathroom and three car garage home represents the finest in classic Mediterranean house plans. The elegant wood paneled double door covered entry leads to the dramatic two story foyer. A spacious dining room is open to the immense living room with a wall of window outdoor view and makes this space an excellent choice for entertaining. The cozy den sits at the rear of the home for privacy and has access to the private rear covered patio. There is also a first floor media room which offers family fun or another entertaining option. The family inspired spaces include the gourmet kitchen with large center island, an oversized walk-in pantry and the triple bay window café which are open to the family room. The family room is immense with covered patio and cabana bath access. A guest or second bedroom has ample closet space and private bath access. The powder room, large utility room and two car garage complete the main level of living.
Upstairs, is the master retreat which occupies one wing of the second story and features an enormous bedroom with trey ceiling accent and access to the large private covered balcony. The large dressing area is flanked by his and her oversized walk-in closets. The elegant and carefully crafted master bath features a Roman spa tub, separate shower, dual vanities and private toilet area. There is a centrally located loft between the additional bedrooms which is ideal for a lounge area or homework station for the children. A third bedroom features ample closet space and a private bath while the fourth bedroom offers a walk-in closet and private bath access. Bedroom five enjoys the largest space with a private bath, walk-in closet and access to the private rear balcony. This home offers a plethora of open spaces for entertaining and an equal abundance of private spaces for family relaxing.
