Florida House Plan 168-00055

Sq Ft4,699
Beds6
Baths5
1/2 Baths1
Stories2
Cars3
Width54' 9"
Depth82' 2"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

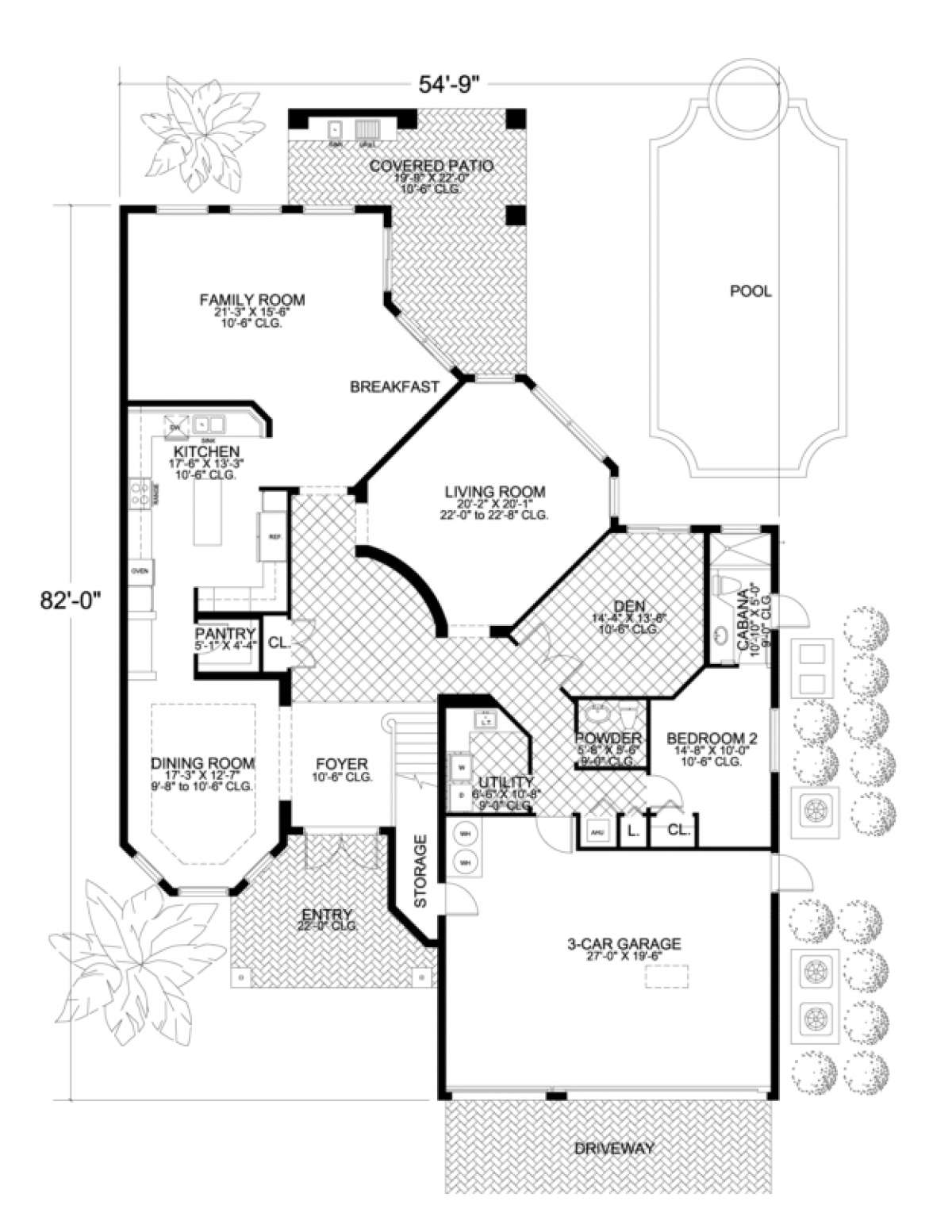

Floorplan 1 for House Plan #168-00055

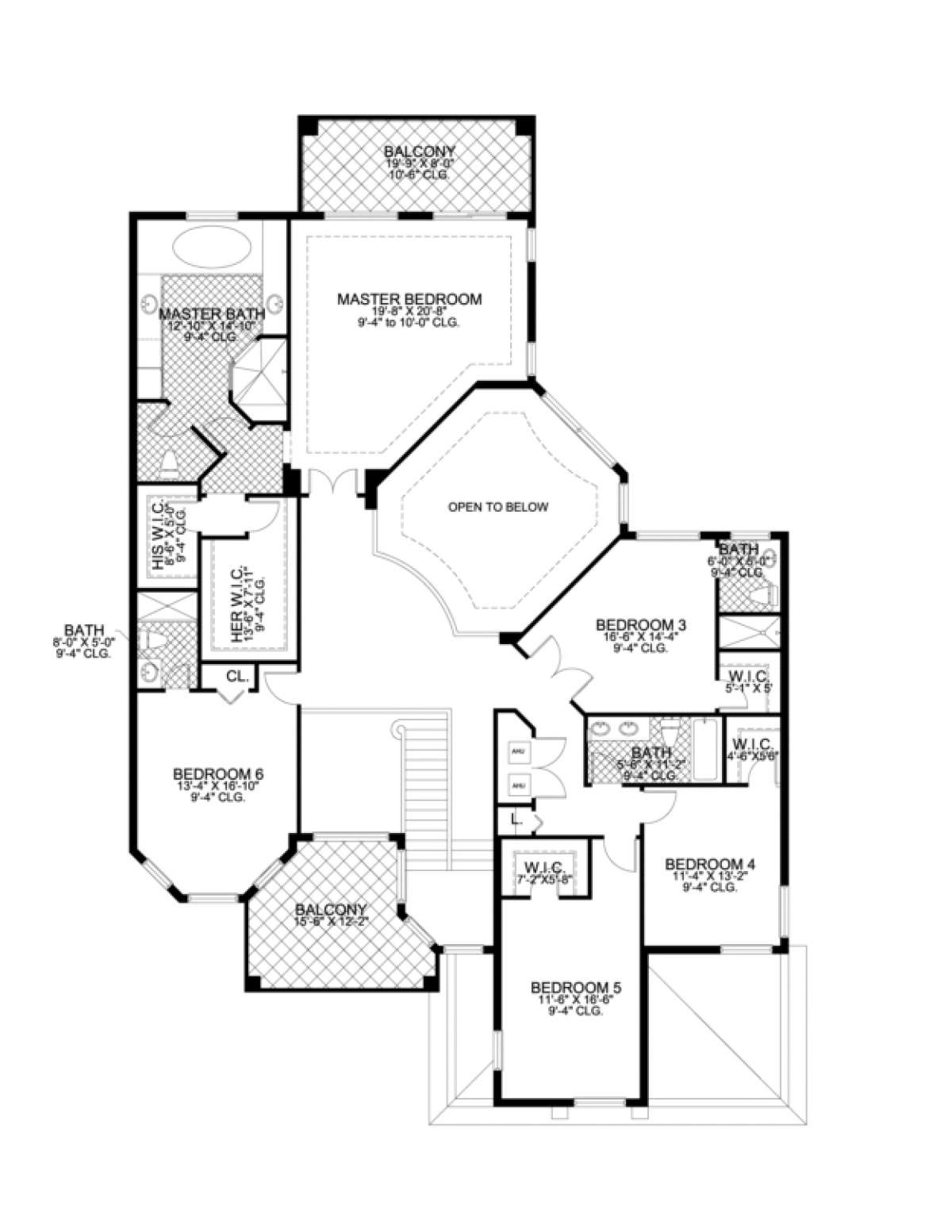

Floorplan 2 for House Plan #168-00055
Floorplan 1
Floorplan 1 for House Plan #168-00055
Floorplan 2
Floorplan 2 for House Plan #168-00055


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This sprawling Spanish style manor features an abundance of living space in approximately 4,700 square feet and a luxurious exterior façade. The outdoor spaces in this home are highlighted by a beautiful front courtyard and rear covered patio. The front courtyard offers a traditional Mediterranean grand covered entrance with double doors. The red tiled roofing and generous use of windows create an outstanding contrast and highlights the front balcony. There are six bedrooms, five plus bathrooms and a three car garage included in the interior floor plan. The spacious foyer houses the side staircase and is open to the sizable dining room with a triple bay window and leads to the kitchen. The gourmet kitchen has a walk-in pantry, a center island and loads of additional counter and cabinet space. A breakfast room and enormous family room is adjacent to the kitchen and has plenty of window views and rear courtyard access. The centrally located living room is an outstanding space in which to entertain and provides rear patio access. The private den is accessible through French doors and makes the perfect spot to relax or welcome business associates. A large guest suite has generous closet space and private access to the cabana bath. A large utility room with sink and counter space along with a powder room is situated on the main level along with the three car garage. There are multiple storage and closet areas in the home making it comfortable and versatile.
The upstairs sleeping areas are numerous and large and there is a bridge hallway overlooking the living room. Bedroom three has a private bath and walk-in closet while bedroom four and five, each have a walk-in closet and share a hall bath with dual vanities and linen closet. The sixth bedroom is quite spacious with a triple bay window view of the balcony and contains a large closet and private bath. The master retreat has private French door access and enjoys a large footprint. The master bedroom features a trey ceiling and private balcony views/access while huge oversized walk-in closets sit at the rear of the master bath. The master bath is grand and is highlighted by wall length garden tub, separate shower, dual vanities and a compartmentalized toilet. This home has generous open living spaces and private retreats in a sizable interior floor plan which makes it ideal for a large family.
