Ranch House Plan 168-00032

Name: House Plan 168-00032 - Ranch Plan: 5,131 Square Feet, 5 Bedrooms, 5 Bathrooms
Brand: America's Best House Plans
SKU: 168-00032
Price: 1445.00 USD

Sq Ft5,131

Beds5

Baths4

1/2 Baths2

Stories1

Cars3

Width89' 2"

Depth113' 1"

SALE

Ranch House Plan #168-00032 Elevation Photo

Exterior Interior Floor Plans Client Photos

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

PLANS FROM ~~$1,700~~ $1,445.00

SEE WHAT'S INCLUDED WITH THESE PLANS

Select Package

Select Foundation

Additional Options

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD Images copyrighted by the designer.

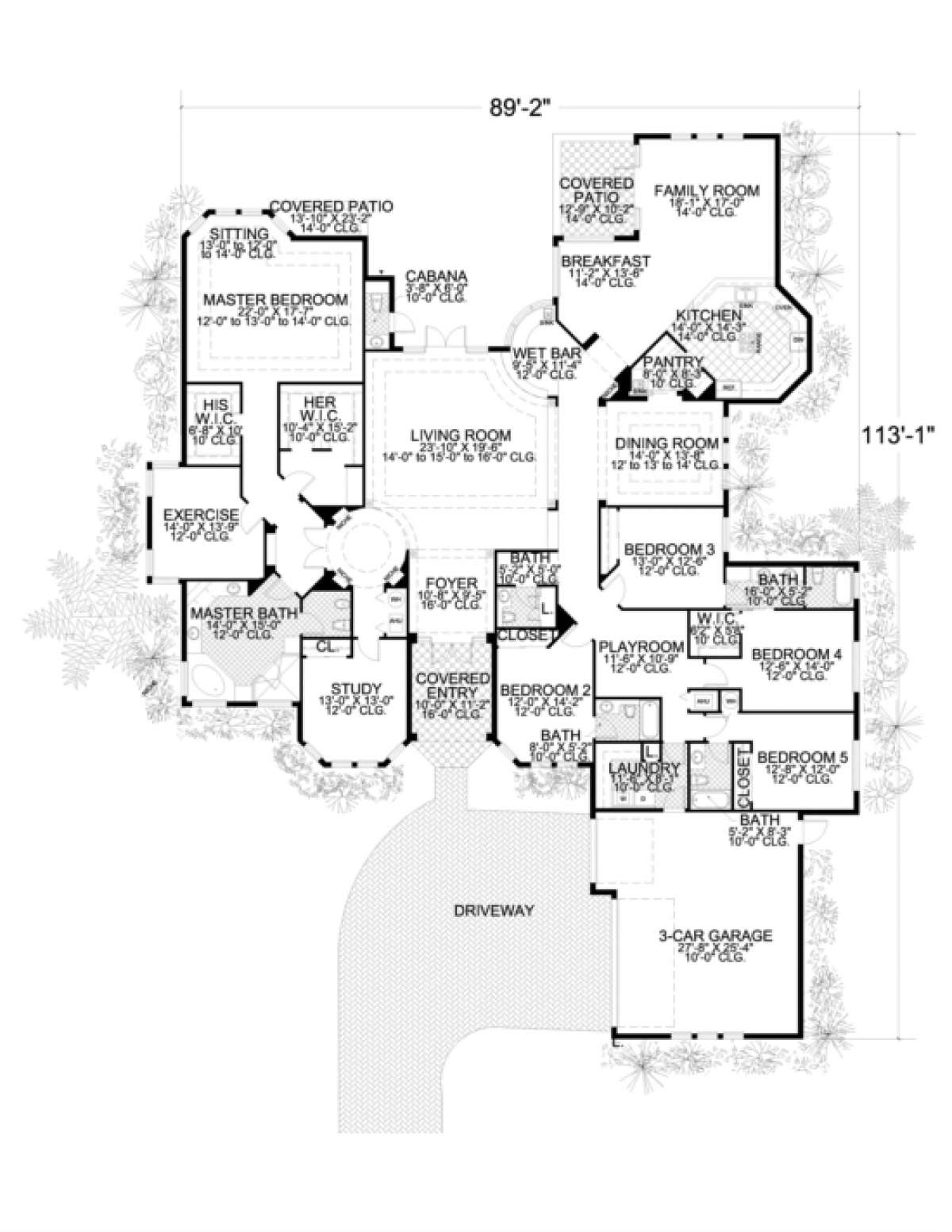

Floorplan 1

MODIFY THIS PLAN

MODIFY THIS PLAN IN
4 EASY STEPS...

1 Tell Us About Your Modifications

Send us a description of the changes you want to make, using the form below. You may optionally include marked up drawings with your written request. Once received, we will send you a confirmation email letting you know we are working on a quote.

Show Me An Example

2 Review Your No-Obligation Quote

One of our designers will review your request and provide a custom quote within 3 business days. The quote will include the price for the modifications, plus the time frame needed to complete the changes.

3 Submit Payment & Hire A Designer

Once you approve the quote and submit payment, your designer will get to work!

Can I See The Plans Before Paying?

4 Receive Your Modified Plans!

Custom modifications typically take 3-4 weeks, but can vary depending on the volume and complexity of the changes. The exact time frame to complete your plans will be specified in the quote.

Get started on your dream home today!

Fill out the form below, or fax us at 1-678-388-9651 to receive your free no-obligation quote.

First Name:
Last Name:
State where you plan to build:
Phone:
E-mail Address:
Please leave blank:
----------

Select a Foundation:: Please include any needed foundation changes in the modification request below.
Describe The Modifications You Need:
File Upload 1 (Optional):
File Upload 2 (Optional):
File Upload 3 (Optional):

Details

Total Heated Area:5,131 sq. ft.

-- First Floor:5,131 sq. ft.

-- Garage:708 sq. ft.

Floors:1

Bedrooms:5

Bathrooms:4

Half Baths:2

Garages:3 car

Width:89ft.-2in.

Depth:113ft.-1in.

Height:31ft.

Foundation:Slab Foundation

Main Roof Pitch:5:12

Exterior Framing:CMU

Need different framing?

Get a free modification quote.

CEILING HEIGHTS

First Floor:varies feet

Additional Specs:Show Room Dimensions

	(width x depth x height)
Bath 2:	8 x 5-2 x 10
Bath 3:	16 x 5 x 10
Bath 4:	5-2 x 8-3 x 10
Bedroom 2:	12 x 14-2 x 12
Bedroom 3:	13 x 12-6 x 12
Bedroom 4:	12-6 x 14 x 12
Bedroom 5:	12-8 x 12 x 12
Breakfast:	11-2 x 13-6 x 14
Cabana Bath:	3-8 x 6 x 10
Covered Entry:	10 x 11-2 x 16
Covered Patio 1:	13-10 x 23-2 x 14
Covered Patio 2:	12-9 x 10-2 x 14
Dining Room Coffered:	14 x 13-8 x 14
Exercise:	14 x 13-9 x 12
Family Room:	18-1 x 17 x 14
Foyer:	10-8 x 9-5 x 16
Garage 3 car:	27-8 x 25-4 x 10
Hers W.i.c.:	10-4 x 15-2 x 10
His W.i.c.:	6-8 x 10 x 10
Kitchen:	14 x 14-3 x 14
Laundry:	11-6 x 8-1 x 10
Living Room Coffered:	23-10 x 19-6 x 16
Master Bath:	14 x 15 x 12
Master Bedroom Coffered:	22 x 17-7 x 14
Playroom:	11-6 x 10-9 x 12
Powder Room:	5-2 x 5 x 10
Study:	13 x 13 x 12

Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

About This Plan

Artistically speaking, this Mediterranean style traditional ranch offers a visually stunning exterior and an equally spectacular interior floor plan. The use of traditional architectural features such as the tile roofing, arched windows and the towering covered entrance gives this home massive curb appeal. The spacious foyer with soaring height lets your family and guests know they are in for a treat as you greet them. The oversized living room with double trey ceiling, which is centrally located, anchors the home beautifully and is open to the circular wet bar and provides French door access to the rear covered patio. The formal dining room is open to the living room and provides an excellent space in which to entertain family and friends. As you travel towards the rear of the home, you will find the less informal kitchen, breakfast area and family room. The gourmet kitchen offers a unique shape and features a center island, breakfast bar area and a separate walk-in pantry that would delight any cook. The breakfast area is sunny and bright with window views to the rear patio while the family room is spacious and offers rear patio access. The master retreat is secluded on one side of the home for privacy and is an outstanding space in terms of space and amenities. The rotunda ends in double doors that lead to the master retreat and offers multiple options in terms of which space you enter. There is a large study with a triple bay window and generous closet, an exercise room with double corner windows which allows plenty of warmth and sunlight into the room. Additionally, the master bath can be accessed off the rotunda and is beautifully appointed with dual vanities, a large, corner garden tub, an oversized shower and a compartmentalized shower. His and her walk-in closets are huge and lead to the master bedroom which measures 22’x17’7”, offers a double trey ceiling and triple bay window enclosed sitting area. The children’s or guest wing of the home offers a centrally located playroom, four additional bedrooms, each with either a walk-in closet or generous spaced closet, three and ½ bathrooms and a large utility room. The three car garage is off the courtyard and contains enough space for additional storage. This home is ideal for a large family and offers spacious and private spaces which are ideal for living and entertaining large groups of people.
