Ranch House Plan 110-00046

Sq Ft1,871
Beds3
Baths2
1/2 Baths1
Stories1.5
Cars2
Width73' 4"
Depth51' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #110-00046
Floorplan 2 for House Plan #110-00046
Basement for House Plan #110-00046
Floorplan 1
Floorplan 1 for House Plan #110-00046
Floorplan 2

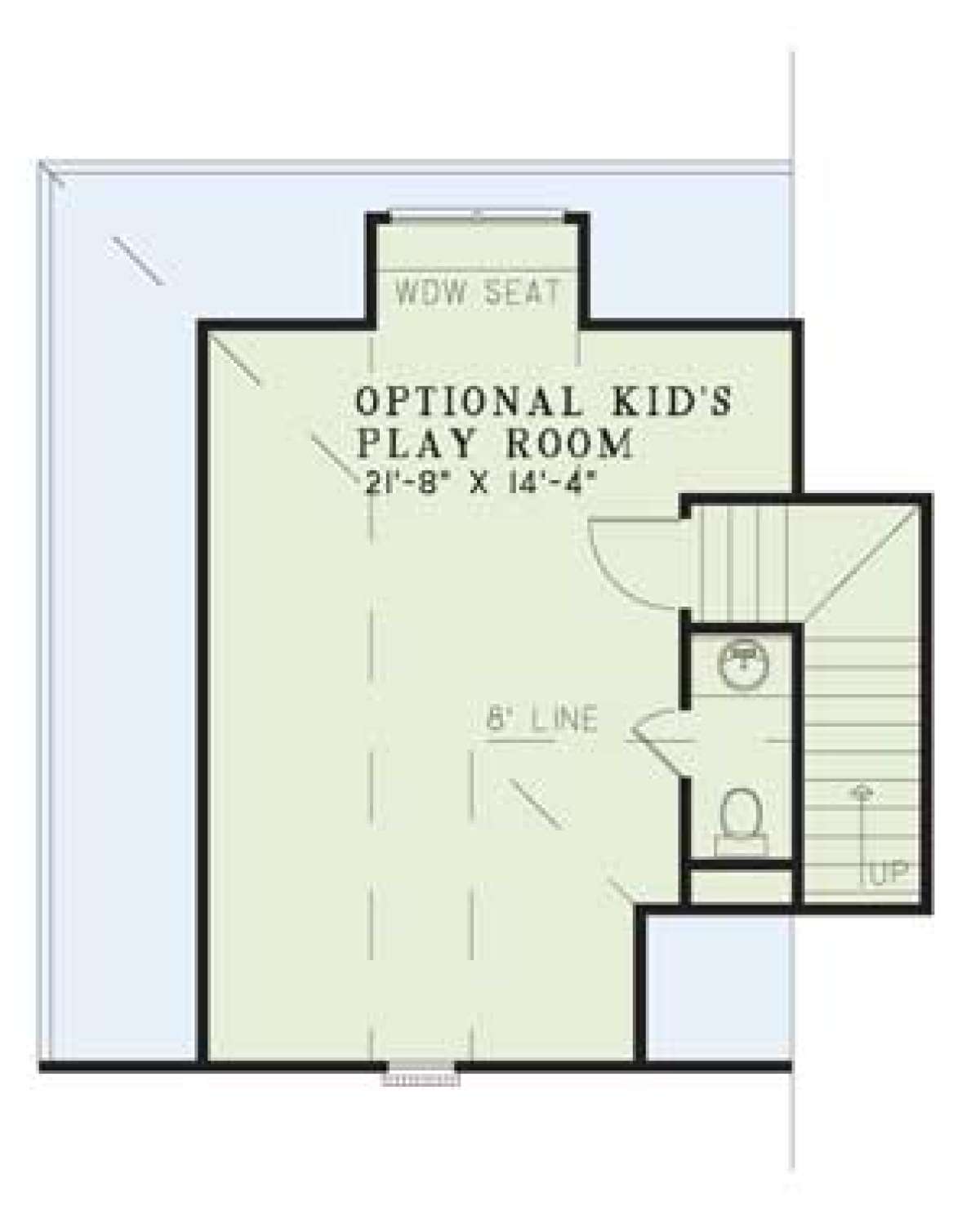

Floorplan 2 for House Plan #110-00046
Basement

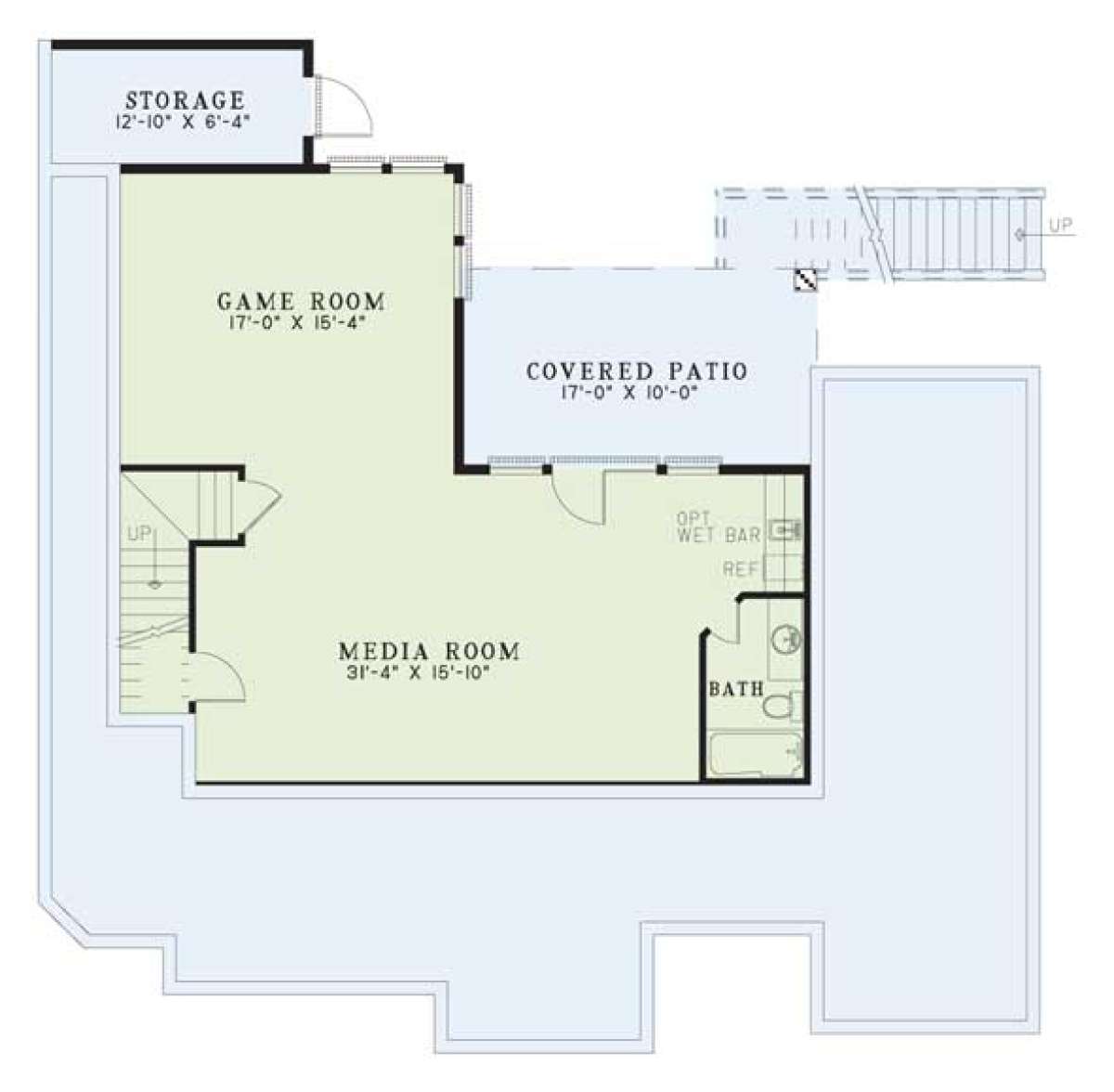

Basement for House Plan #110-00046


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

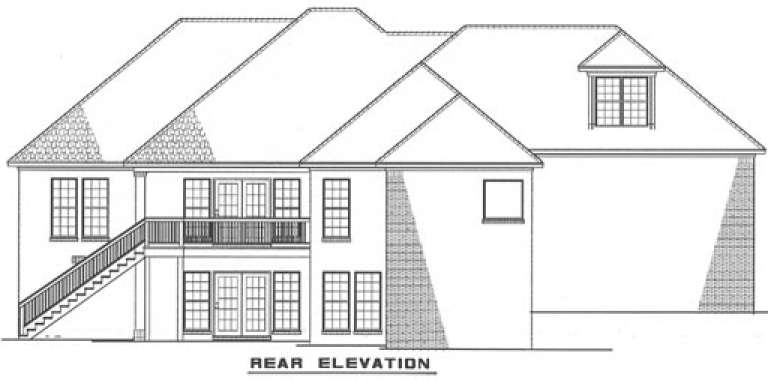

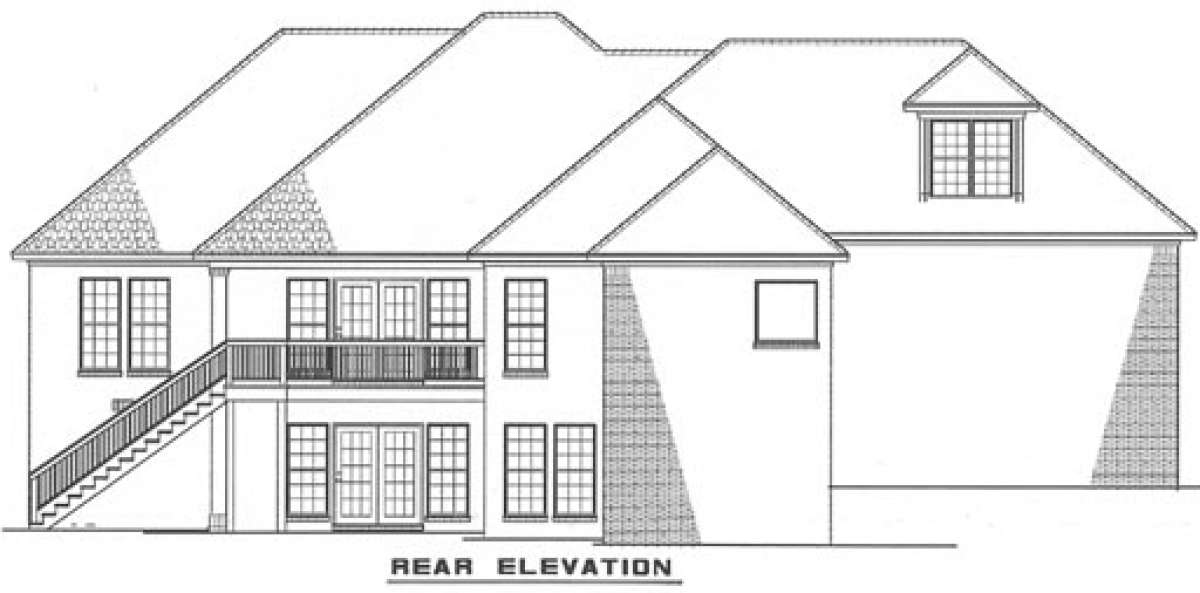

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This gorgeous Ranch house design features a striking exterior, spacious interior and the choice of a slab, crawl space or basement foundation for a complete home package. The exterior features a series of varying roof lines, stone and brick work, wonderful window views and an attractive front covered porch entrance. The interior is highlighted with approximately 1,871 square feet of usable living space that incorporates three bedrooms and two plus baths into the home. There is additional room found in the bonus space, approximately 390 square feet, which could be utilized as numerous family options; a playroom for the children, a home office/study or multi-purpose family room. The basement also contains expanded family space to include a massive media room with optional wet bar, a game room and half bath. There is covered patio access from the media room; great space for relaxing and “hanging out” as well as a large exterior storage room for seasonal outdoor items.

The main floor of the home is a nice compilation of spacious and well laid-out rooms for entertaining and private family space. The foyer features 10’ ceiling heights and grants access to the open dining room and great room. The formal dining room is highlighted with 10’ ceiling heights, double window views and is a generous space in which to enjoy special occasion family meals. The great room offers a massive amount of entertaining space, a handsome fireplace and built-in cabinetry. Access onto the covered deck is through the great room where there is plenty of room to entertain and relax. The grand kitchen features a center island, a separate pantry, a desk area and plenty of additional counter and cabinet space. There is an adjoining breakfast room which is bright and airy. The large laundry room is highlighted with enough space to include freezer room and a sink area. The two car front loading garage features great vehicle and storage space. Two family styled bedrooms are situated on one side of the home; each bedroom is equivalent sized, features plentiful closet space and great window views. There is a shared hall bath with double flanking closets; one for linens, the other storage. The master suite lies at the rear of the home for privacy and features a large master bedroom with an accompanying 10’ boxed ceiling and wonderful window views. There are his and her walk-in closets on either side of the master bath. The master bath features vaulted ceilings, a whirlpool tub, separate shower, dual vanities and a toilet area. This home design offers a flexible layout with loads of expansion space, a striking exterior and a family friendly floor plan.
