Traditional Plan 036-00077

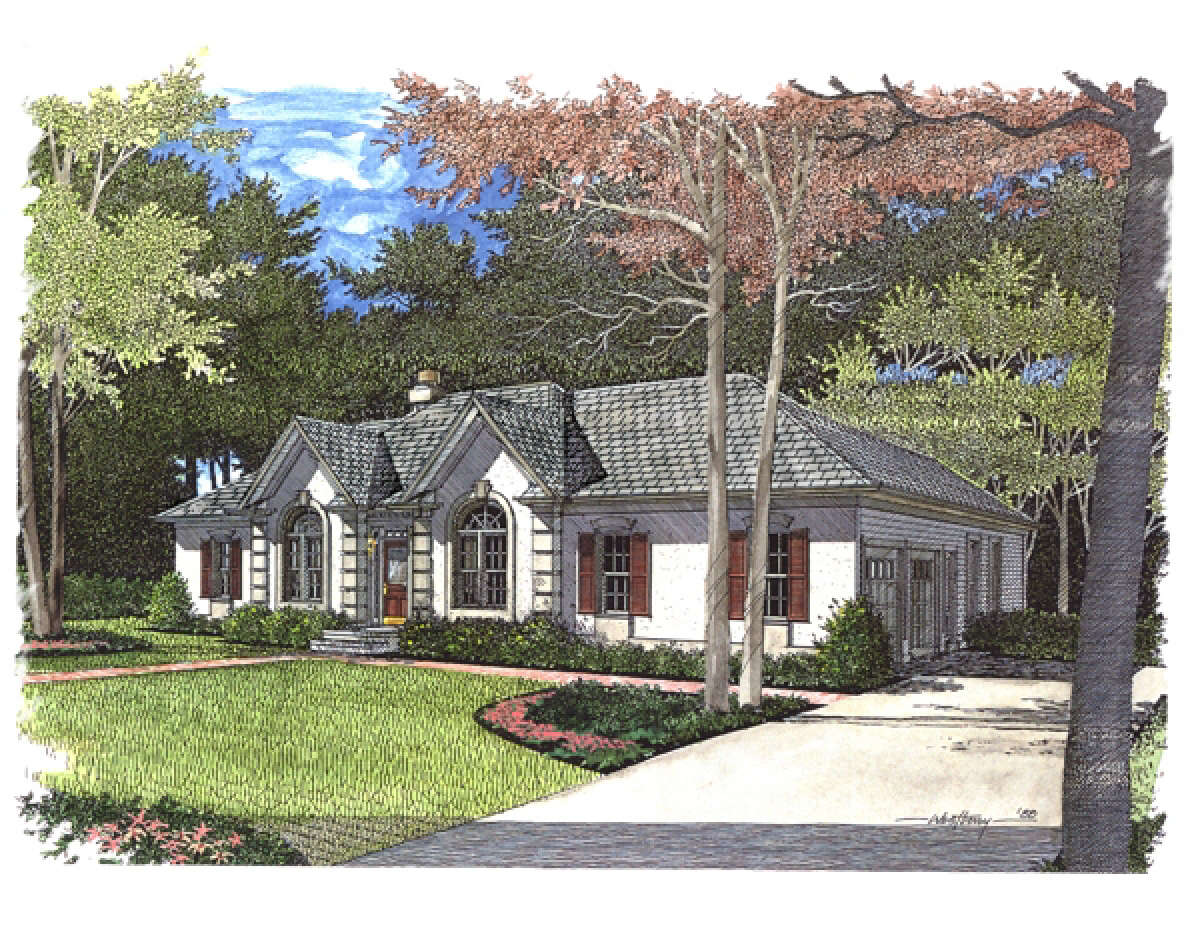

Traditional House Plan #036-00077 Elevation Photo
Floorplan for House Plan #036-00077
SALE
Traditional House Plan #036-00077 Elevation Photo
Floorplan for House Plan #036-00077

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Images copyrighted by the designer. Photographs may reflect a homeowner modification.
Sq Ft 2,006
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 66'
Depth 54'

Floorplan Drawings

 PRINT  DOWNLOAD

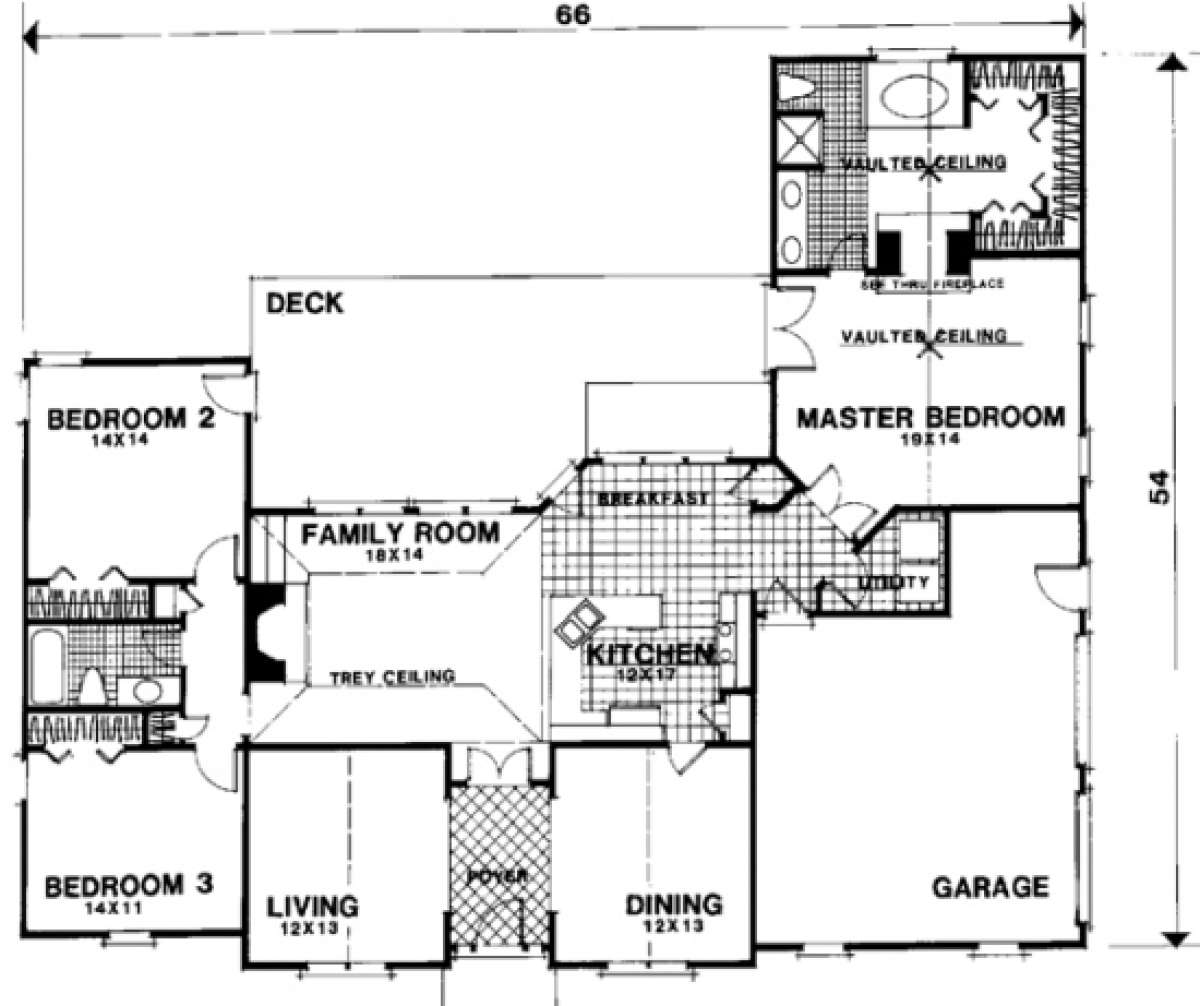

Floorplan for House Plan #036-00077
Floorplan
Floorplan for House Plan #036-00077
Images copyrighted by the designer.


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

A comfortable European ranch home is highlighted in this house plan. The spacious foyer provides entry into the home and anchors the large vaulted living and dining rooms on either side. The kitchen and breakfast room is large with an abundance of cabinet and counter space and offers rear deck access. The 18’x14’ family room has a fireplace, plenty of windows, a built-in entertainment center and trey ceiling making it a large and airy space. Two bedrooms with ample closet space and a shared hall bath are located on one side of the home while the master suite’s location on the opposite side allows for privacy. The master suite features vaulted ceilings and a see thru fireplace placed between the bedroom and bathroom. The master bath is vaulted as well and offers dual vanities, a garden tub and separate shower. An oversized walk-in closet completes the master suite. A two car, side entry garage with access to the laundry area for convenience is also included in the house plan. This home is ideal for a family that craves open and bright living spaces.
