Ranch House Plan 036-00051

Sq Ft1,814
1/2 Baths0
Width64' 0"
Depth52' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

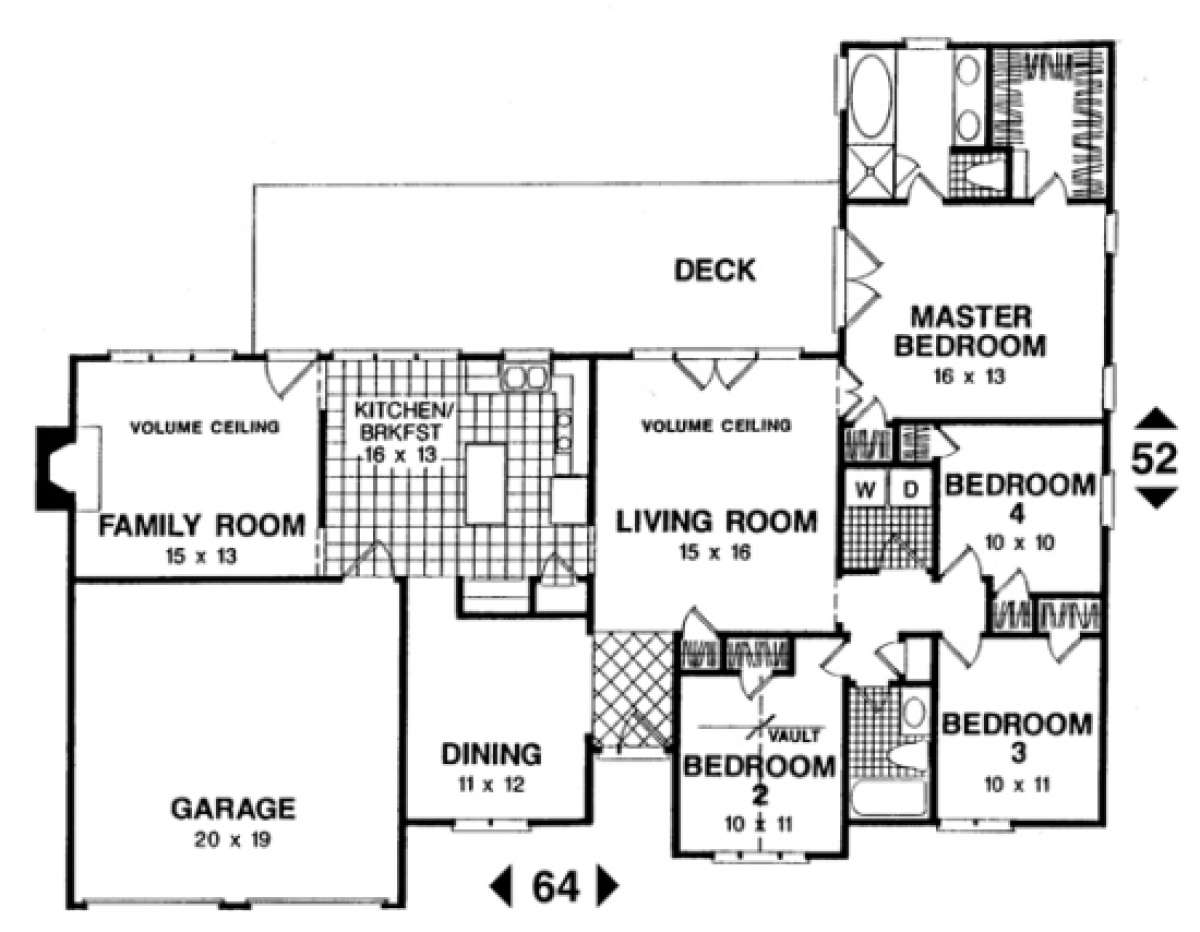

Floorplan for House Plan #036-00051
Floorplan for House Plan #036-00051

Frequently Asked Questions


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This quintessential ranch offers style and comfort. There are four bedrooms; three of which contain ample closet space and share a hall bath with the laundry room located at the opposite end of the bedroom(s) hall. The master suite offers a large bedroom with an oversized walk-in closet, access to the deck and a master bath which includes dual vanities, a separate shower and a garden tub. The living room has volume ceiling, a wall of windows and French doors leading to the oversized deck. The kitchen and breakfast area are large and offer a desk, roomy pantry, a large center island and plenty of cabinet and additional counter space. The kitchen is open to the front facing dining room which offers a formal dining option as well. There is a large family room with fireplace located at the back of the home which also offers rear deck access. The two car garage completes the home. This home offers plenty of space and style in which to raise your family.
