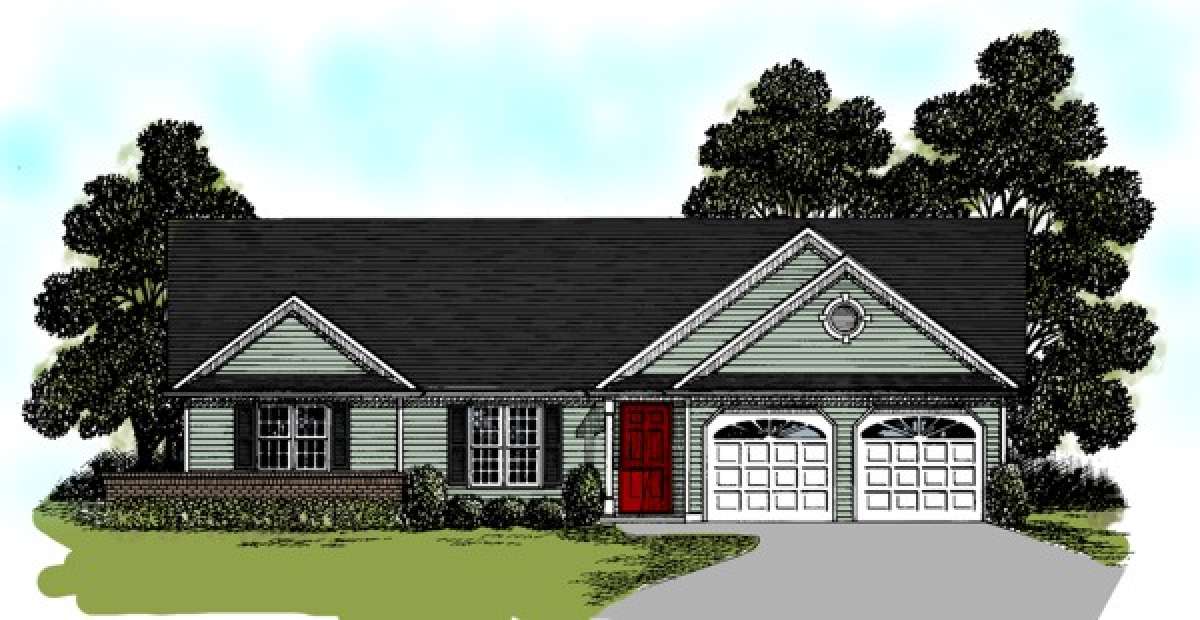

Ranch House Plan #036-00028 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 1,500

Beds 3

Bath 2

1/2 Baths 0

Car 2

Stories 1

Width 55'

Depth 45'

See What's Included

Select Package

PDF (Single Build)

$1,295.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$2,795.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

5 Sets (Single Build)

$1,345.00

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

8 Sets (Single Build)

$1,395.00

PHYSICAL FORMAT
Eight printed sets of working drawings mailed to you. This package comes with a license to construct one home.

CAD Files (Single Build)

$1,795.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

CAD Files (Unlimited Build)

$3,295.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once. Requires a CAD program to open the files by a design professional.

Select Foundation

Slab Foundation $0.00

Crawlspace Foundation $350.00

Basement Foundation $350.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $65.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $295.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x6 Conversion $350.00

Convert the exterior framing to 2x6 walls.

Material List $295.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.

Return Policy, Building Code & Copyright Info

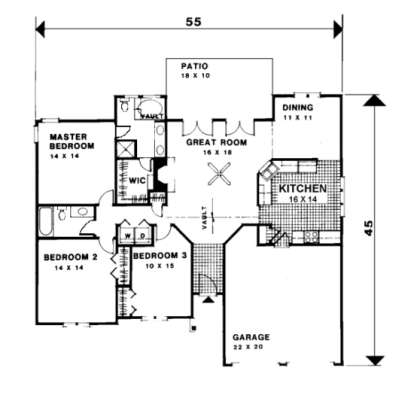

Floorplan Drawings

REVERSE PRINT DOWNLOAD

Floorplan

Images copyrighted by the designer.

What's Included in these plans?

Artist Rendering
Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
Floor Plans: Scale: 1/4"=1'
Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
Roof Plan: Scale: Either 1/4" or 1/8"=1'
Building Sections: Included with most plan sets
Wall Sections: Included with all plans in Detail Sheet Package
General Notes and Details: Included with all plans in Detail Sheet Package

Ask Us A Question

About This Plan

This impressive brick and siding exterior ranch offers an abundance of living space in its 1500 square feet. The great room is large, vaulted, has a fireplace and offers double French doors leading to the rear outdoor space. The dining room anchors both the great room and kitchen and is bright and sunny. The kitchen is quite large and contains an angled counter top, plenty of counter and cabinet space, a separate pantry along with triple windows which allow for maximum sun exposure and gives the kitchen an open and airy feeling. Two oversized bedrooms with ample closet space share a hall bath while the master suite includes a large bedroom, an oversized walk-in closet and a master bath. The master bath offers dual vanities, separate shower and a garden tub. This home’s attractive exterior extends into the interior and offers an abundance of design features your family will appreciate.
