Narrow Lot House Plan 028-00089

Sq Ft2,623
Beds4
Baths3
1/2 Baths0
Stories1
Cars2
Width42' 0"
Depth95' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

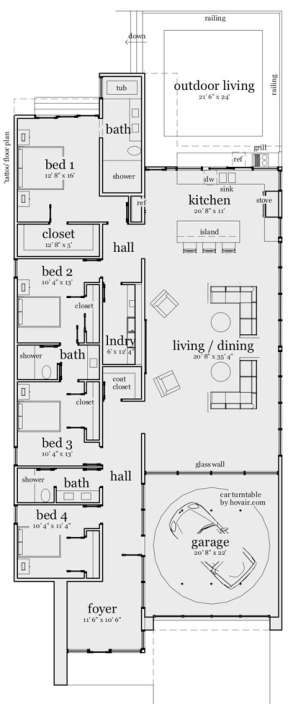

Floorplan 1 for House Plan #028-00089
Floorplan 1
Floorplan 1 for House Plan #028-00089


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

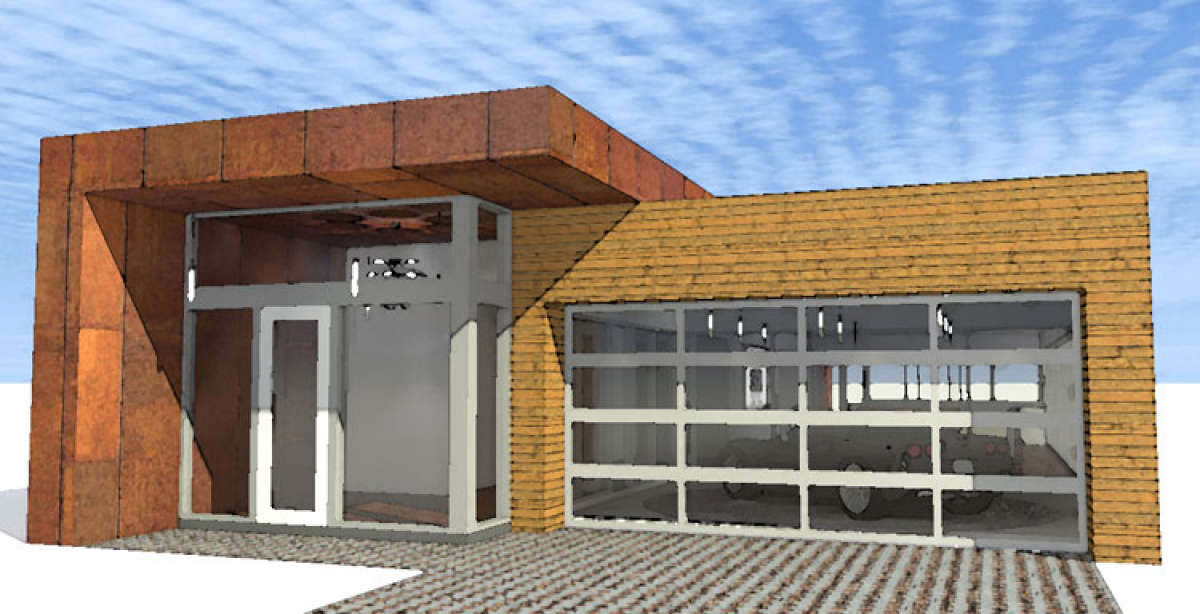

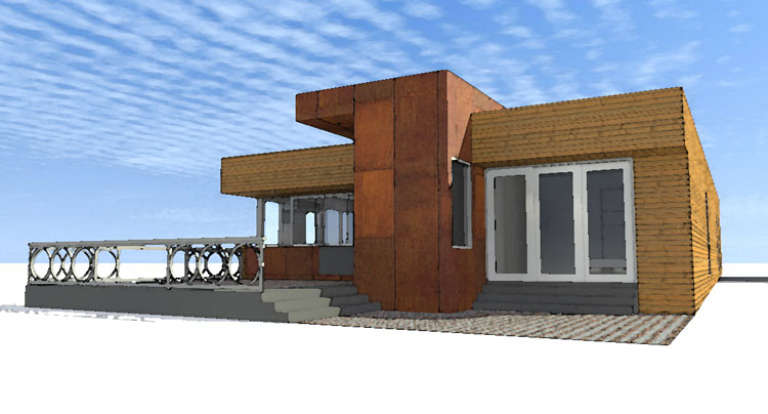

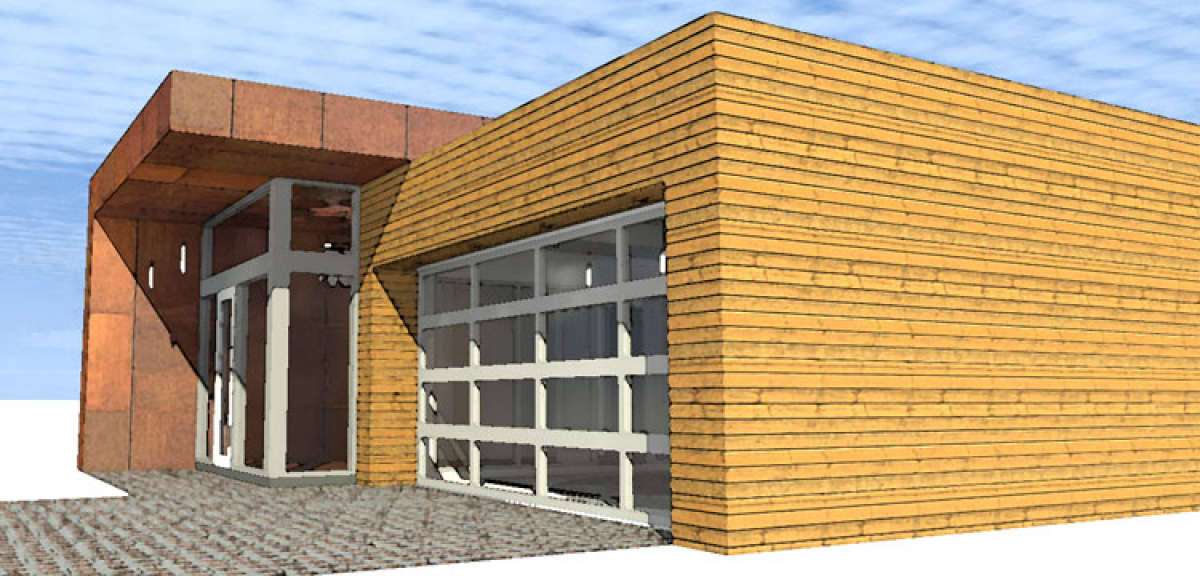

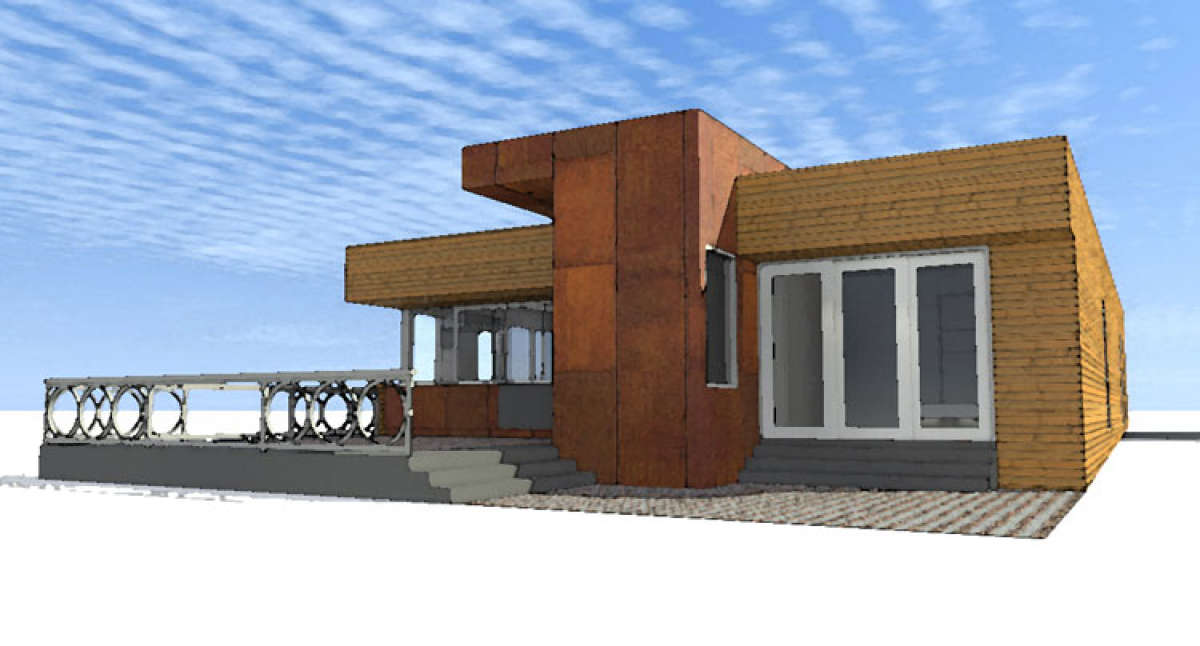

Clean, modern and fresh describe this particular design of contemporary architecture and the 42’ width is ideal for a narrow lot. The warmth and vibrancy of the exterior façade is juxtaposed with an abundance of glass creating what appears to be a glass box framed in burnished colors. The interior floor plan is equally pleasing and features approximately 2,600 square feet of living space which houses four bedrooms and three baths. Additionally, there is an attached garage which features a car turntable. The glass enclosed entrance leads to a spacious foyer containing two family sleeping areas, a hall bathroom and coat closet. Bedrooms three and four feature generous sized rooms with open and ample closet space. There is a shared hall bath with is highlighted by dual vanities, a private toilet area and shower. The secondary hallway houses two additional bedrooms. The second bedroom is, once again, generous sized and has an open walk-in closet space. A shared jack and jill bath is situated between the second and third bedroom. Enclosed in the second hallway is the family laundry room which is quite large and features plenty of counter space and a sink area. The master suite sits at the rear of the home for privacy, provides access to an outdoor space and is highlighted by a spacious bedroom with an attached, oversized walk-in closet. The master bath is an elegant design which is comprised of double vanities, a private toilet and an oversized shower.

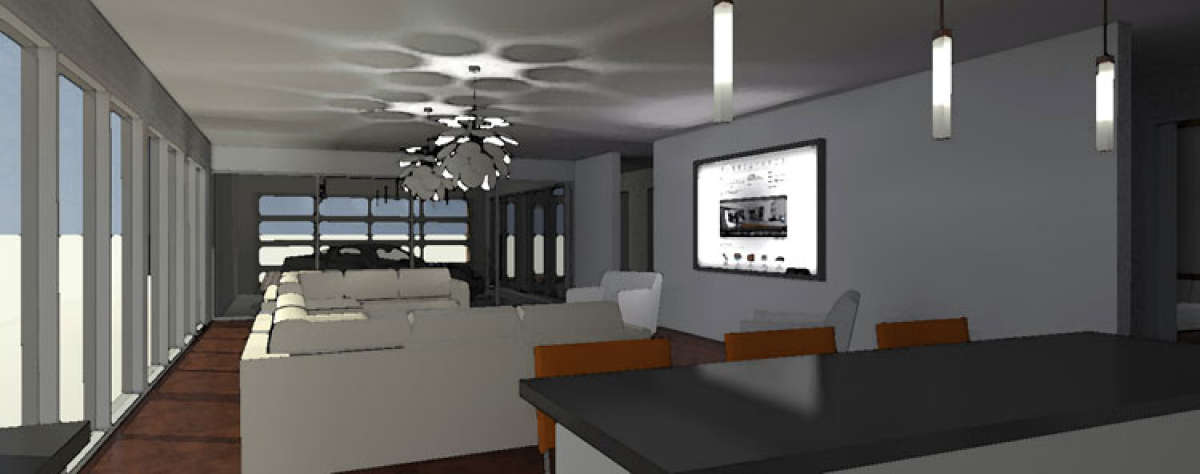

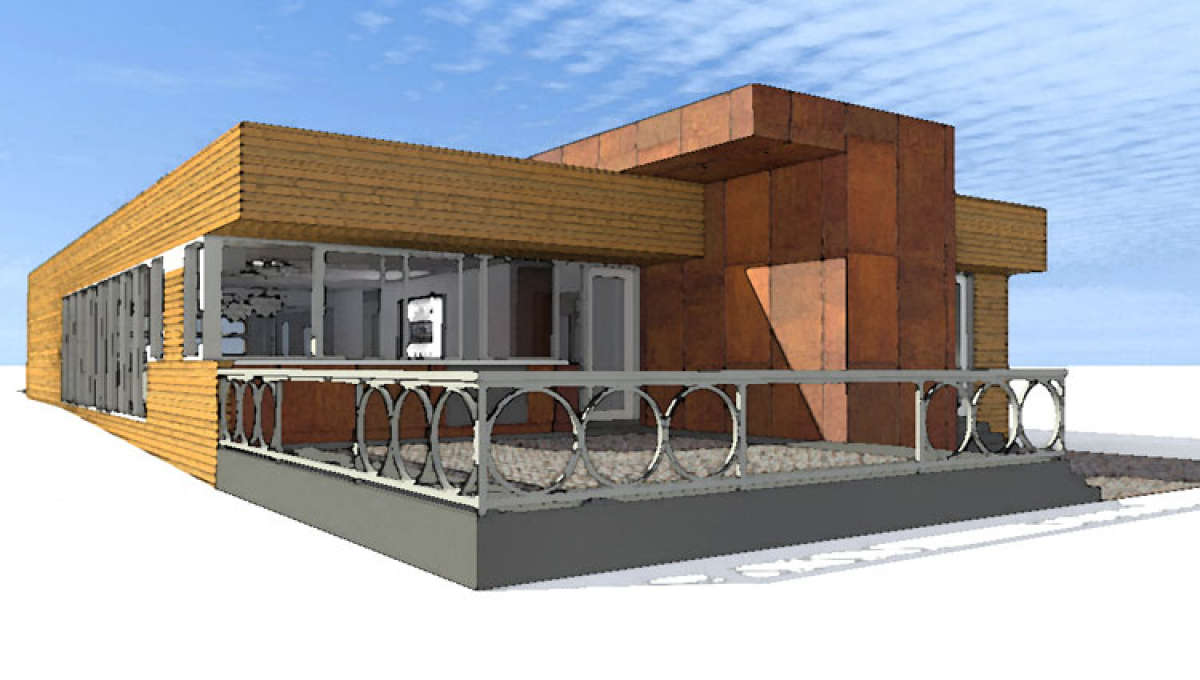

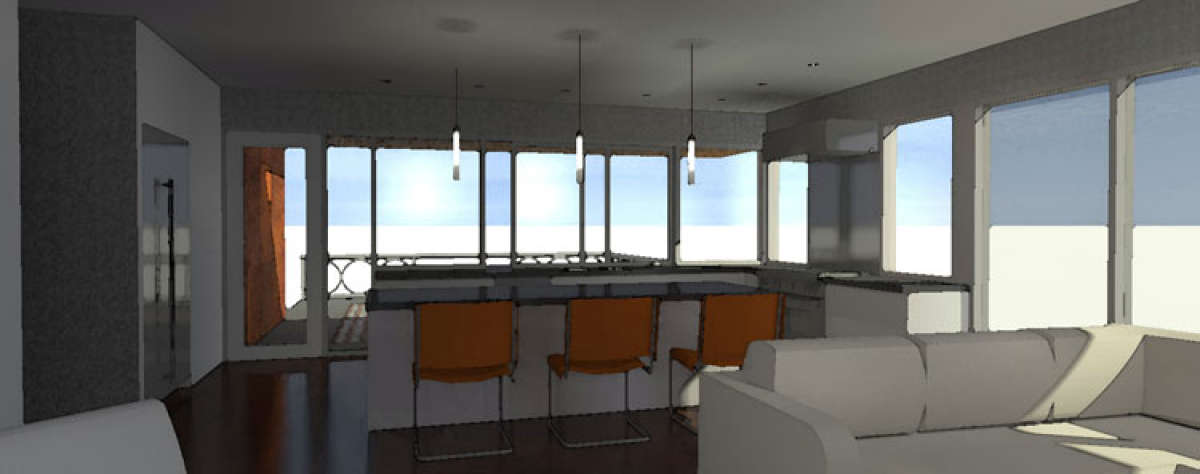

The open concept living areas are enormous and light infused with glass inserts surrounding the space. The combination living and dining space measures in excess of 20’x35’and creates a large space with unlimited furniture placement and entertaining options. One end of the space features a glass wall looking into the garage while the opposite end contains the kitchen space. The gourmet kitchen is highlighted by an expansive center island with breakfast bar and a plethora of additional counter and cabinet space. Beyond the kitchen is the outdoor space which features a summer kitchen and modern geometric railing. This modern house plan features a bold exterior with an interior floor plan that is functional and versatile.
