Narrow Lot House Plan 009-00050EXCLUSIVE PLAN

Sq Ft2,228
1/2 Baths1
Width37' 0"
Depth43' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

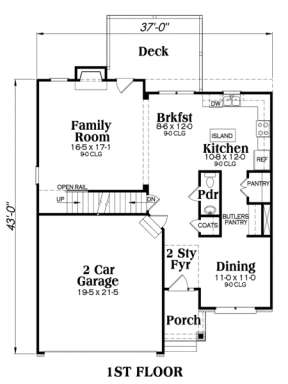

Main Floor for House Plan #009-00050

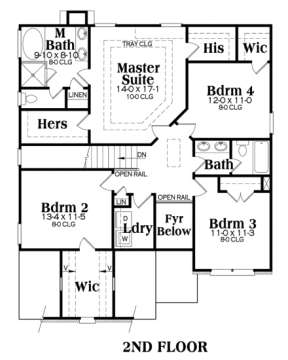

Second Floor for House Plan #009-00050
Main Floor
Main Floor for House Plan #009-00050
Second Floor
Second Floor for House Plan #009-00050

Frequently Asked Questions


What's Included in these plans?

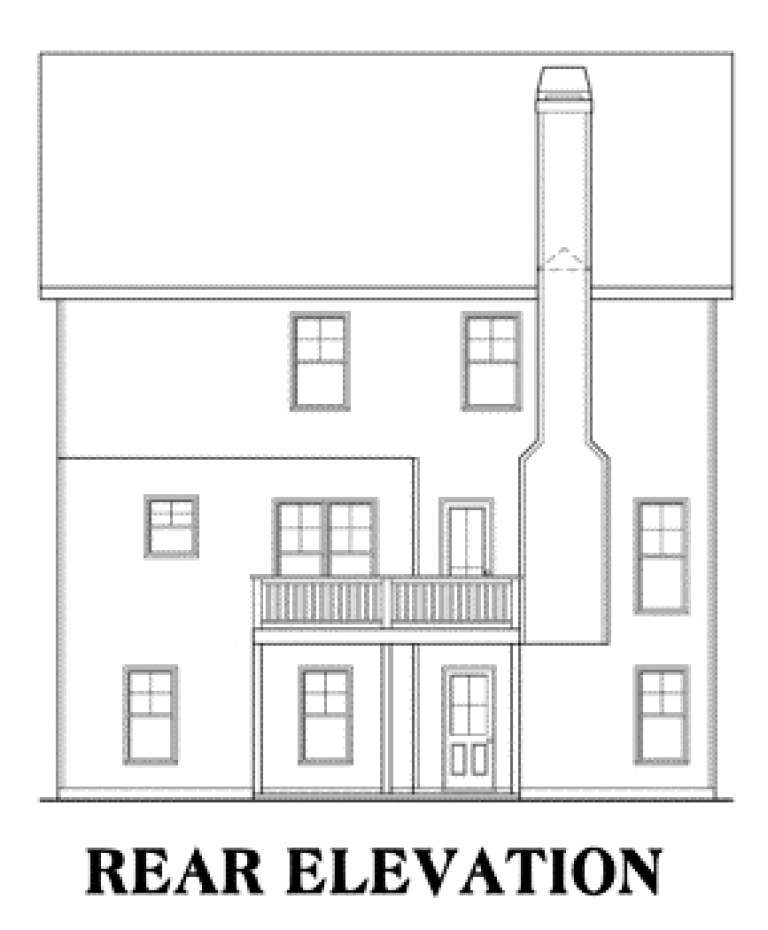

  • Elevations
  • Foundation Plan(s)
  • Floor Plans
  • Electrical Plan
  • Kitchen and Bath Elevations
  • Roof Plan
  • Details which will include typical wall sections, stair sections, rafter details etc.

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This narrow lot plan has a fully functional floor plan with approximately 2,200 square feet of living space. There are four bedrooms and two plus bathrooms highlighted in the two storied home as well as a basement foundation which has the potential to dramatically increase the home’s square footage and versatility. The striking exterior of the home incorporates traditional architectural elements including brick, siding and board and batten. There covered front porch with arched openings leads to the two story foyer which opens onto the formal dining room. The pass-thru to the kitchen contains a butler’s pantry and an oversized, separate walk-in pantry. The gourmet kitchen is an impressive size and features a large center island and plenty of additional counter and cabinet space. The casual breakfast room is cozy and anchors the kitchen and family room. The family room is quite large and features a handsome fireplace and rear deck access. A two car garage completes the main level of the home. The family laundry room is situated on the second floor for ease and convenience. There are three additional family bedrooms, bathrooms and the master suite is also located on the second level. Bedroom two is spacious with an enormous, vaulted walk-in closet while the third bedroom features ample closet space. The fourth bedroom also has a walk-in closet and there is a shared hall bath with double vanities and a hall linen closet for the family bedrooms. The master suite is stunning with a master bedroom measuring approximately 14’x17’ with wonderful window views and a trey ceiling accent. His and her oversized walk-in closets flank the master bedroom for privacy. The master bath features dual vanities, a separate shower, garden tub, linen closet and a compartmentalized toilet. This home has a traditional exterior façade and an interior floor plan with an abundance of living space.
