House Plan 039-00522
|
View the Floorplan
Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Laundry On Main Floor
Master On Main Floor
Media Room
Split Bedrooms
Garage Type
Side Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 3,202 sq. ft. |
| First Floor: | 1,436 sq. ft. |
| Second Floor: | 845 sq. ft. |
| Garage: | 515 sq. ft. |
| Basement: | 921 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 47ft. |
| Depth: | 35ft.-10in. |
| Height: | 25ft.-10in. |
| Foundation: | Crawl Space |
| Main Roof Pitch: | 10:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
12
x 18-1
x 9
|
| Bedroom 3: |
12
x 18-1
x 9
|
| Dining Room: |
12
x 12-5
x 9
|
| Exercise Room: |
11-5
x 14-7
x 9
|
| Foyer: |
9-10
x 14
x 9
|
| Garage: |
20
x 20
|
| Garage Shop: |
12
x 6-10
|
| Great Room: |
20
x 17
x 9
|
| Kitchen: |
13
x 13-6
x 9
|
| Loft: |
20
x 17-9
|
| Master Suite: |
12
x 15-10
x 9
|
| Office: |
12-5
x 11-6
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $725.00
8 Sets: $820.00
Reproducible: $750.00
CAD Files: $900.00
Additional Options
Additional Construction Sets: $70.00
|

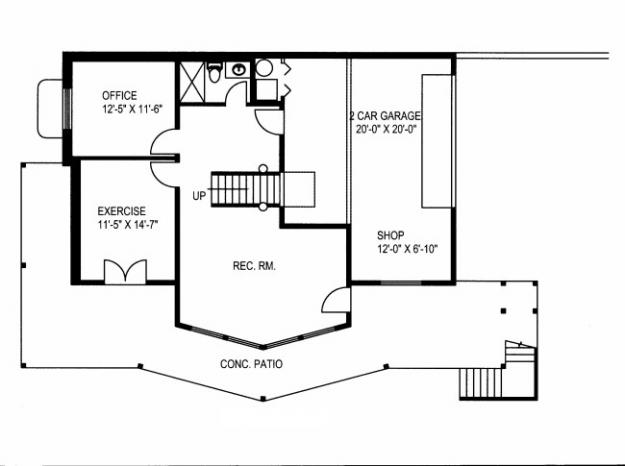

Basement Floor
Images Copyrighted by Designer

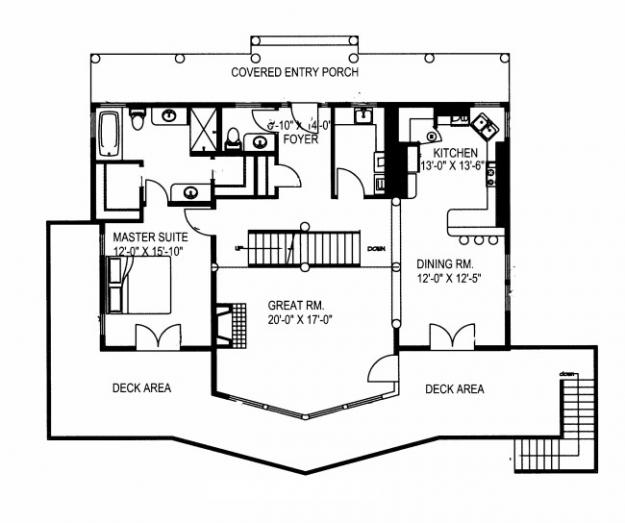

First Floor

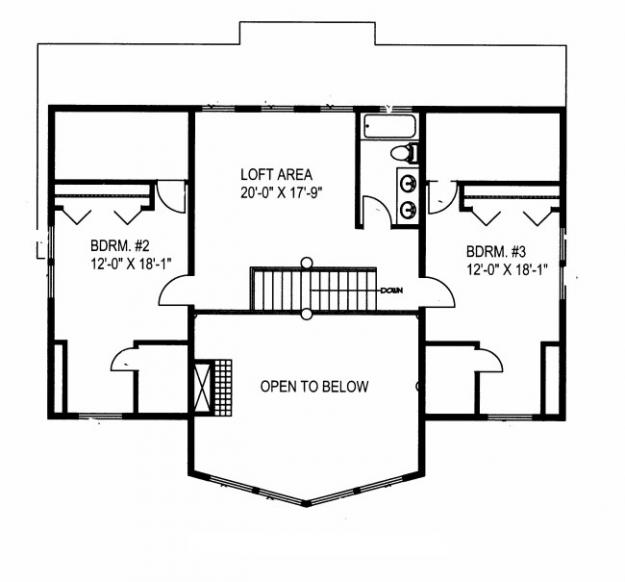

Second Floor
