House Plan 168-00024
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Laundry On Main Floor
Master On Main Floor
Media Room
Nook
Split Bedrooms
Garage Type
Courtyard Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 3,446 sq. ft. |
| First Floor: | 3,446 sq. ft. |
| Entry: | 67 sq. ft. |
| Garage: | 634 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 3 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 74ft.-1in. |
| Depth: | 69ft.-9in. |
| Height: | 28ft.-2in. |
| Main Roof Pitch: | 5:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 3: |
12
x 5-4
x 10
|
| Bath 2: |
12-1
x 5-4
x 10
|
| Bedroom 2: |
14-3
x 12-8
x 11-4
|
| Bedroom 2 Closet: |
8-5
x 5-4
x 10
|
| Bedroom 3: |
14
x 13
x 11-4
|
| Bedroom 3 Closet: |
7
x 5-4
x 10
|
| Cabana: |
5-8
x 5-6
x 10
|
| Cafe: |
9-1
x 8-9
x 10
|
| Dining Room: |
13
x 12-8
x 12
|
| Foyer: |
9-5
x 12-8
x 12
|
| Garage: |
11
x 20
x 10
|
| Golf Cart Garage: |
12
x 8
x 10
|
| Great Room: |
21-10
x 19-10
x 22-4
|
| Kitchen: |
16-4
x 15
x 10
|
| Master Bath: |
11-10
x 14-6
x 10
|
| Master Bedroom: |
16-6
x 20-10
x 12-6
|
| Master Closet 1: |
9
x 8-8
x 10
|
| Master Closet 2: |
6
x 6
x 10
|
| Media Room: |
15-6
x 15-6
x 12
|
| Powder Room: |
6-2
x 5-4
x 10
|
| Utility: |
7-8
x 10-10
x 10
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
1 Set: $900.00
3 Sets: $1,000.00
5 Sets: $1,100.00
8 Sets: $1,250.00
Reproducible: $1,400.00
CAD Files: $1,750.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $250.00
|

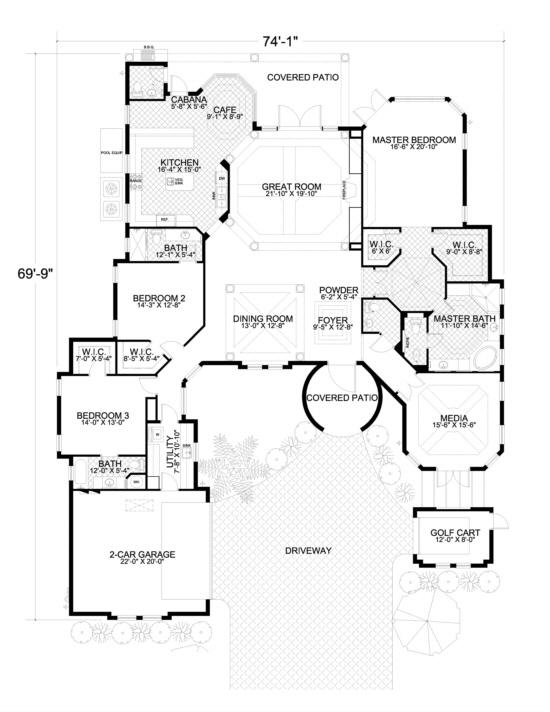

Floorplan
Images Copyrighted by Designer
