House Plan 039-00139
|
View the Floorplan

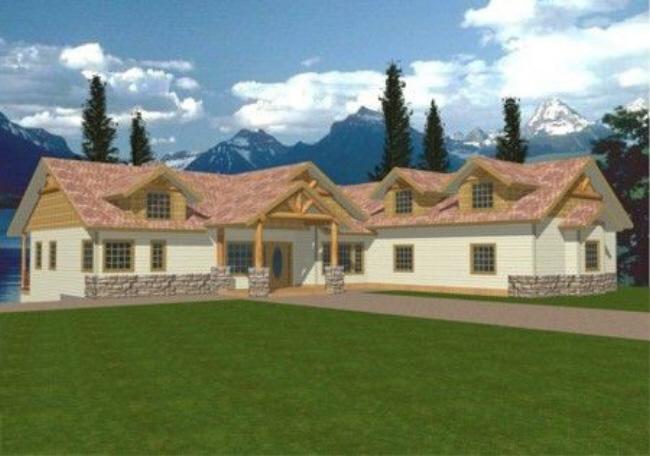

If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Additional Bedroom Down
Bonus Room
Guest Room
Home Office
Jack and Jill Bathroom
Laundry On Main Floor
Master On Main Floor
Media Room
Split Bedrooms
Garage Type
Rear Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 4,790 sq. ft. |
| First Floor: | 2,426 sq. ft. |
| Bonus Room: | 670 sq. ft. |
| Garage: | 945 sq. ft. |
| Basement: | 2,364 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 4 |
| Bathrooms: | 5 |
| Garages: | 3 car |
| Width: | 75ft.-6in. |
| Depth: | 69ft.-6in. |
| Height: | 29ft.-9in. |
| Foundation: | Finished Basement |
| Main Roof Pitch: | 8:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 3: |
12-7
x 14-8
x 9
|
| Bedroom 4: |
12-7
x 14-8
x 9
|
| Den/Office: |
11
x 13
x 9
|
| Dining Room: |
11
x 12-6
x 9
|
| Exercise Room: |
15-2
x 12-8
x 9
|
| Family Room: |
25-6
x 22
x 9
|
| Garage: |
36-2
x 24-10
|
| Great Room: |
17-6
x 23-8
x 9
|
| Guest Suite: |
11-9
x 13
x 9
|
| Kitchen: |
11-8
x 16-2
x 9
|
| Master Suite: |
17-6
x 17
x 9
|
| Mechanical Room: |
12
x 12-6
x 9
|
| Storage Room: |
10
x 12-8
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $850.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00

|

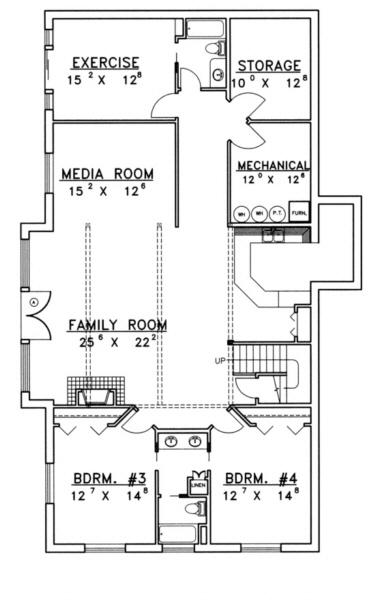

Basement Floor
Images Copyrighted by Designer

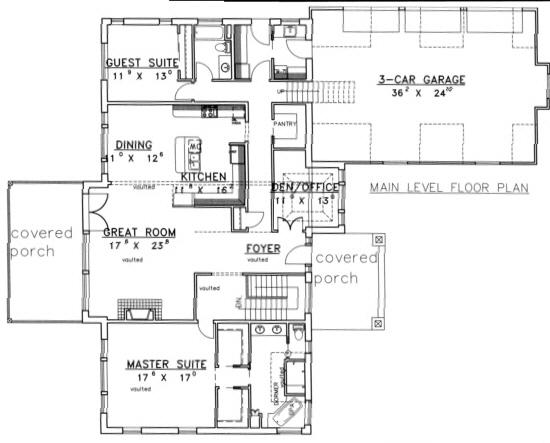

Main Floor
