House Plan 192-00004
|
This passive-solar home was designed for a West view of the mountains. The garage was elevated five steps to reduce the amount of steps to the upper floor living area. The lower level was designed for a home office or future parent’s apartment. The solarium spans both upper and lower levels and incorporates an impressive entry. The upper level is a very open plan including a media room loft. A sleeping loft is also located in this plan.
The shop is 31’ deep with 11’ ceilings to accept that motor home or boat. The barrel vault ceiling, radius walls, and open floor plan with different levels gives this home a very comfortable environment.
The plan includes a radiant floor heating tube layout on all floor levels. Sunterra’s 102-page Conservation Guide is also included with your plans to help you make educated decisions in building science and energy-saving features to apply to your home.
Features
Additional Rooms
Additional Bedroom Down
Guest Room
Home Office
Laundry Second Floor
Loft
Master Up
Media Room
Mother-In-Law Suite
Sunroom
Garage Type
Front Entry
Rear Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 2,747 sq. ft. |
| First Floor: | 896 sq. ft. |
| Second Floor: | 1,851 sq. ft. |
| Garage: | 1,267 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 4 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 4 car |
| Width: | 60ft. |
| Depth: | 72ft. |
| Height: | 30ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 6:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bath 2: |
6-6
x 8-6
x 8
|
| Bath 3: |
5
x 5
x 8
|
| Bedroom 2: |
11
x 14
x 8
|
| Bedroom 3: |
11-10
x 12
x 8
|
| Bedroom 4: |
10-6
x 11-2
|
| Coat Closet: |
5
x 2
x 8
|
| Deck: |
14
x 24
|
| Family Room: |
18
x 21-6
x 8
|
| Foyer: |
8
x 9
x 14
|
| Front Porch: |
6
x 10
x 12
|
| Garage: |
23
x 23
x 8
|
| Great Room: |
18
x 32
|
| Kitchen: |
12
x 13
x 9
|
| Laundry: |
5
x 7
x 9
|
| Linen Closet: |
9
x 2
x 8
|
| Master Bath: |
9
x 13-6
x 8
|
| Master Bedroom: |
12
x 13-6
x 8
|
| Master Closet: |
6-8
x 9-8
x 8
|
| Media Room: |
12-6
x 15-6
|
| Pantry: |
3
x 5
x 9
|
| R.V. Garage: |
21
x 31
x 11
|
More House Plans by this designer
Save House Plan
Modify This Plan
Build Cost
Email to Friend
Print This Page
Pricing
1 Set: $1,233.00
5 Sets: $1,313.00
8 Sets: $1,373.00
Reproducible: $1,473.00
Additional Options
Additional Construction Sets: $25.00
Mirrored Reverse: $30.00
|

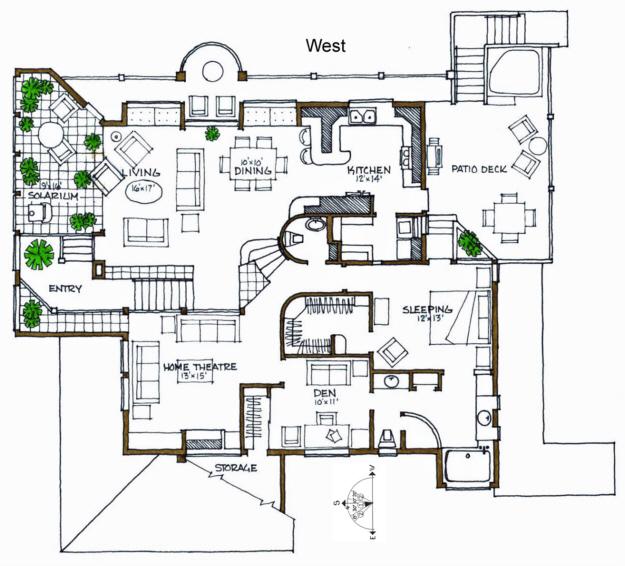

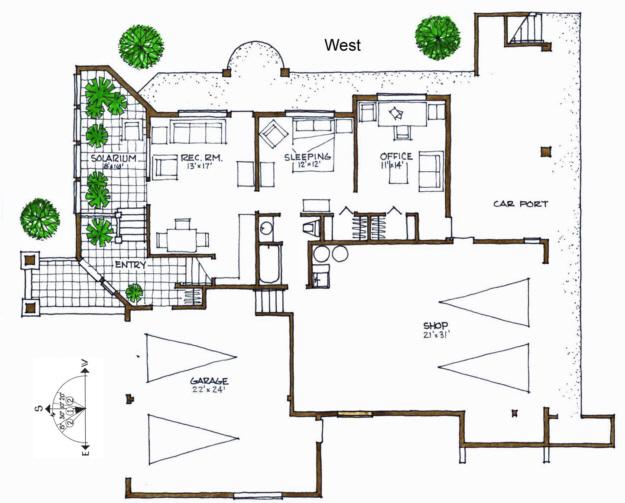

Floorplan 1
Images Copyrighted by Designer
Floorplan 2

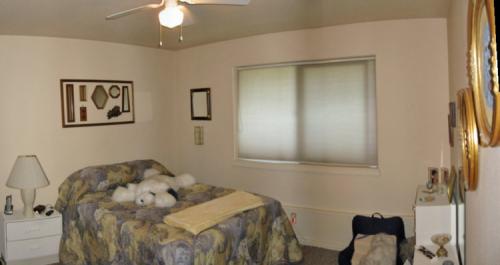

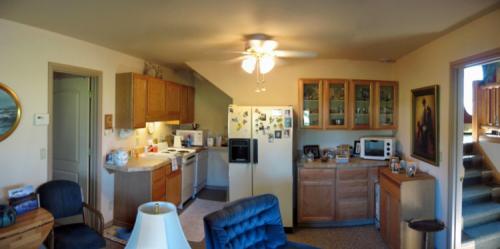

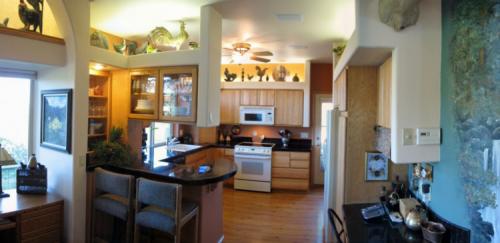

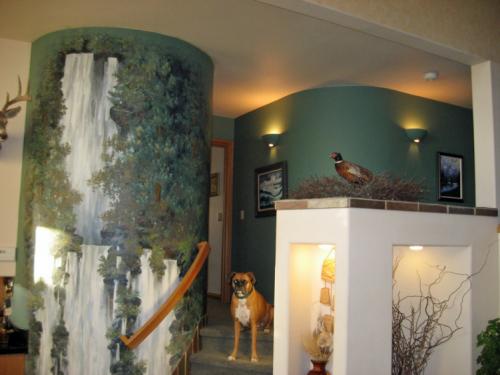

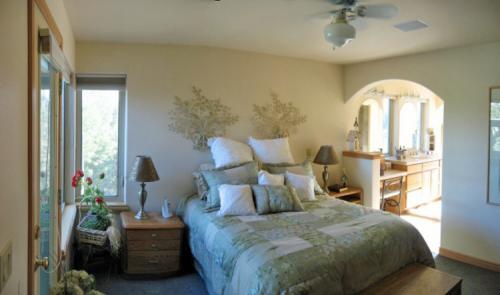

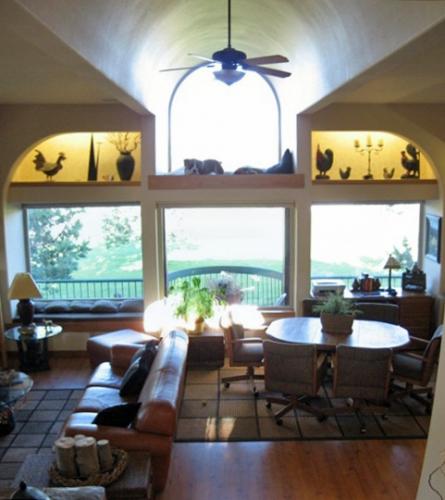

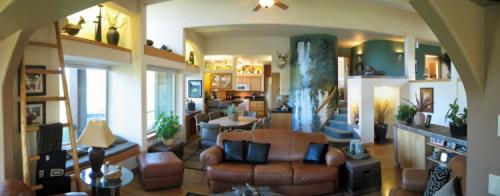

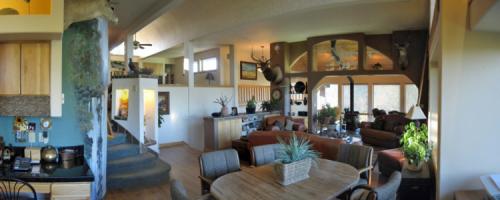

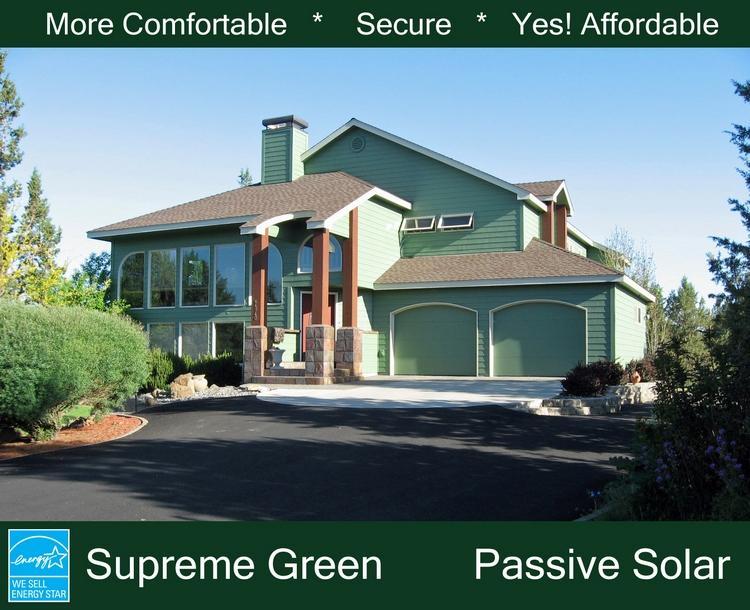

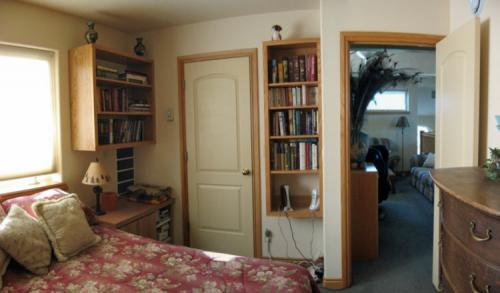

Photos
