House Plan 117-00005
|
View the Floorplan

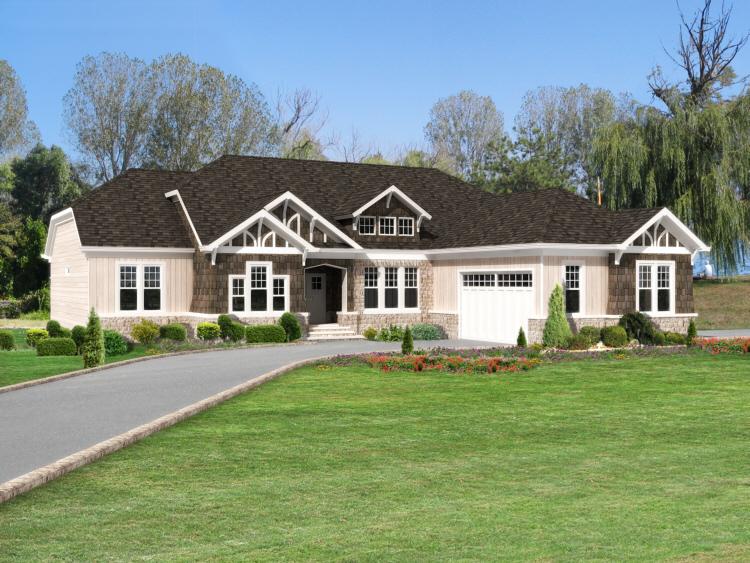

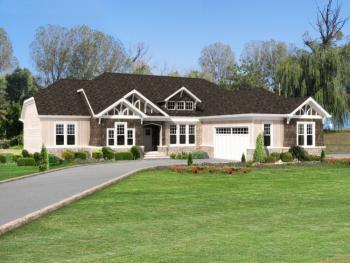

If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Bonus Room
Home Office
Laundry On Main Floor
Master On Main Floor
Sitting Room
Split Bedrooms
Study
Garage Type
Courtyard Entry
Porch Type
Front
|
|
| Square Footage: | 2,499 sq. ft. |
| First Floor: | 2,499 sq. ft. |
| Bonus Room: | 327 sq. ft. |
| Floors: | 1 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 2 car |
| Width: | 66ft.-6in. |
| Depth: | 69ft. |
| Height: | 23ft.-11in. |
| Foundation: | Unfinished Basement |
| Main Roof Pitch: | 8:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
11-4
x 13-8
x 9
|
| Bedroom 3: |
15
x 10-10
x 9
|
| Bonus Room: |
21-5
x 13-5
|
| Breakfast: |
12-6
x 9
x 9
|
| Dining Room: |
12-2
x 14
|
| Family Room: |
16-1
x 22-4
|
| Garage: |
21-5
x 32-8
|
| Kitchen: |
12-6
x 11-6
x 9
|
| Master Bedroom: |
15
x 15
|
| Master Sitting: |
6-5
x 12-6
|
| Office/Study: |
11-5
x 12-2
|
More House Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
8 Sets: $820.00
Reproducible: $970.00
Additional Options
Additional Construction Sets: $60.00
Right Reading Reverse Set: $300.00
|

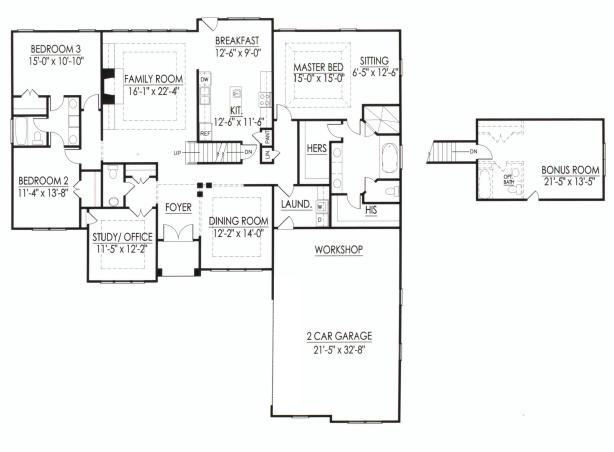

Floorplan
