House Plan 053-00247
|
View the Floorplan

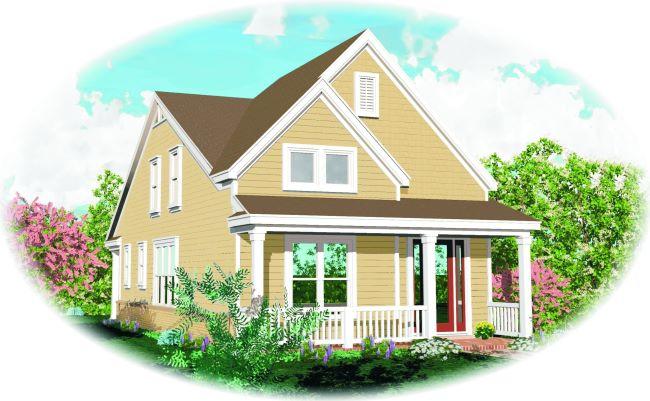

If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Laundry On Main Floor
Master On Main Floor
Media Room
Mud Room
Garage Type
Side Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 2,770 sq. ft. |
| First Floor: | 1,327 sq. ft. |
| Second Floor: | 1,443 sq. ft. |
| Garage: | 766 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 3 |
| Bathrooms: | 2 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 23ft. |
| Depth: | 91ft. |
| Height: | 27ft. |
| Foundation: | Slab |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Balcony: |
14
x 6
x 8
|
| Bedroom 2: |
11
x 13
x 8
|
| Bedroom 3: |
11
x 13
x 8
|
| Dining Room: |
12
x 11
x 9
|
| Family Room: |
22
x 17
x 9
|
| Front Porch: |
27
x 6
|
| Garage: |
21
x 32
|
| Kitchen: |
13
x 11
x 9
|
| Laundry/Mud Room: |
8
x 8
x 9
|
| Master Bath: |
11
x 10
x 9
|
| Master Closet 1: |
5
x 5
x 9
|
| Master Closet 2: |
5
x 5
x 9
|
| Master Shower: |
5
x 3
x 9
|
| Master Suite: |
17
x 12
x 9
|
| Media/Recreation Room: |
18
x 37
x 9
|
| Rear Porch: |
4
x 6
|
| Storage Room: |
9
x 7
x 8
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $800.00
Reproducible: $1,400.00
CAD Files: $1,400.00
Additional Options
Additional Construction Sets: $50.00
Right Reading Reverse Set: $350.00
Mirrored Reverse: $50.00
|

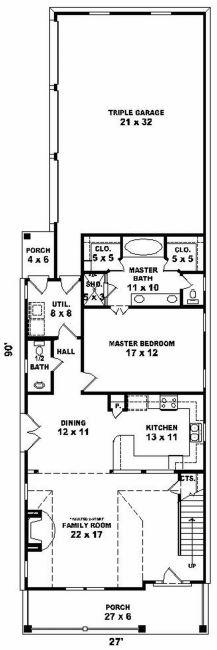

First Floor
Images Copyrighted by Designer

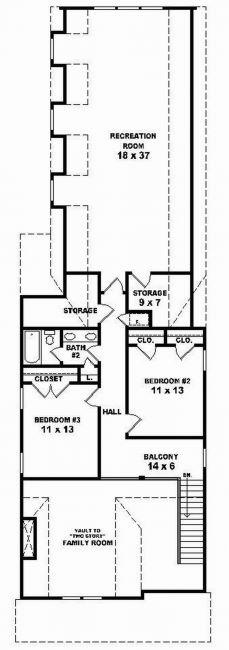

Second Floor
