House Plan 039-00521
|
View the Floorplan

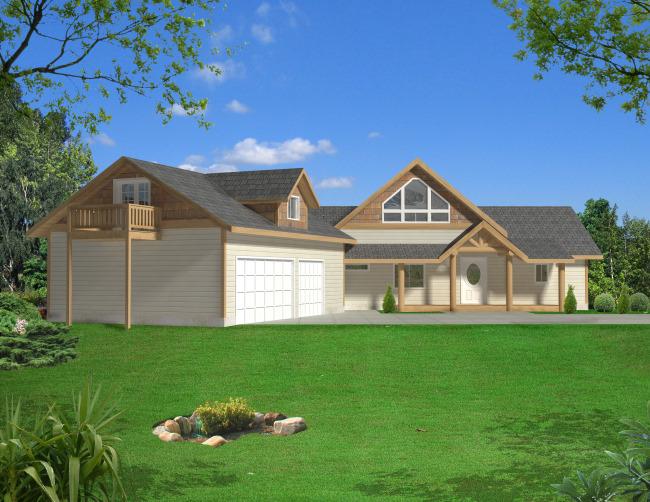

Front Elevation Rear Elevation If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Additional Bedroom Down
Bonus Room
Guest Room
Laundry On Main Floor
Loft
Master On Main Floor
Media Room
Mud Room
Garage Type
Courtyard Entry
Porch Type
Front
Rear
|
|
| Square Footage: | 4,104 sq. ft. |
| First Floor: | 1,890 sq. ft. |
| Second Floor: | 324 sq. ft. |
| Garage: | 947 sq. ft. |
| Basement: | 1,890 sq. ft. |
| Floors: | 1.5 |
| Bedrooms: | 4 |
| Bathrooms: | 3 |
| Garages: | 3 car |
| Width: | 81ft. |
| Depth: | 79ft.-6in. |
| Height: | 25ft.-4in. |
| Foundation: | Slab
Finished Basement |
| Main Roof Pitch: | 10:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 3: |
14-11
x 15-9
x 9
|
| Bedroom 4: |
12-11
x 15-9
x 9
|
| Dining Room: |
14
x 11
x 9
|
| Garage: |
25-6
x 35-8
|
| Great Room: |
25
x 18
x 9
|
| Guest Room: |
11
x 10-8
x 9
|
| Kitchen: |
13-8
x 12-6
x 9
|
| Loft: |
17
x 18-3
|
| Master Suite: |
15-6
x 17
x 9
|
| Mechanical Room: |
14-11
x 8
x 9
|
| Media/Recreation Room: |
25
x 17
x 9
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $825.00
8 Sets: $930.00
Reproducible: $750.00
CAD Files: $950.00
Additional Options
Additional Construction Sets: $75.00
|

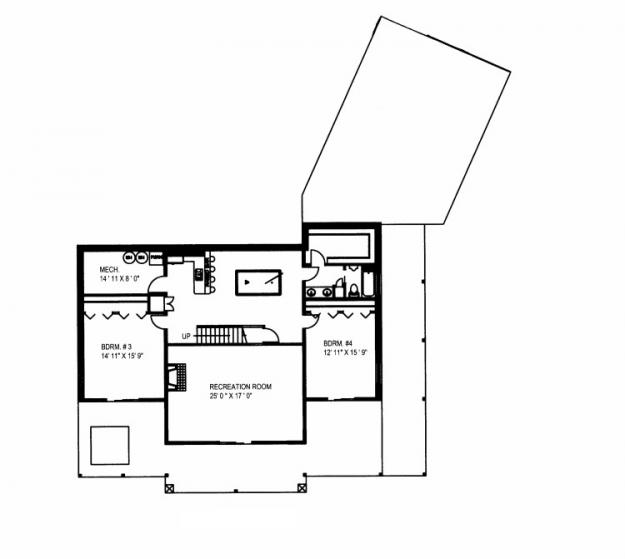

Basement Floor
Images Copyrighted by Designer

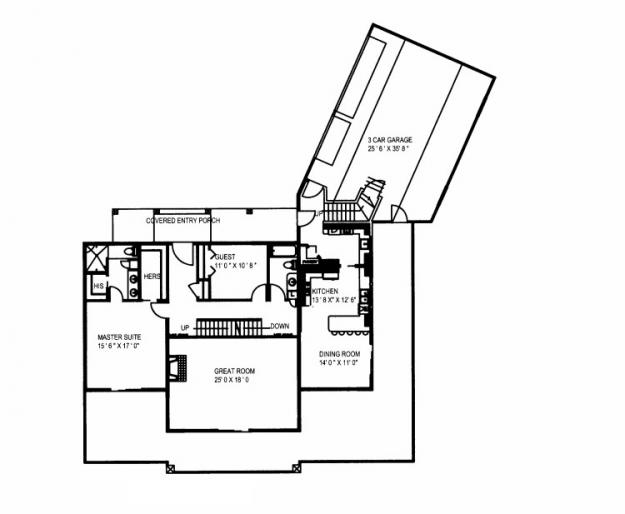

Main Floor

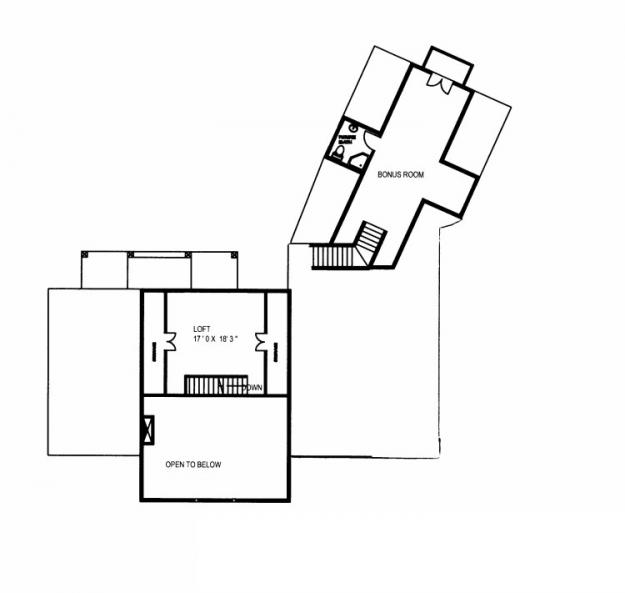

Loft Floor
