House Plan 039-00029
|
View the Floorplan
If a real photograph is available please note that it may reflect the homeowner's modifications to the plan and that you should always reference the floor plans and renderings.
Features
Additional Rooms
Laundry On Main Floor
Master Up
Media Room
Garage Type
Side Entry
Porch Type
Front
|
|
| Square Footage: | 3,492 sq. ft. |
| First Floor: | 1,846 sq. ft. |
| Second Floor: | 1,646 sq. ft. |
| Garage: | 728 sq. ft. |
| Basement: | 1,643 sq. ft. |
| Floors: | 2 |
| Bedrooms: | 5 |
| Bathrooms: | 3 |
| Half Baths: | 1 |
| Garages: | 3 car |
| Width: | 83ft.-10in. |
| Depth: | 54ft.-8in. |
| Height: | 32ft.-1in. |
| Foundation: | Unfinished Basement |
| Main Roof Pitch: | 12:12 |
| Additional Specs: | Show Room Dimensions |
| |
(width x depth x height) | | Bedroom 2: |
14-6
x 10
x 9
|
| Bedroom 3: |
14-10
x 10
x 9
|
| Bedroom 4: |
11-9
x 13-8
|
| Bedroom 5: |
11-9
x 13-8
|
| Den 1: |
12-6
x 11-2
x 10
|
| Den 2: |
11-4
x 14
x 9
|
| Dining Room : |
18
x 14-10
x 10
|
| Front Porch: |
26
x 10
|
| Garage: |
22-10
x 29-8
|
| Great Room: |
24-8
x 22
x 10
|
| Kitchen: |
18
x 14-10
x 10
|
| Master Suite: |
17-8
x 12-6
x 9
|
| Mechanical Room: |
23-10
x 16-9
|
| Media/Recreation Room: |
17-8
x 28-10
|
More House Plans by this designer
Garage Plans by this designer
Save House Plan
Modify This Plan
Cost Build Report
Email to Friend
Print This Page
Pricing
5 Sets: $725.00
8 Sets: $820.00
Reproducible: $750.00
CAD Files: $900.00
Additional Options
Additional Construction Sets: $70.00
|

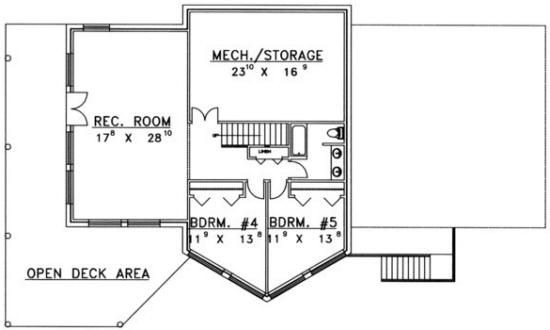

Basement Floor
Images Copyrighted by Designer

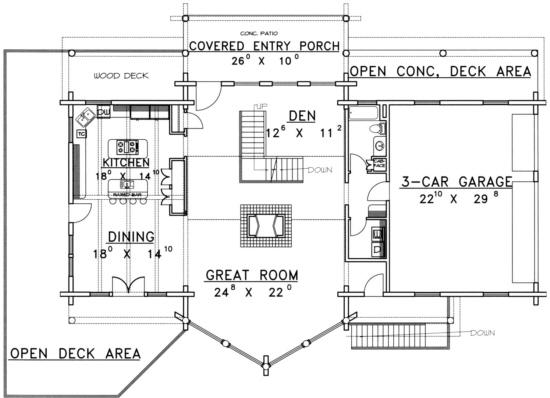

First Floor

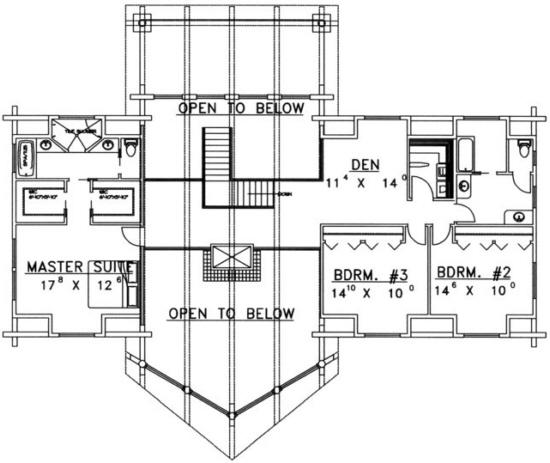

Second Floor
