Traditional Multi-Family Plan 963-01100

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Units 2
Sq Ft 2,876
Width 86'
Depth 47'
Beds/Unit 3
Baths/Unit 2
1/2 Baths/Unit 0
Cars/Unit 2

Floorplan Drawings

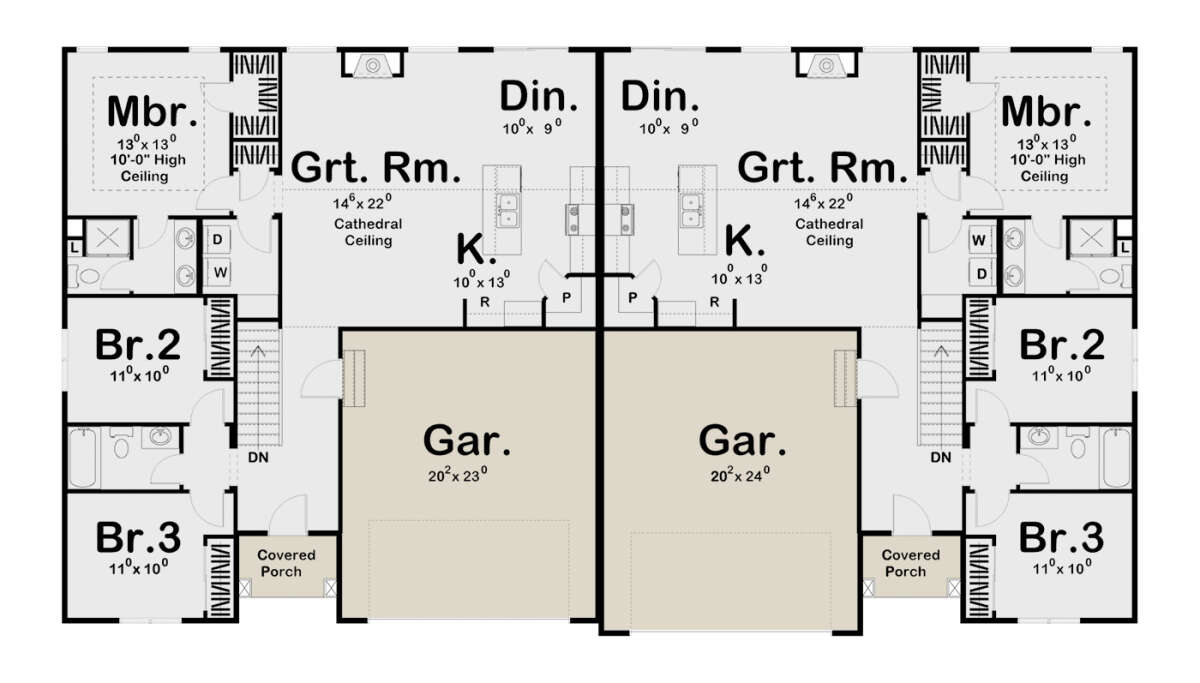

Main Floor

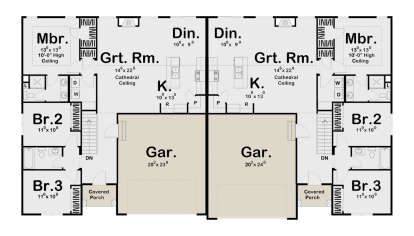

Main Floor  for House Plan #963-01100






What's Included in these plans?

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan.
  • The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

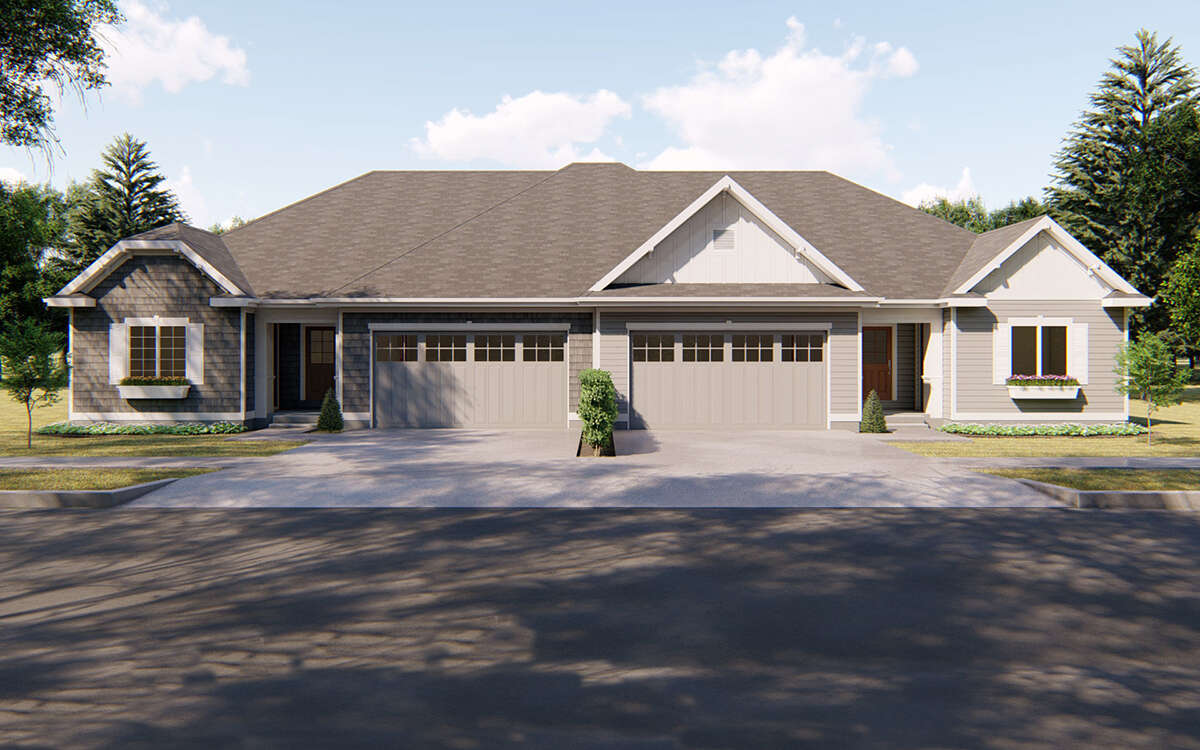

This Traditional building offers 2 Units and is 86ft. Wide x 47ft. Deep. Each unit offers 3 bedrooms, 2 bathrooms, and a 2 car garage. America's Best House Plans offers high-quality multi-family home plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of Multi-Family designs are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your building needs and requirements.
