Split Foyer Plan 963-00003

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,096
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 1
Width 42'
Depth 27'

Floorplan Drawings

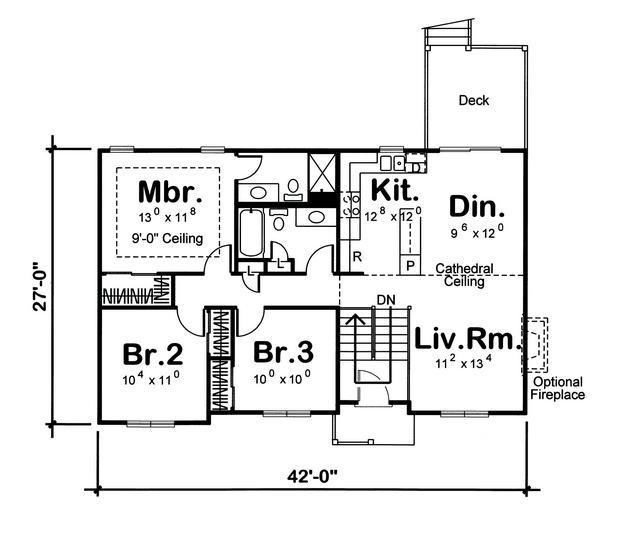

Floorplan 1
Floorplan 1 for House Plan #963-00003

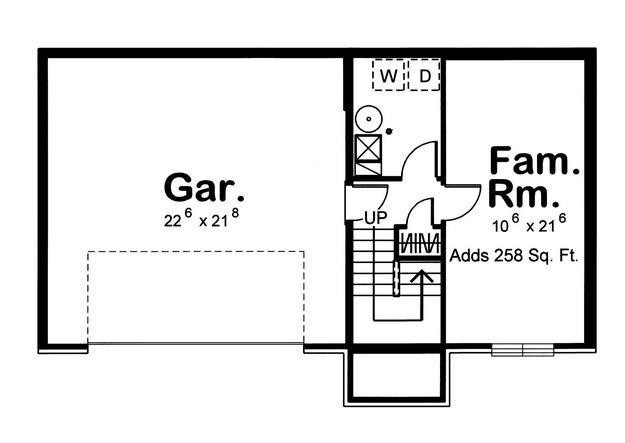

Lower Level
Lower Level for House Plan #963-00003


What's Included in these plans?

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan.
  • The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Welcoming and inviting, this Split Foyer house plan features an attractive exterior and a small, yet functional, interior floor plan. The façade is highlighted with horizontal siding, a brick perimeter, double gables with wide eaves and a walk-up entrance. It’s a perfect house plan for a narrow and/or small property lot with its respective width and depth dimensions of 42’ and 27’. The home’s interior features approximately 1,096 square feet of living space which includes a basement foundation and drive under two car garage. The garage is approximately 469 square feet of space, great for vehicles and other storage items. The utility room is located on this floor along with the mechanical room and additional basement space which includes a family room. It is a spacious room which could be utilized as either a second family room or numerous other options to include a home office/study, a playroom for the children or a hobby/craft room. There is a hall closet for coats and other outdoor gear as well as a staircase to the main living floor.

The main floor of the home features an open floor plan, three bedrooms and two bathrooms. The living room is quite spacious with an optional fireplace and double window views overlooking the front yard. Cathedral ceilings offer drama and height between the living and dining rooms and the dining room has access through a slider onto the rear deck for entertaining and relaxing. A peninsula bar, separate pantry and loads of counter and cabinet space are featured highlights in the kitchen. Down the main hallway of the home, there is a linen closet and shared hall bath with an enclosed second linen closet, a large vanity space, a toilet area and a tub/shower combination. Bedrooms two and three are nearly equivalent in size with large closets and window views overlooking the front exterior. The master suite is located at the rear of the home for privacy and features a spacious bedroom with a trey ceiling accent and window views for a sunny space. There is a large walk-in master closet and the en suite bath includes a large vanity, toilet area and a shower. This family friendly home features a functional layout, an attractive exterior and basement expansion.
