Craftsman Garage Plan 957-00081

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 878
Fin Sq Ft 487
Cars 3
Beds 0
Width 37'
Depth 24'

Floorplan Drawings

Garage Floor
Garage Floor for House Plan #957-00081
Second Floor
Second Floor for House Plan #957-00081


What's Included in these plans?

  • Cover Sheet:
    Includes a drawing index, square footage chart, and usually the front and rear elevations.

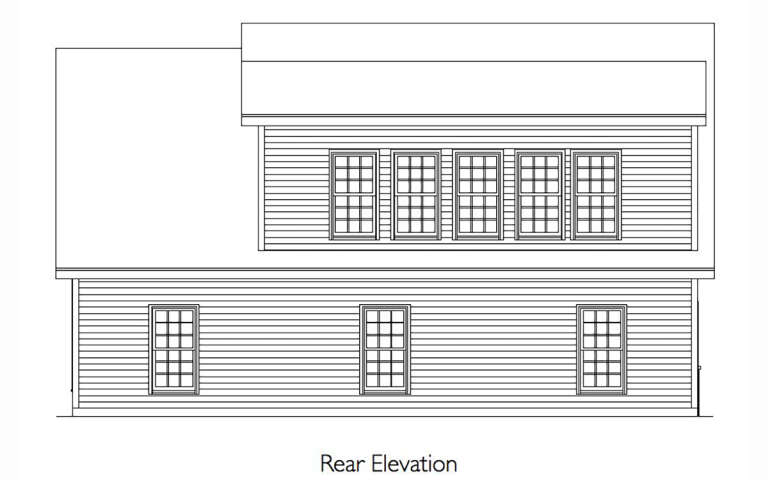

  • Exterior Elevations:
    All elevations are detailed and shown at ¼" scale, usually over two sheets.
  • Floor Plans and Square Footage:
  • This floor plan almost always come in ¼" scale with centerline dimensions and are most commonly shown with 4" walls. 6" exterior walls are available as an optional upgrade (Please call for pricing of 2x6 walls). Our square feet measurements only include heated floor space. The measurements are made from outside the exterior frame (brick is NOT included). Stairs are counted once. Walkways and overlooks in vaulted two-story areas are included in the square footage. Volume areas on the second floor are not counted. Additionally, a 2x floor framing example is provided.
  • Foundations:
    -Basement:
    They are almost always shown as walk-out basements with 10" walls (not counting framed walls).
    -Slab:
    Usually an optional upgrade, we show a typical turned down slab.
    -Crawl Space:
  • Usually an optional upgrade, we show crawl space foundations with 8" walls and ventilation calculations.
  • Roof:
    This plan includes a 2D and a 3-D roof overview showing all pitches and planes. A 2x framing roof plan is also provided as a framing example.
  • Typical Details:
    Each plans comes with typical details for the appropriate foundation, wall sections, roof framing, etc. Details, insulation specifications and any beam or rebar sizing is based on what is typical for the Atlanta, GA area.
  • Plans DO NOT include any electrical plan

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

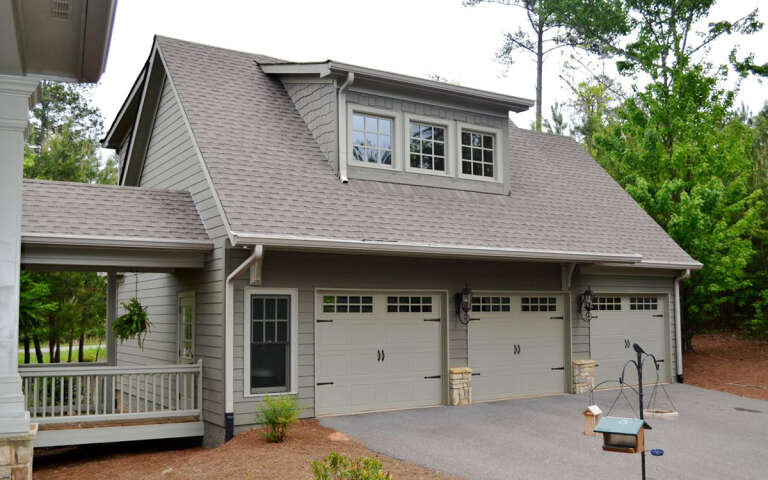

This 3 Car Craftsman Garage Plan features 878 unfinished sq. ft., and 487 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
