Cottage Plan 957-00055

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,936
Beds 3
Bath 3
1/2 Baths 1
Car 2
Stories 2
Width 64'
Depth 59' 4"

Floorplan Drawings

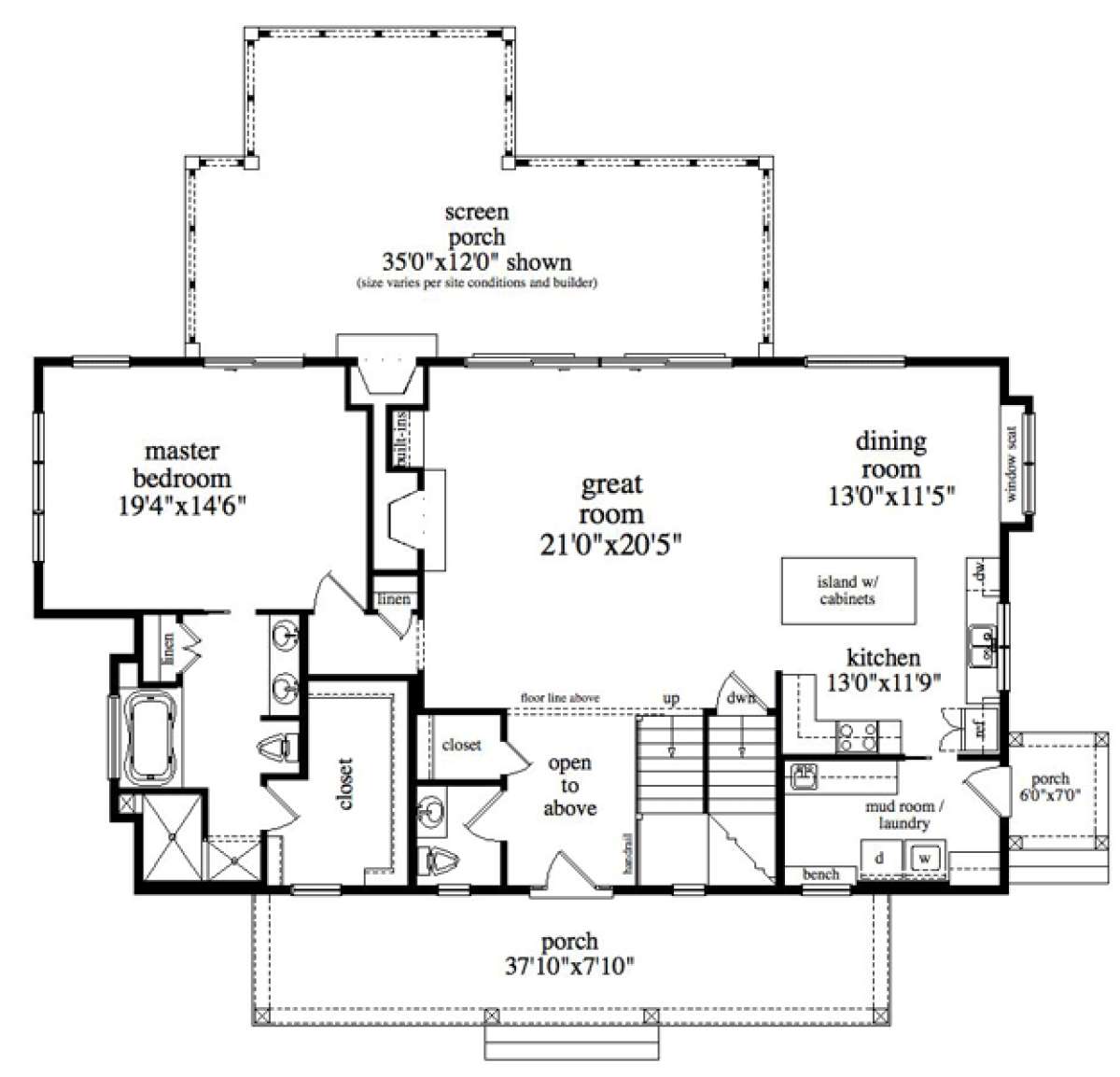

Floorplan 1
Floorplan 1 for House Plan #957-00055

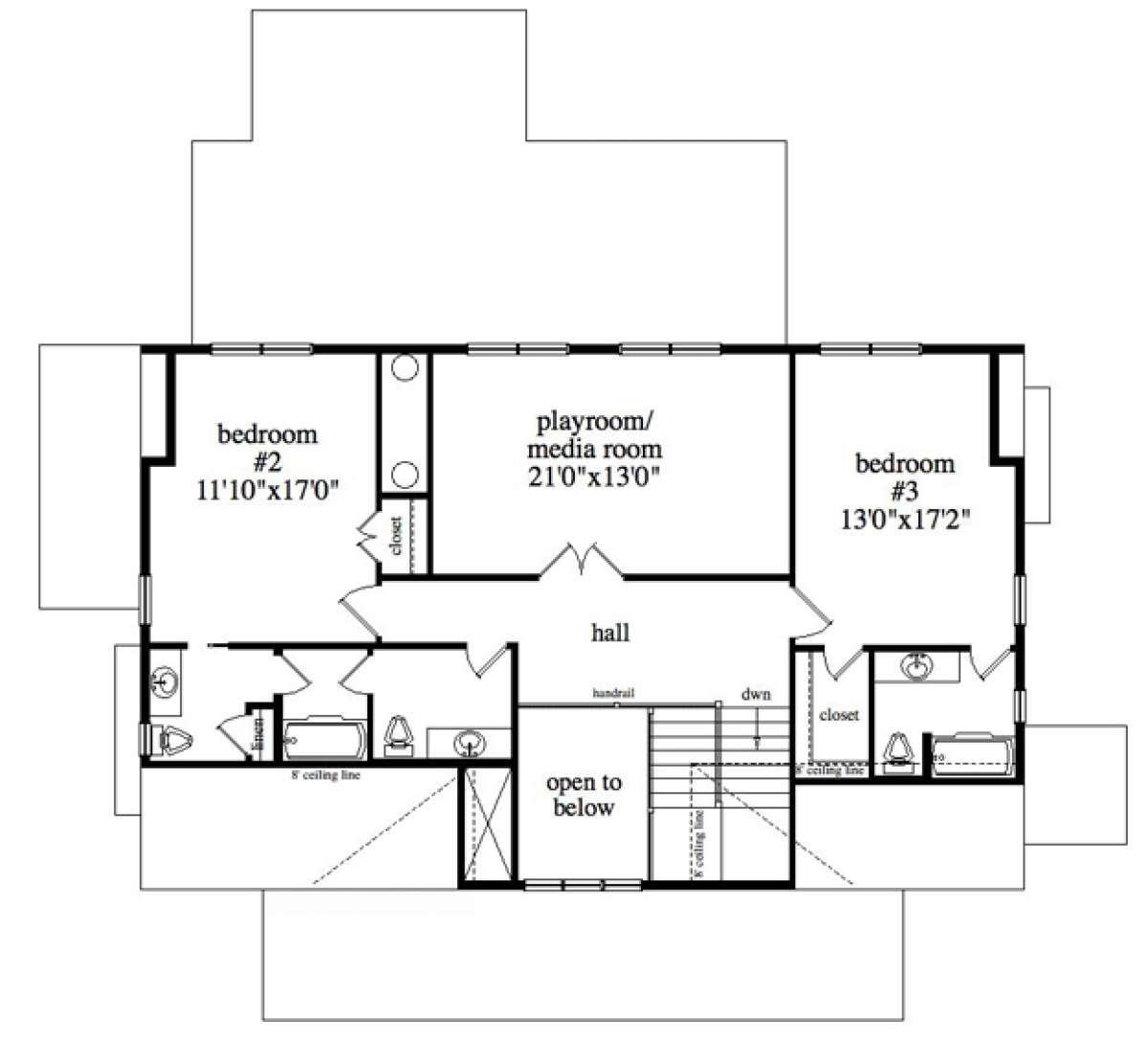

Floorplan 2
Floorplan 2 for House Plan #957-00055

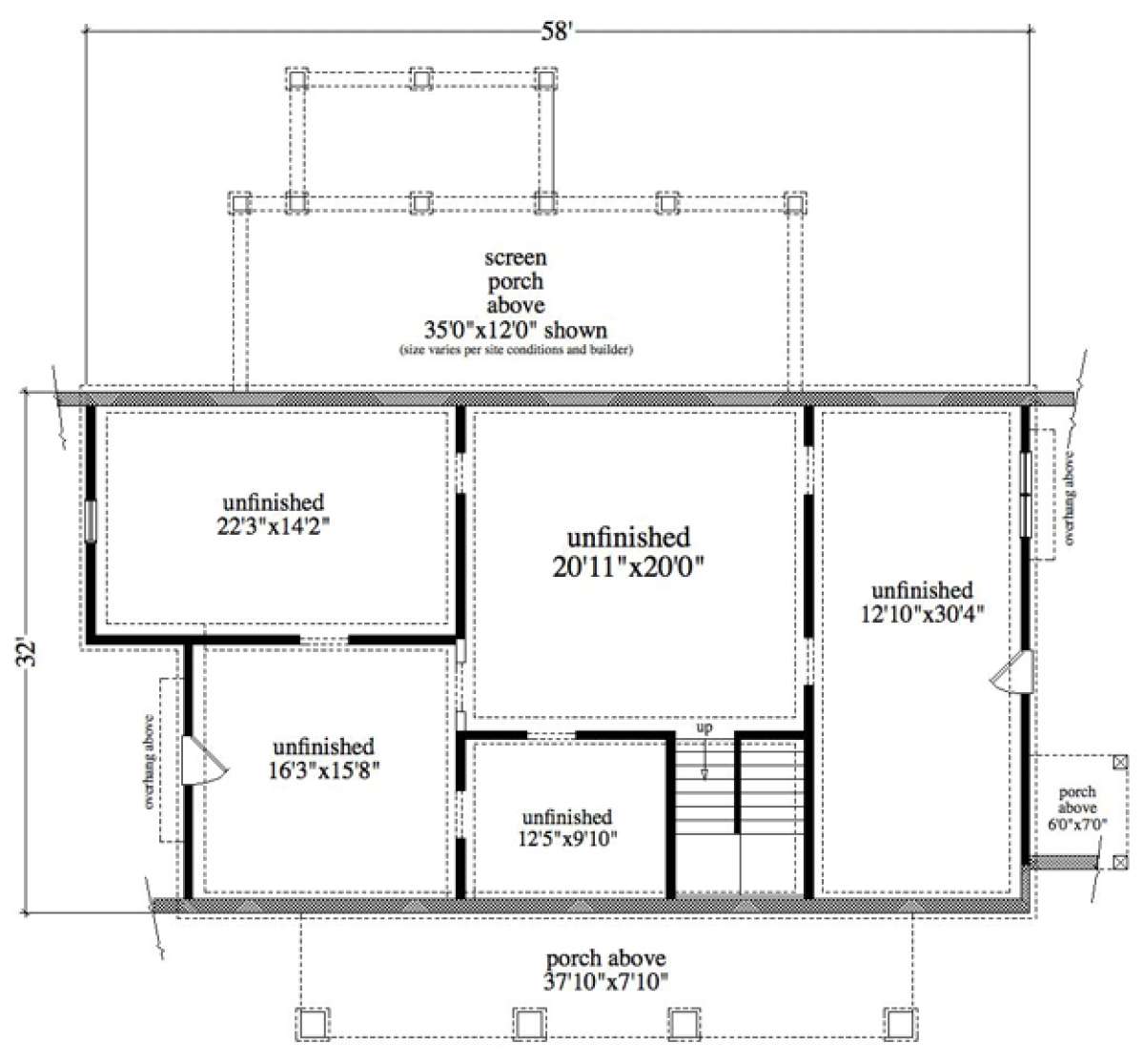

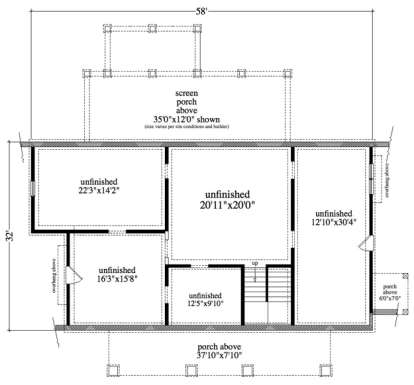

Basement
Basement for House Plan #957-00055


What's Included in these plans?

  • Cover Sheet:
    Includes a drawing index, square footage chart, and usually the front and rear elevations.
  • Exterior Elevations:
    All elevations are detailed and shown at ¼" scale, usually over two sheets.
  • Floor Plans and Square Footage:
  • This floor plan almost always come in ¼" scale with centerline dimensions and are most commonly shown with 4" walls. 6" exterior walls are available as an optional upgrade (Please call for pricing of 2x6 walls). Our square feet measurements only include heated floor space. The measurements are made from outside the exterior frame (brick is NOT included). Stairs are counted once. Walkways and overlooks in vaulted two-story areas are included in the square footage. Volume areas on the second floor are not counted. Additionally, a 2x floor framing example is provided.
  • Foundations:
    -Basement:
    They are almost always shown as walk-out basements with 10" walls (not counting framed walls).
    -Slab:
    Usually an optional upgrade, we show a typical turned down slab.
    -Crawl Space:
  • Usually an optional upgrade, we show crawl space foundations with 8" walls and ventilation calculations.
  • Roof:
    This plan includes a 2D and a 3-D roof overview showing all pitches and planes. A 2x framing roof plan is also provided as a framing example.
  • Typical Details:
    Each plans comes with typical details for the appropriate foundation, wall sections, roof framing, etc. Details, insulation specifications and any beam or rebar sizing is based on what is typical for the Atlanta, GA area.
  • Plans DO NOT include any electrical plan

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

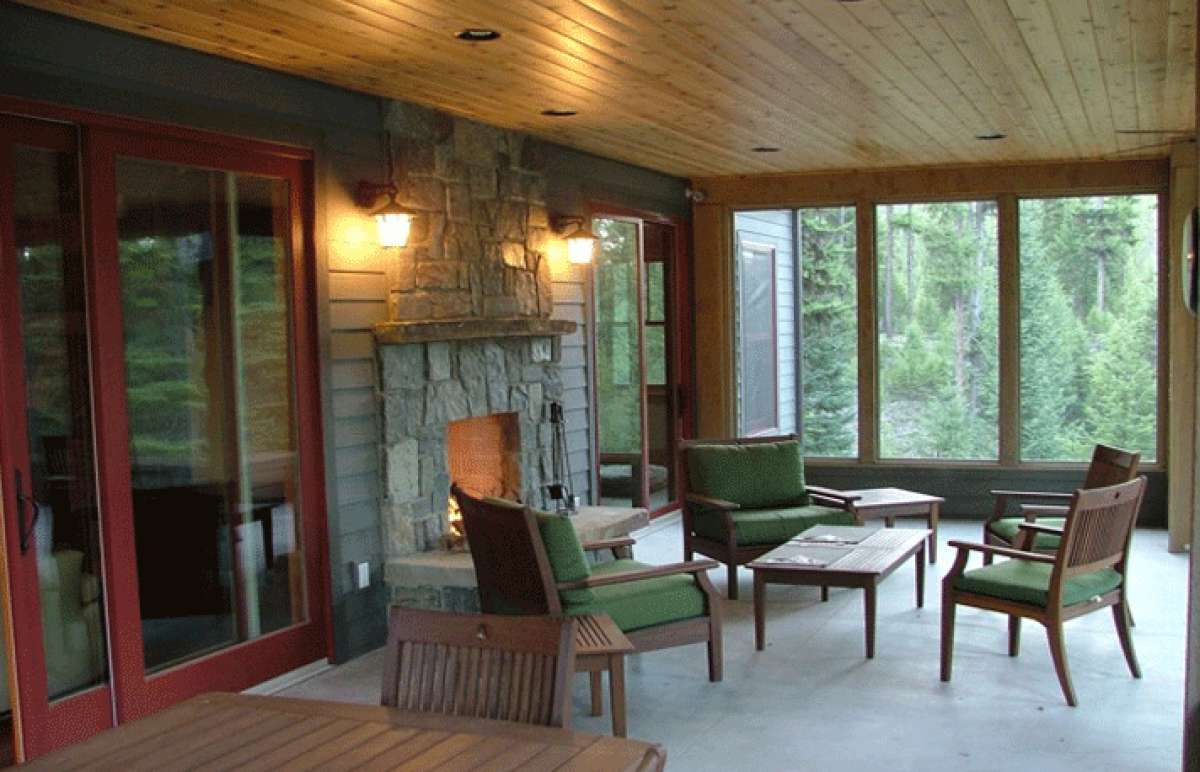

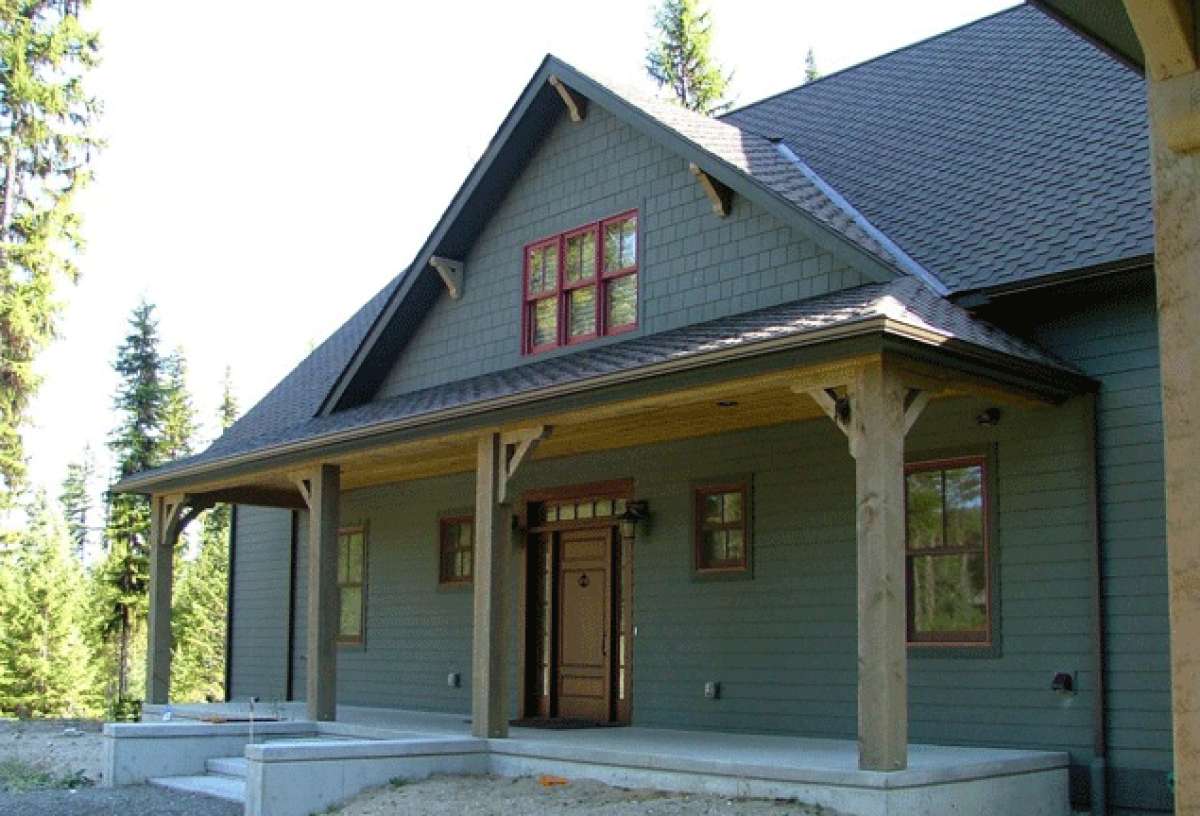

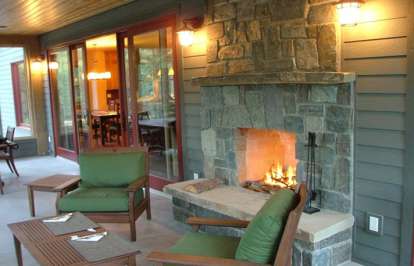

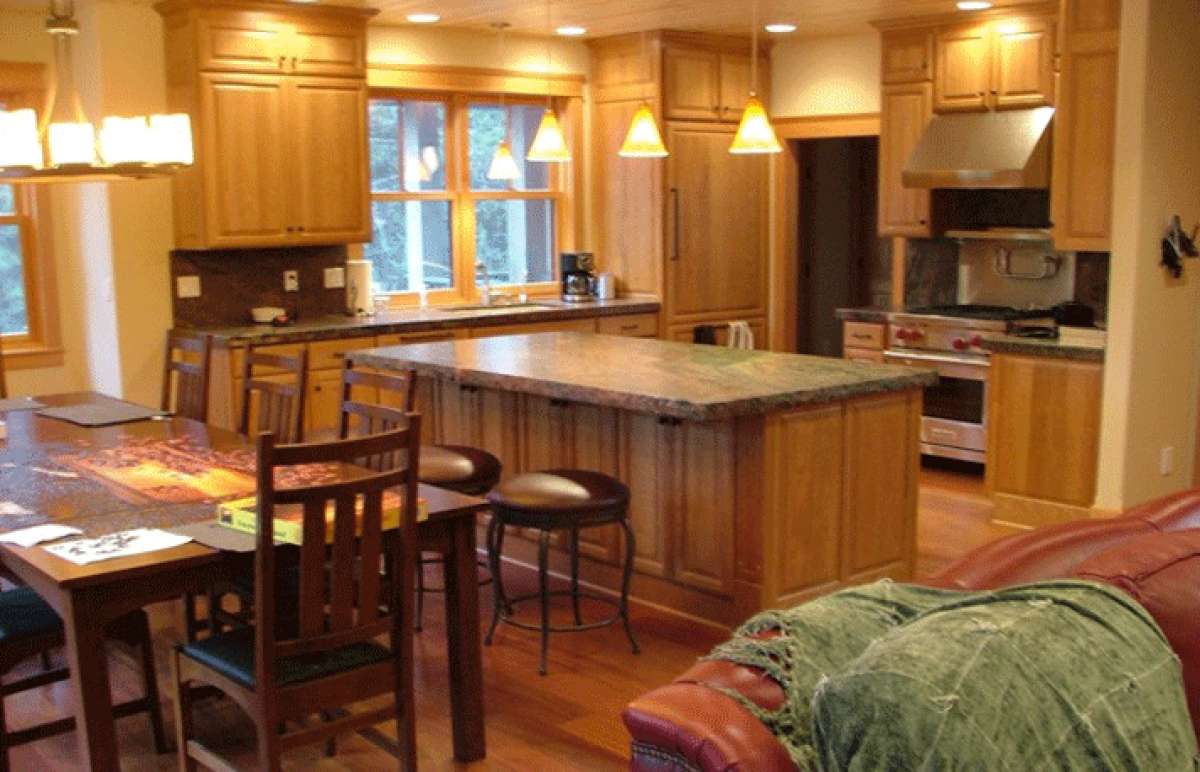

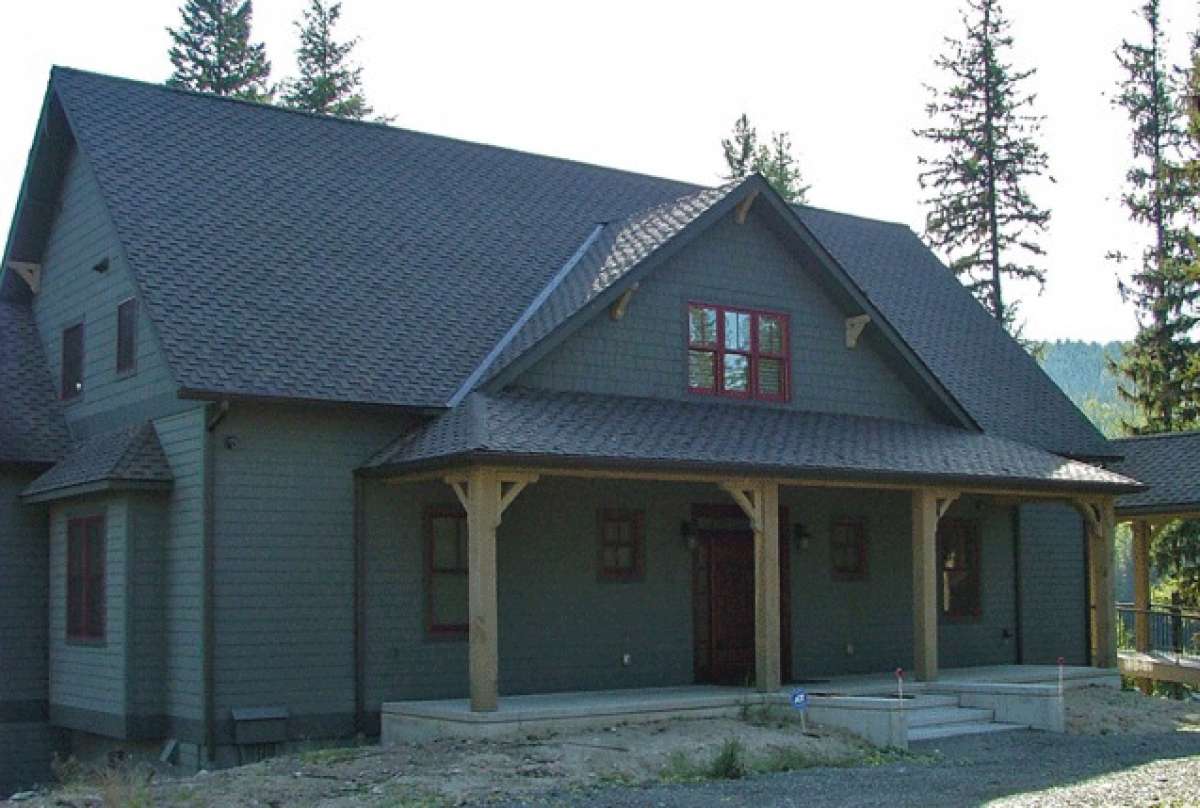

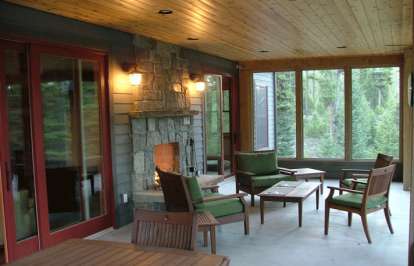

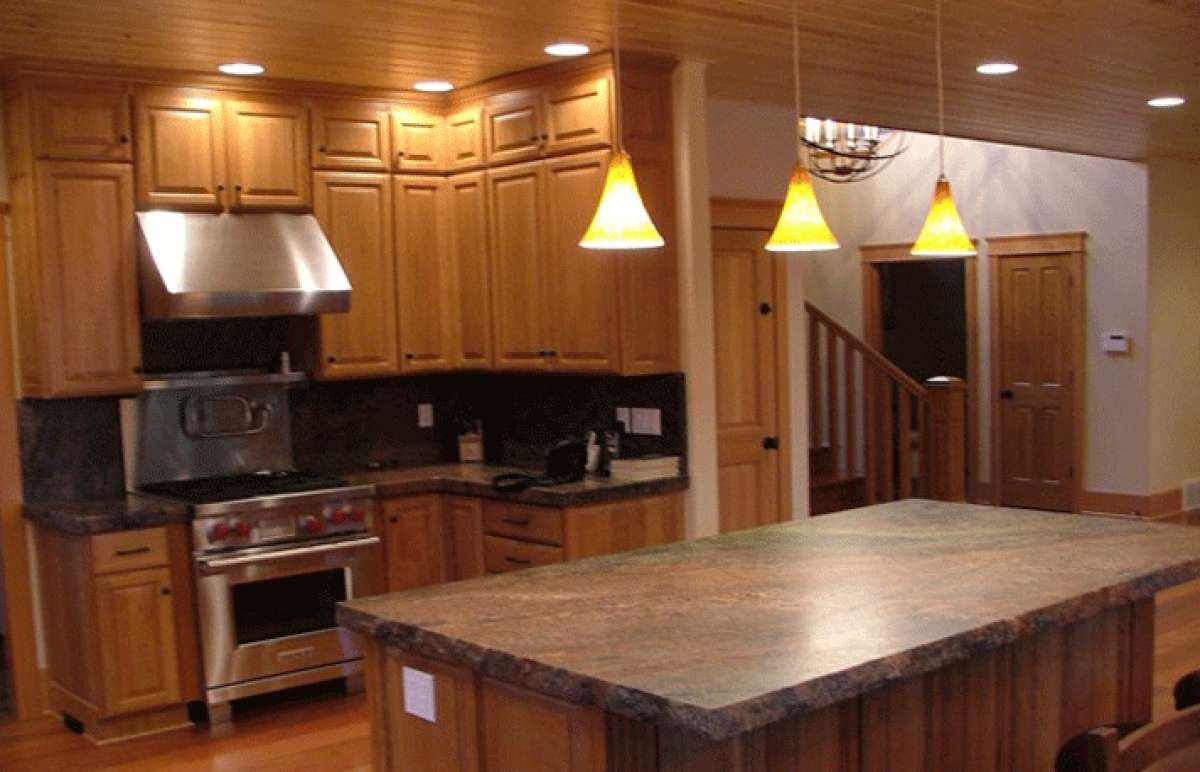

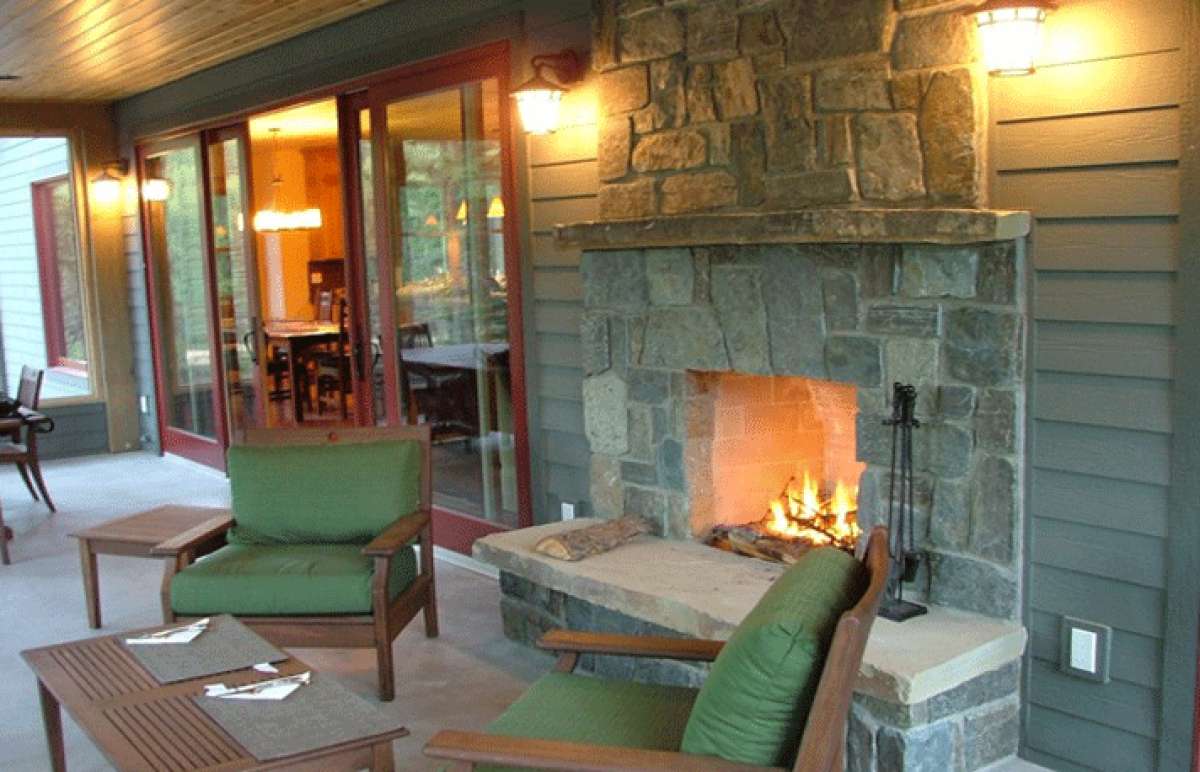

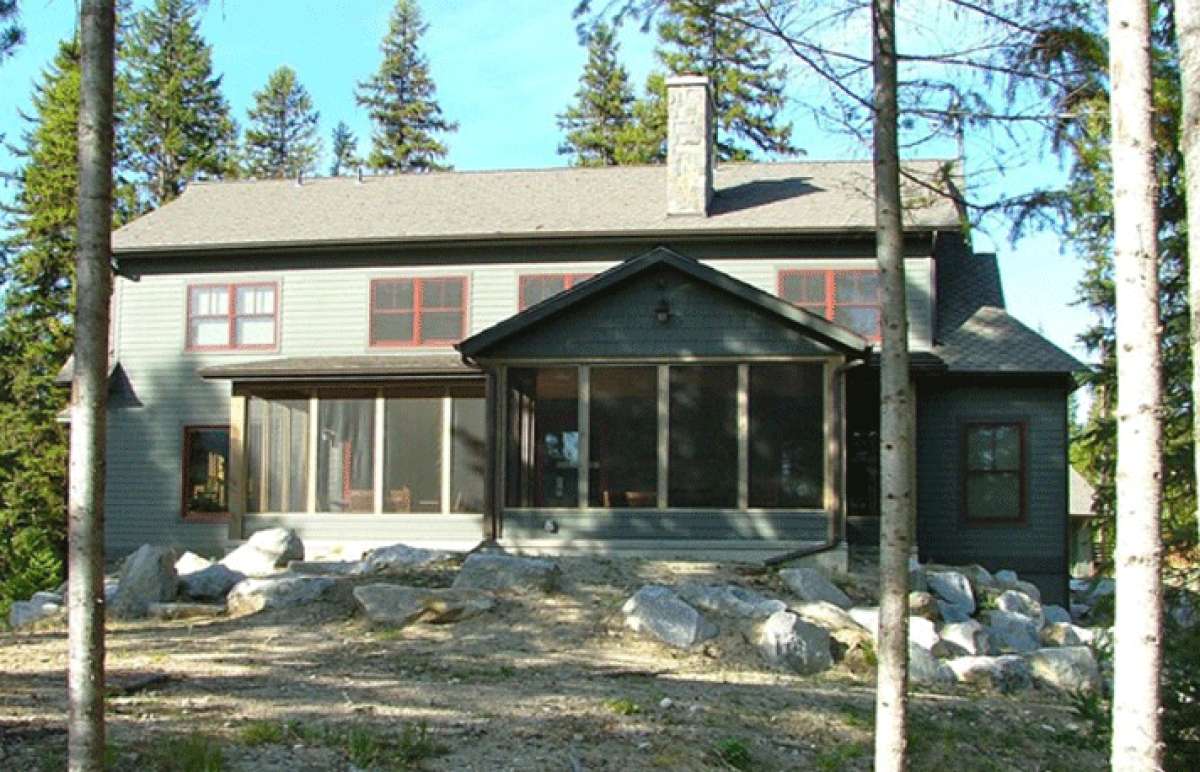

An open concept interior floor plan and amazing outdoor space flourish in this attractive Cottage house design. Wood column beams and a wide front covered porch highlight the front entrance while the rear of the home features an expansive screened porch which creates the ideal backdrop for a Mountain view or lakefront property. The interior floor plan has in excess of 2,900 square feet of living space and a daylight basement. A two story foyer opens onto the dramatic great room which is immense, has a handsome fireplace, built-in cabinetry and access to the rear screened porch. The screened porch measures 35’x12’ and is clearly designed as an additional living space; there is a stacked stone fireplace and a plethora of space for living and outdoor dining. The great room is open to the indoor dining space with a gorgeous window seat and plenty of room for a farmhouse table. The family friendly kitchen features a large center island with cabinets and plenty of additional counter and cabinet space. A side porch leads to the oversized laundry/mudroom where you will find a sink area, bench and counter space. The main level master suite features a large bedroom with great window views and private access to the screened porch. Dual vanities, a whirlpool tub, separate showers, linen closet and a private toilet area are highlighted in the master bath. An oversized walk-in closet sits at the rear of space for privacy and convenience. A powder room and coat closet for guests along complete the main level of living. A balcony overlook and expansive hallway highlight the second story landing. French door access into the family media or multi-purpose room, which measures 21’x13’, allows for privacy and a tidy landing area. The second bedroom is quite spacious with great window views and a private vanity and toilet area which is duplicated on the opposite side of the hall bath. Bedroom three features an oversized bedroom with a walk-in closet and private full bath. The terrace level of the home is enormous with an abundance of space for a casual family recreation room, an artist’s studio or craft room/workshop area and great storage space. This home is a fantastic family home with open entertaining space and private family space along with unlimited expansion possibilities.
