Craftsman House Plan 957-00026

Sq Ft3,920
Beds5
Baths4
1/2 Baths1
Stories2
Cars3
Width59' 6"
Depth51' 10"

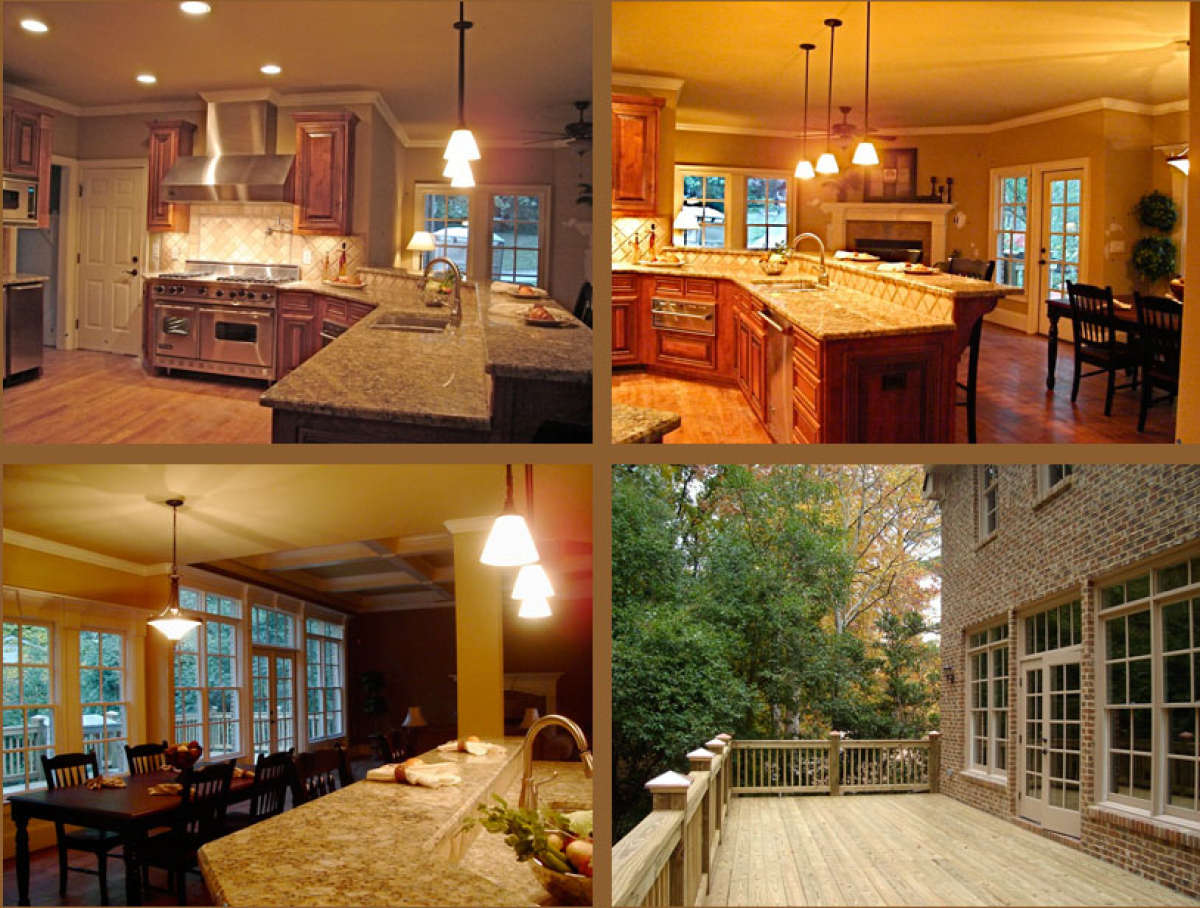

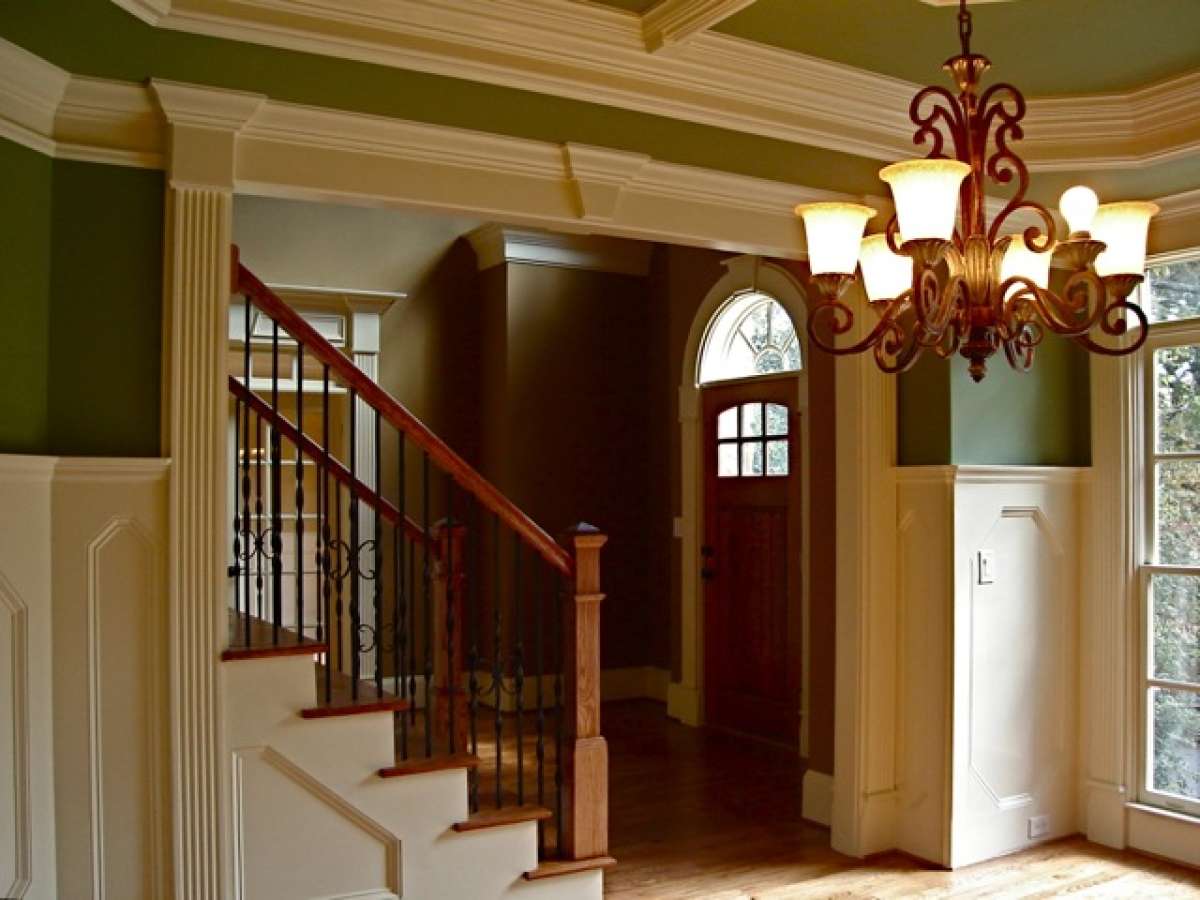

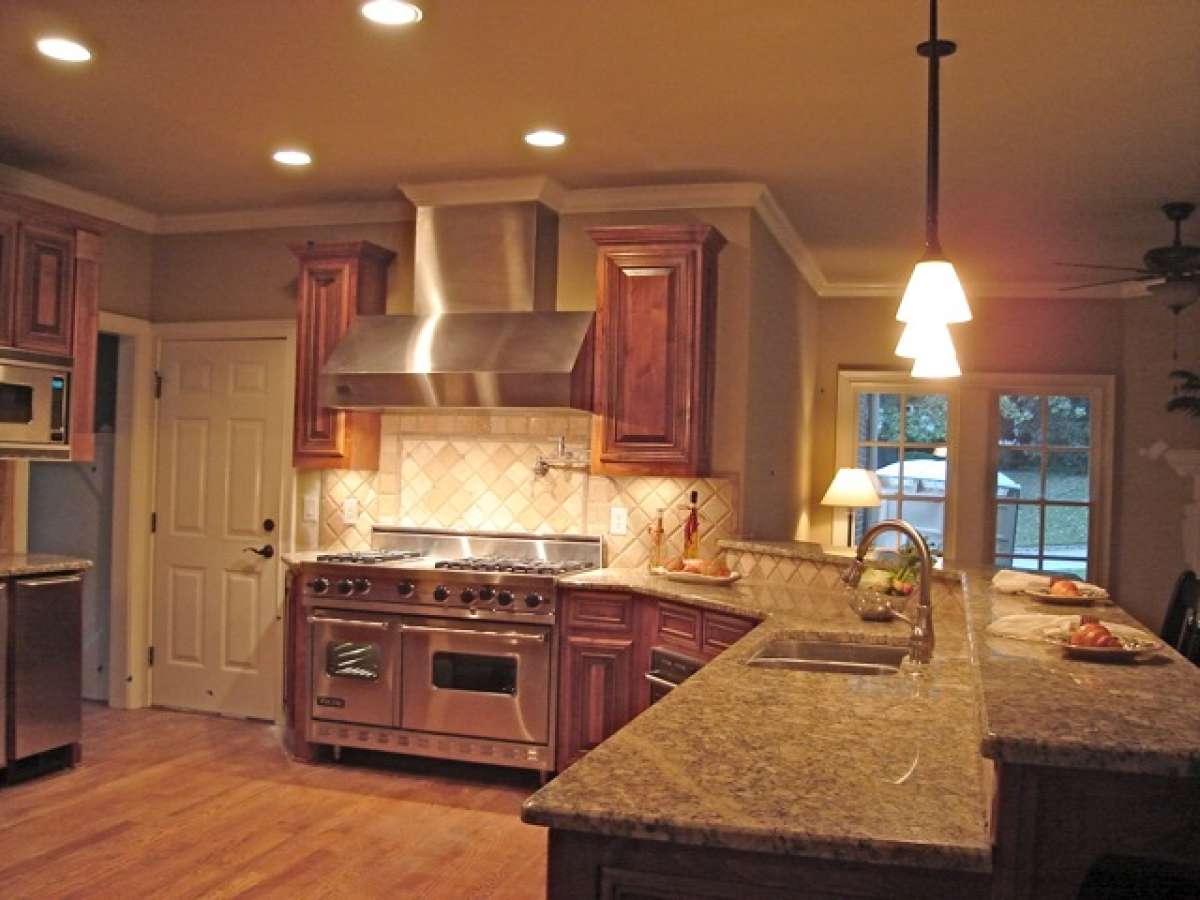

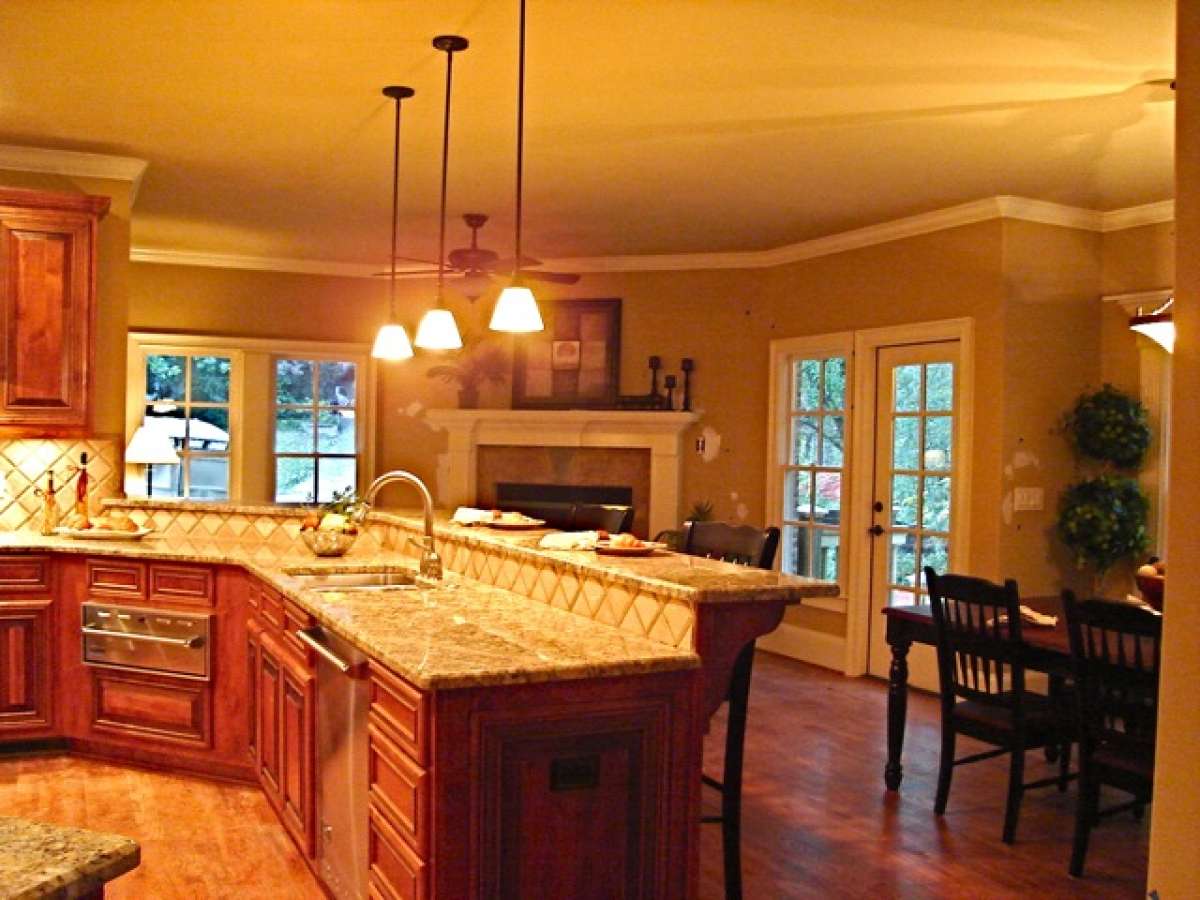

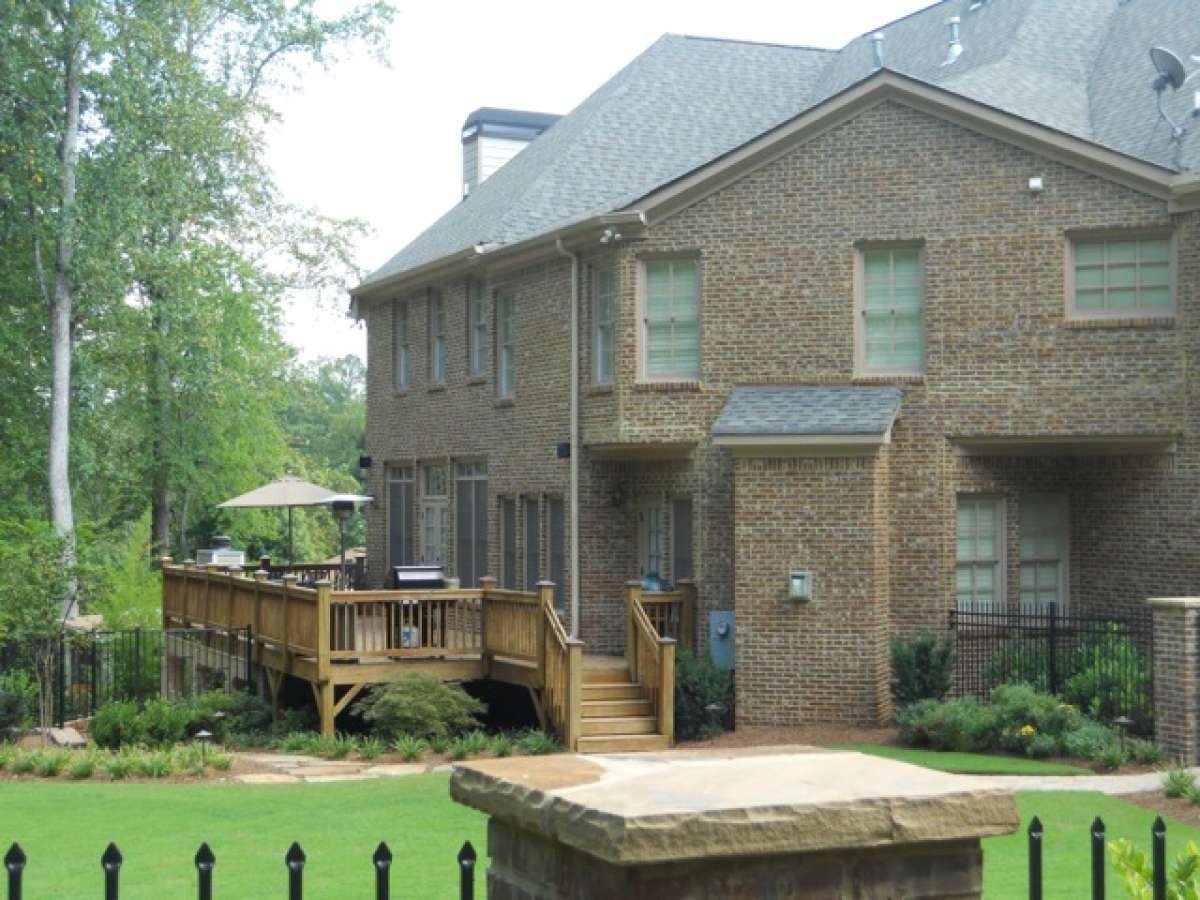

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

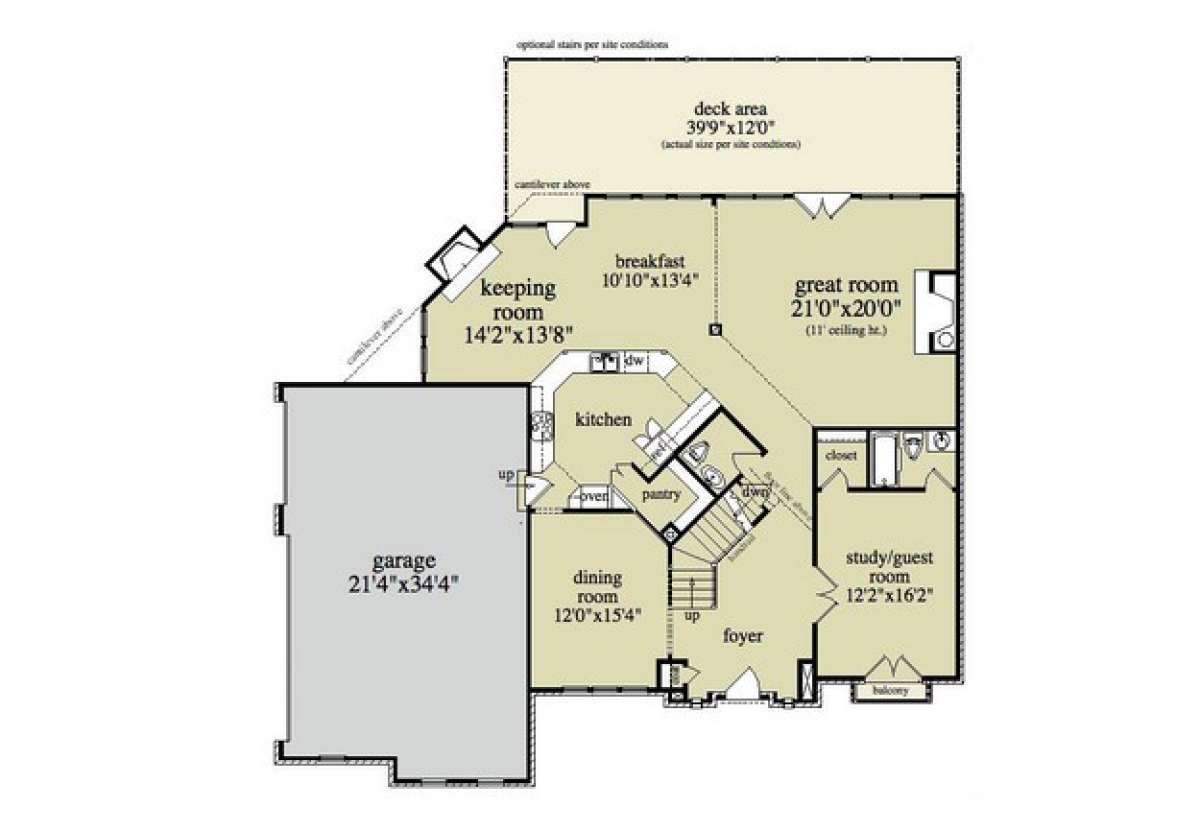

Floorplan 1 for House Plan #957-00026

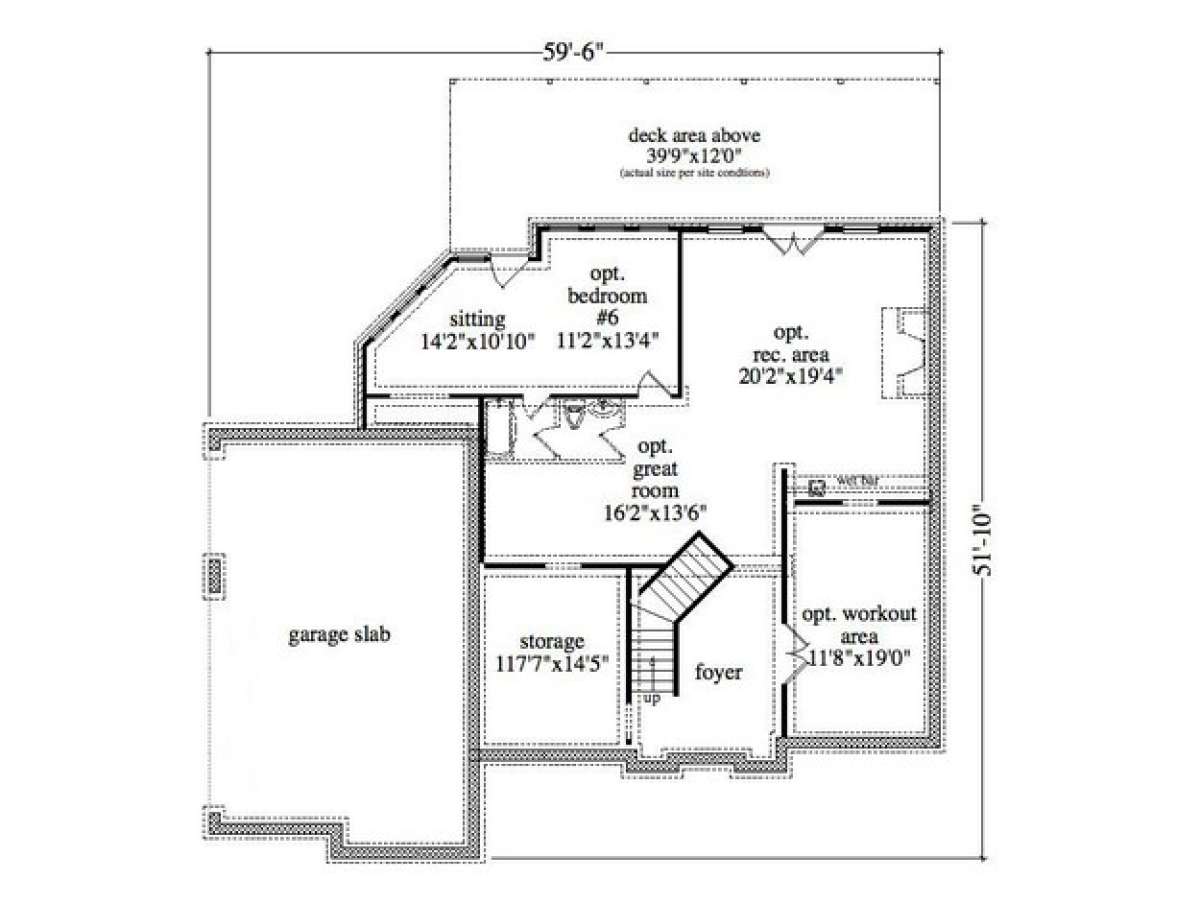

Floorplan 2 for House Plan #957-00026
Floorplan 3 for House Plan #957-00026
Floorplan 1
Floorplan 1 for House Plan #957-00026

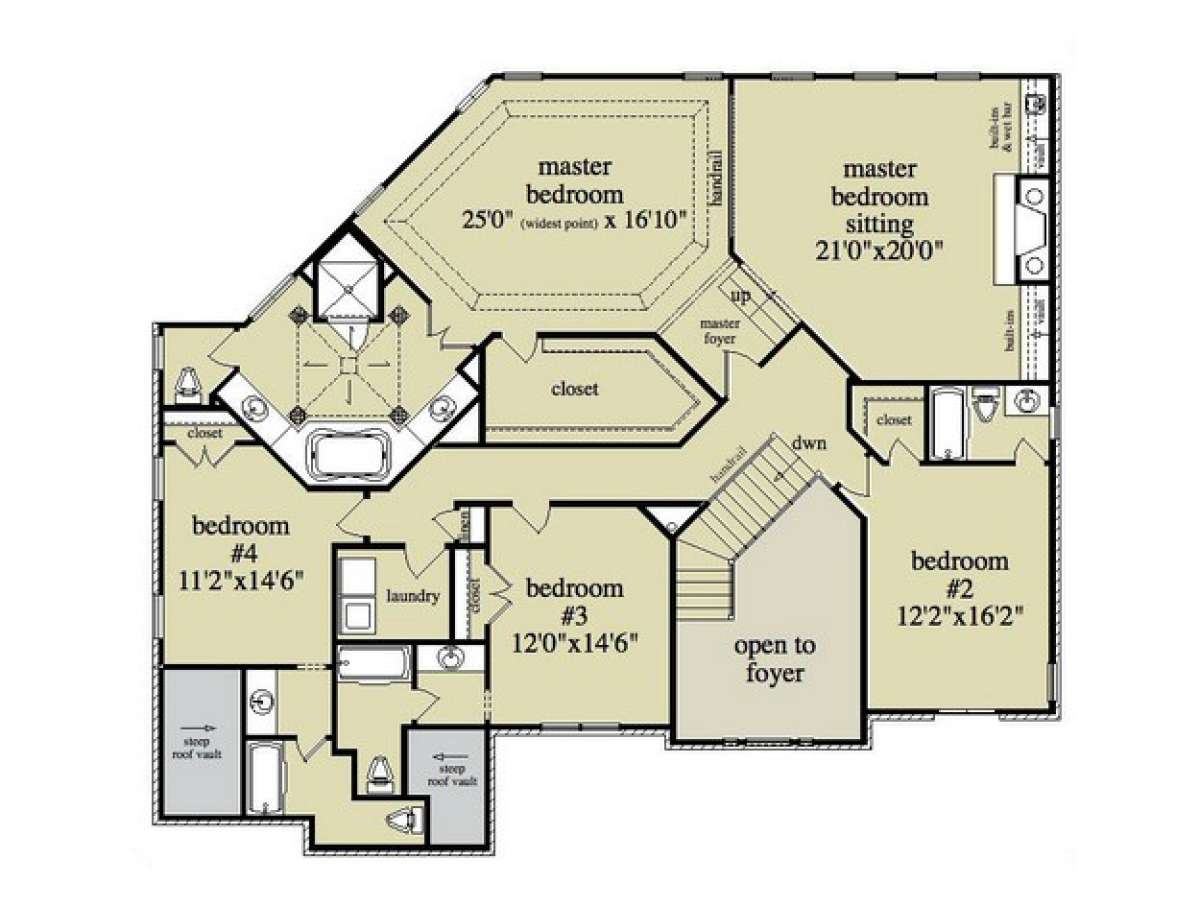

Floorplan 2
Floorplan 2 for House Plan #957-00026
Floorplan 3
Floorplan 3 for House Plan #957-00026


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet:
    Includes a drawing index, square footage chart, and usually the front and rear elevations.

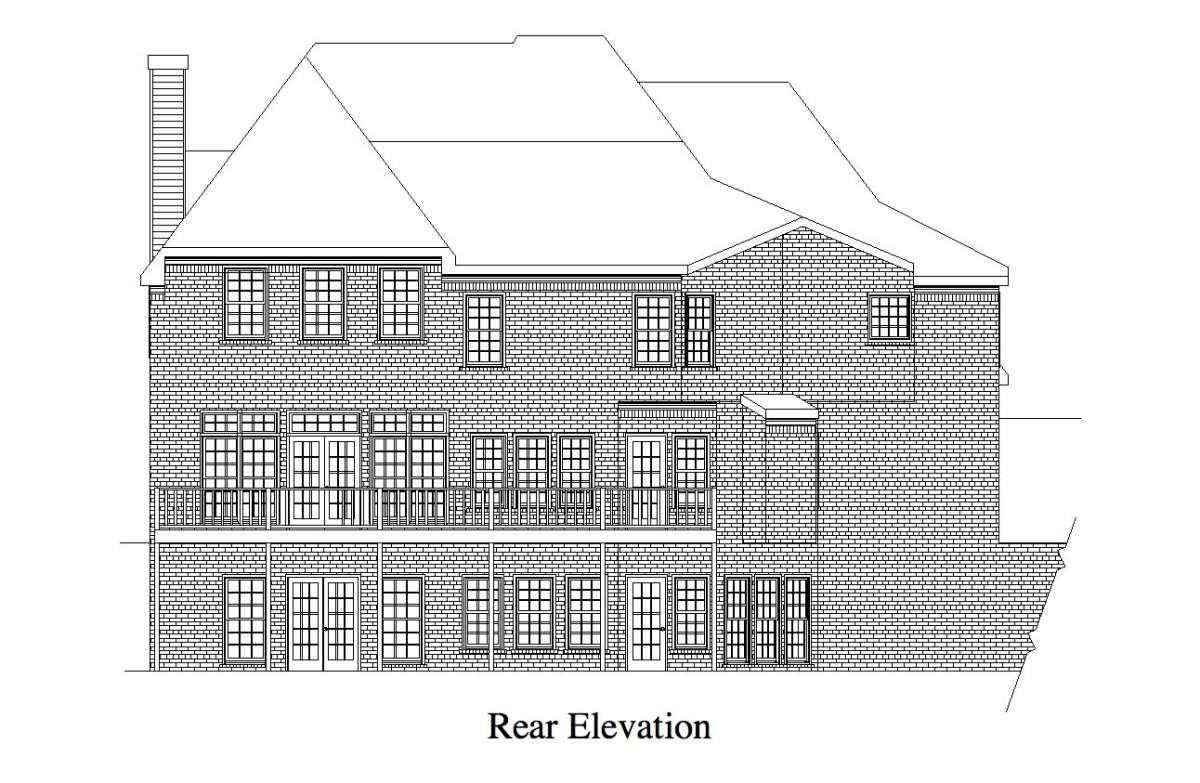

  • Exterior Elevations:
    All elevations are detailed and shown at ¼" scale, usually over two sheets.
  • Floor Plans and Square Footage:
  • This floor plan almost always come in ¼" scale with centerline dimensions and are most commonly shown with 4" walls. 6" exterior walls are available as an optional upgrade (Please call for pricing of 2x6 walls). Our square feet measurements only include heated floor space. The measurements are made from outside the exterior frame (brick is NOT included). Stairs are counted once. Walkways and overlooks in vaulted two-story areas are included in the square footage. Volume areas on the second floor are not counted. Additionally, a 2x floor framing example is provided.
  • Foundations:
    -Basement:
    They are almost always shown as walk-out basements with 10" walls (not counting framed walls).
    -Slab:
    Usually an optional upgrade, we show a typical turned down slab.
    -Crawl Space:
  • Usually an optional upgrade, we show crawl space foundations with 8" walls and ventilation calculations.
  • Roof:
    This plan includes a 2D and a 3-D roof overview showing all pitches and planes. A 2x framing roof plan is also provided as a framing example.
  • Electrical Layout:
    This plan includes a "path of light" electrical layout for each floor.
  • Typical Details:
    Each plans comes with typical details for the appropriate foundation, wall sections, roof framing, etc. Details, insulation specifications and any beam or rebar sizing is based on what is typical for the Atlanta, GA area.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

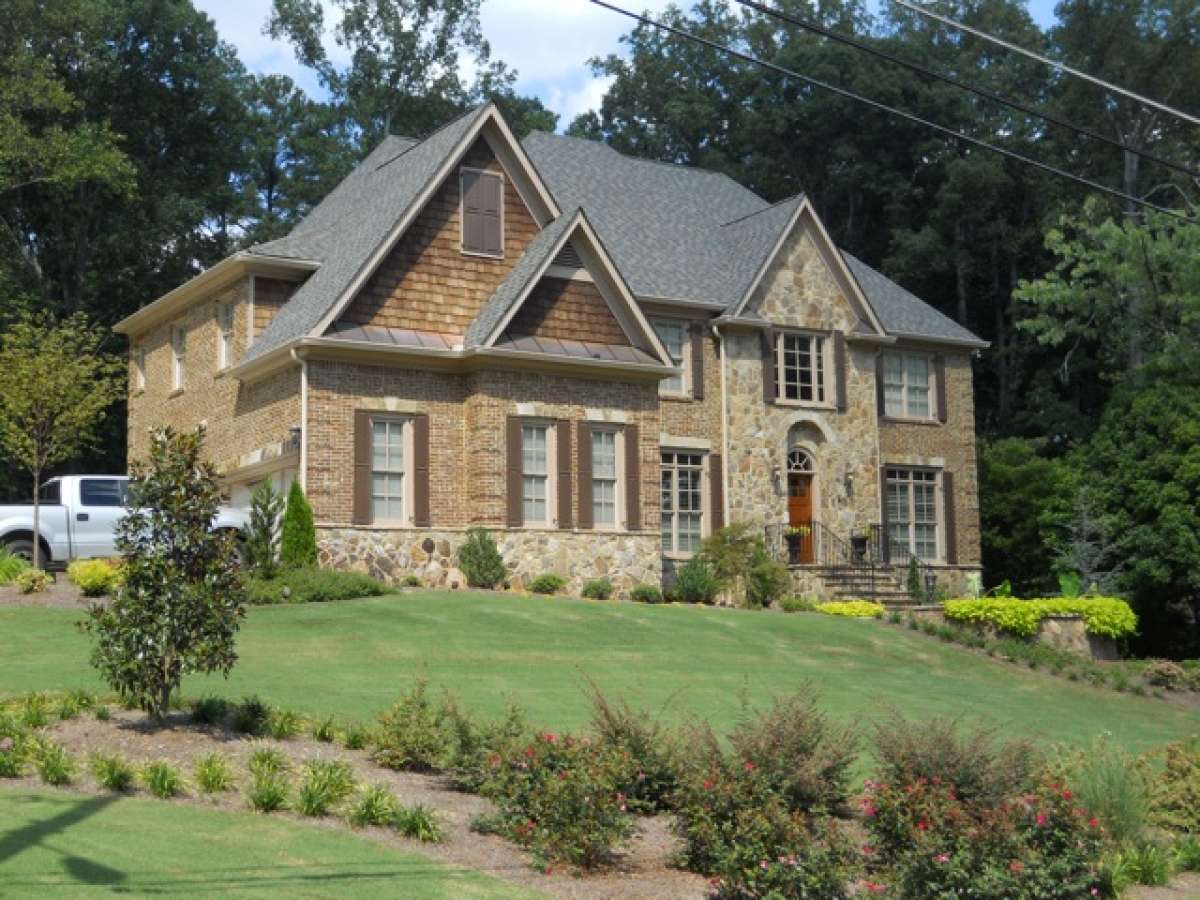

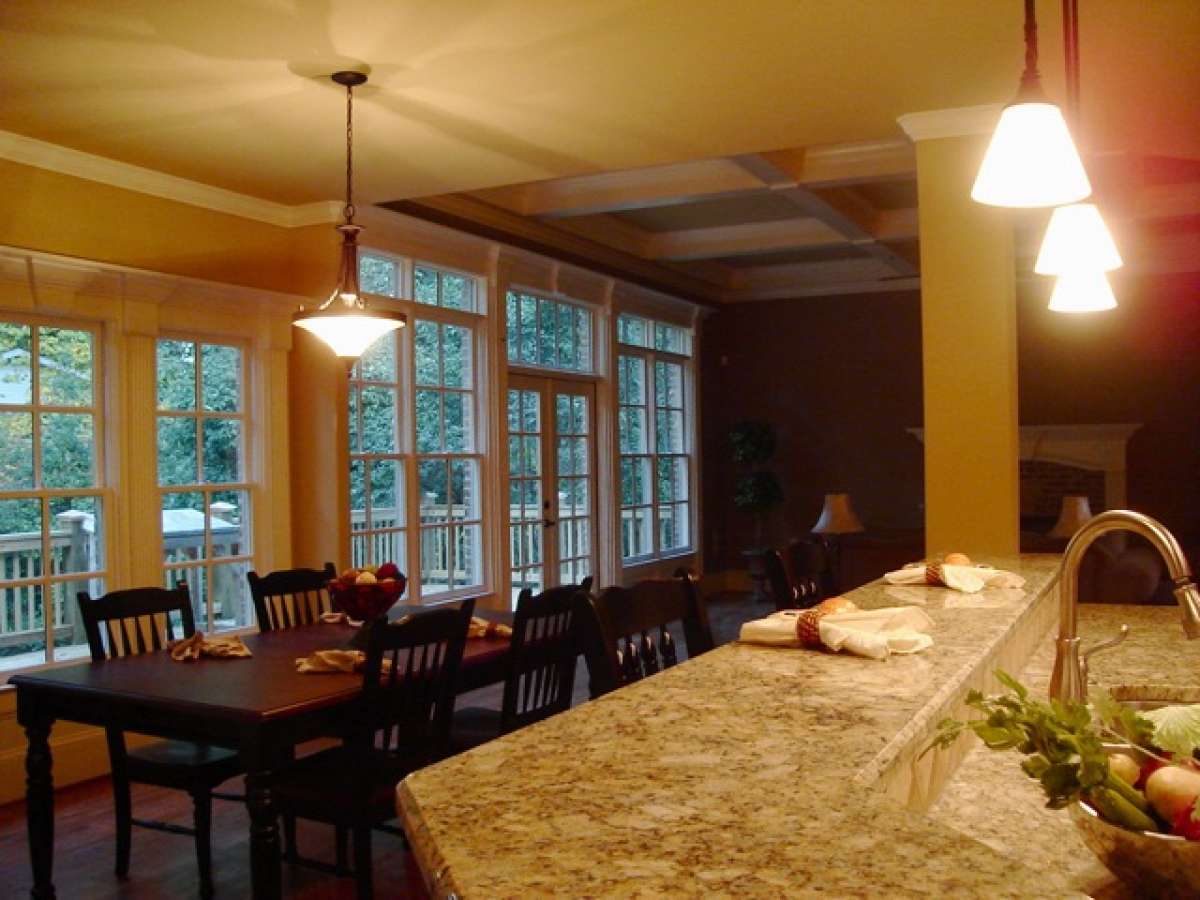

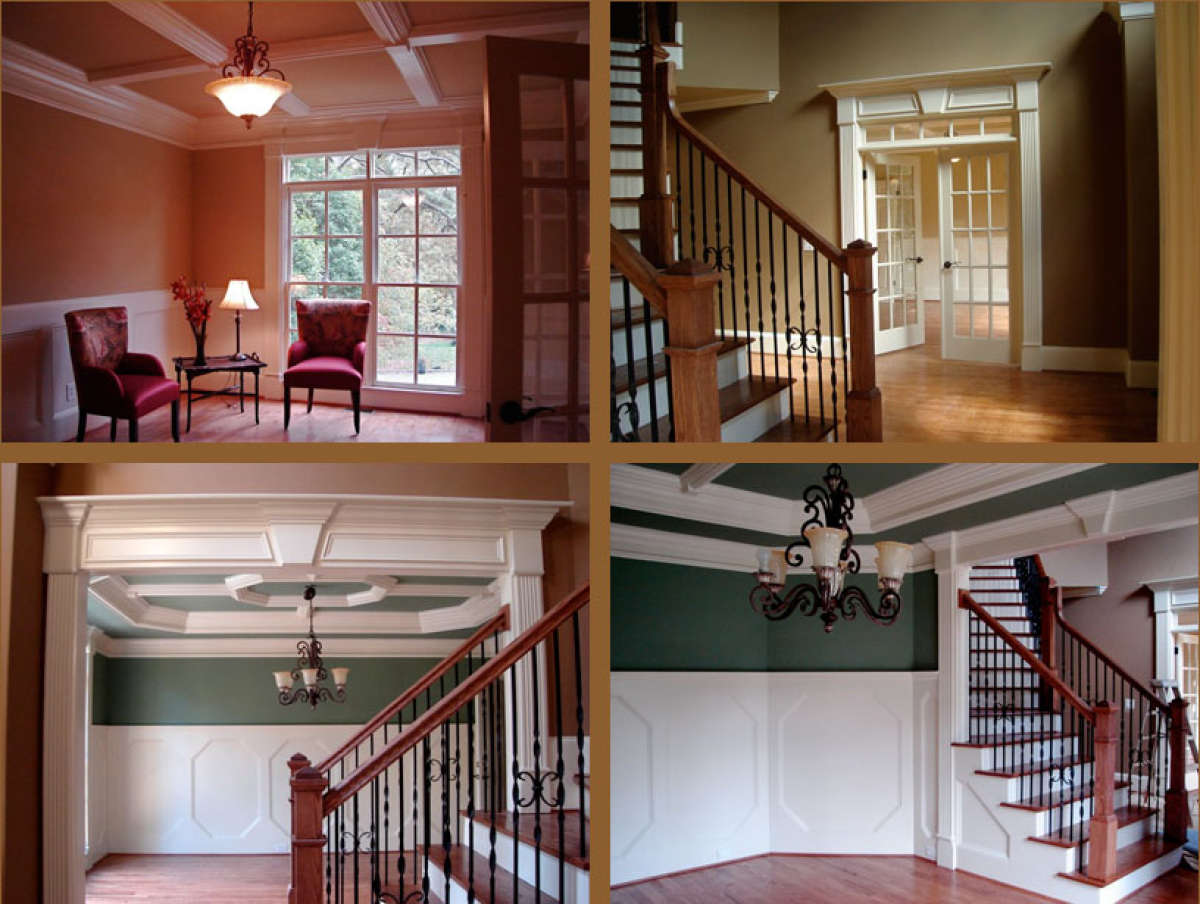

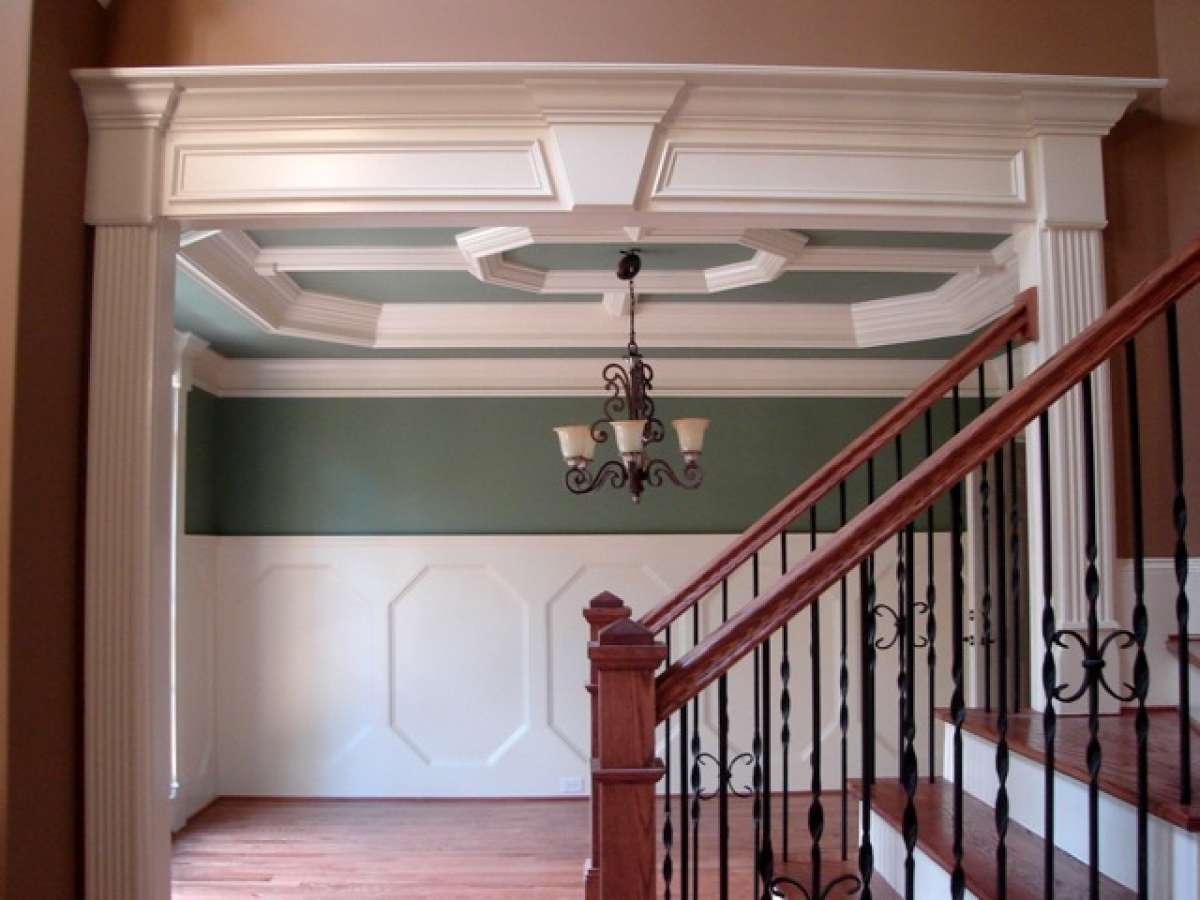

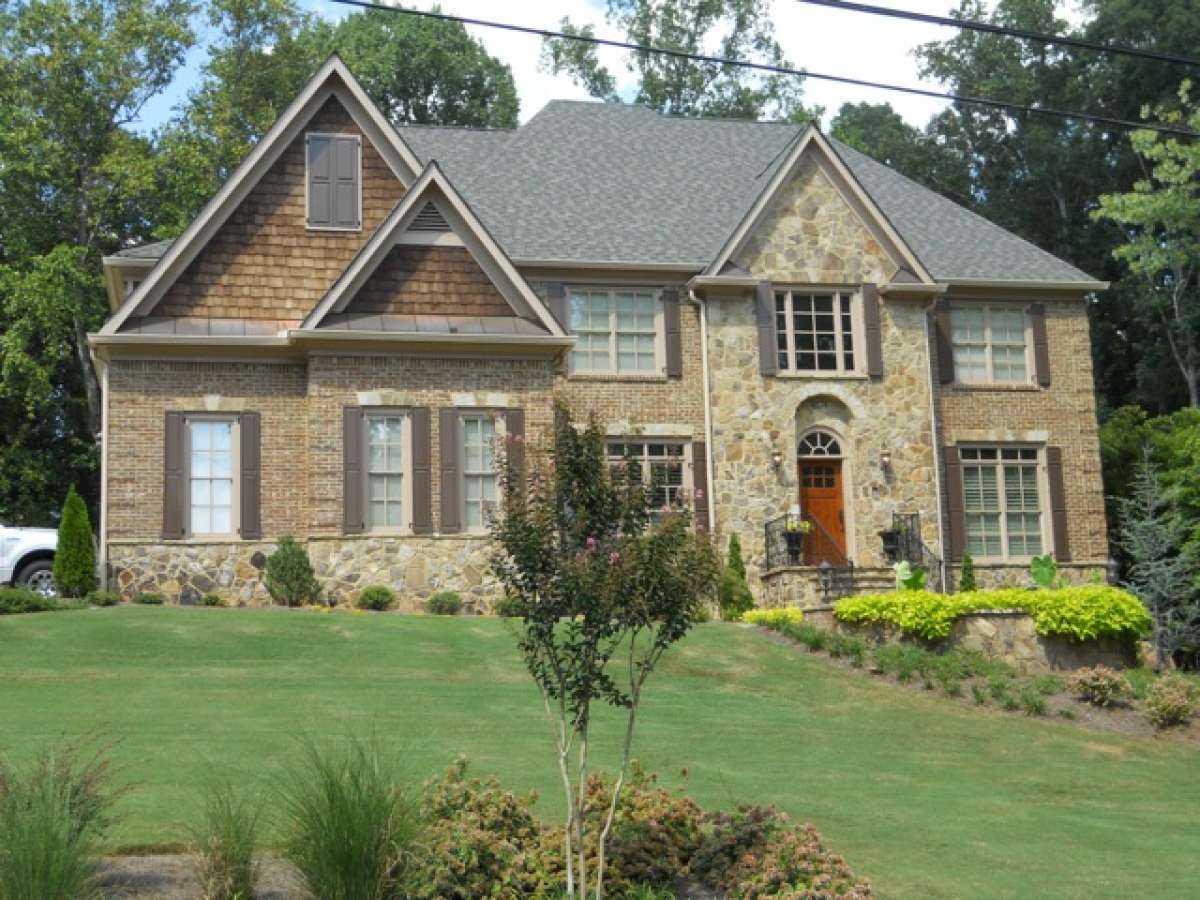

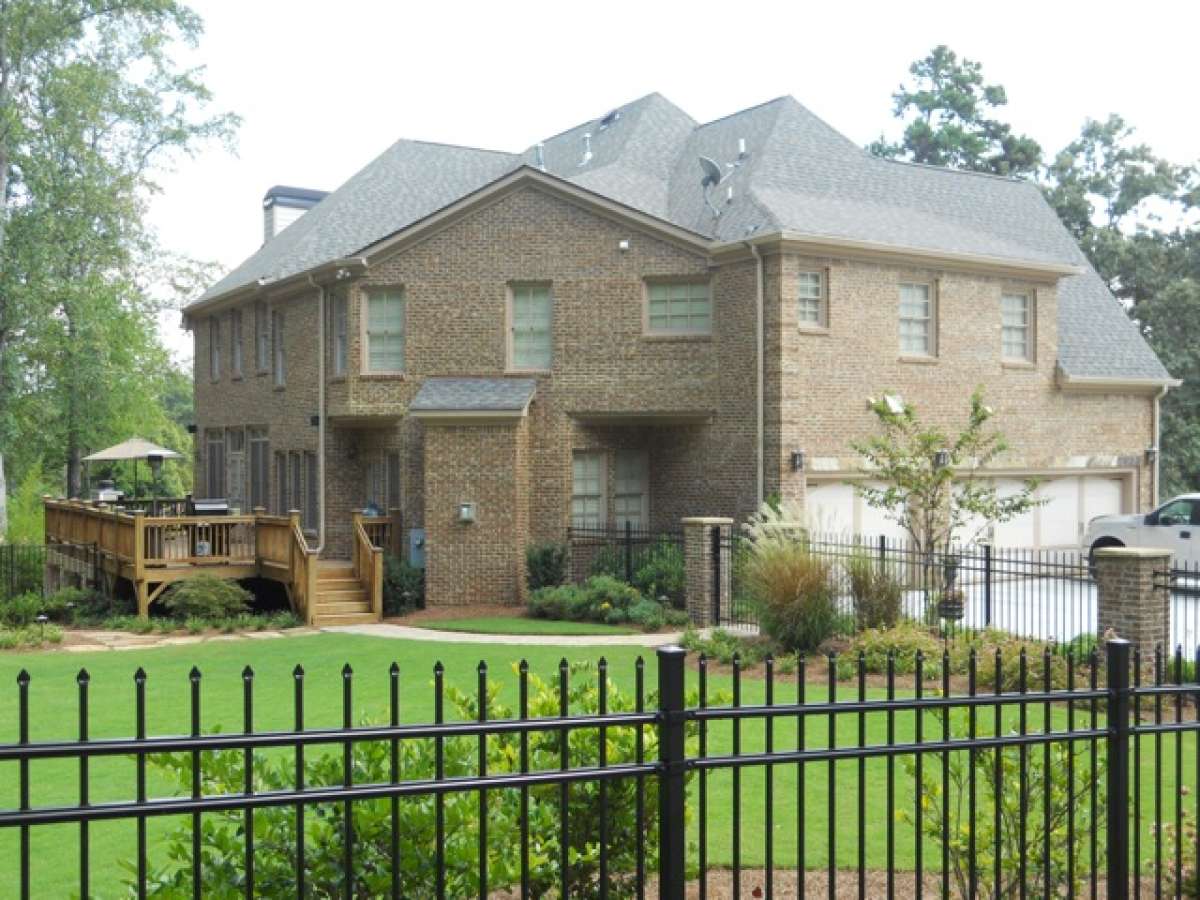

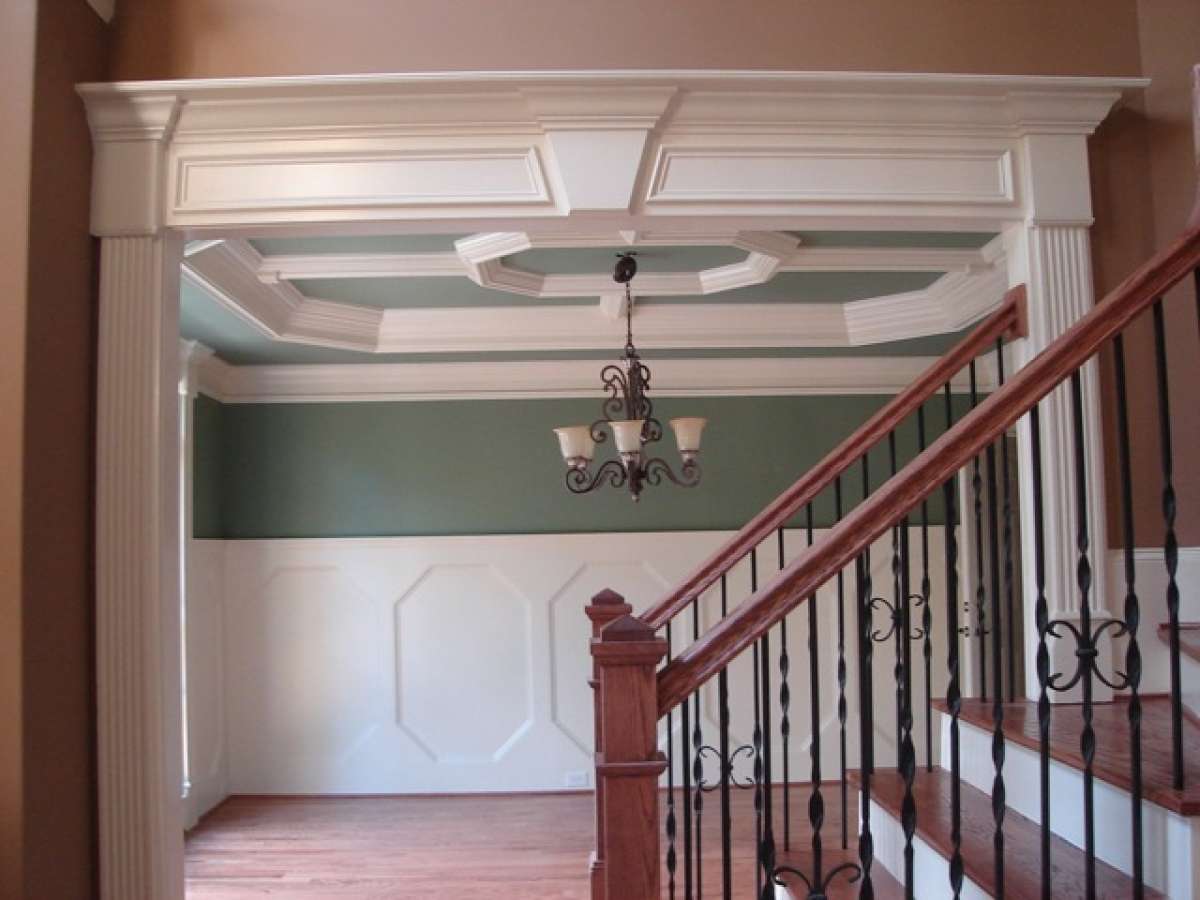

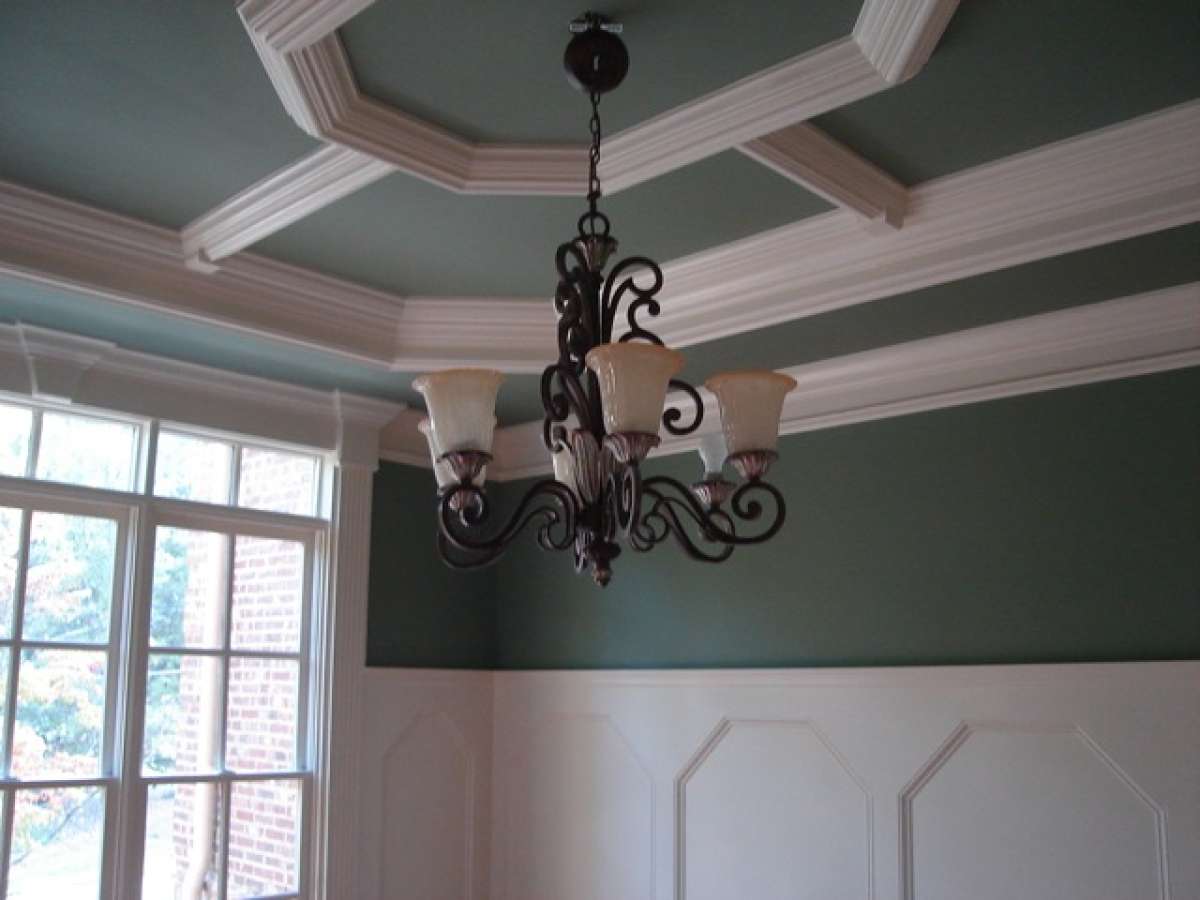

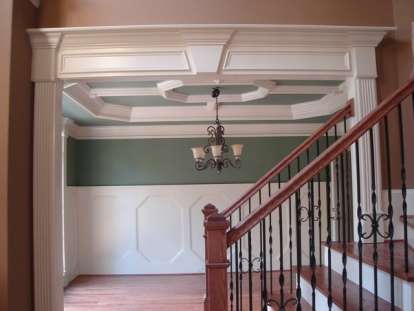

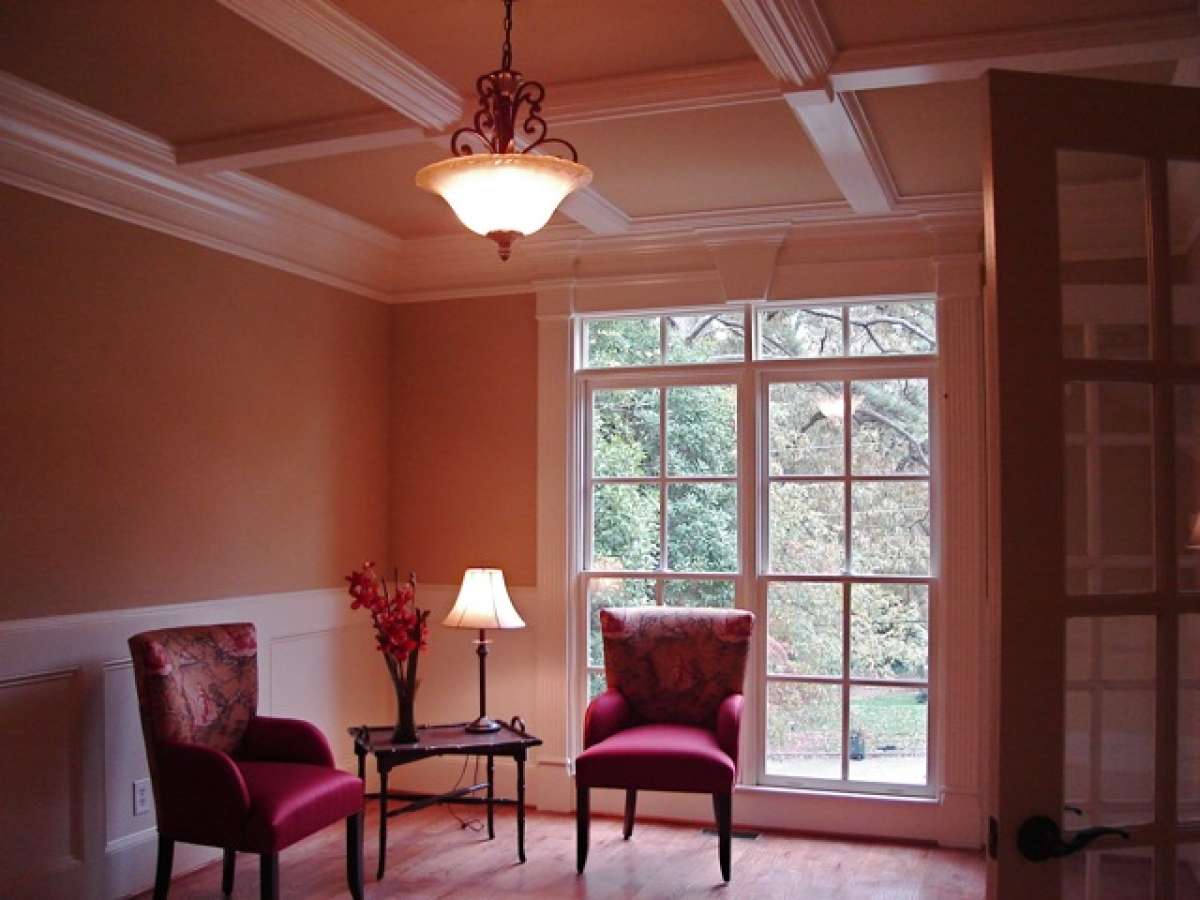

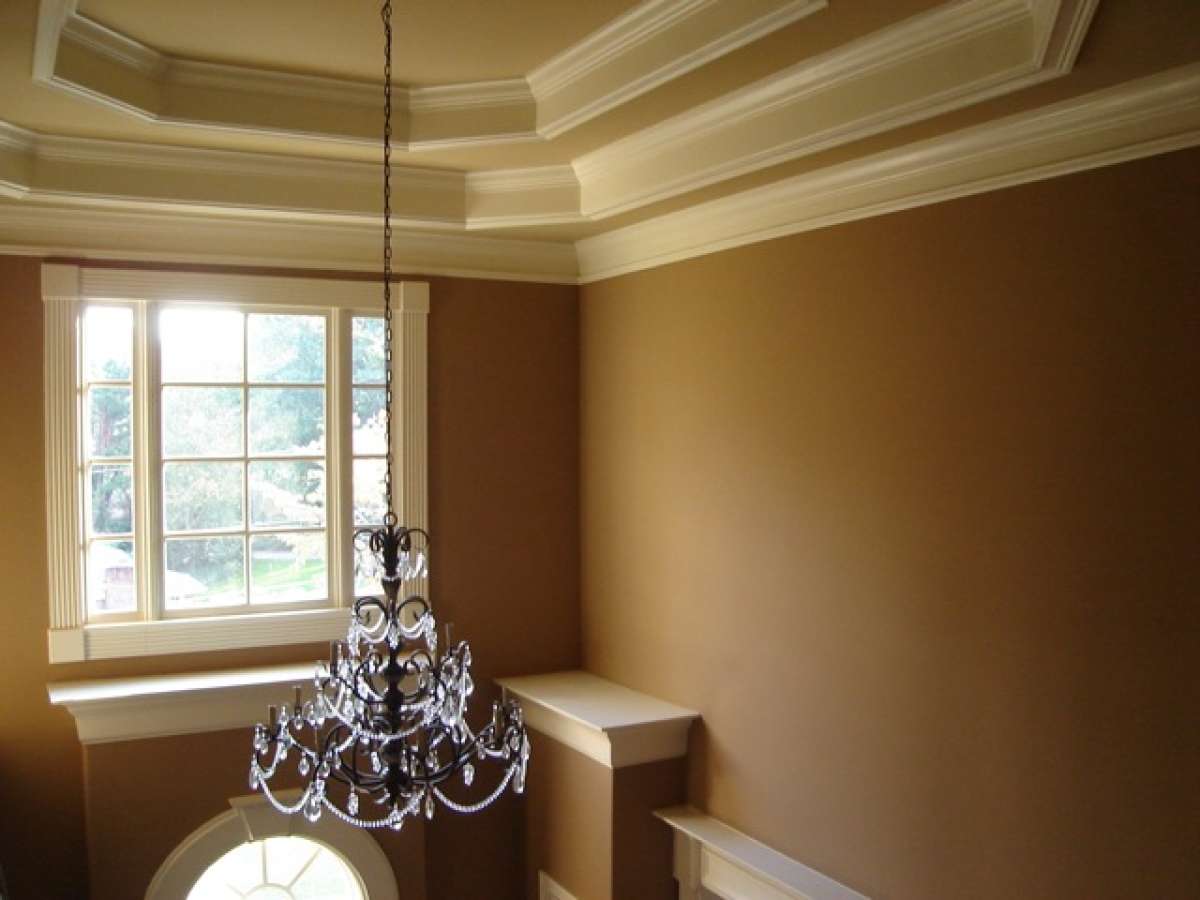

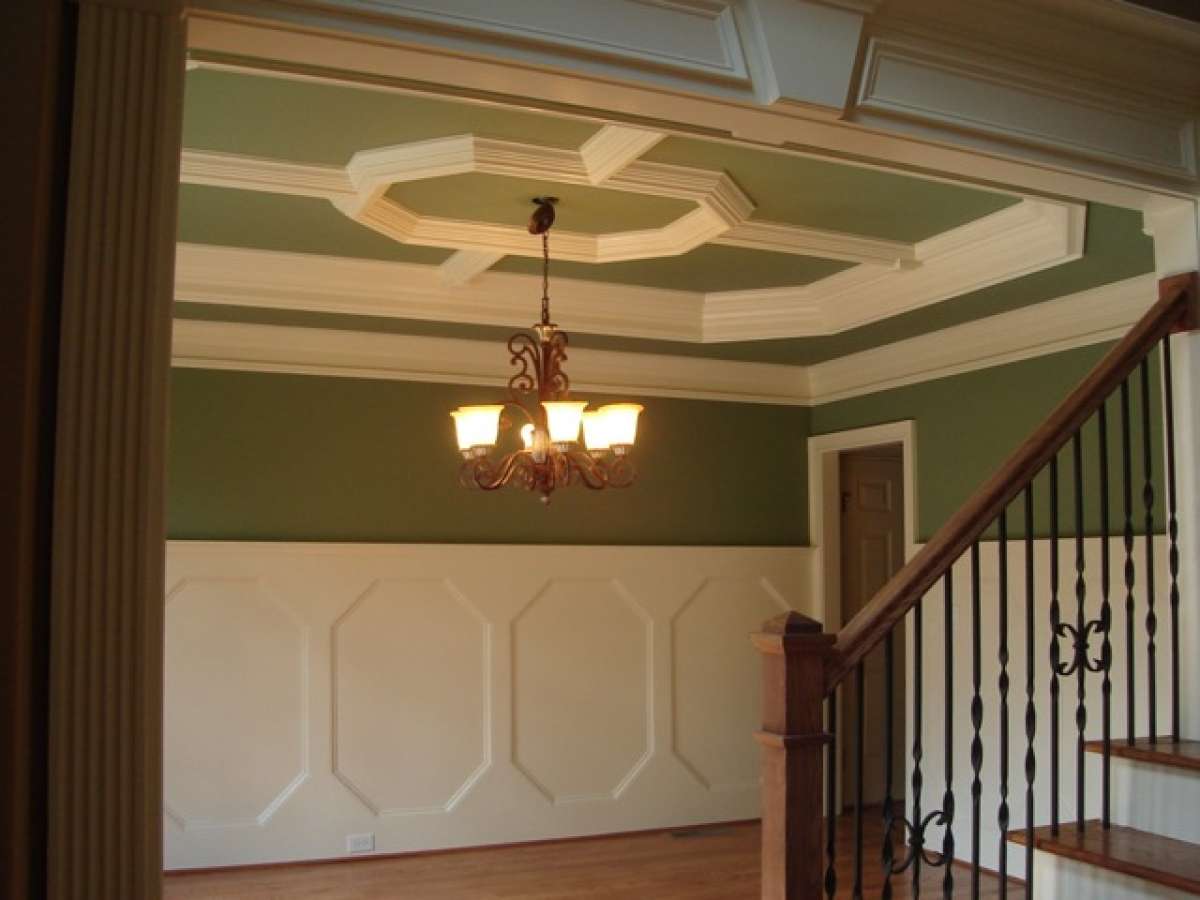

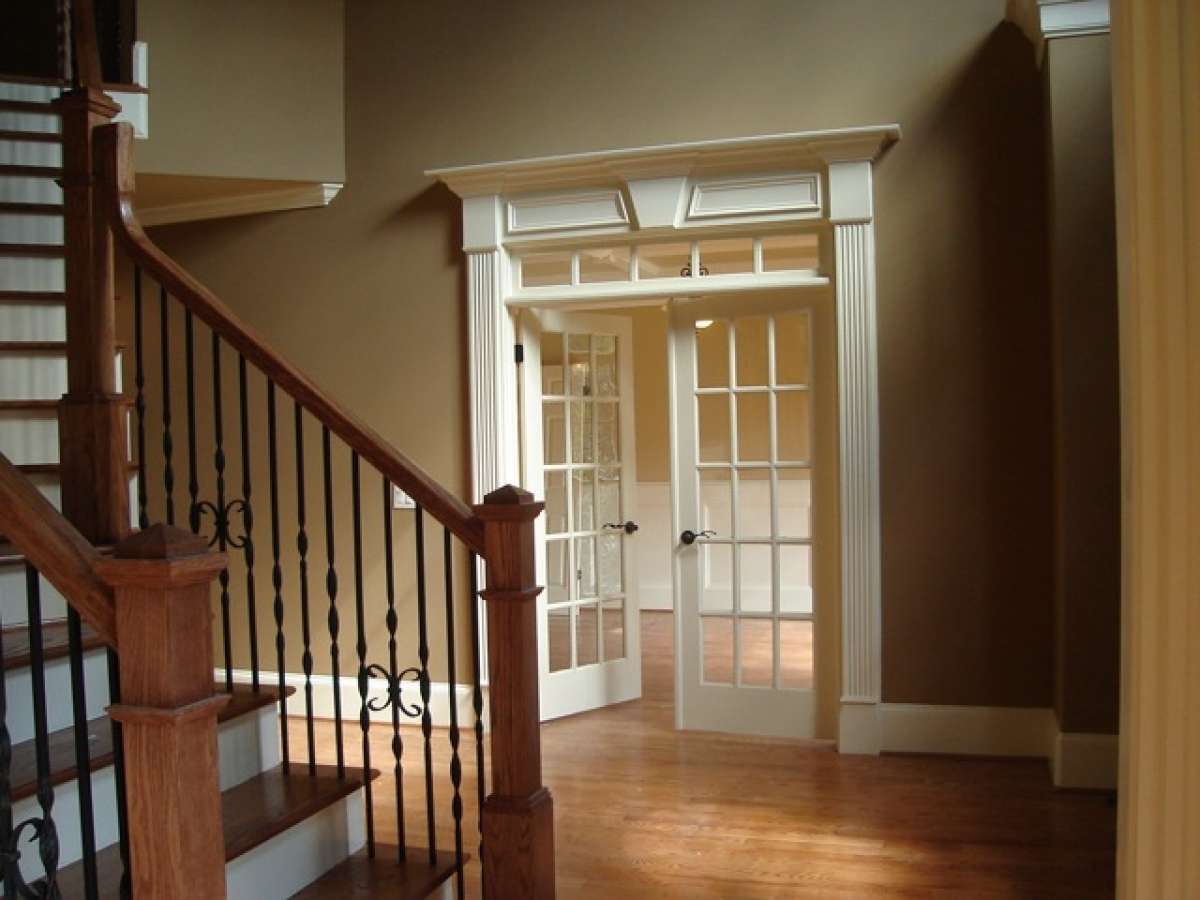

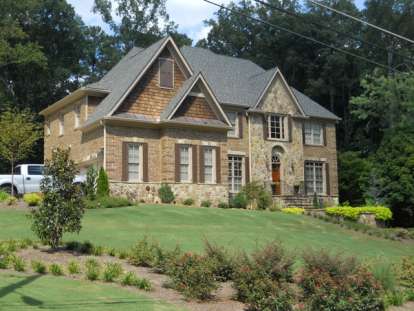

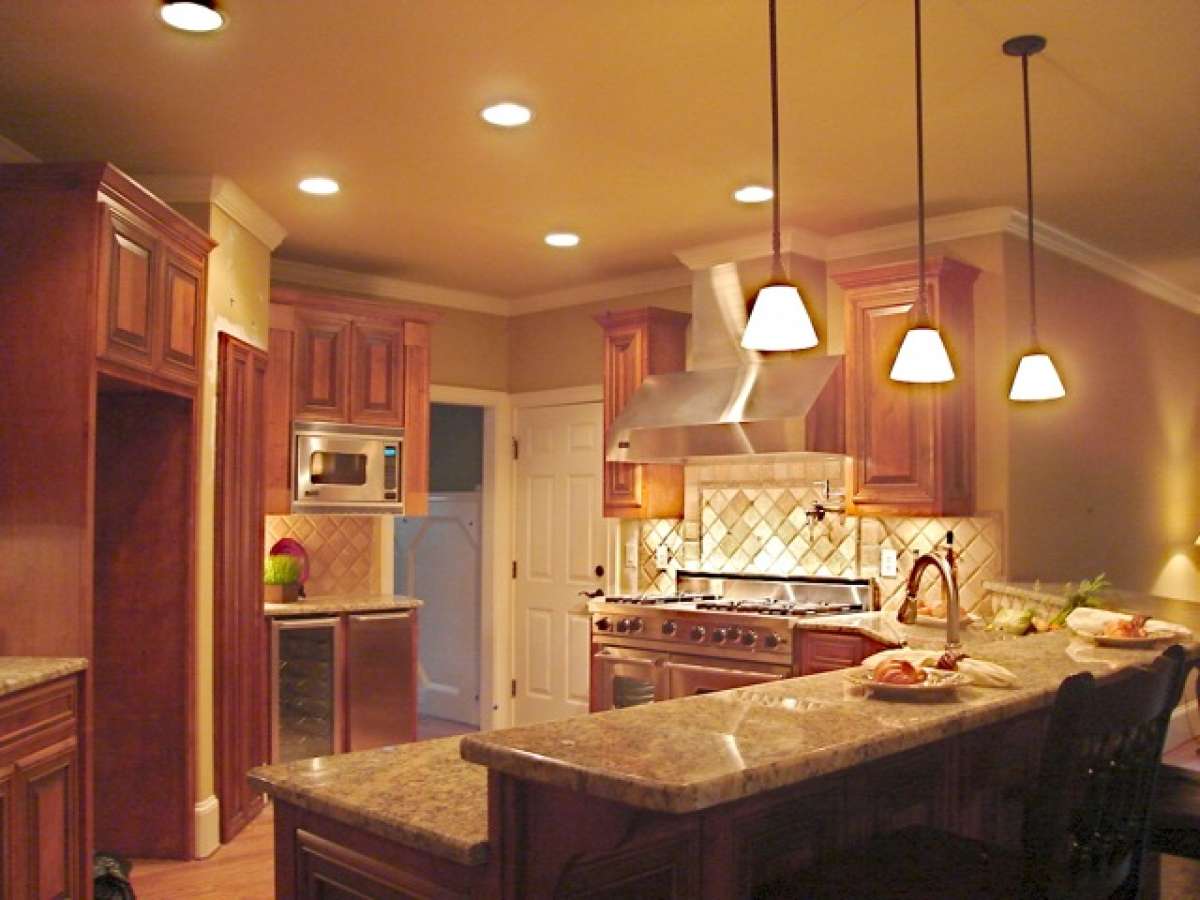

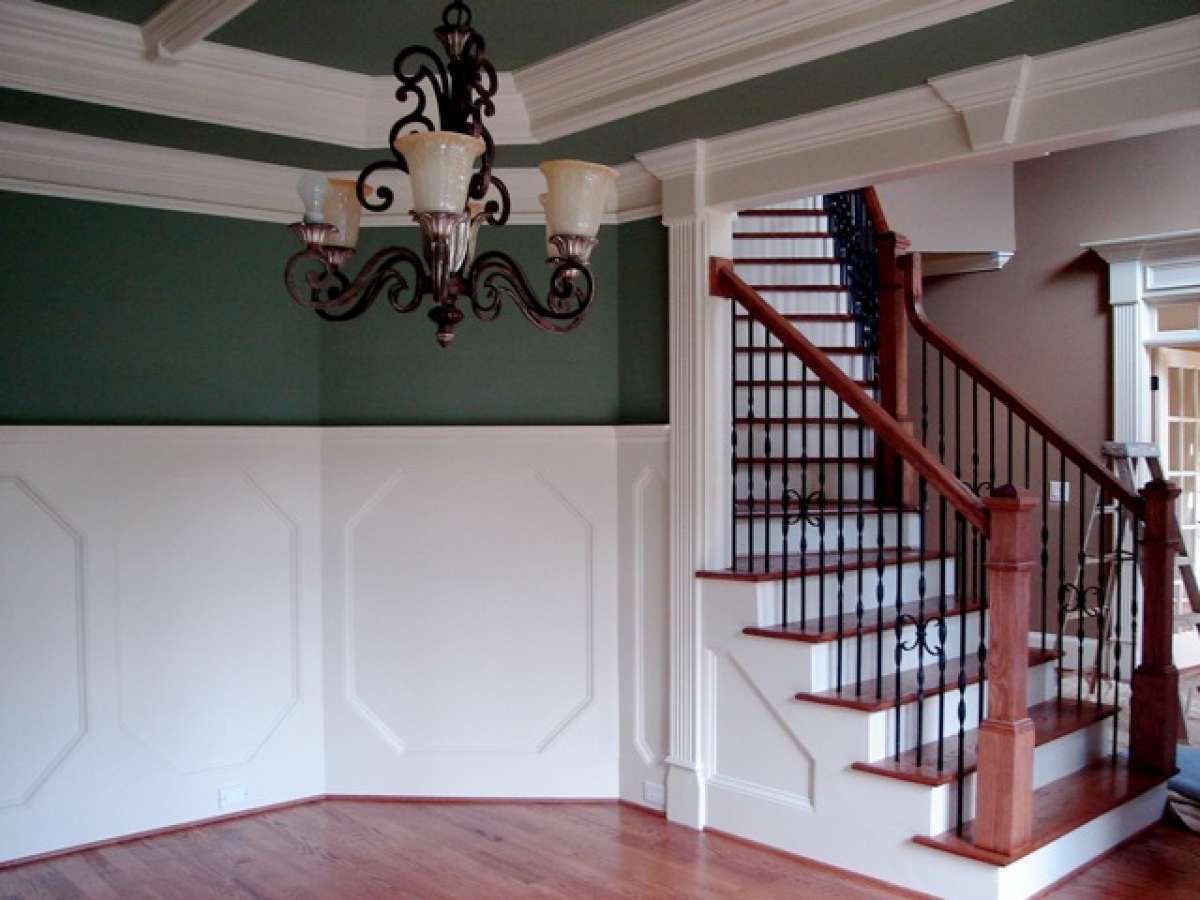

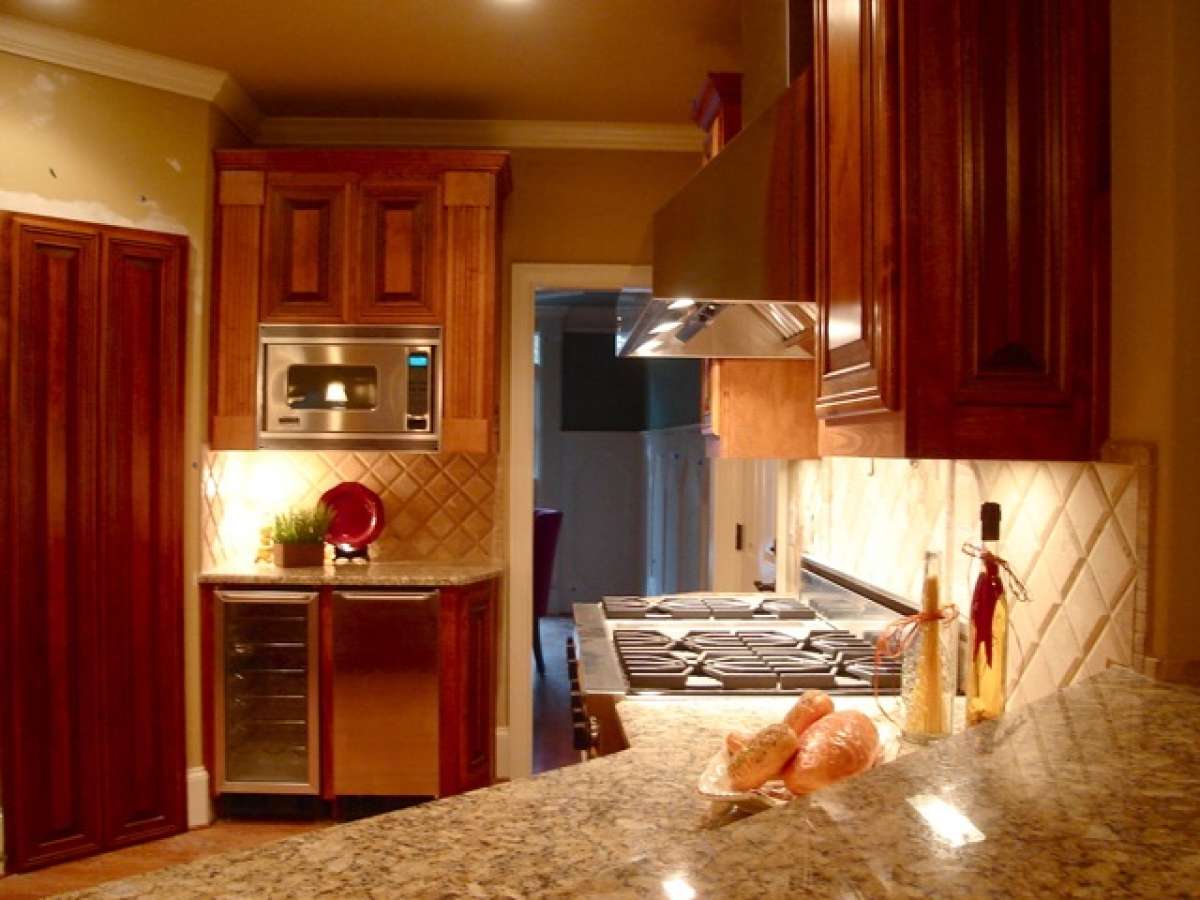

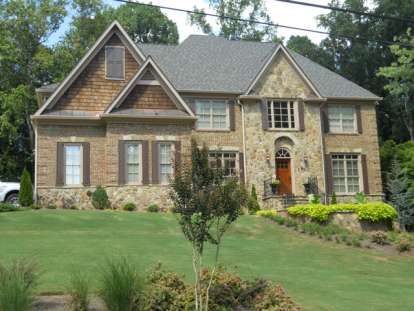

This luxury two story Tudor styled house plan has a bold exterior featuring brick, stacked stone accents, cedar shakes and a classic stone exterior wall. The two car, side entry garage bays will easily accommodate three cars. The equally stunning interior floor plan features in excess of 3,900 square feet of living space and a daylight basement which includes a plethora of expansion options. There are five bedrooms and four plus baths in two stories of living and the terrace level could provide a sixth bedroom with a spacious sitting area and full bath, a future recreation room, great room, exercise room and additional storage space. The main level of the home is highlighted by great family and entertaining space; the impressive foyer houses the staircases to the second story and terrace level. Additionally, French door access to the guest suite/study is off the foyer and the spacious suite contains a walk-in closet, private bath and balcony. The formal dining room is on the opposite side of the foyer and features great entertaining space and access to the gourmet kitchen. The kitchen is highlighted by an angled bar, plenty of additional counter and cabinet space and an enormous walk-in pantry. The informal breakfast room and keeping room with fireplace open onto the kitchen and provides rear access to the open deck which spans the length of the home. There is a great room, measuring 21’x20’, which features a handsome fireplace and provides French door access to the deck. A half bath for guests completes the main level of living.

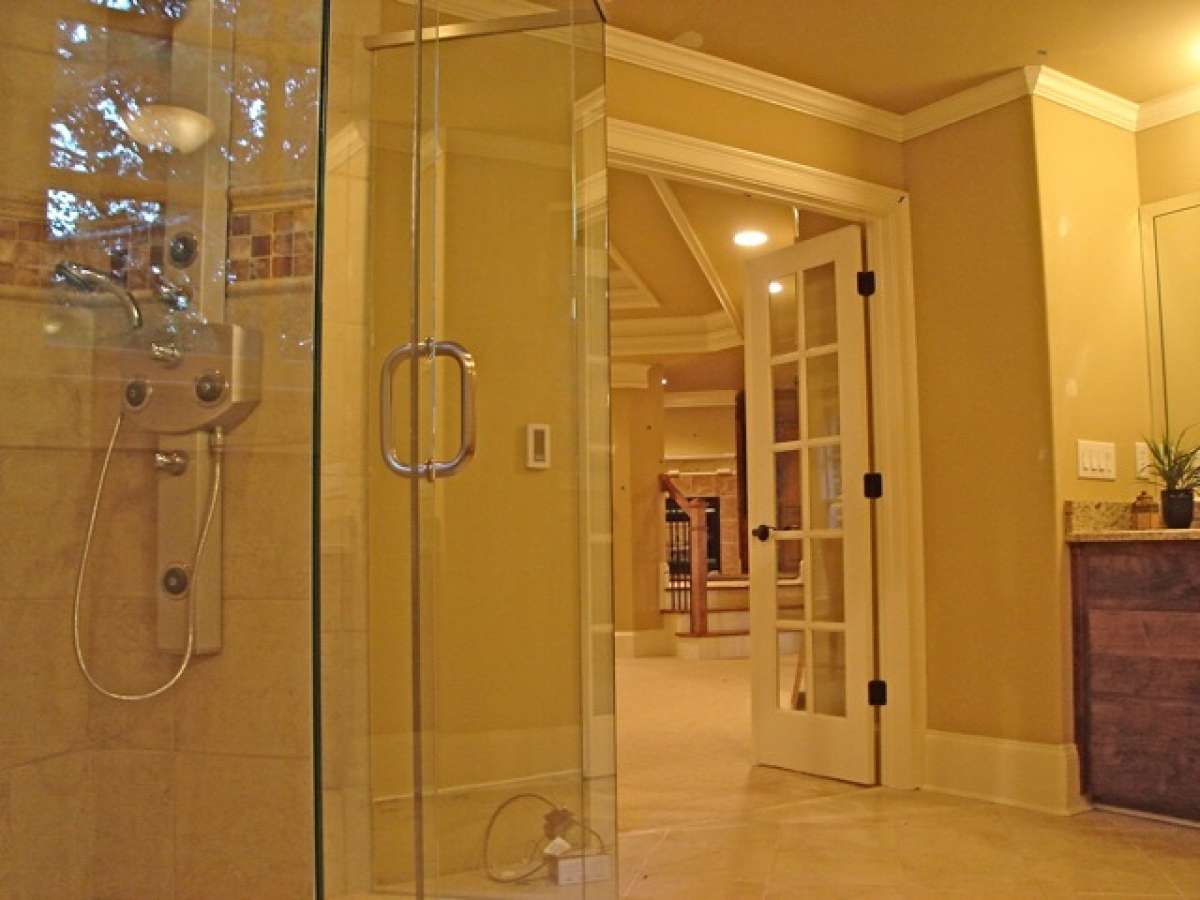

The beautiful second story staircase features an open balcony overlooking the foyer and great family space. Bedroom two is highlighted by a spacious footprint which features a walk-in closet and private bath. The third and fourth bedrooms each contain ample closet space and private baths. There is a hall linen closet and the family laundry room is situated on the second floor for ease and convenience. The master retreat is simply stunning and features an oasis from everyday living and stress. The master foyer features a step-up sitting room which mirrors the great room in size and is highlighted by a fireplace, wet bar, built-in cabinetry and wonderful window views of the rear yard. The master bedroom is enormous with a trey ceiling accent and access to the oversized walk-in closet. The master bath is elegantly designed and features dual vanities, a separate shower, whirlpool tub and a compartmentalized toilet. This house plan has a timeless and classic exterior façade, a fabulous interior floor plan and a plethora of expansion possibilities which add to the versatility and value of the home.
