Lake Front House Plan 957-00002

Sq Ft3,728
Beds3
Baths3
1/2 Baths1
Stories1
Cars2
Width99' 10"
Depth59' 1"

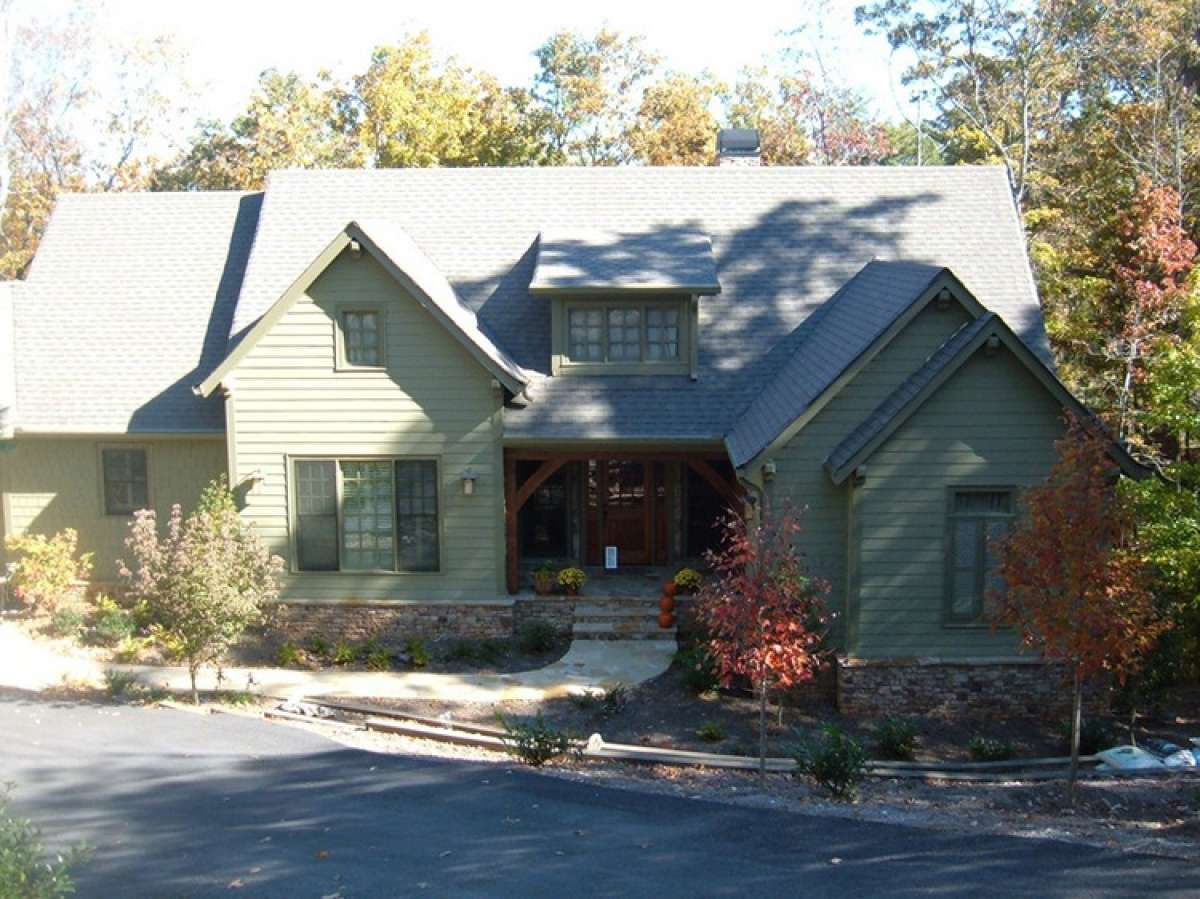

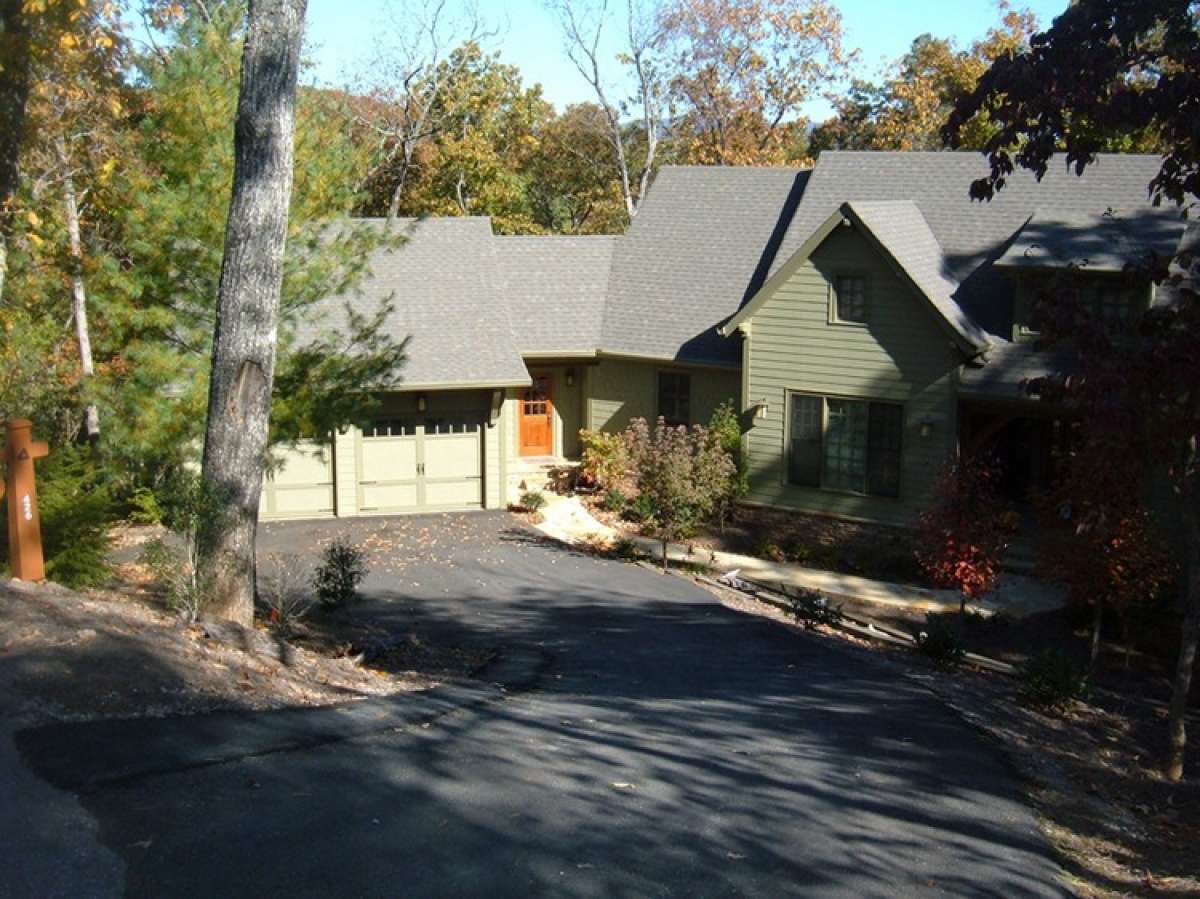

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Level for House Plan #957-00002
Terrace Level for House Plan #957-00002

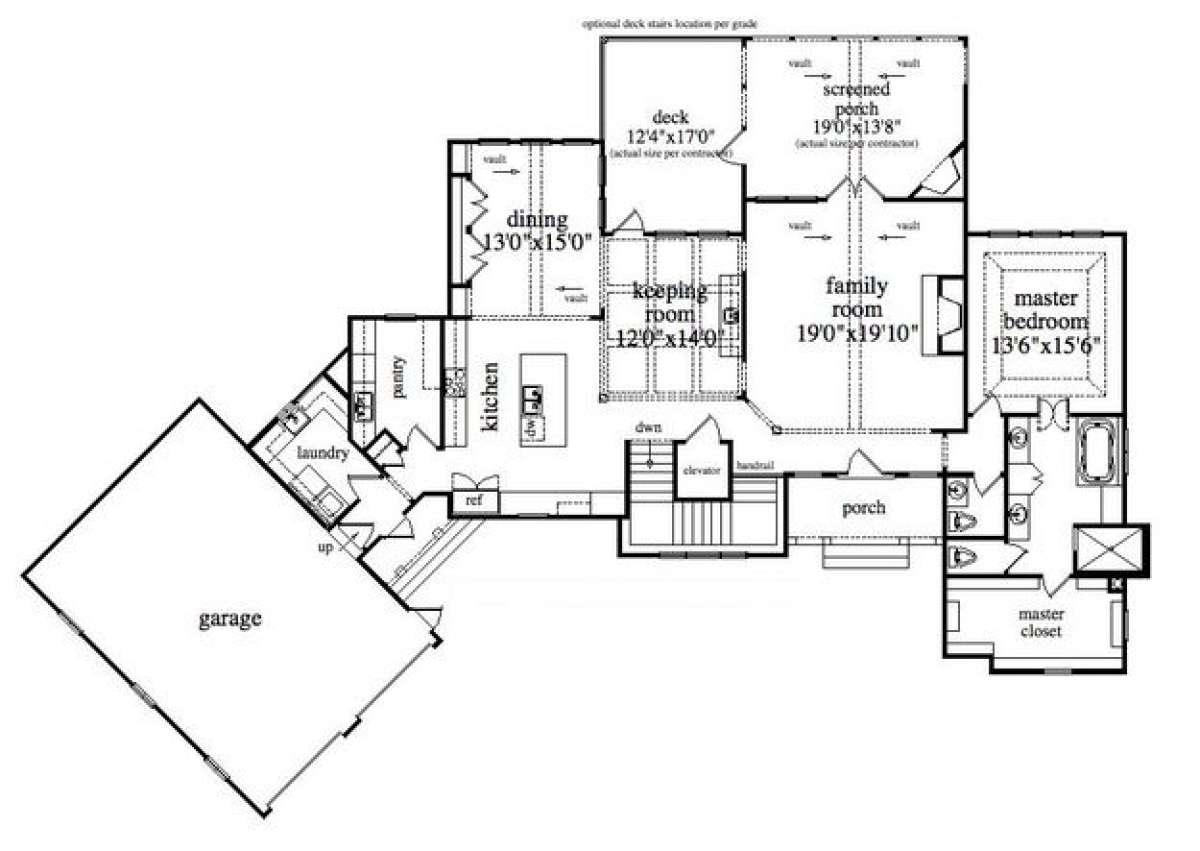

Main Level
Main Level for House Plan #957-00002
Terrace Level
Terrace Level for House Plan #957-00002


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Cover Sheet:
    Includes a drawing index, square footage chart, and usually the front and rear elevations.

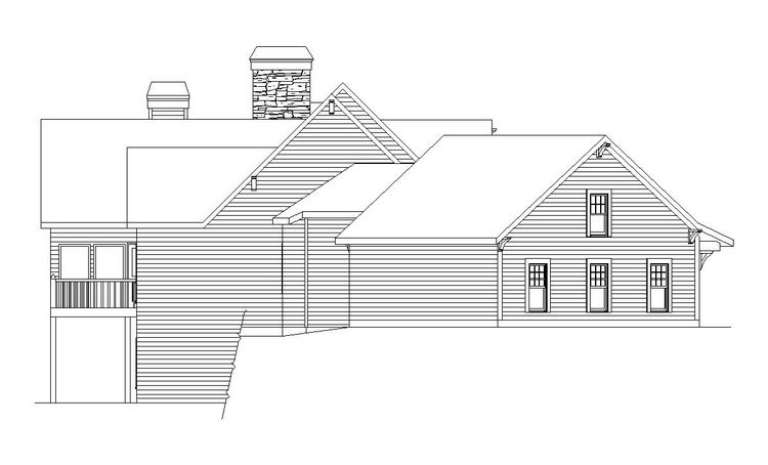

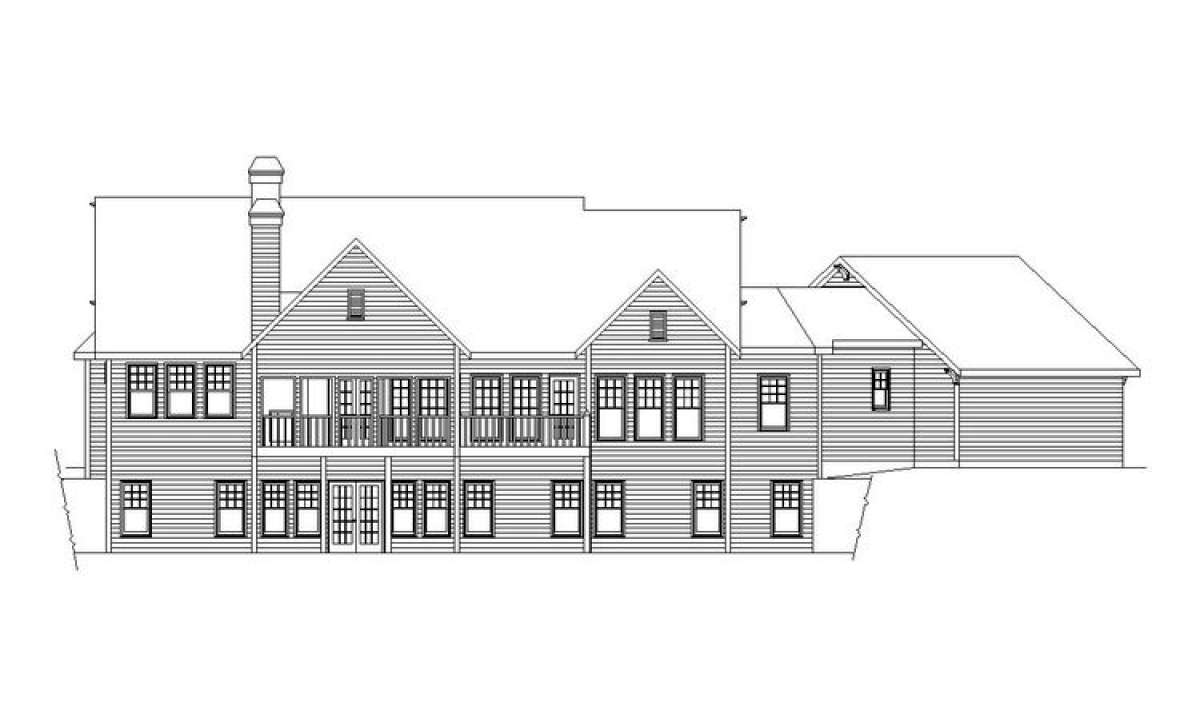

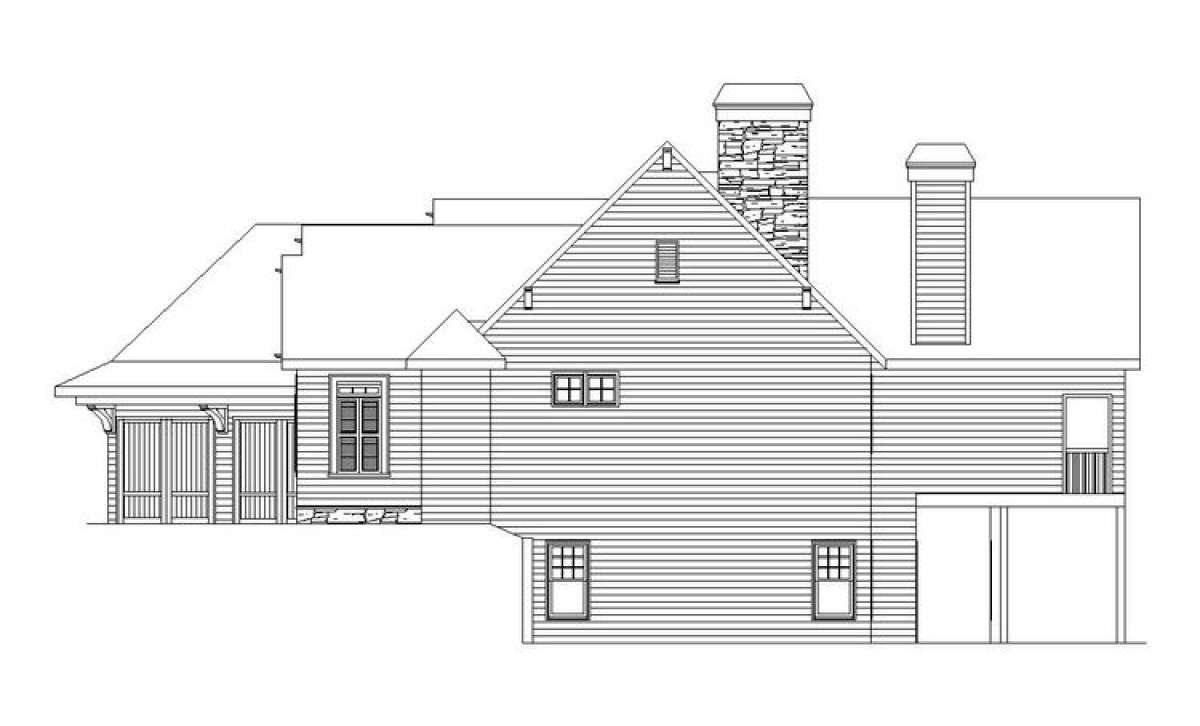

  • Exterior Elevations:
    All elevations are detailed and shown at ¼" scale, usually over two sheets.
  • Floor Plans and Square Footage:
  • This floor plan almost always come in ¼" scale with centerline dimensions and are most commonly shown with 4" walls. 6" exterior walls are available as an optional upgrade (Please call for pricing of 2x6 walls). Our square feet measurements only include heated floor space. The measurements are made from outside the exterior frame (brick is NOT included). Stairs are counted once. Walkways and overlooks in vaulted two-story areas are included in the square footage. Volume areas on the second floor are not counted. Additionally, a 2x floor framing example is provided.
  • Foundations:
    -Basement:
    They are almost always shown as walk-out basements with 10" walls (not counting framed walls).
    -Slab:
    Usually an optional upgrade, we show a typical turned down slab.
    -Crawl Space:
  • Usually an optional upgrade, we show crawl space foundations with 8" walls and ventilation calculations.
  • Roof:
    This plan includes a 2D and a 3-D roof overview showing all pitches and planes. A 2x framing roof plan is also provided as a framing example.
  • Electrical Layout:
    This plan includes a "path of light" electrical layout for each floor.
  • Typical Details:
    Each plans comes with typical details for the appropriate foundation, wall sections, roof framing, etc. Details, insulation specifications and any beam or rebar sizing is based on what is typical for the Atlanta, GA area.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

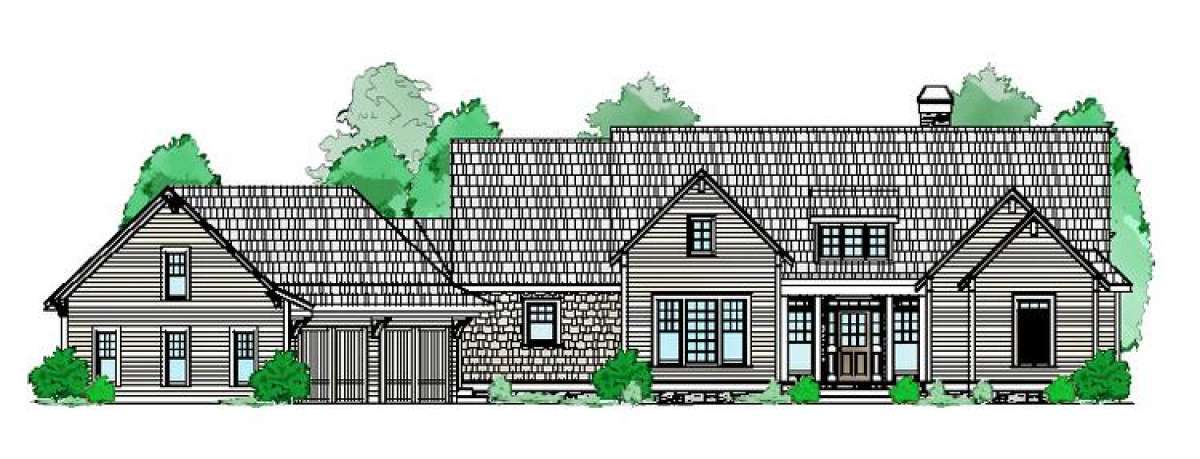

This fabulous house is perfectly suited for a pristine lakefront or rustic mountain lot with its natural design features, impressive outdoor space and wonderful window views located throughout the home. The symmetrical exterior offers stacked stone, siding, a triple window dormer and a front covered porch. An interior floor plan in excess of 3,700 square feet offers a functional and versatile space to relax and entertain. The covered porch spills into the vaulted family room which contains a fireplace and French door access to the rear screened porch which is expansive, has a corner fireplace and subsequently leads to the rear deck. This is outstanding space in which to entertain large gatherings of friends or relax as a family. The gourmet kitchen has a center island with prep station, plenty of additional counter and cabinet space and an enormous walk-in pantry with a second sink area. The kitchen is open to the keeping room, which showcases a gorgeous coffered ceiling and provides deck access, and the vaulted dining room, as well, which has built-in storage. The family laundry room is enormous with a sink area and loads of counter space. A side porch and two car garage is situated off the laundry room for convenience. The main floor master retreat is elegantly designed and features a trey ceiling bedroom and gorgeous window views to the rear yard. The master bath offers dual vanities, a separate shower, whirlpool tub and a compartmentalized toilet. The oversized walk-in master closet sits at the rear of the space for privacy. A powder room for guests, lower level staircase and elevator complete the main level of the home.
The terrace level of the home features great family and expansion space. There are two spacious bedrooms; each has ample closet space and a private bath and there is an optional fourth bedroom with closet space as well. A family recreation room is quite large, has a fireplace and French door access to the terrace patio. A private office or multi-purpose room is available along with an abundance of additional storage space. This home is ideal for a large and active family who values their private space as well as great entertaining space.
