Modern Multi-Family Plan 940-01248

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Units 3
Sq Ft 5,480
Width 24' 2"
Depth 102' 6"
Beds/Unit 3-4
Baths/Unit 3
1/2 Baths/Unit 0
Cars/Unit 2

Floorplan Drawings

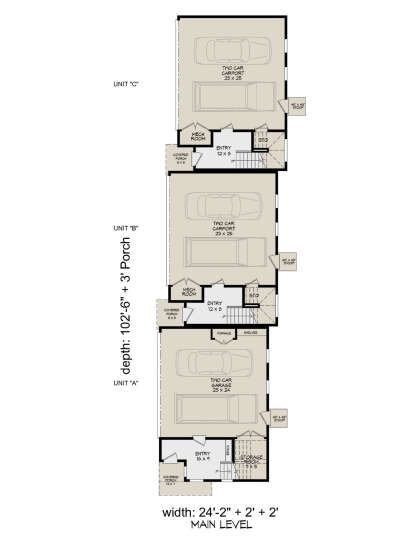

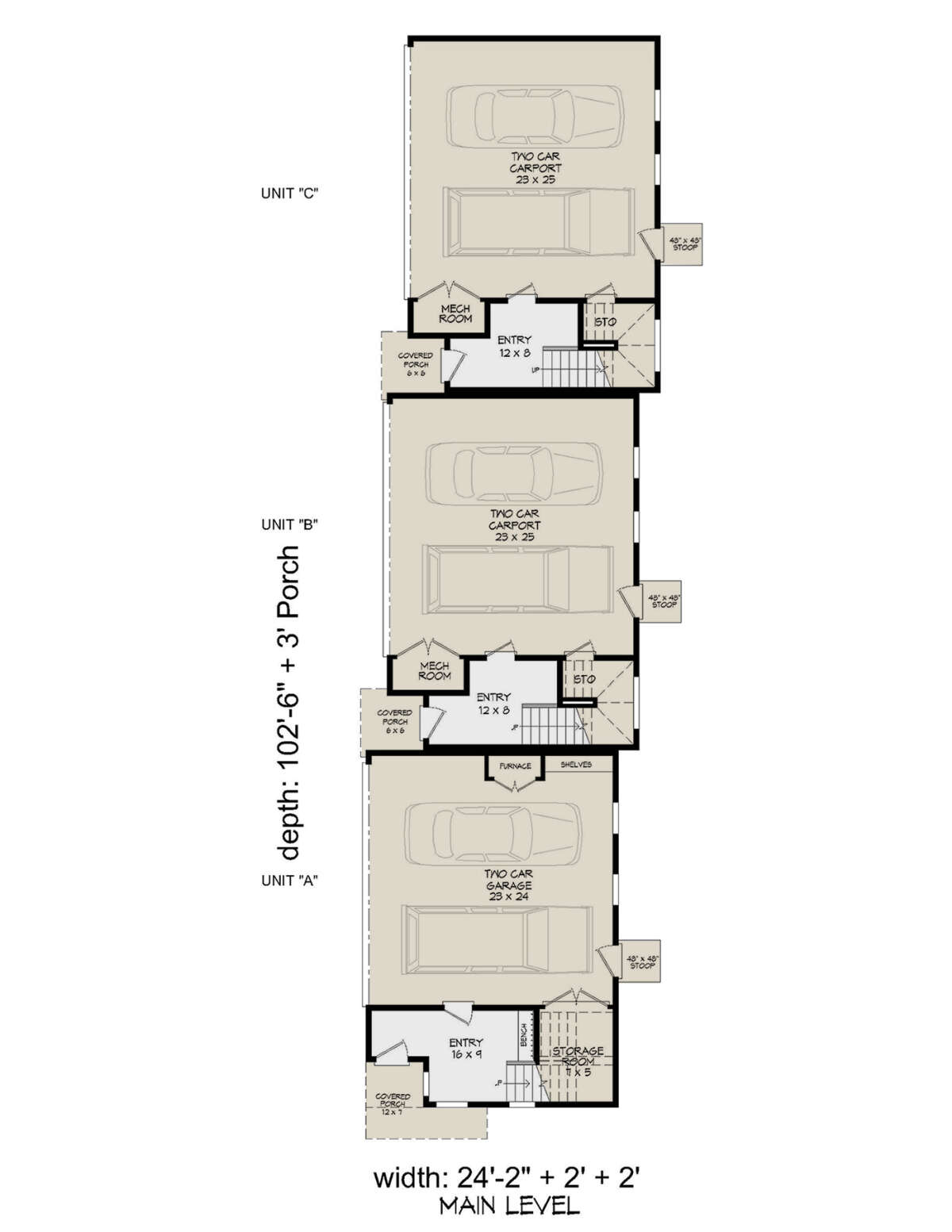

First Floor
First Floor for House Plan #940-01248

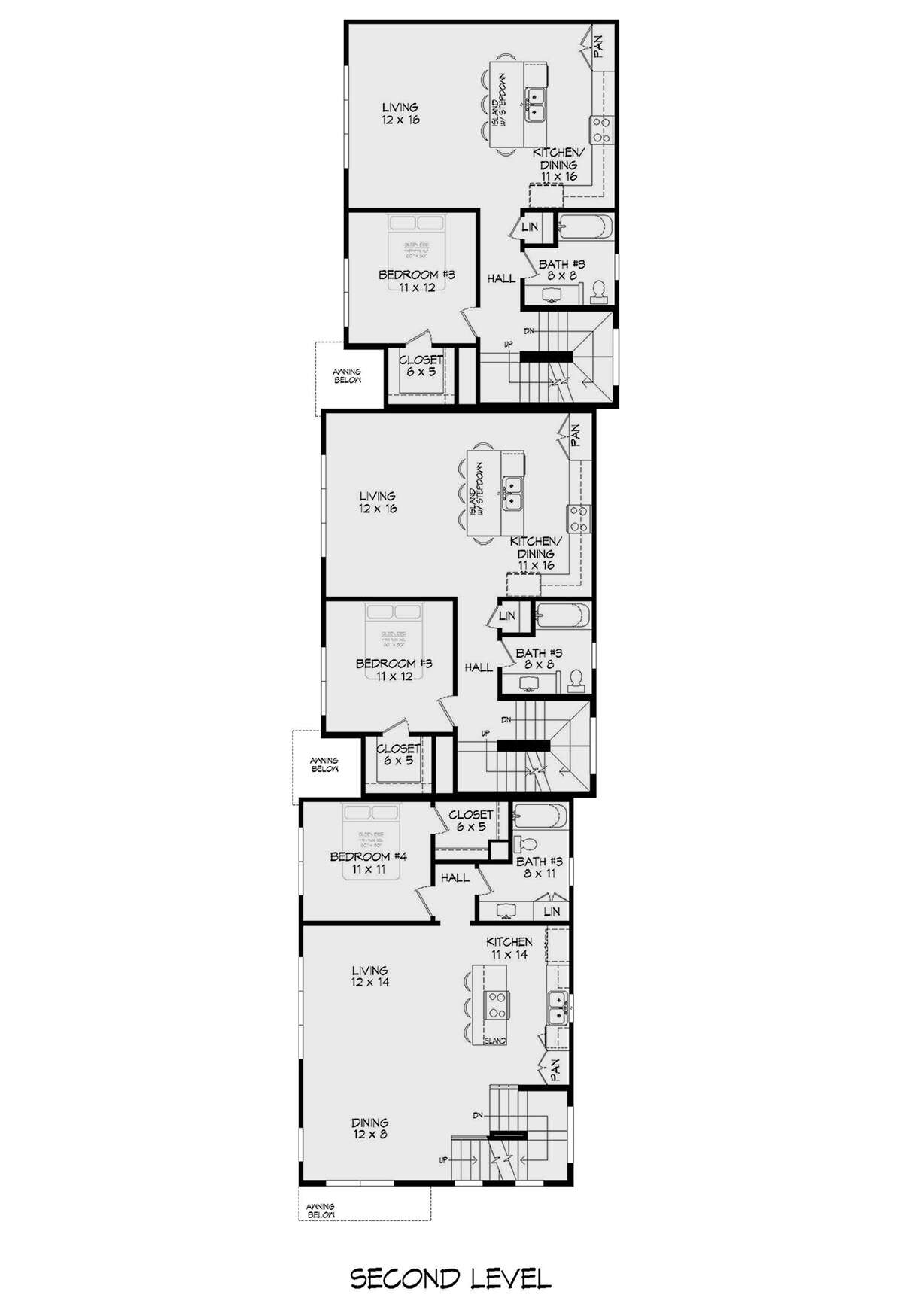

Main Floor
Main Floor for House Plan #940-01248

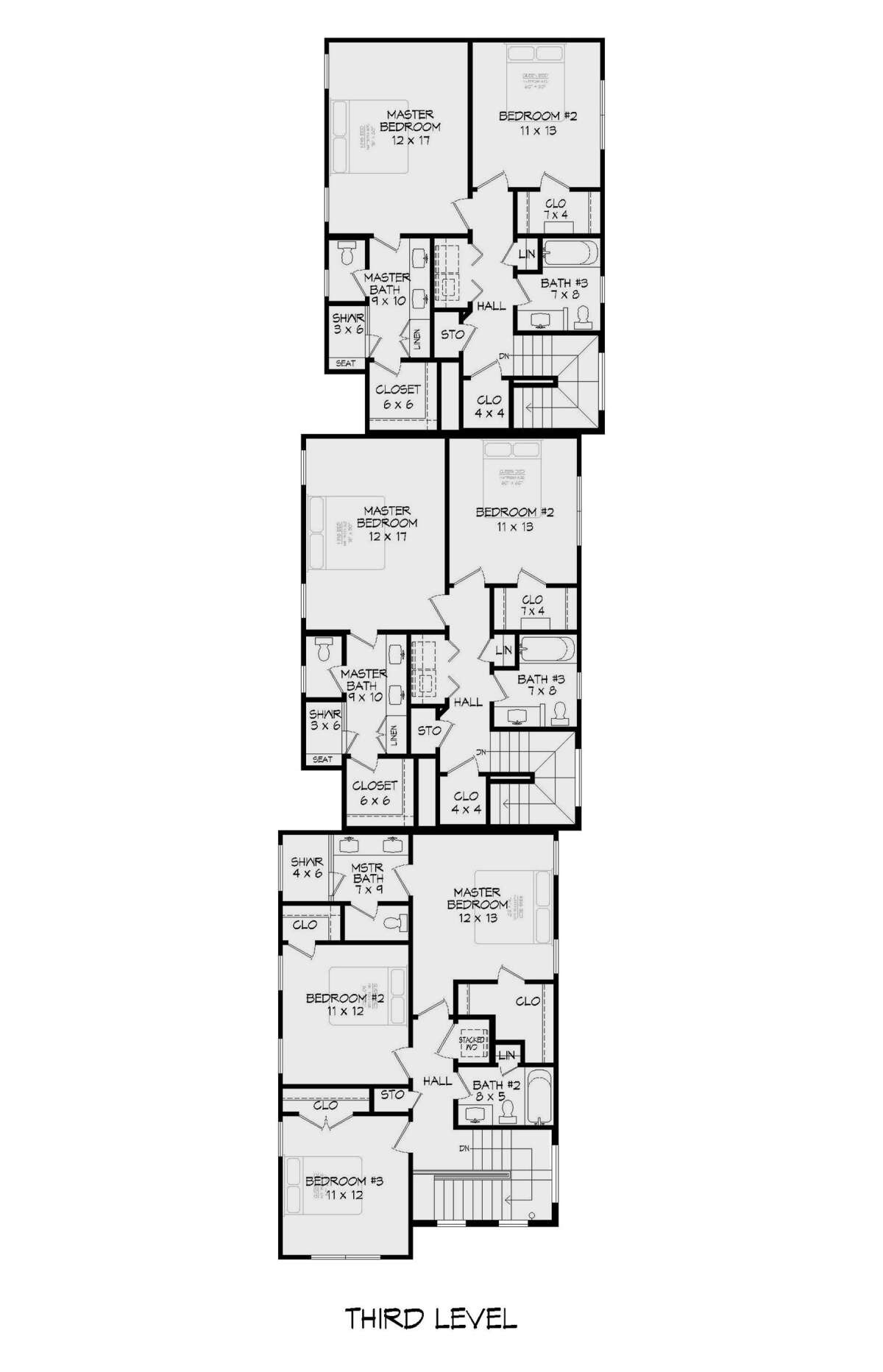

Third Floor
Third Floor for House Plan #940-01248






What's Included in these plans?

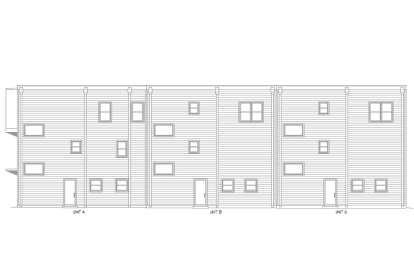

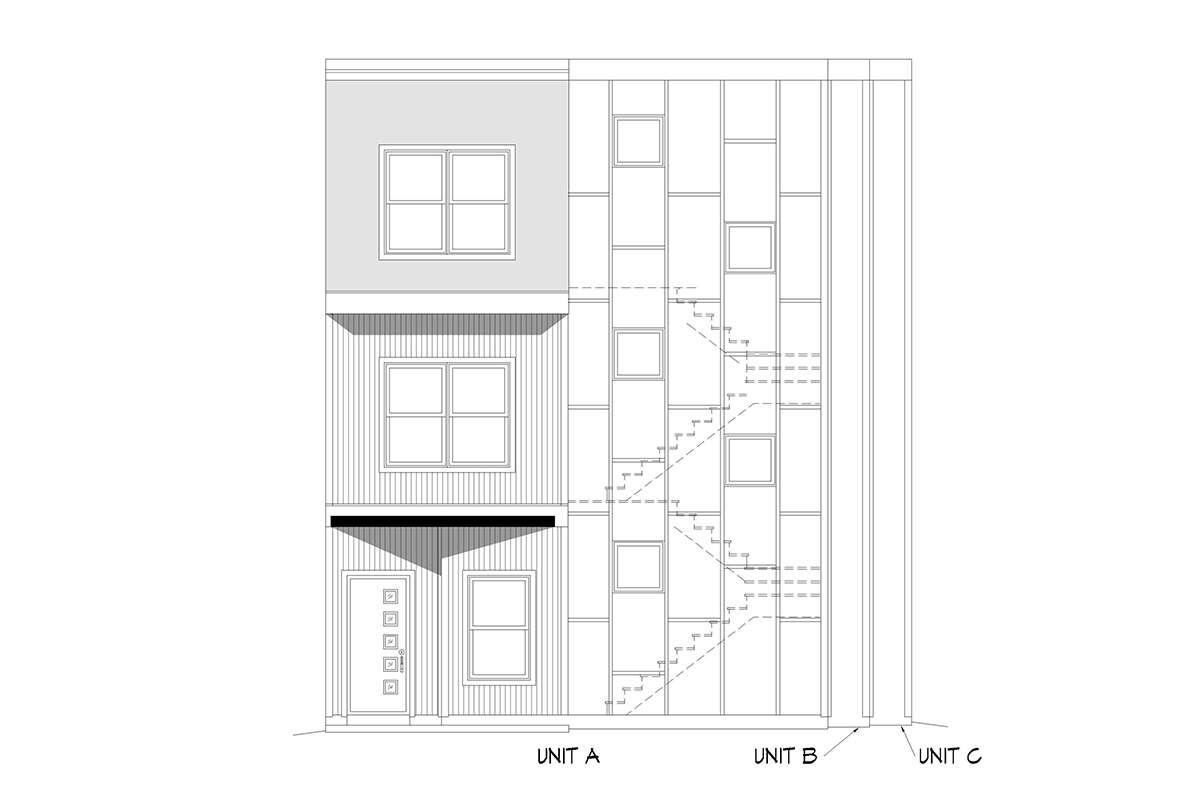

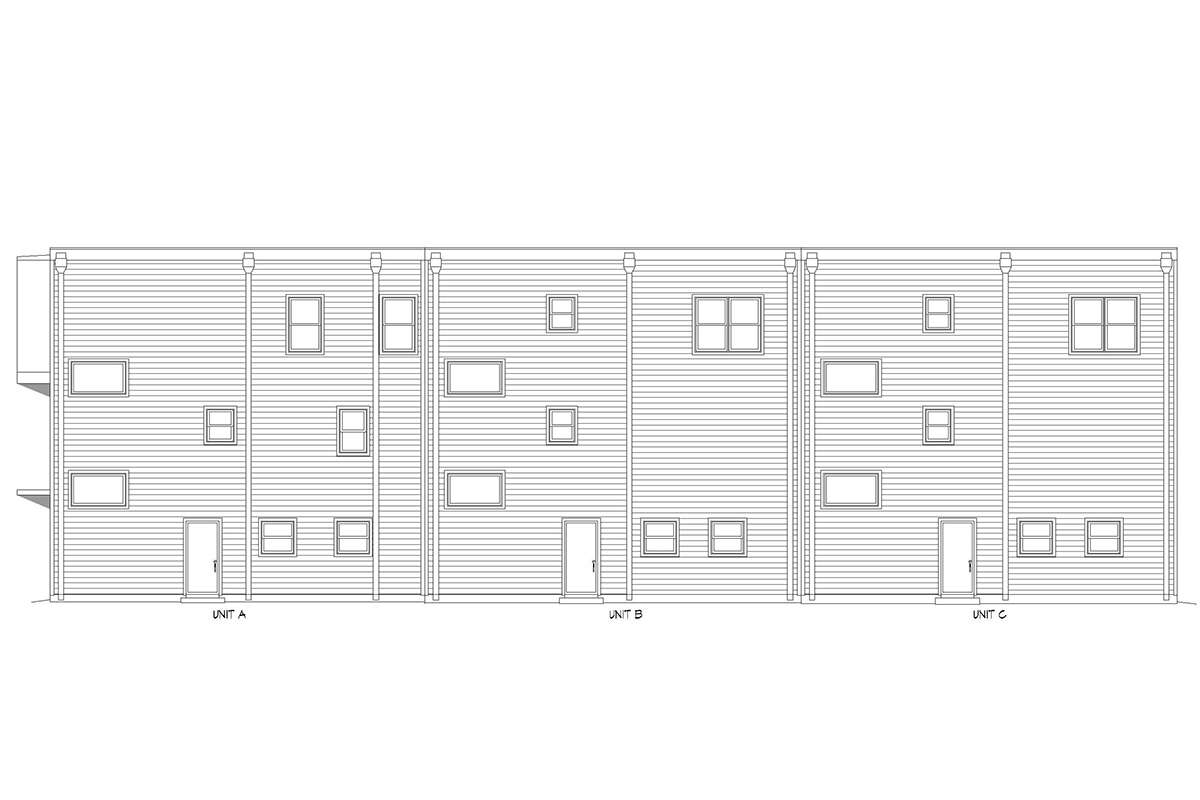

    • Exterior Elevation Views of front, side and rear elevations

    • Foundation Plan

    • Floor plan(s)

    • Electrical Layout

    • Roof Plan

    • Cross Section through main body of house

    • Stair Detail (if applicable)

    • Interior and exterior details

    • General Notes

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Modern building offers 3 Units and is 24ft.-2in. Wide x 102ft.-6in. Deep. Each unit offers 3 bedrooms, 3 bathrooms, and a 2 car garage. America's Best House Plans offers high-quality multi-family home plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of Multi-Family designs are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your building needs and requirements.
