Barn Garage Plan 940-01116

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 1,120
Fin Sq Ft 657
Cars 4
Beds 0
Width 28'
Depth 40'

Floorplan Drawings

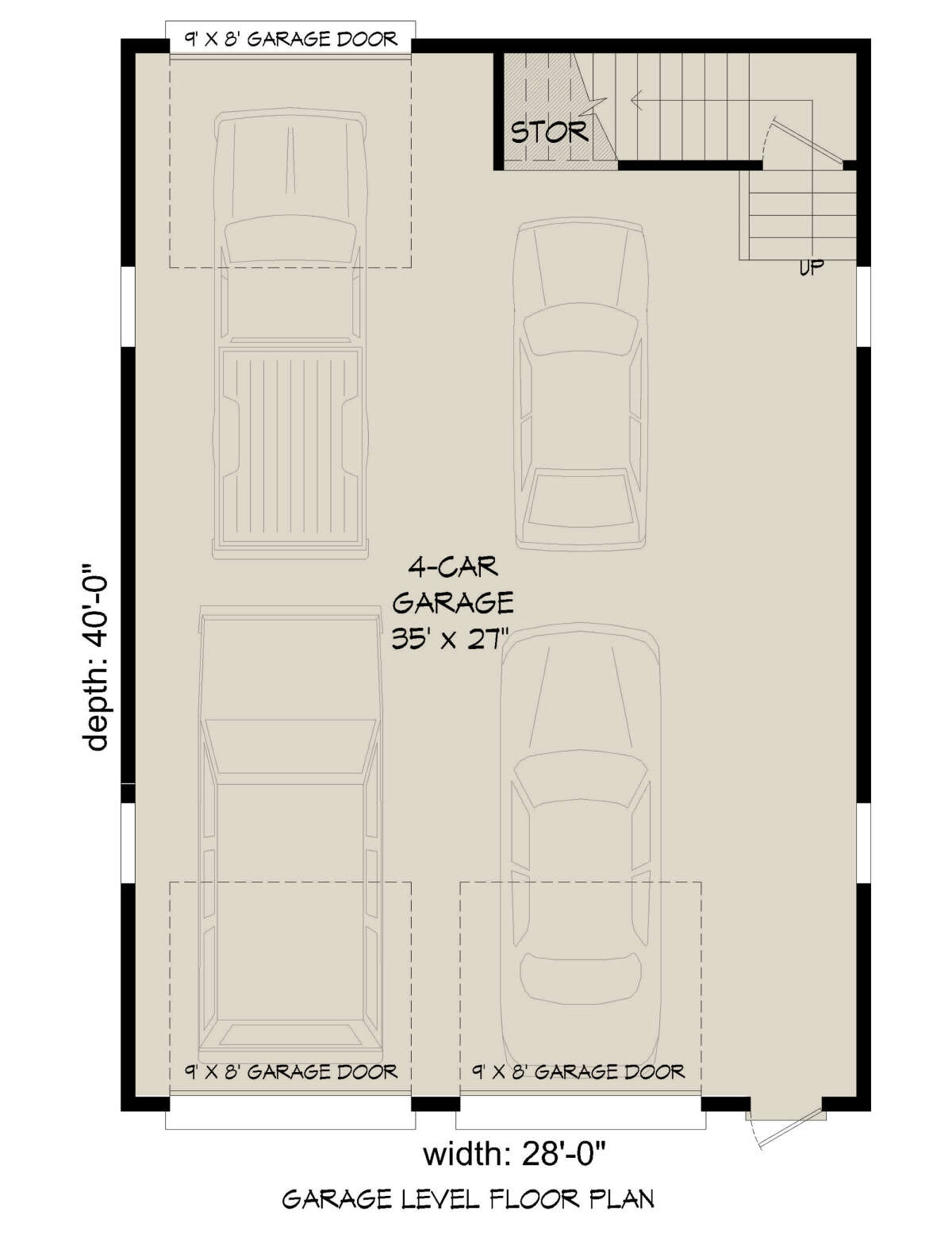

Garage Floor
Garage Floor for House Plan #940-01116

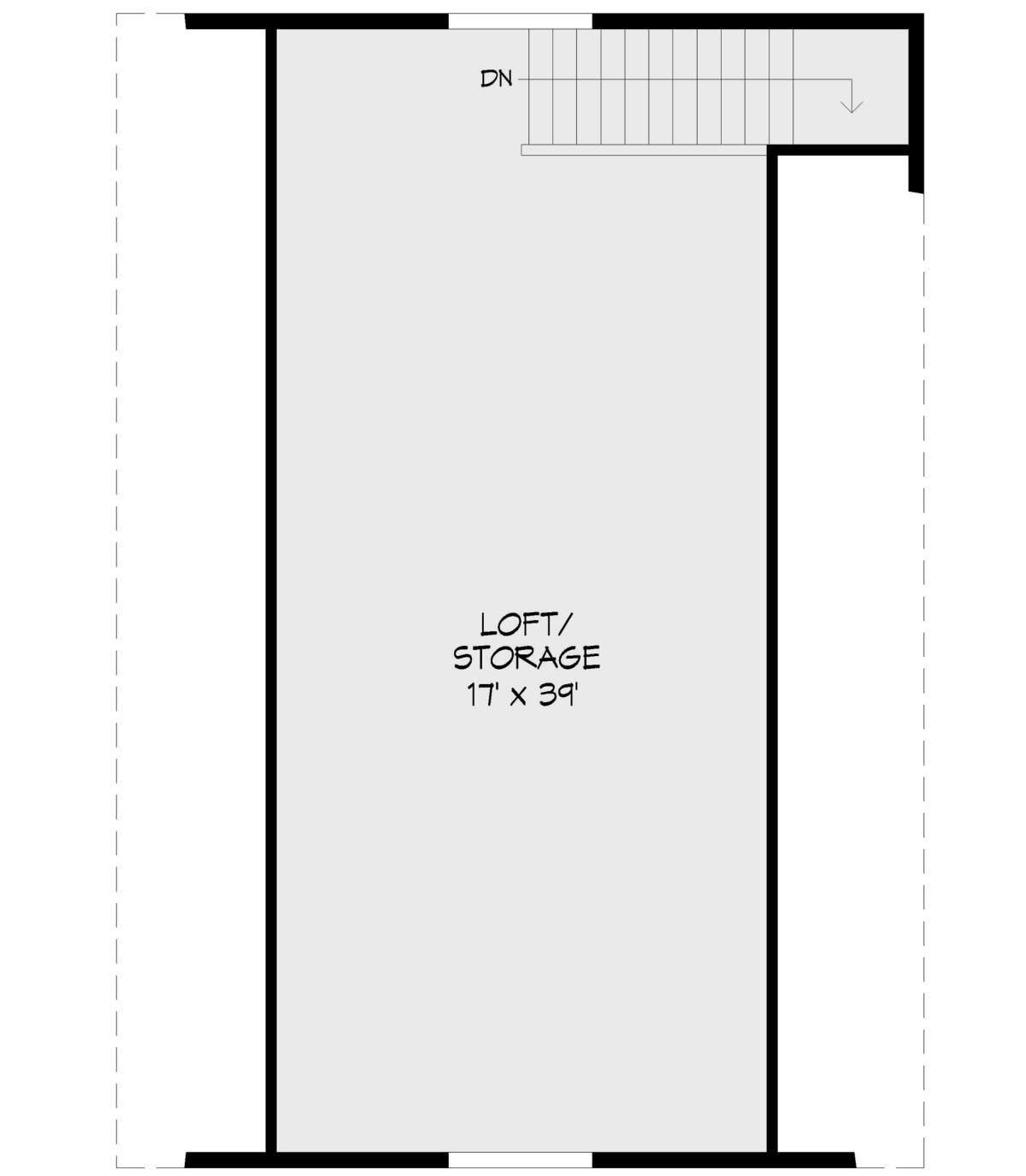

Loft/Storage
Loft/Storage for House Plan #940-01116


What's Included in these plans?

    • Exterior Elevation Views of front, side and rear elevations

    • Foundation Plan

    • Floor plan(s)

    • Electrical Layout

    • Roof Plan

    • Cross Section through main body of house

    • Stair Detail (if applicable)

    • Interior and exterior details

    • General Notes

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 4 Car Barn Garage Plan features 1,120 unfinished sq. ft., and 657 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
