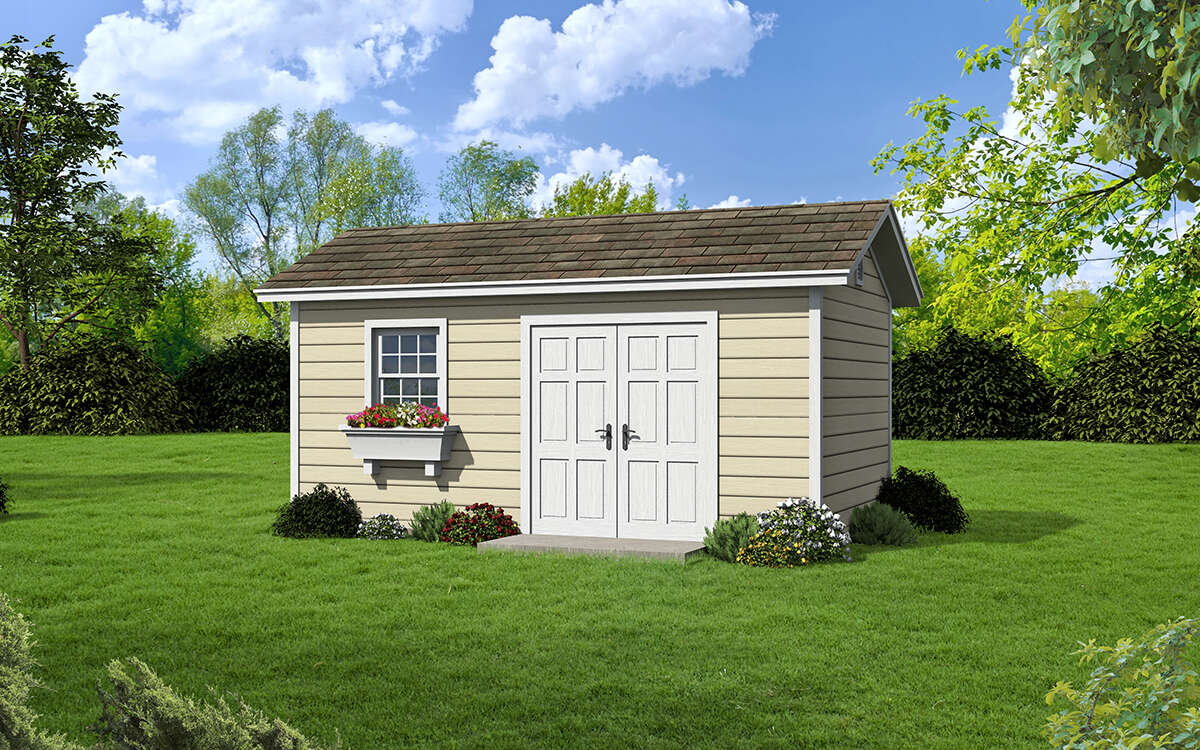

Cottage Recreation Plan 940-01054

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 191
Fin Sq Ft 0
Bath 0
1/2 Baths 0
Width 18' 4"
Depth 10' 5"

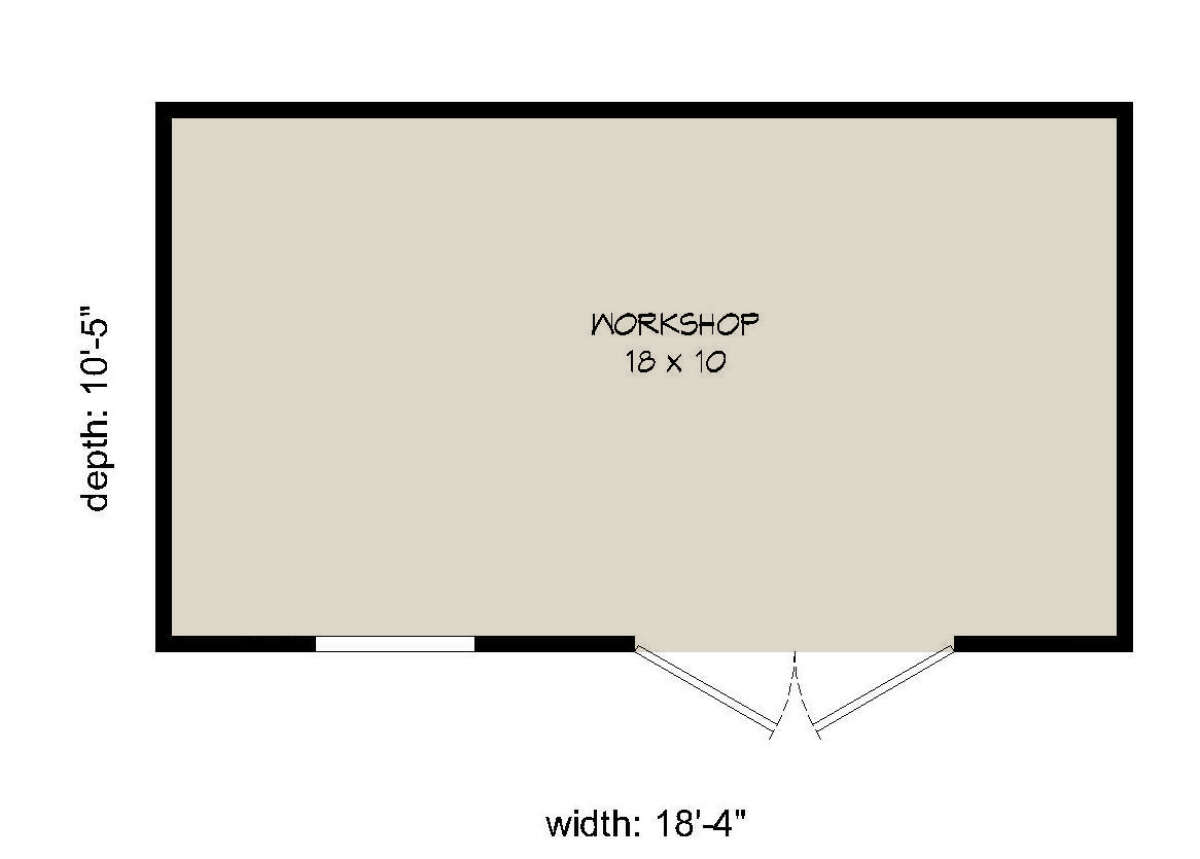

Floorplan Drawings

Main Floor
Main Floor  for House Plan #940-01054


What's Included in these plans?

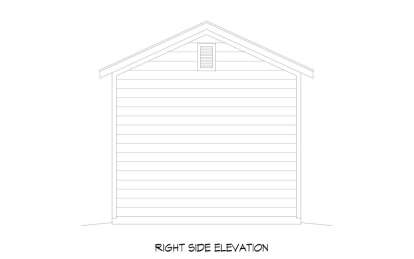

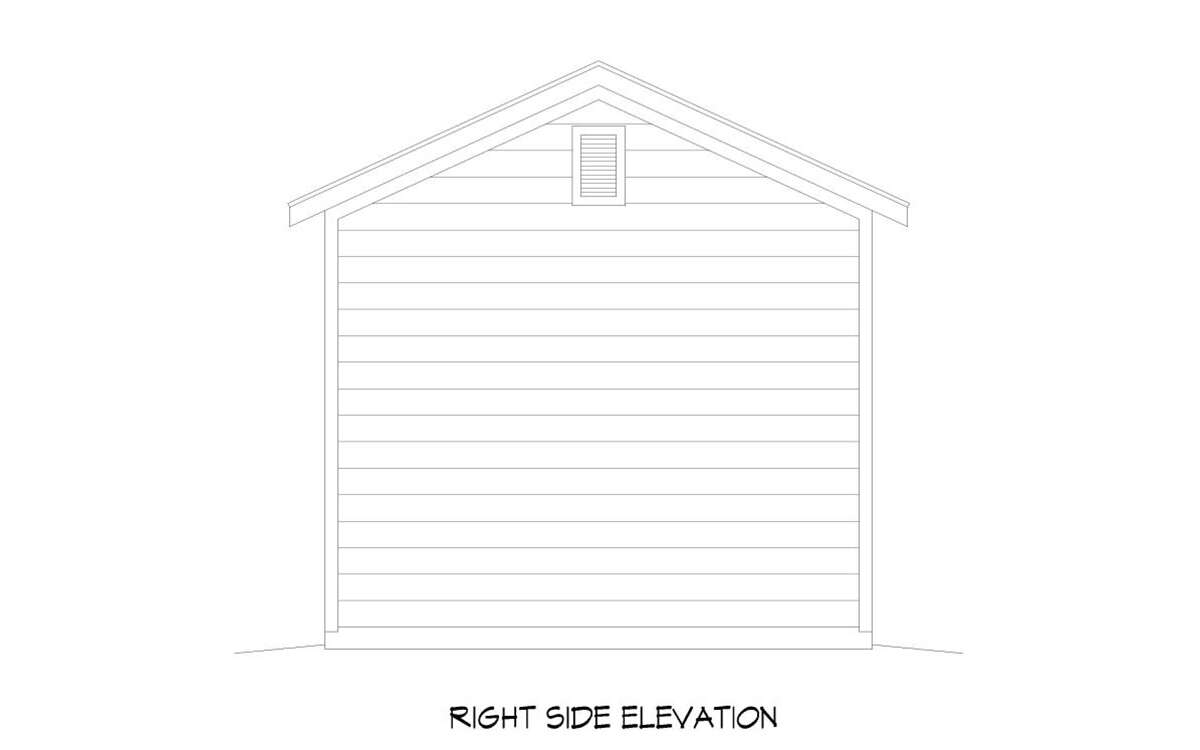

    • Exterior Elevation Views of front, side and rear elevations

    • Foundation Plan

    • Floor plan(s)

    • Electrical Layout

    • Roof Plan

    • Cross Section through main body of house

    • Stair Detail (if applicable)

    • Interior and exterior details

    • General Notes

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.
