Traditional Multi-Family Plan 8937-00105

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Units 2
Sq Ft 3,868
Width 54' 10"
Depth 54'
Beds/Unit 4
Baths/Unit 2
1/2 Baths/Unit 1
Cars/Unit 2

Floorplan Drawings

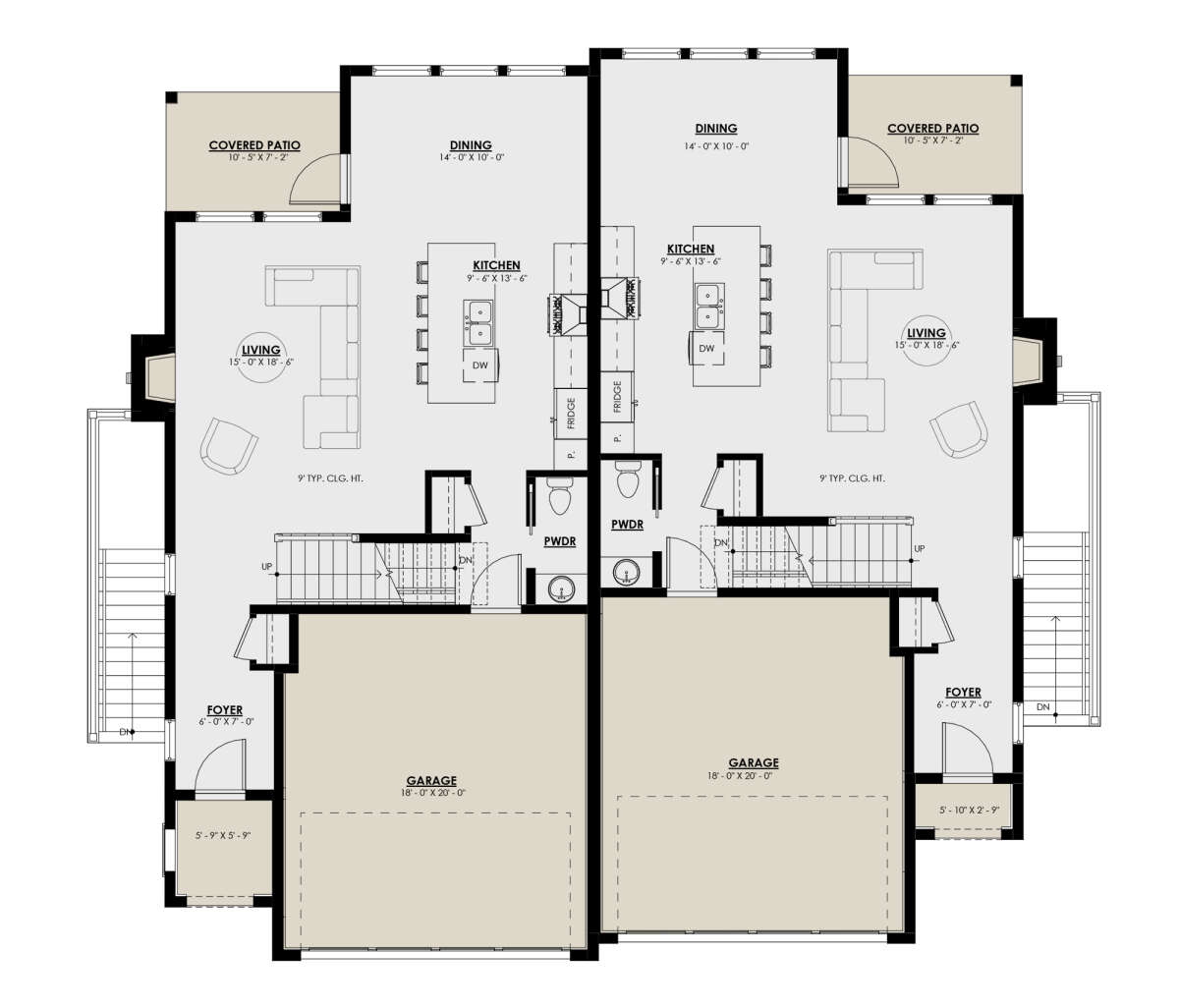

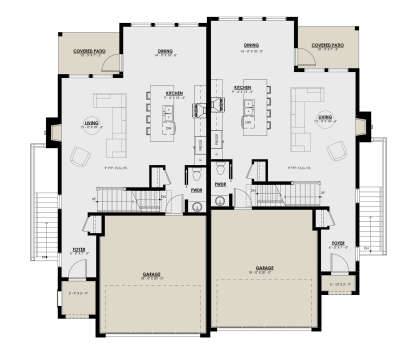

Main Floor
Main Floor  for House Plan #8937-00105

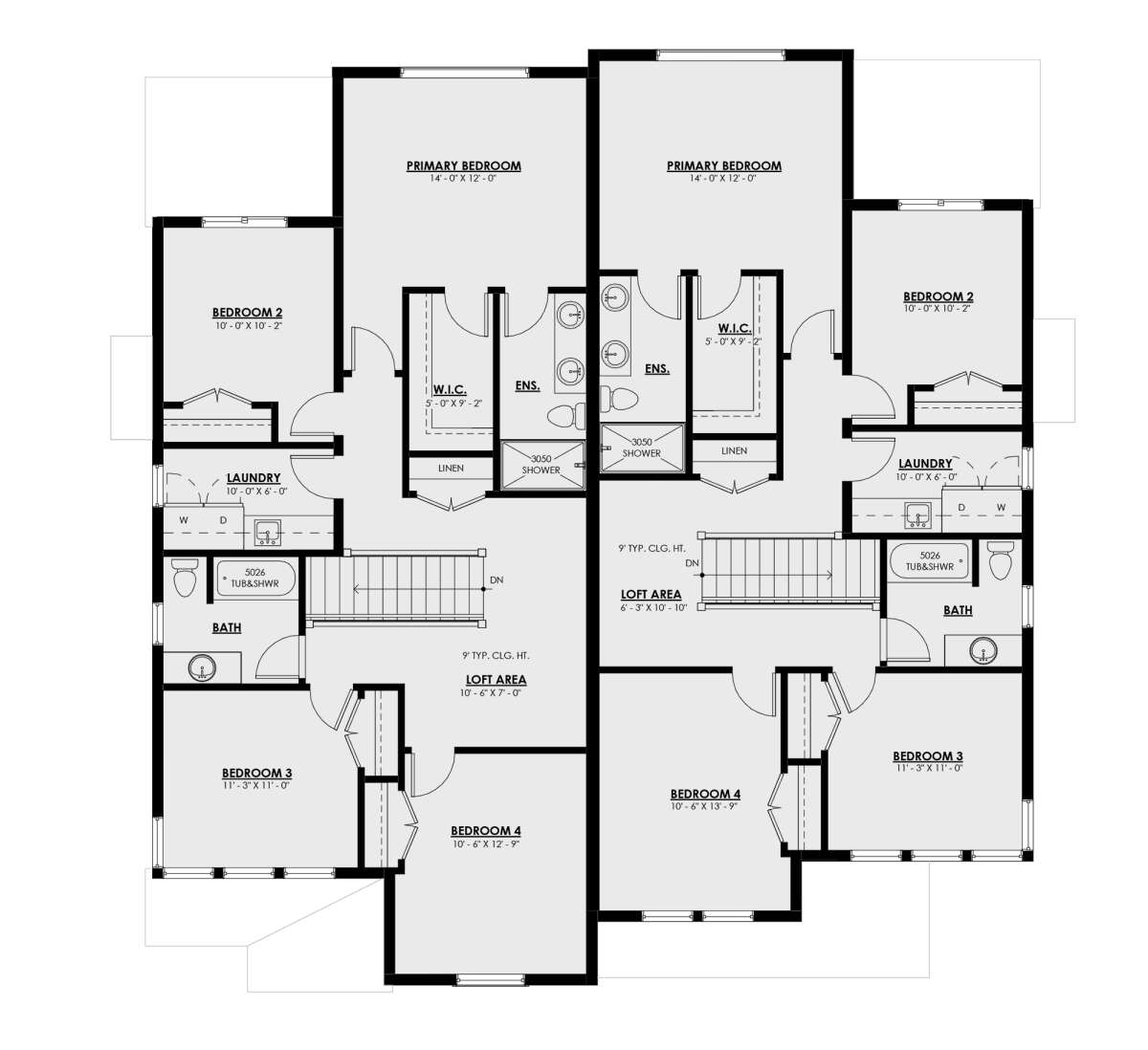

Second Floor
Second Floor for House Plan #8937-00105

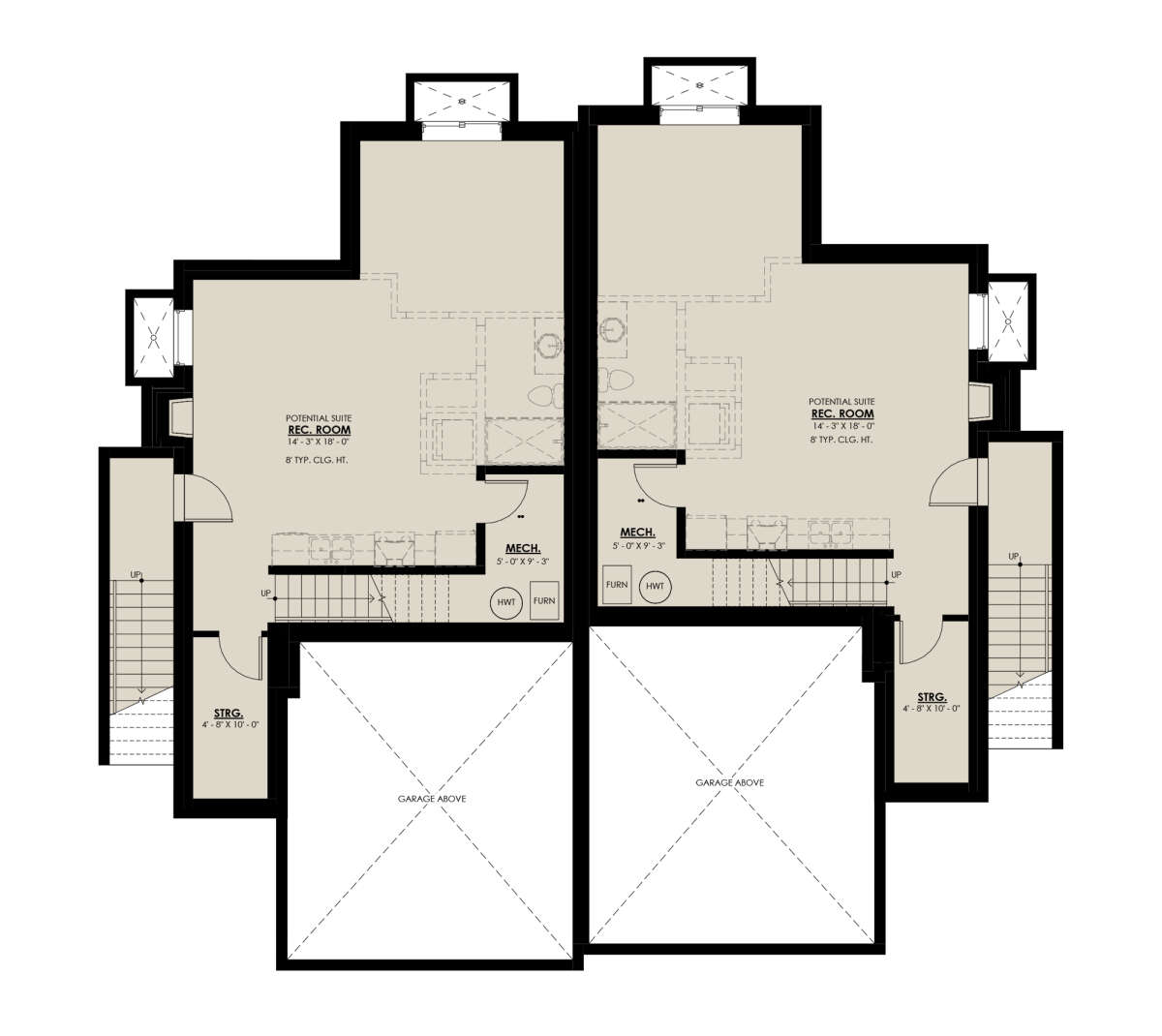

Basement
Basement for House Plan #8937-00105






What's Included in these plans?

  • Foundation Plan - Footings, slab thickness, floor framing notes, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing notes, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Sections and Notes - Cut through views of the home
  • Details - Dissected drawings of typical construction details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

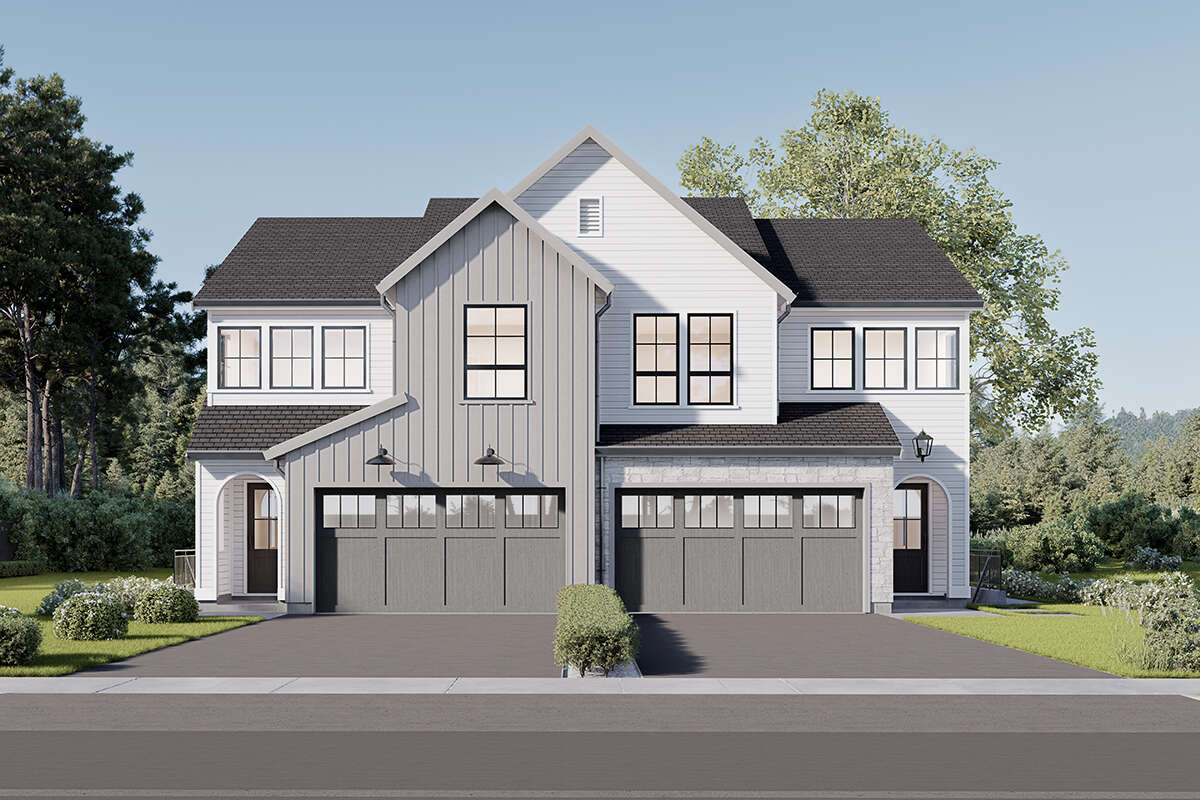

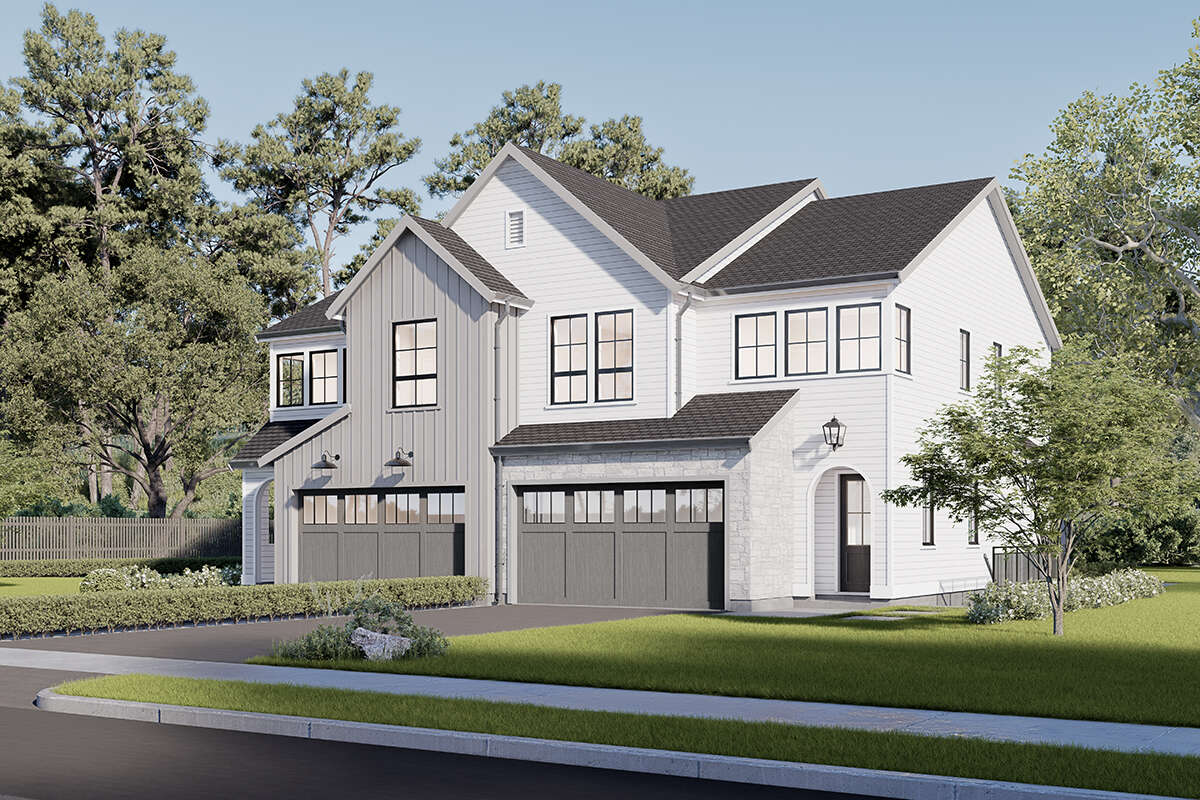

This Traditional building offers 2 Units and is 54ft.-10in. Wide x 54ft. Deep. Each unit offers 4 bedrooms, 2 bathrooms, and a 2 car garage. America's Best House Plans offers high-quality multi-family home plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of Multi-Family designs are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your building needs and requirements.
