Contemporary Recreation Plan 8937-00061

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 0
Fin Sq Ft 266
Bath 1
1/2 Baths 0
Width 40' 2"
Depth 22' 6"

Floorplan Drawings

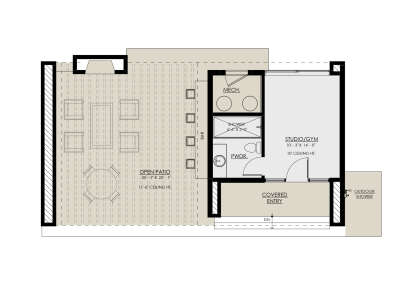

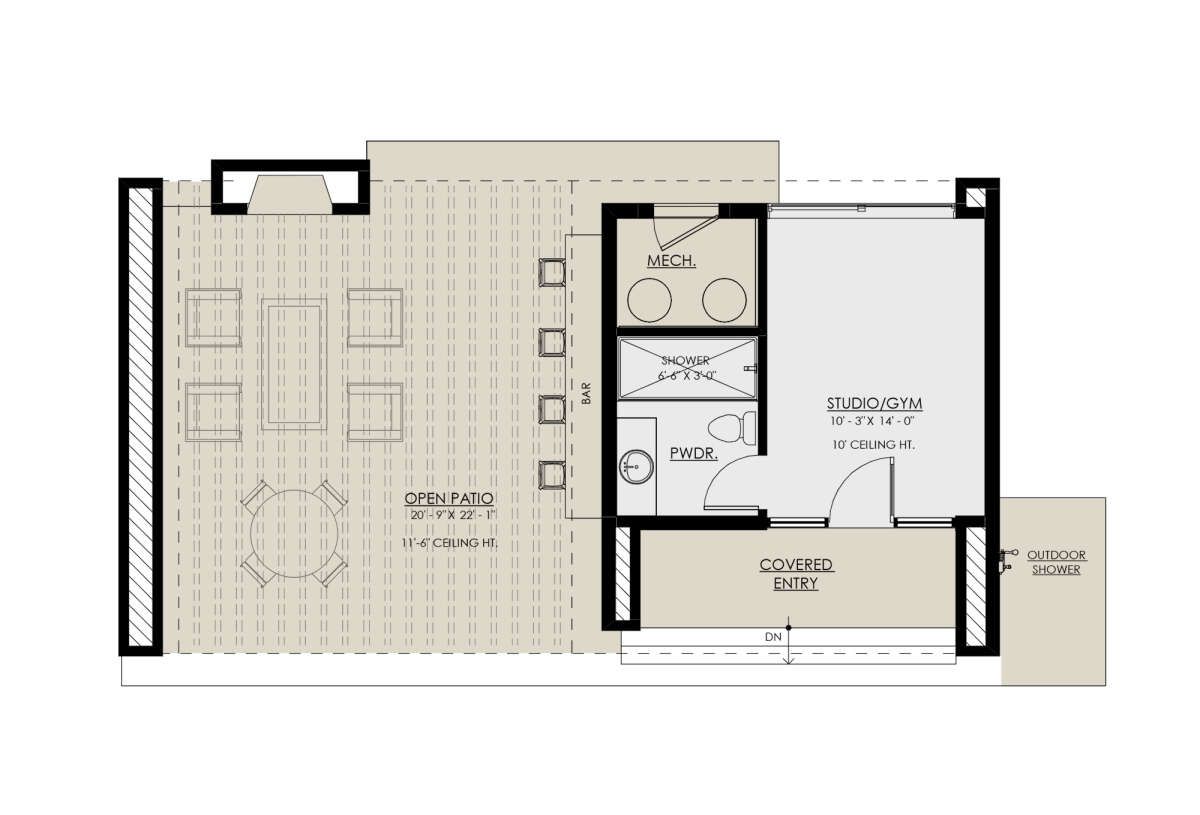

Main Floor
Main Floor  for House Plan #8937-00061


What's Included in these plans?

  • Foundation Plan - Footings, slab thickness, floor framing notes, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing notes, roof pitch, attic venting, overhangs, roof finish materials, etc.

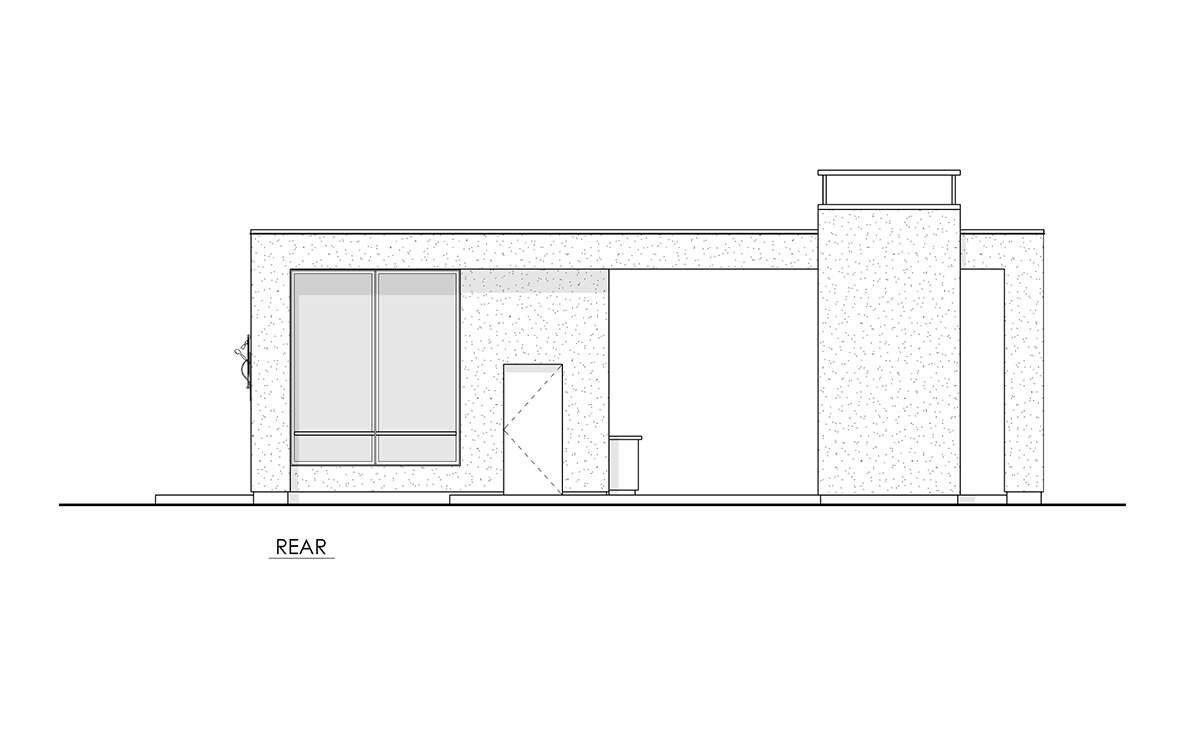

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Sections and Notes - Cut through views of the home
  • Details - Dissected drawings of typical construction details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Contemporary Recreation Plan offers a total covered area of 0 sq. ft. Plan 8937-00061 has the following features: Fireplace, Bar, Exercise Room, Bathroom, Patio and Pool House. America's Best House Plans offers high-quality Recreation plans from professional architects and home designers across the country with a best-price guarantee. All of our Recreation Plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
