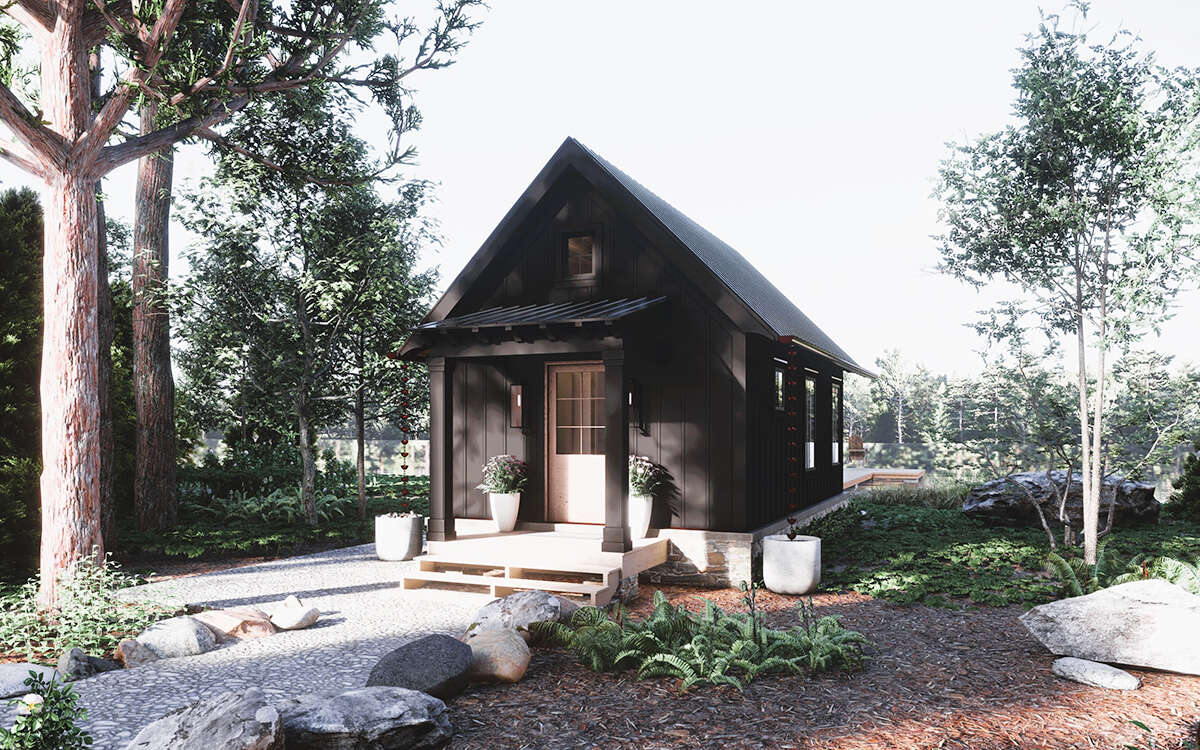

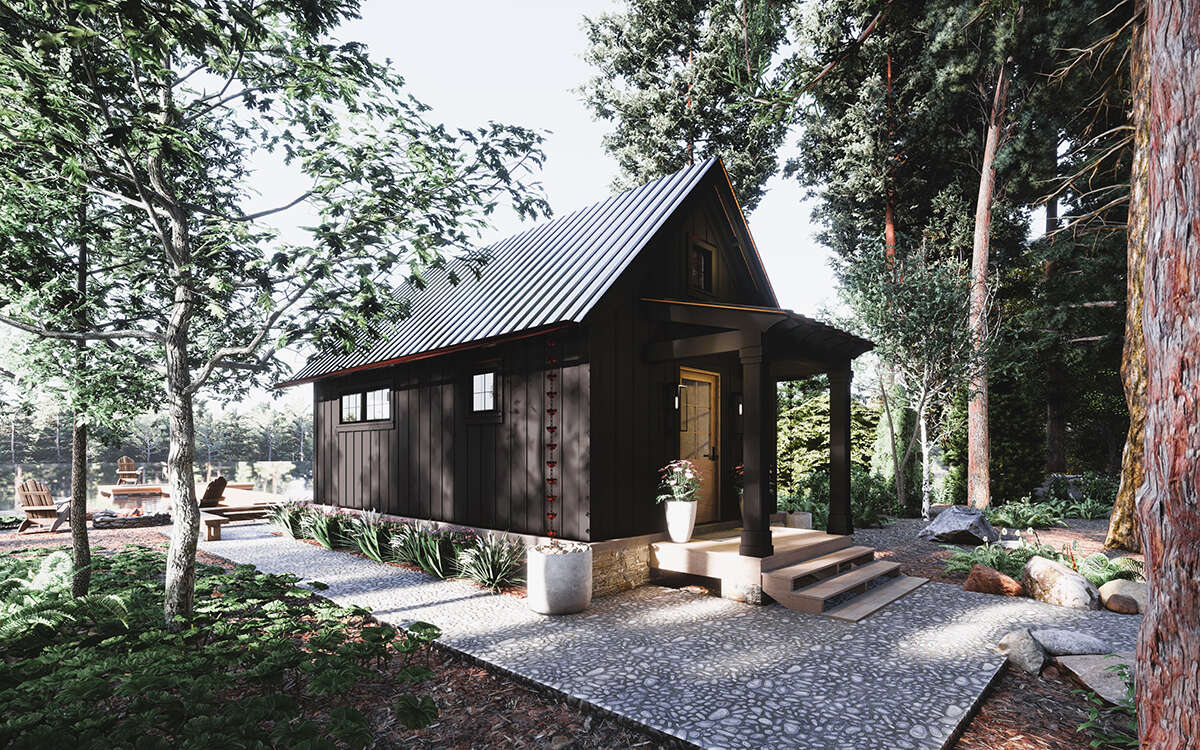

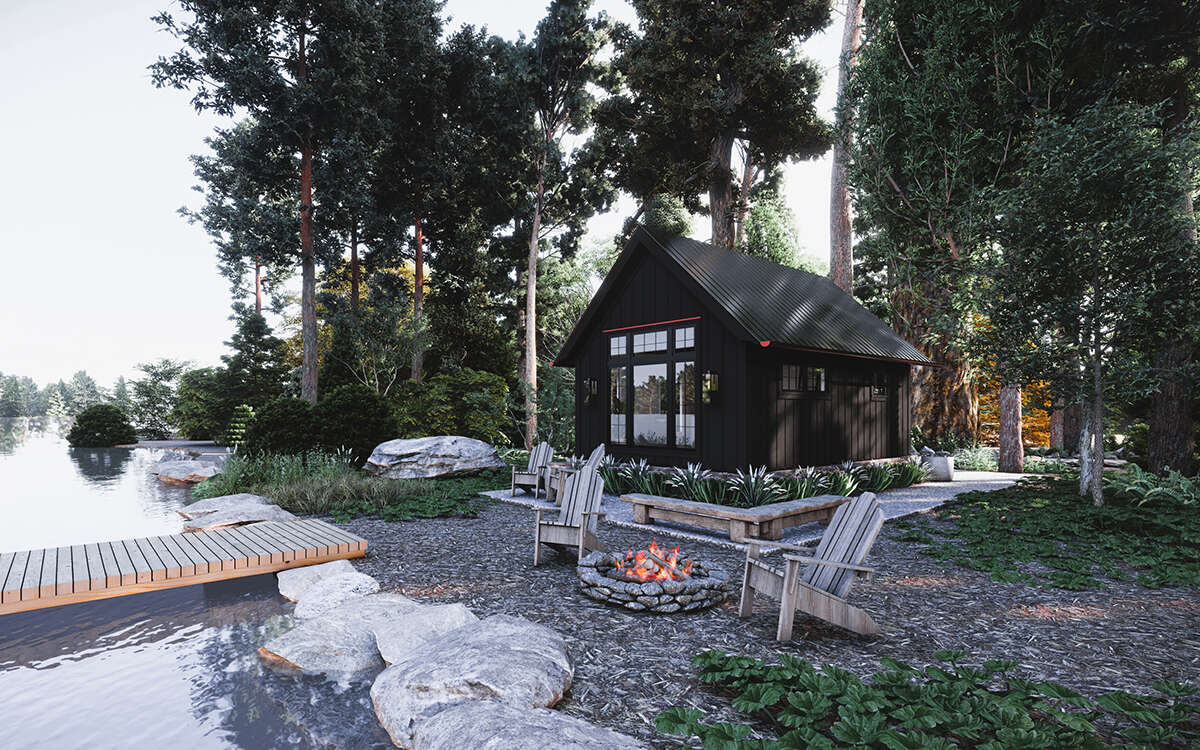

Cabin Recreation Plan 8687-00019

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 0
Fin Sq Ft 485
Bath 1
1/2 Baths 0
Width 14' 8"
Depth 29' 4"

Floorplan Drawings

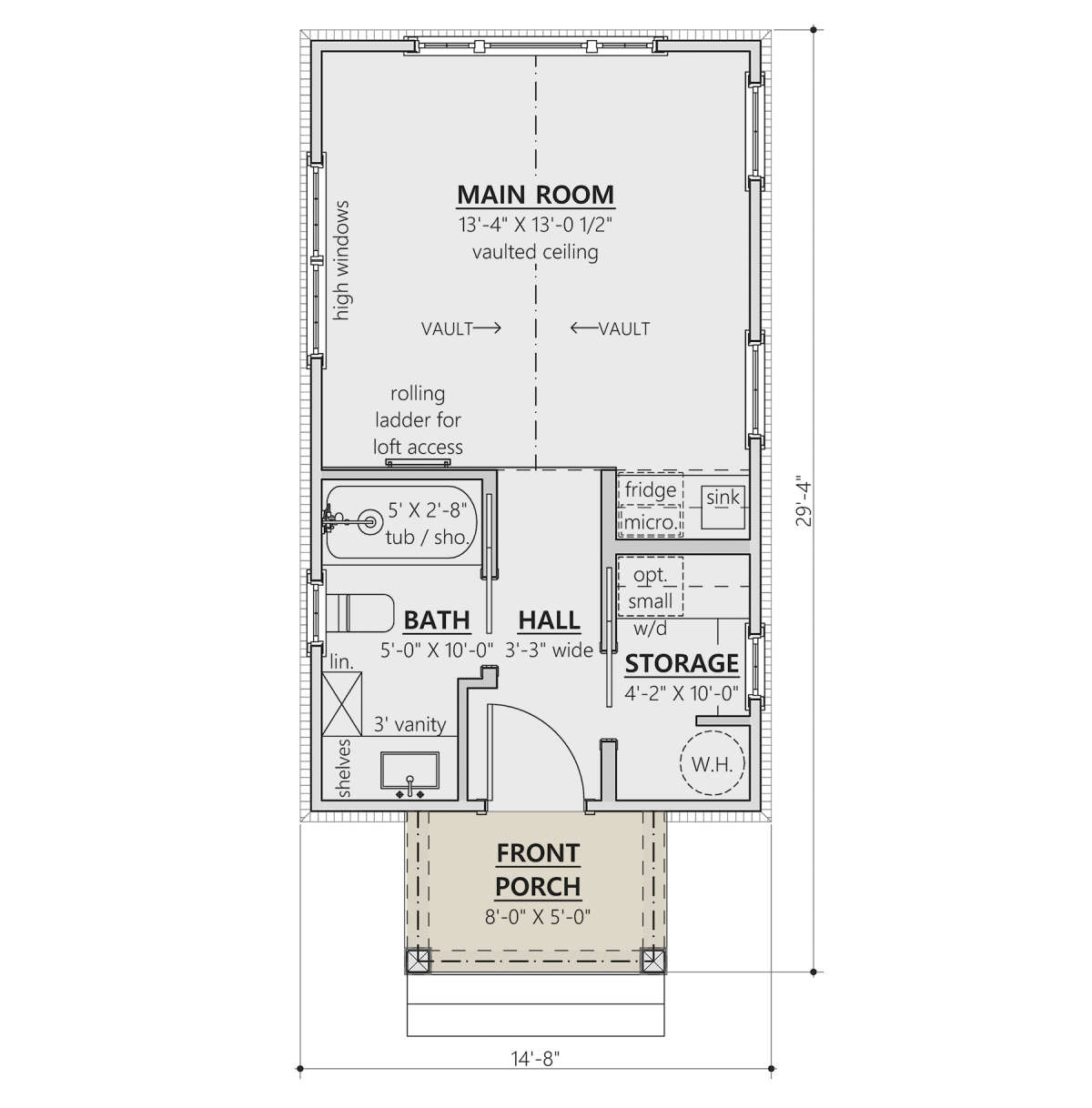

Main Floor
Main Floor  for House Plan #8687-00019

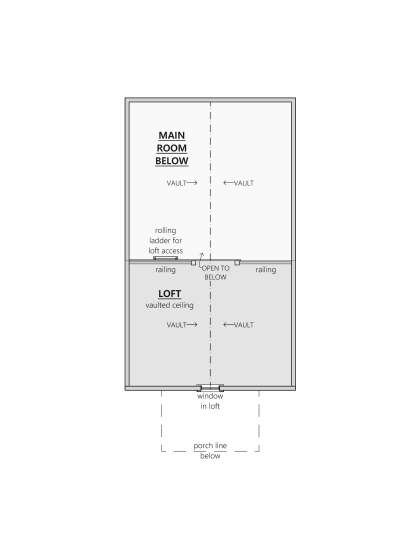

Loft
Loft for House Plan #8687-00019


What's Included in these plans?

• Title Sheet (with cover rendering)
• Rendering Sheet(s)
• Foundation Plan
• Basement Plan (if applicable)
• Main Floor Plan
• Second Floor Plan (if applicable)
• Roof Plan
• (4) Exterior Elevations
• Interior Cabinet Elevations (bathrooms, laundry room, kitchen)
• Section(s)
• Detail(s)
• Lighting Plans for each applicable floor
• General Notes

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Cabin Recreation Plan offers a total covered area of 0 sq. ft. Plan 8687-00019 has the following features: Kitchen, Storage, Bathroom and Sitting Area. America's Best House Plans offers high-quality Recreation plans from professional architects and home designers across the country with a best-price guarantee. All of our Recreation Plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
