Barn Garage Plan 7174-00006

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 424
Fin Sq Ft 881
Cars 2
Beds 2
Width 44' 4"
Depth 39'

Floorplan Drawings

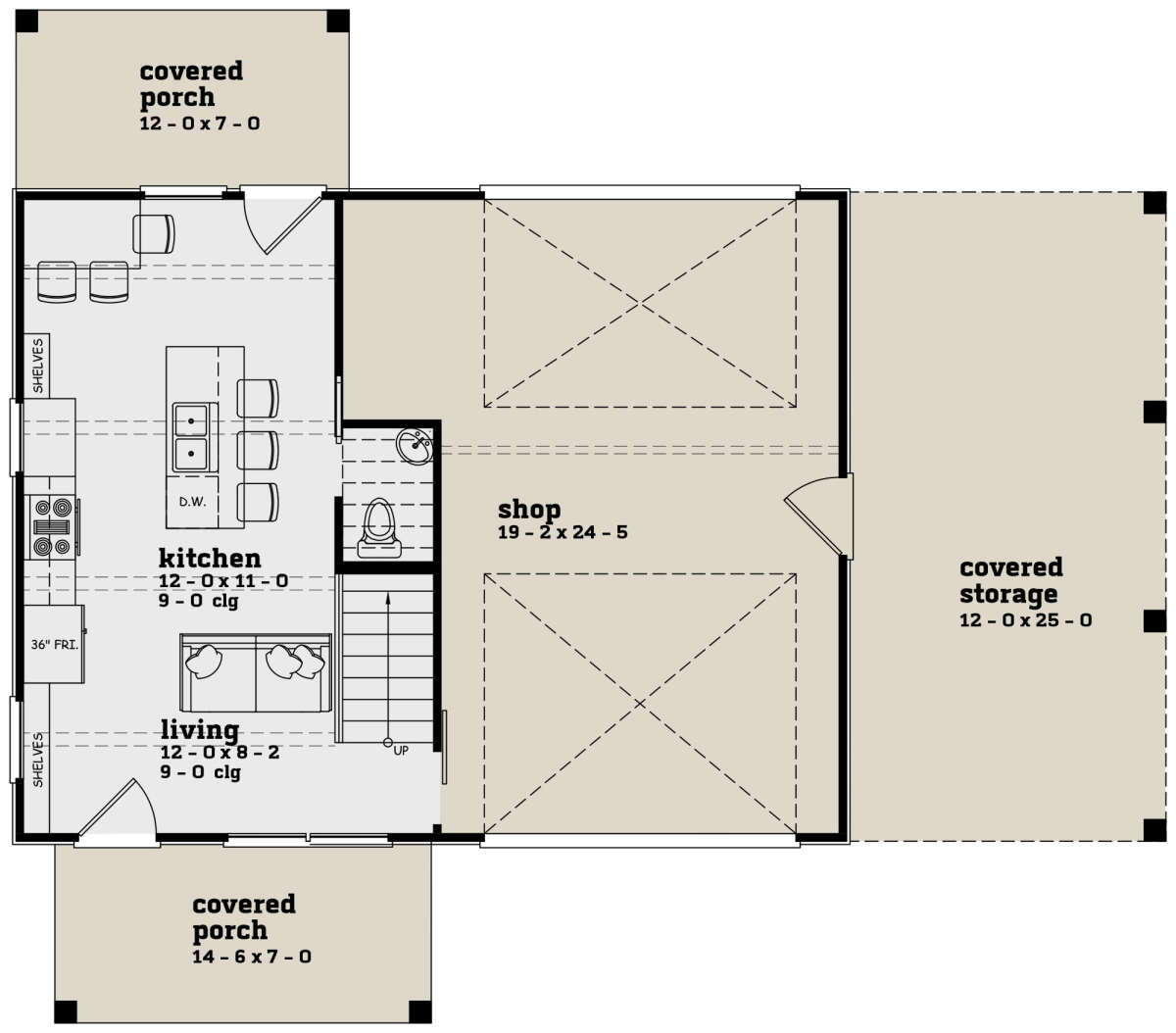

First Floor
First Floor for House Plan #7174-00006

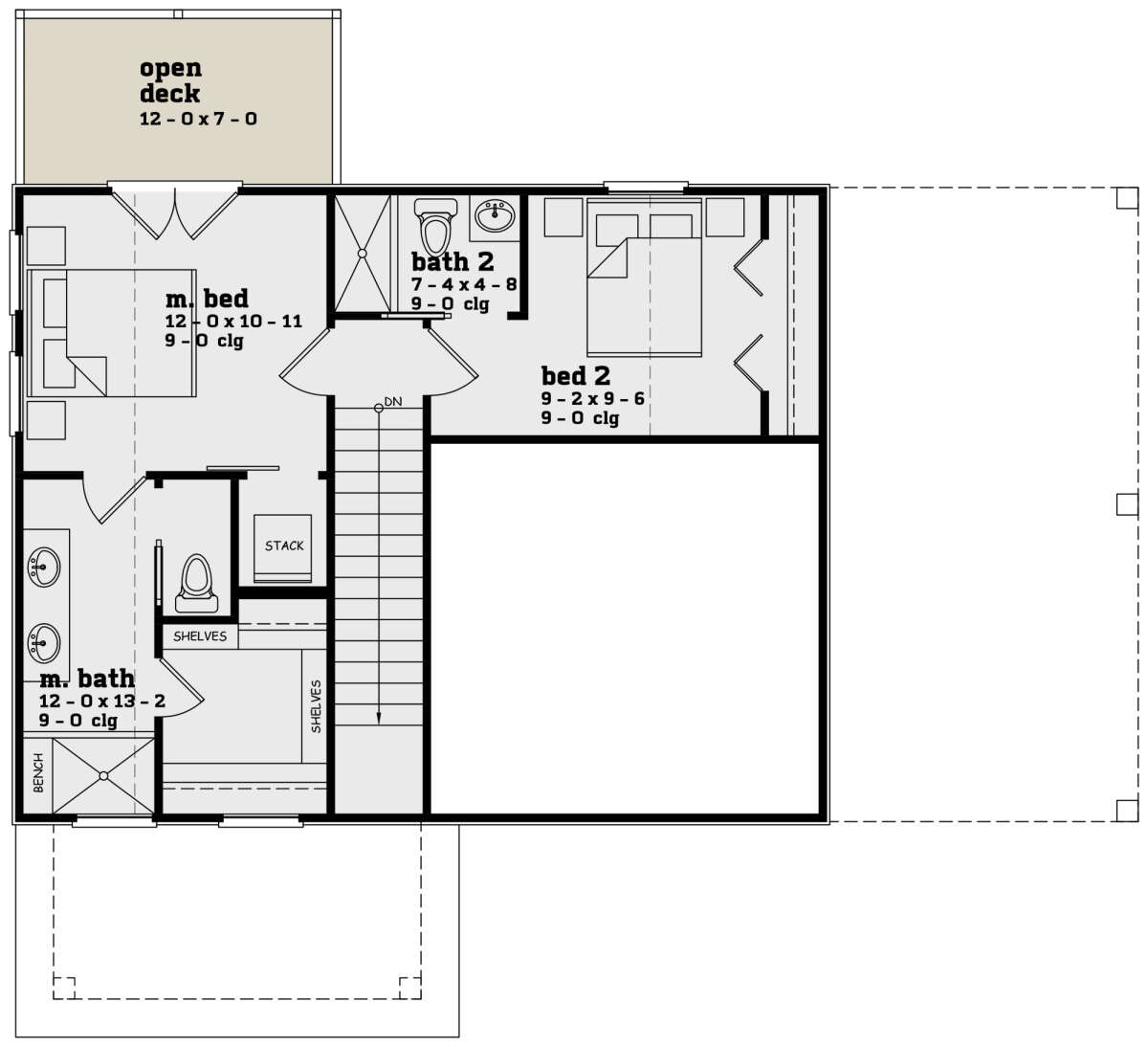

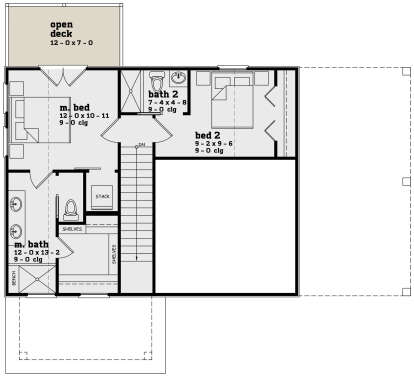

Second Floor
Second Floor for House Plan #7174-00006

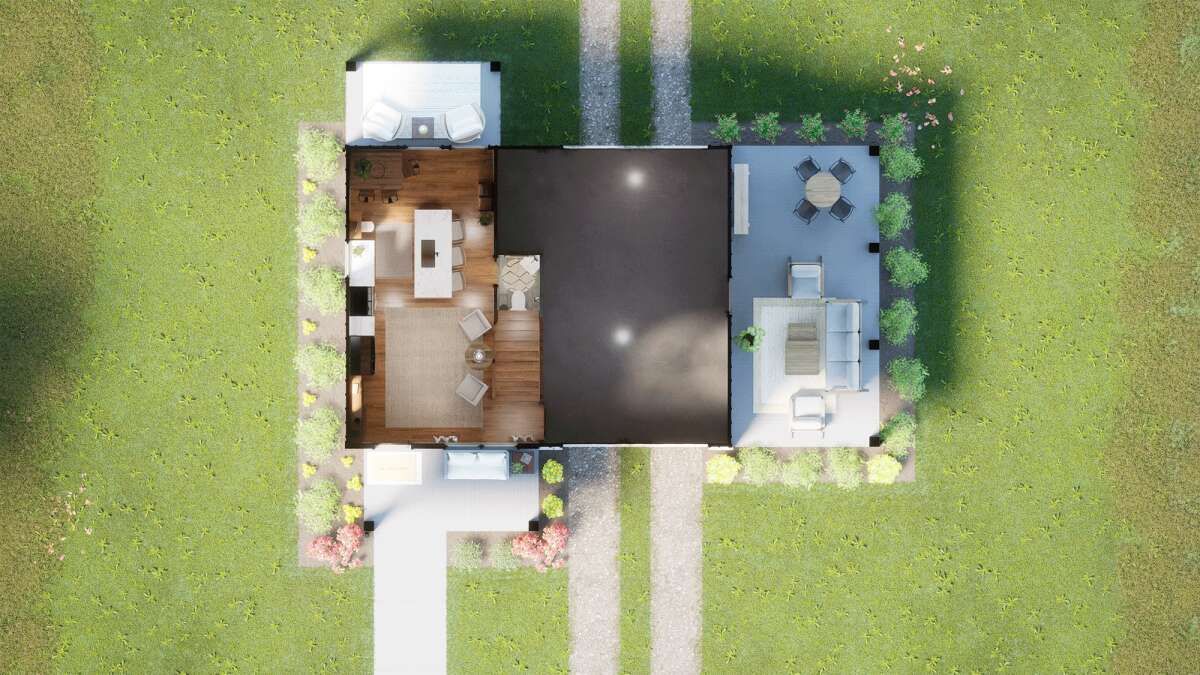

Overhead First Floor
Overhead First Floor for House Plan #7174-00006

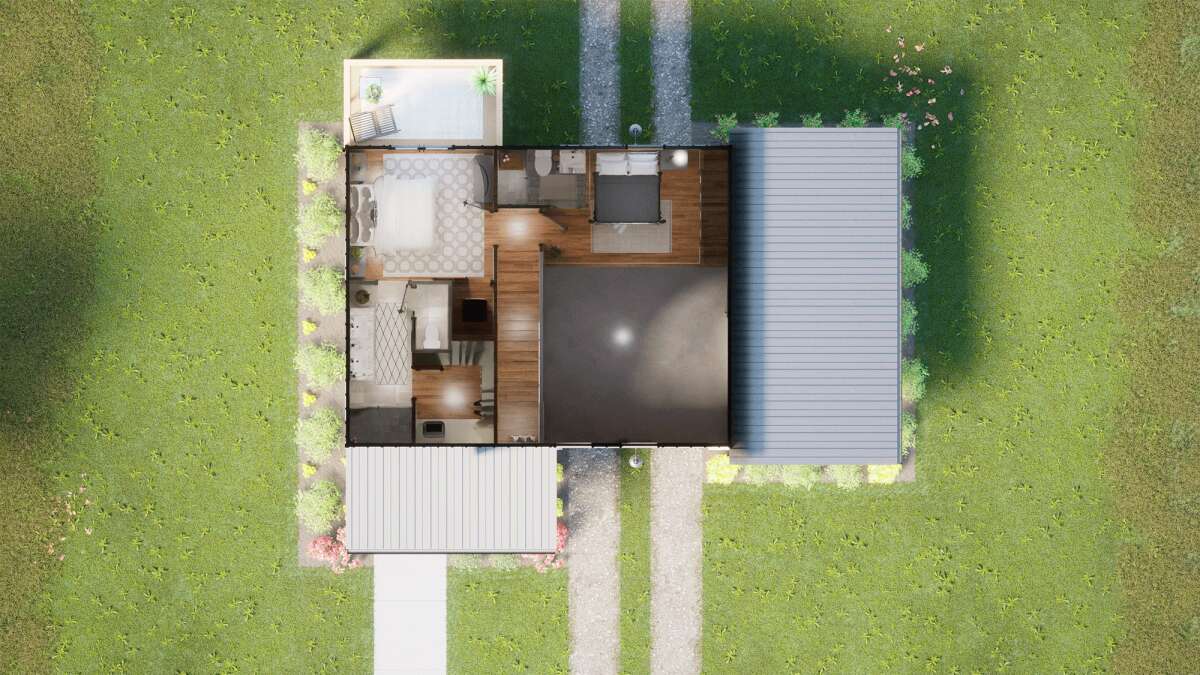

Overhead Second Floor
Overhead Second Floor for House Plan #7174-00006


What's Included in these plans?

24” x 36” sheet size

Cover Sheet

Foundation/Framing Plan (¼” Scale)

Floor Plans (¼” Scale)

Door/Window/Finish Schedule

(4) Exterior Elevations (¼” Scale)

Building Section (3/4” Scale)

Roof Plan (¼” Scale)

Electrical Plan (¼” Scale)

View Sample Plan Set
Sample plans are intentionally blurred to protect designer copyright.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 2 Car Barn Garage Plan features 424 unfinished sq. ft., and 881 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
