Modern Farmhouse Garage Plan 6849-00101

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 1,582
Fin Sq Ft 0
Cars 3
Beds 0
Width 23'
Depth 42'

Floorplan Drawings

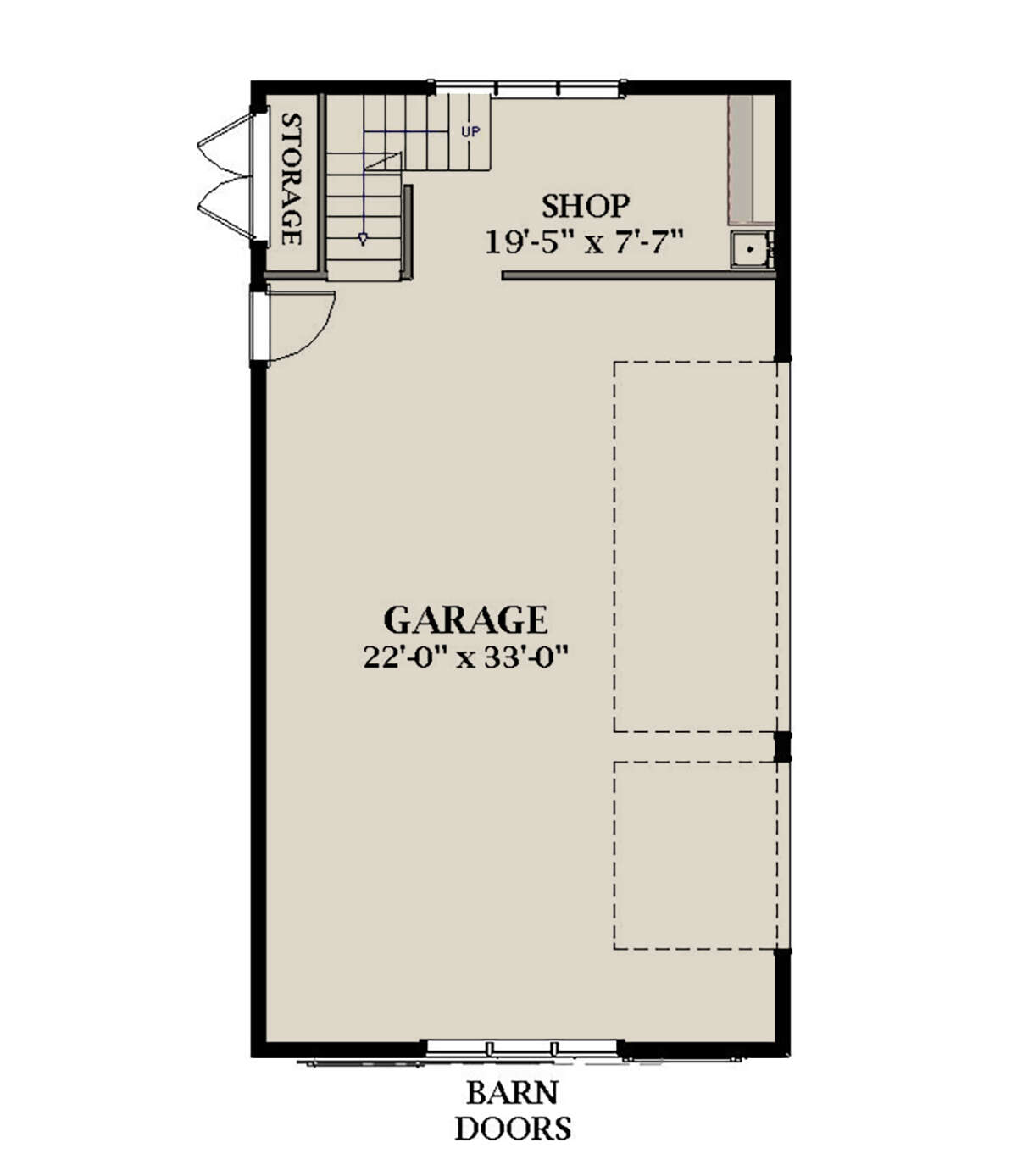

Garage Floor
Garage Floor for House Plan #6849-00101

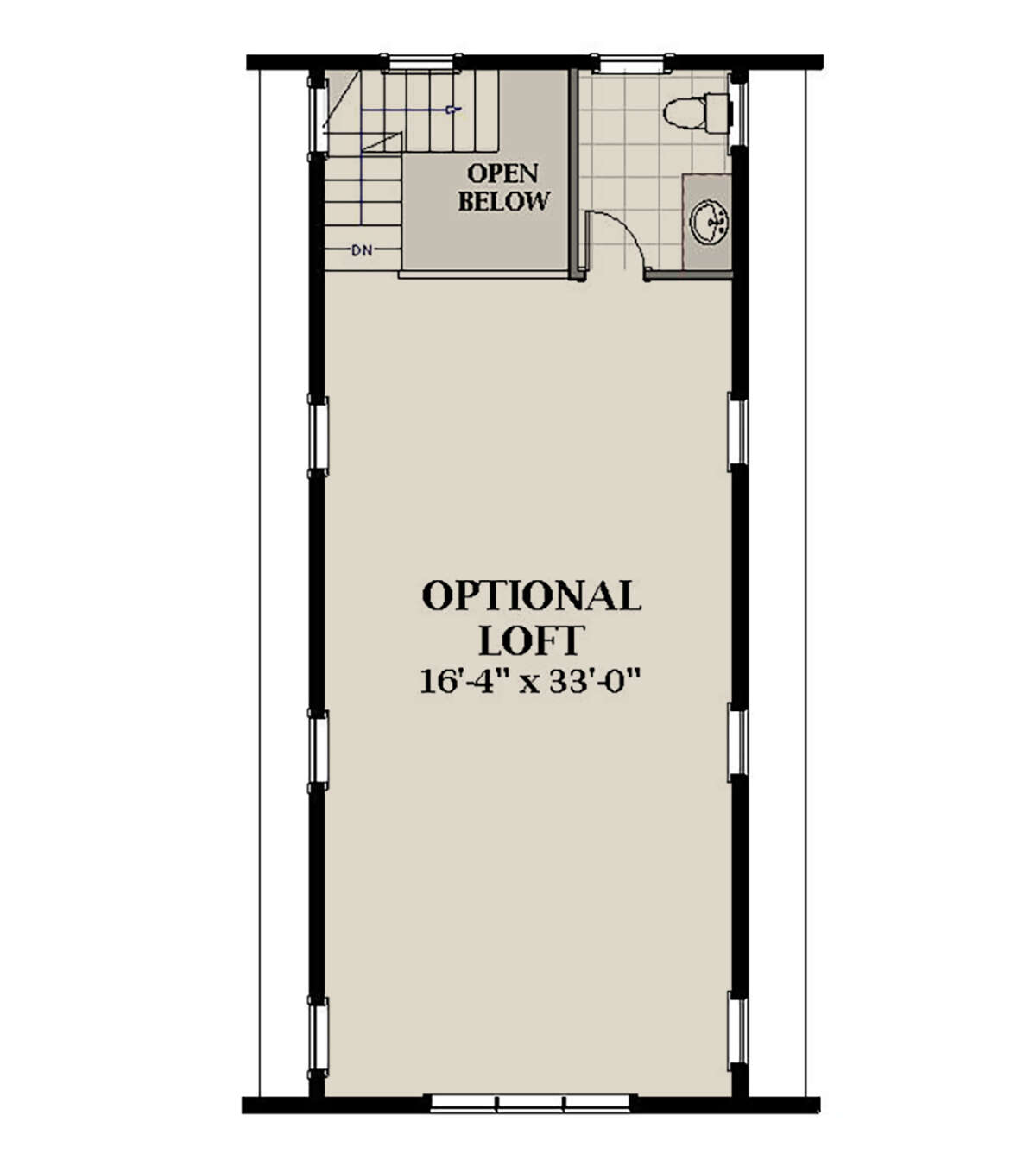

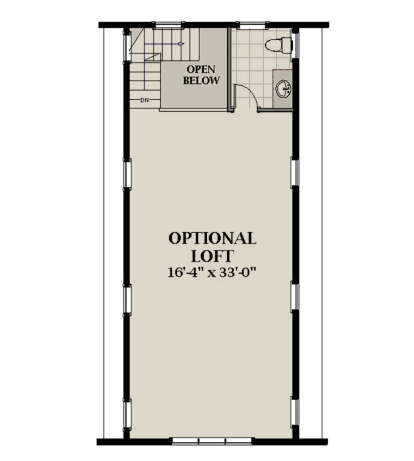

Loft
Loft for House Plan #6849-00101


What's Included in these plans?

  • Cover Sheet with general notes and artists rendering
  • Foundation Plan  (includes location and sizes of foundation walls, slabs, footings, and grade beams)
  • Floor Plans at each level
  • Floor Framing plans at each framed floor level
  • Exterior Elevations   (includes elevations of all sides of building with all exterior materials, window and door openings, detail callouts, floor heights
  • Building Section   (includes a section through the entire building showing construction materials, floor levels, foundation, roof, floors and walls)
  • Roof Plan
  • Electrical Plans at each finished level  (includes suggested locations of lighting, switches, outlets, thermostats, fans, cable TV, data/telephone, and door bells)
  • Wall Sections and Details

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 Car Modern Farmhouse Garage Plan features 1,582 unfinished sq. ft., and 0 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
