Craftsman Plan 6849-00035

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,559
Beds 3
Bath 3
1/2 Baths 1
Car 3
Stories 1.5
Width 55' 1"
Depth 70' 1"

Floorplan Drawings

Main Floor

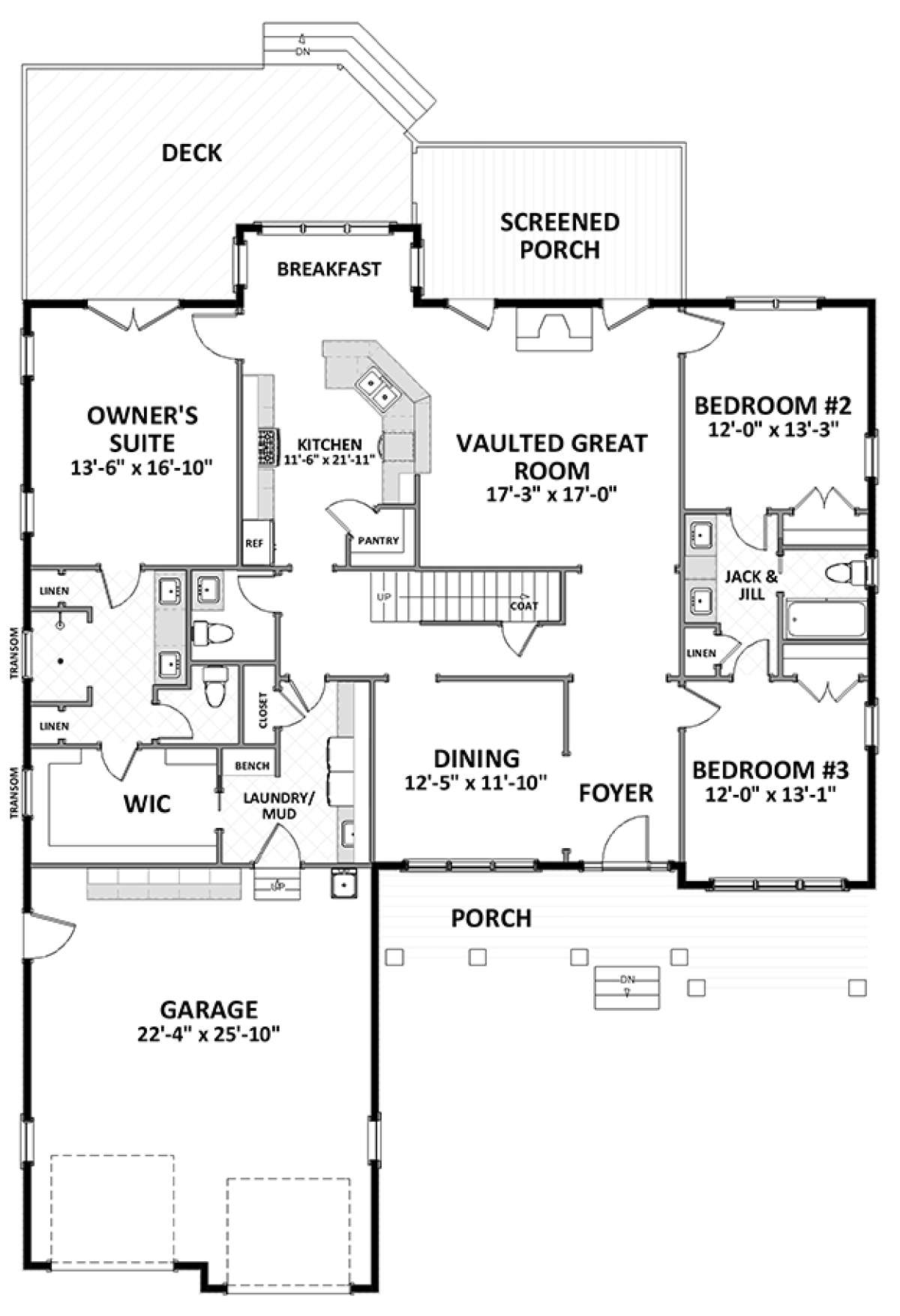

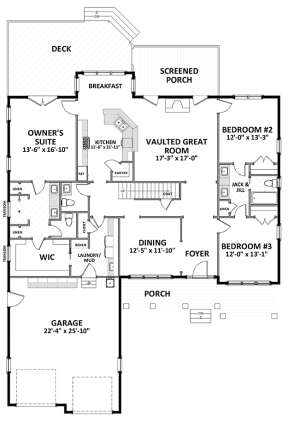

Main Floor for House Plan #6849-00035
Second Floor

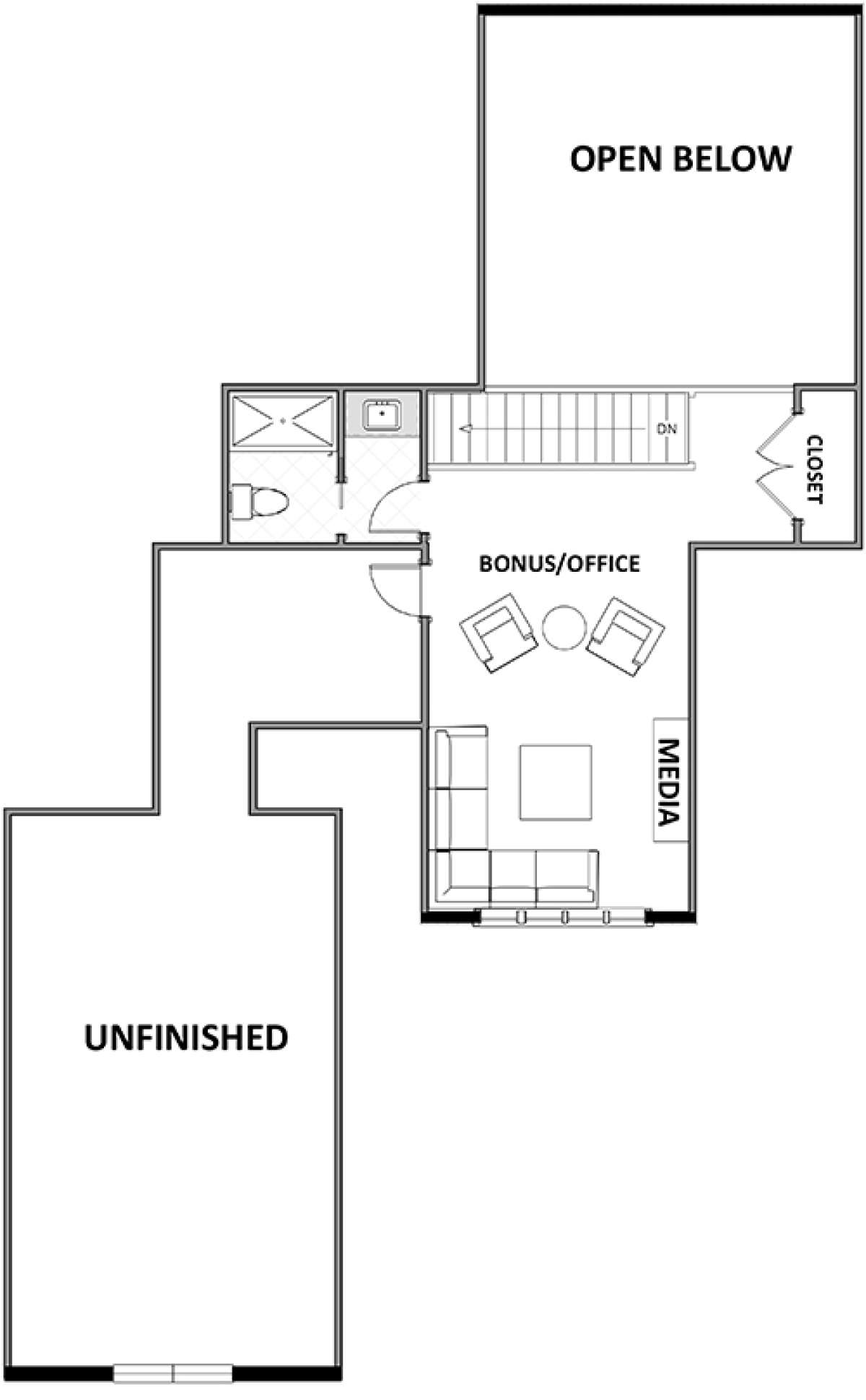

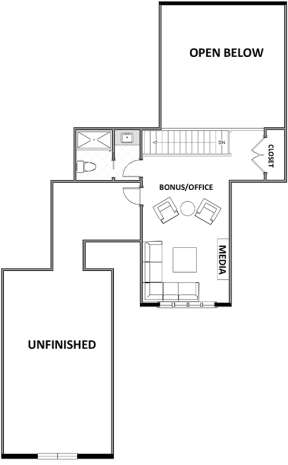

Second Floor for House Plan #6849-00035


What's Included in these plans?

  • Cover Sheet with general notes and artists rendering
  • Foundation Plan  (includes location and sizes of foundation walls, slabs, footings, and grade beams)
  • Floor Plans at each level
  • Floor Framing plans at each framed floor level
  • Exterior Elevations   (includes elevations of all sides of building with all exterior materials, window and door openings, detail callouts, floor heights
  • Building Section   (includes a section through the entire building showing construction materials, floor levels, foundation, roof, floors and walls)
  • Roof Plan
  • Electrical Plans at each finished level  (includes suggested locations of lighting, switches, outlets, thermostats, fans, cable TV, data/telephone, and door bells)
  • Wall Sections and Details

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

**Designer Note** Allow 2 Weeks for the Shipment of this Home Plan
