Modern Transitional Multi-Family Plan 6146-00629

Name: House Plan 6146-00629 - Modern Transitional Plan: 1,748 Square Feet, 3-4 Bedrooms, 1.5 Bathrooms
Brand: America's Best House Plans
SKU: 6146-00629
Price: 1147.50 USD

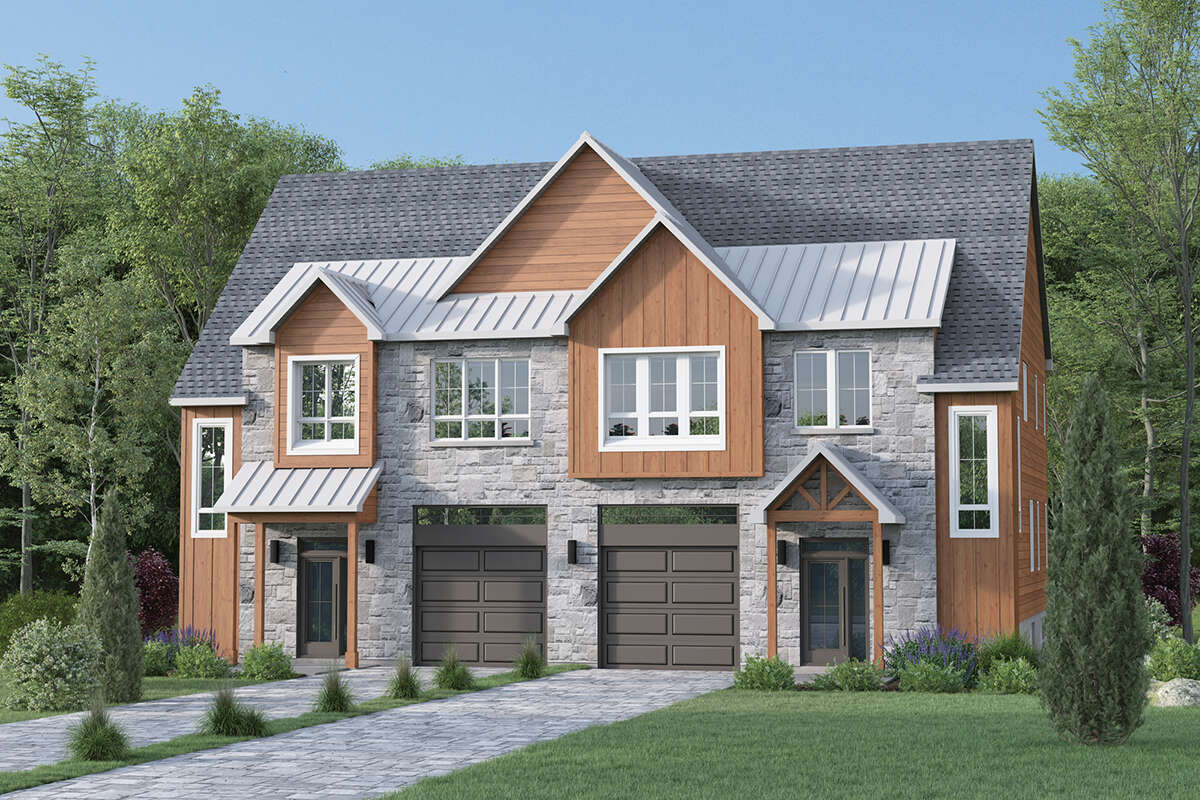

Modern Transitional House Plan #6146-00629 Elevation Photo

SALE

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Units 2

Sq Ft 3,496

Width 56'

Depth 36'

Beds/Unit 3-4

Baths/Unit 1

1/2 Baths/Unit 1

Cars/Unit 1

See What's Included

Select Package

PDF (Single Build)

$1,350 $1,147.50

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a release for making copies locally and minor changes to the plan.

5 Sets (Single Build)

$1,395 $1,185.75

PHYSICAL FORMAT
Five printed sets of working drawings mailed to you. This package comes with a license to construct one home.

5 Sets Plus PDF (Single Build)

$1,540 $1,309.00

One Complete set of working drawings emailed to you in PDF format along with 5 physical sets printed and mailed to you. Most plans can be emailed same business day or the business day after your purchase. Comes with a release which allows for making copies locally and minor changes to the plan. This package comes with a license to construct one home.

CAD Files (Plus PDF, Single Build)

$2,370 $2,014.50

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a release to customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package also includes a PDF set and comes with a license to construct one home. Requires a CAD program to open the files and drafting experience to make changes.

Select Foundation

Basement Foundation $0 $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50 $42.50

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $150 $127.50

Reverses the entire plan including all text and dimensions so that they are reading correctly.

Material List $150 $127.50

A complete material list for this plan. House plan must be purchased in order to obtain material list.

Return Policy, Building Code & Copyright Info

Floorplan Drawings

PRINT DOWNLOAD

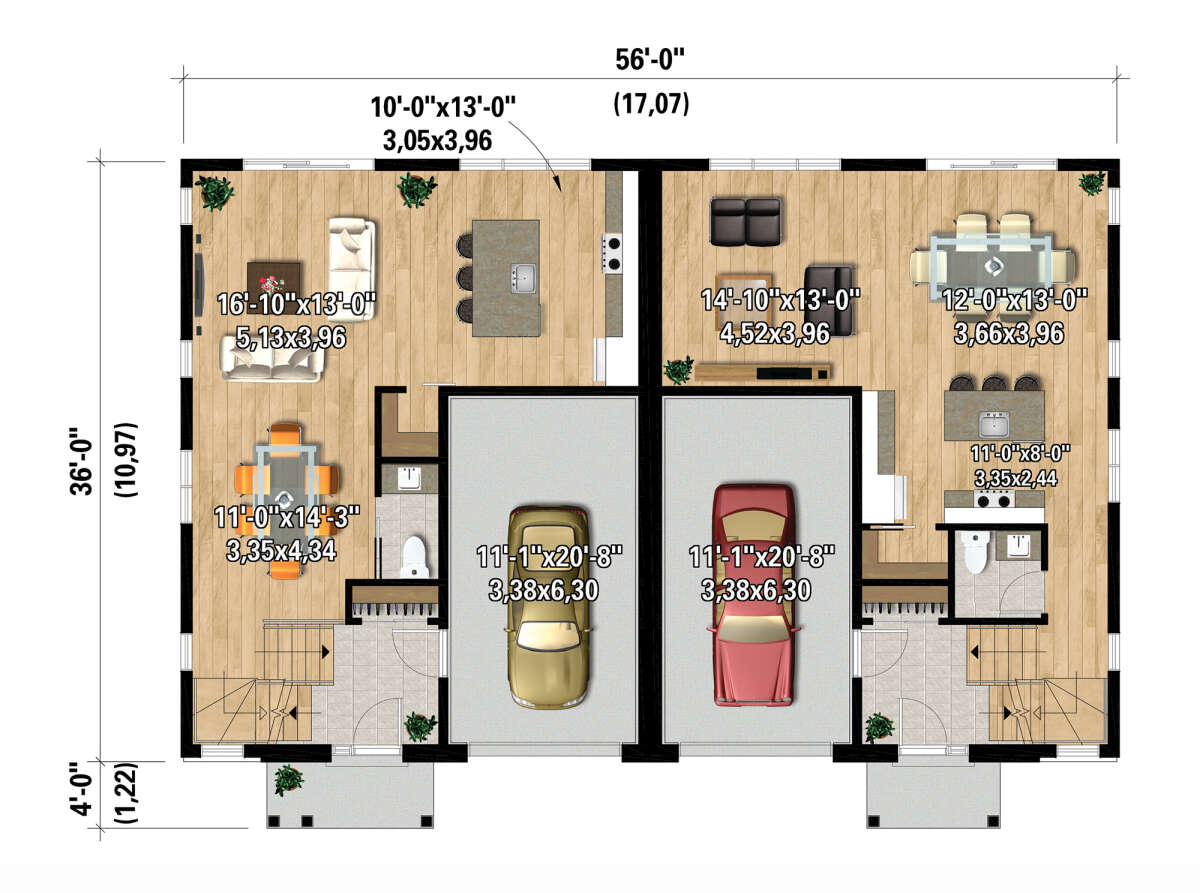

Main Floor

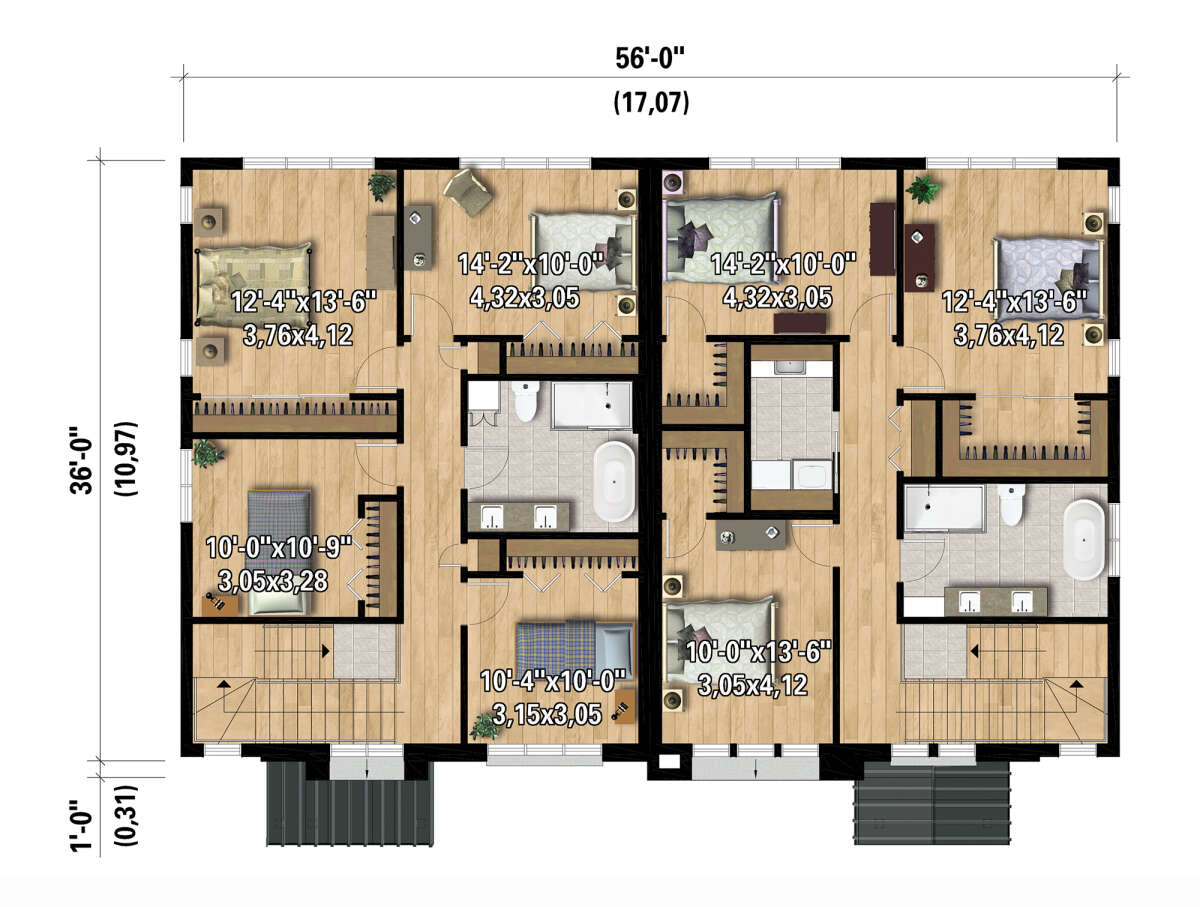

Second Floor

Images copyrighted by the designer.

Unit A

Heated SqFt: 1,748 First Floor SqFt: 748 Second Floor SqFt: 1,008

Garage SqFt: 268

Bedrooms: 4

Full Baths: 1

Half Baths: 1

Floors: 1

Garage Spaces: 1

Width: 28 Ft, 0 In

Depth: 36 Ft, 0 In

Unit B

Heated SqFt: 1,748 First Floor SqFt: 748 Second Floor SqFt: 1,008

Garage SqFt: 268

Bedrooms: 3

Full Baths: 1

Half Baths: 1

Floors: 1

Garage Spaces: 1

Width: 28 Ft, 0 In

Depth: 36 Ft, 0 In

Building Details

HEATED Sq Ft

Total Heated Area: 3,496 SqFt First Floor: 1,496 SqFt Second Floor: 2,016 SqFt

UNHEATED Sq Ft

Total Unheated Area: 536 SqFt Garage: 536 SqFt

Bedrooms: 7

Bathrooms: 2

Half Baths: 2

Floors: 1

Garage Spaces: 2

Width: 56ft.

Depth: 36ft.

Height: 36ft.-7in.

Foundation:

Basement Foundation

Main Roof Pitch: 9:12

Exterior Framing:

2x6 Wood

CEILING HEIGHTS

First Floor: 8 feet

Second Floor: 8 feet

What's Included in these plans?

Foundation Plan (1/4"=1')

Floor Plans (1/4"=1')

Set of Elevations (1/4” = 1’-0” or 1/8” = 1’-0”)

Building Sections (1/4"=1')

Miscellaneous Details (1/2” = 1’-0”)

Roof Overview Plan (1/8” = 1’-0”)

What's not included: House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

About This Plan

This Modern Transitional building offers 2 Units and is 56ft. Wide x 36ft. Deep. Each unit offers 3 bedrooms, 1 bathrooms, and a 1 car garage. America's Best House Plans offers high-quality multi-family home plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of Multi-Family designs are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your building needs and requirements.

Browse Similar PlansVIEW MORE PLANS

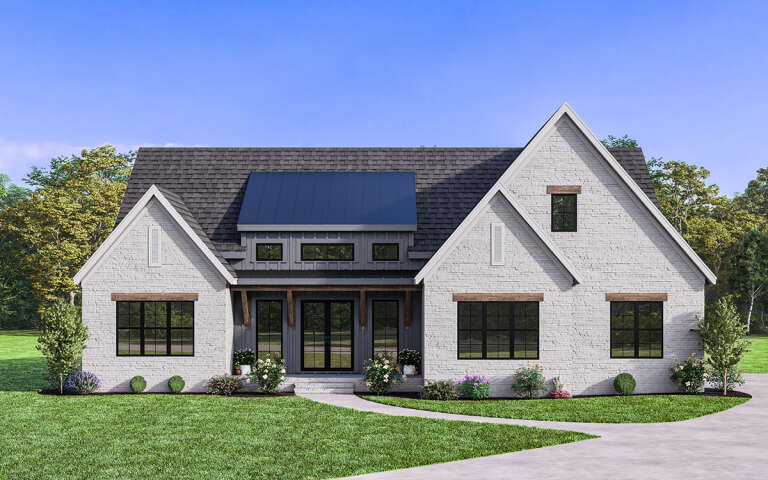

House Plan House Plan #32612 Angled Front Elevation
