Narrow Lot House Plan 6146-00404

Sq Ft1,340
1/2 Baths0
Width24' 0"
Depth41' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

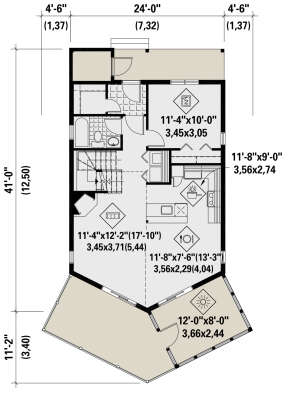

Main Floor for House Plan #6146-00404

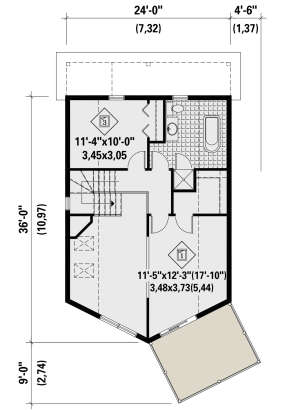

Second Floor for House Plan #6146-00404
Main Floor
Main Floor for House Plan #6146-00404
Second Floor
Second Floor for House Plan #6146-00404

Frequently Asked Questions


What's Included in these plans?

    • Foundation Plan (1/4"=1')

    • Floor Plans (1/4"=1')

    • Set of Elevations (1/4” = 1’-0” or 1/8” = 1’-0”)

    • Building Sections (1/4"=1')

    • Miscellaneous Details (1/2” = 1’-0”)

    • Roof Overview Plan (1/8” = 1’-0”)


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

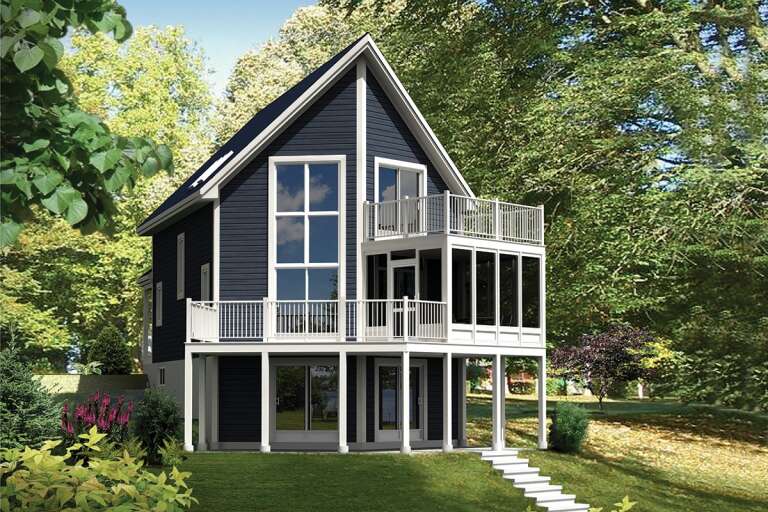

This great Narrow house plan would be perfect on a lake or mountain property with its beautiful window views, open decks and shaded screen/sun porch. The house offers approximately 1,340 square feet of living space with three bedrooms and two bathrooms. The picturesque exterior showcases lots of entertaining and family relaxing space; perfect, after a day’s hiking, swimming or fishing. The home is situated on a walk-out basement for additional square footage and there is a front covered porch at the front of the home. Walking into the home from the front porch is a large closet, a full bath, one bedroom and the family living and dining spaces. The bathroom features vanity space, a toilet area and a tub/shower combination and located directly across from the bedroom which features double windows overlooking the front porch and ample closet space. Traveling the hallway to the family rooms, is the laundry room and double staircases. The family space consists of a great room with a corner fireplace for warmth, sliders to accommodate access to the deck and soaring window views. The kitchen and dining space is similarly laid out with an island peninsula and sliders to the screen/sun porch.

Upstairs, are two additional bedrooms, one with a window view and closet space, the other with a walk-in closet and sliders to the upstairs deck. What a great spot for relaxing, watching water traffic or sunbathing. There is a shared hall bath with vanity space, a toilet area and both a shower and tub. This is an exciting family home made for entertaining and relaxing.
