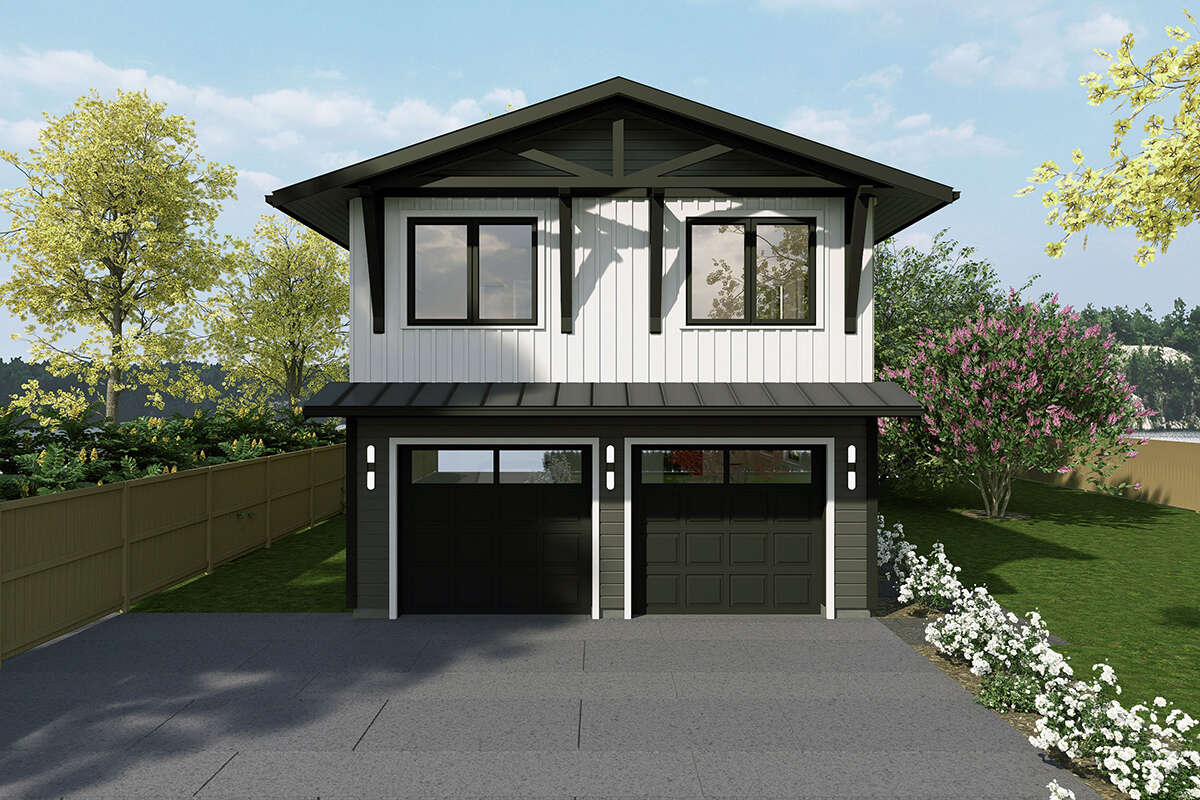

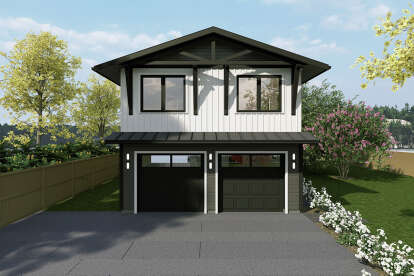

Modern Farmhouse Garage Plan 5984-00001

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 636
Fin Sq Ft 781
Cars 2
Beds 2
Width 23' 9"
Depth 40'

Floorplan Drawings

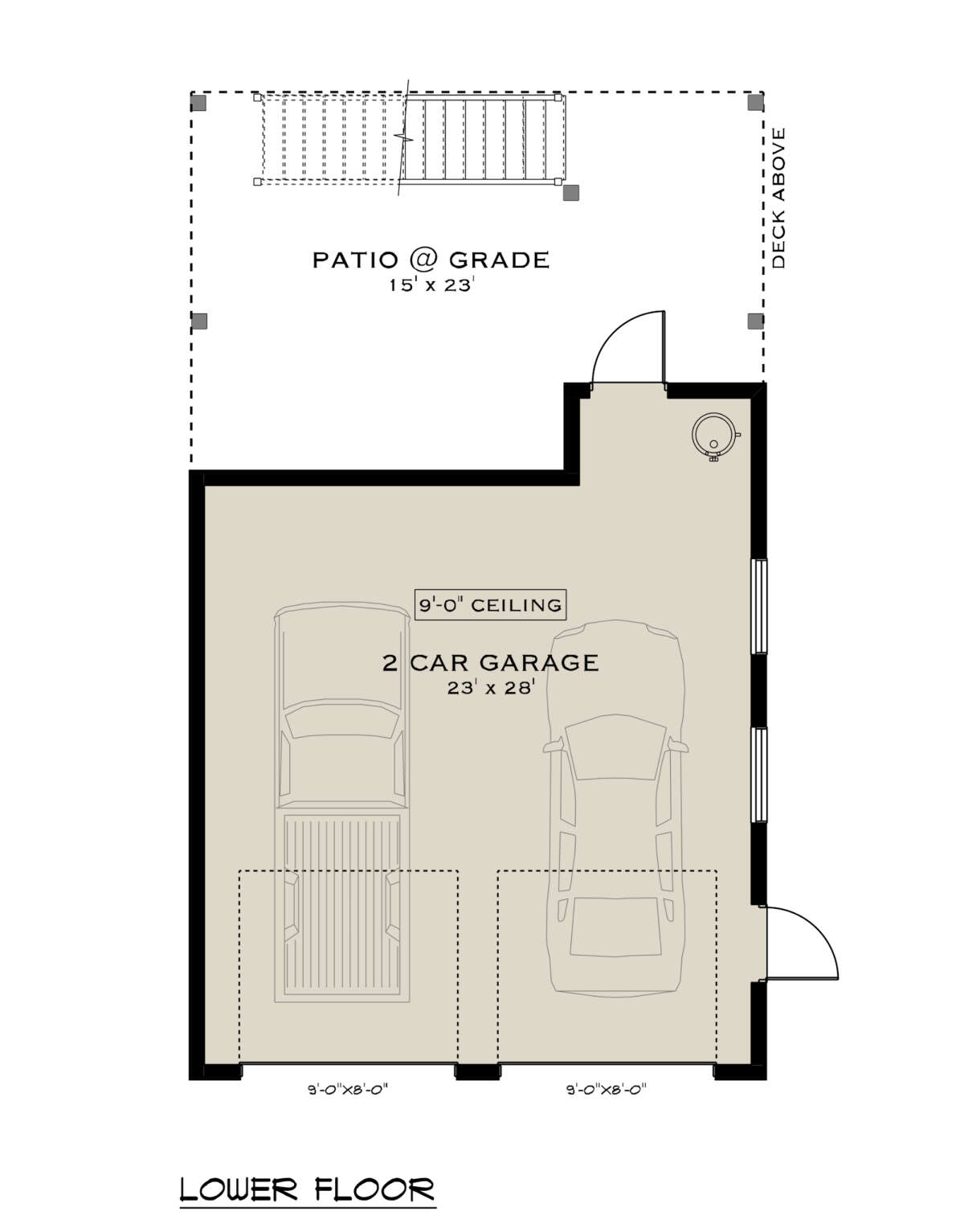

Garage Floor
Garage Floor for House Plan #5984-00001

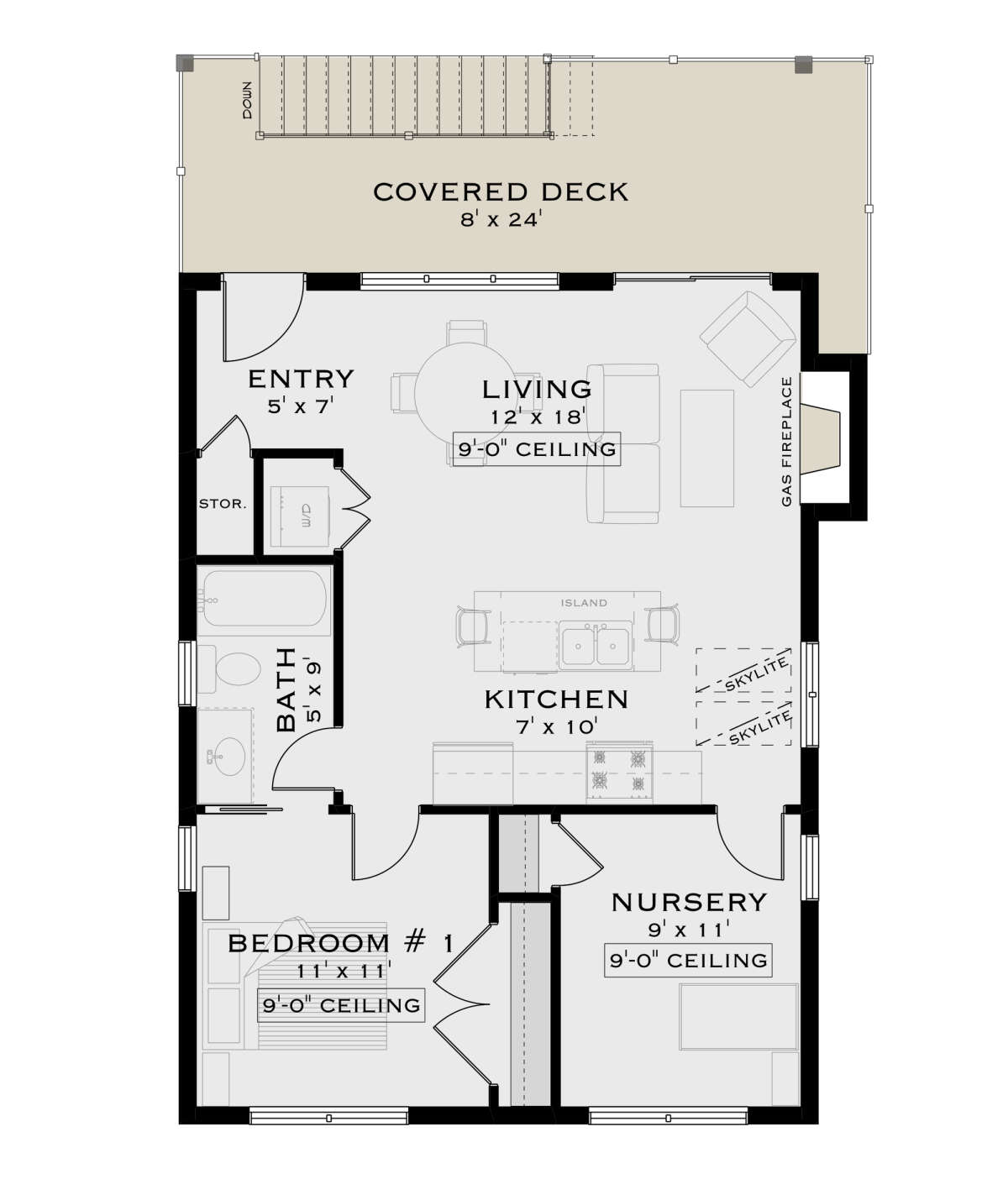

Second Floor
Second Floor for House Plan #5984-00001


What's Included in these plans?

  • Foundation Plan at 1/4" Scale:
  • Main Floor Plan at 1/4" Scale:
  • Upper Floor Plan at 1/4" Scale:
  • Roof Plan: · Includes roof pitch specifications, overhang depth, and miscellaneous notes.
  • Framing Plans:· Framing plan showing joist direction.
  • Exterior Views at 1/4" Scale:· Includes front, rear, and both side elevation drawings. Wall and roof finishes are notated. The height of each story is notated.
  • Building Section(s) at 1/4" Scale:
  • Construction Details:
  • Electrical Plans:· Shows electrical fixture locations as well as soffit lighting fixtures. Not all plans include an electrical layout.
  • General Notes:· Shows excerpts of the IRC 2018.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 2 Car Modern Farmhouse Garage Plan features 636 unfinished sq. ft., and 781 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
