Florida Plan 575-00049


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,692
Beds 3
Bath 3
1/2 Baths 2
Car 2
Stories 1
Width 49' 8"
Depth 98' 4"

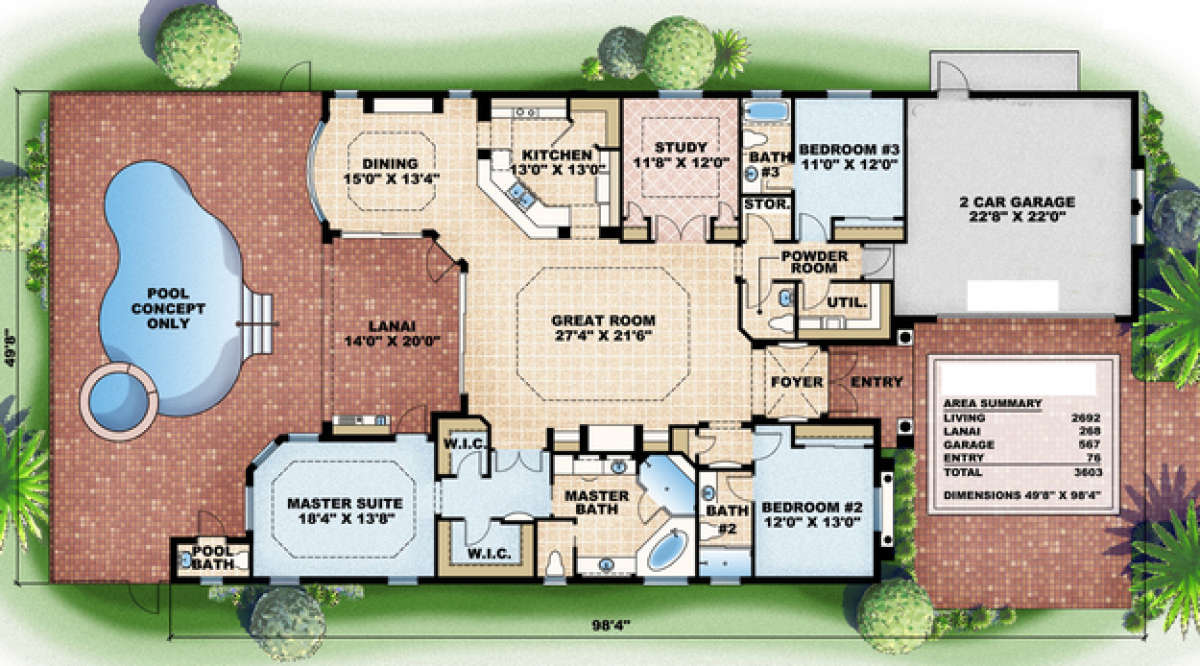

Floorplan Drawings

Floorplan 1
Floorplan 1 for House Plan #575-00049

What's Included in these plans?

  • Elevations:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Material Labels
    Floor-To-Floor Heights
    Roof Slope Indicators
  • Floor Plans:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Door and Window Sizes
    Completely Dimensioned Floor Plan
    Room Labels and Interior Room Sizes
  • Electrical Layouts:
    Building Section Markers
    All Electrical Outlets, Fixtures and Switching
  • Foundation or Slab Plan:  Drawn at 1/8" to 1/4" = 1'0" Scale and Includes:
    Floor and Deck Joist Sizes, Spacing and Direction
    Rough-In Plumbing Location (if applicable)
    Mechanical Equipment Locations (if applicable)
    Electrical Locations (if applicable)
  • Roof Design Plan:  Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
    All Beam and Header Heights and Locations
    All Hips, Gables, Ridges and Valleys
    Building Section Markers
  • Building Sections:  Drawn to 1/8" to 1/4" = 1'0" Scale and Includes:
    Floor Joist Size and Spacing
    Floor-To-Floor Heights
    Non-Typical Plate Heights Indicated
  • Typical Wall Sections:  Drawn at 1/8" to 1/2" = 1'0" Scale and Includes:
    All Labels Indicating Wall Construction
    Foundation Wall Thickness and Reinforcing
    Insulation Type and Thickness
  • Miscellaneous Notes and Details:
    Miscellaneous General Notes
    Stairway Details (if applicable)

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

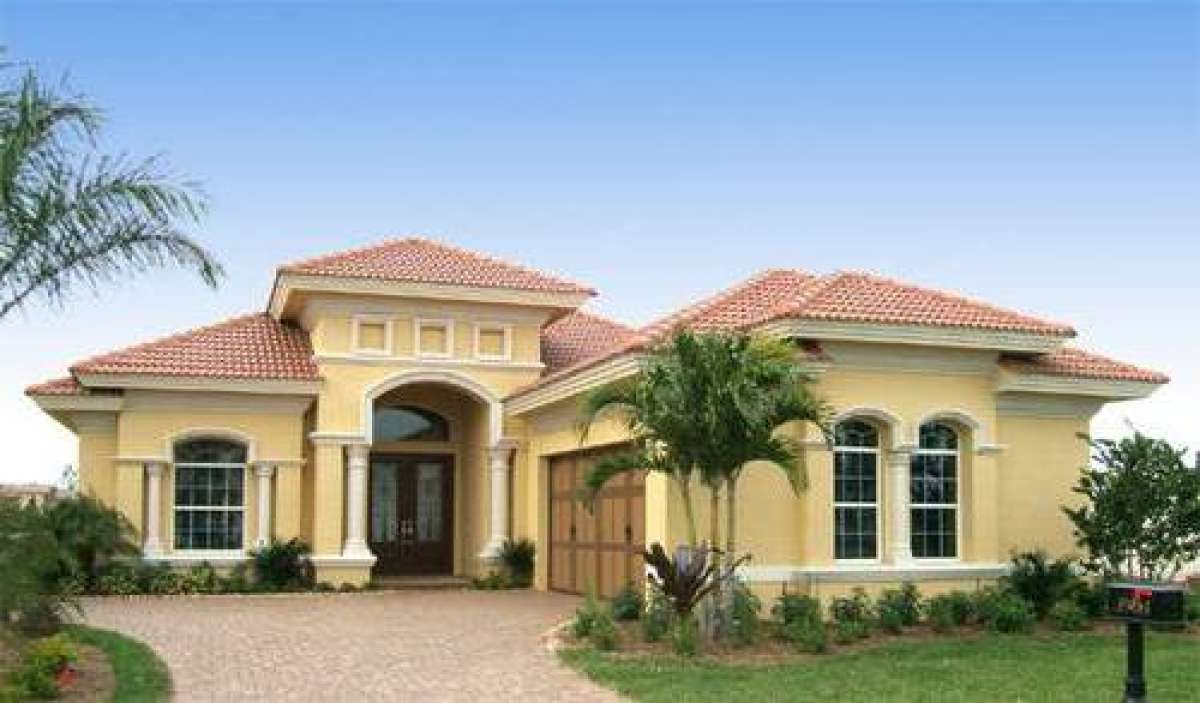

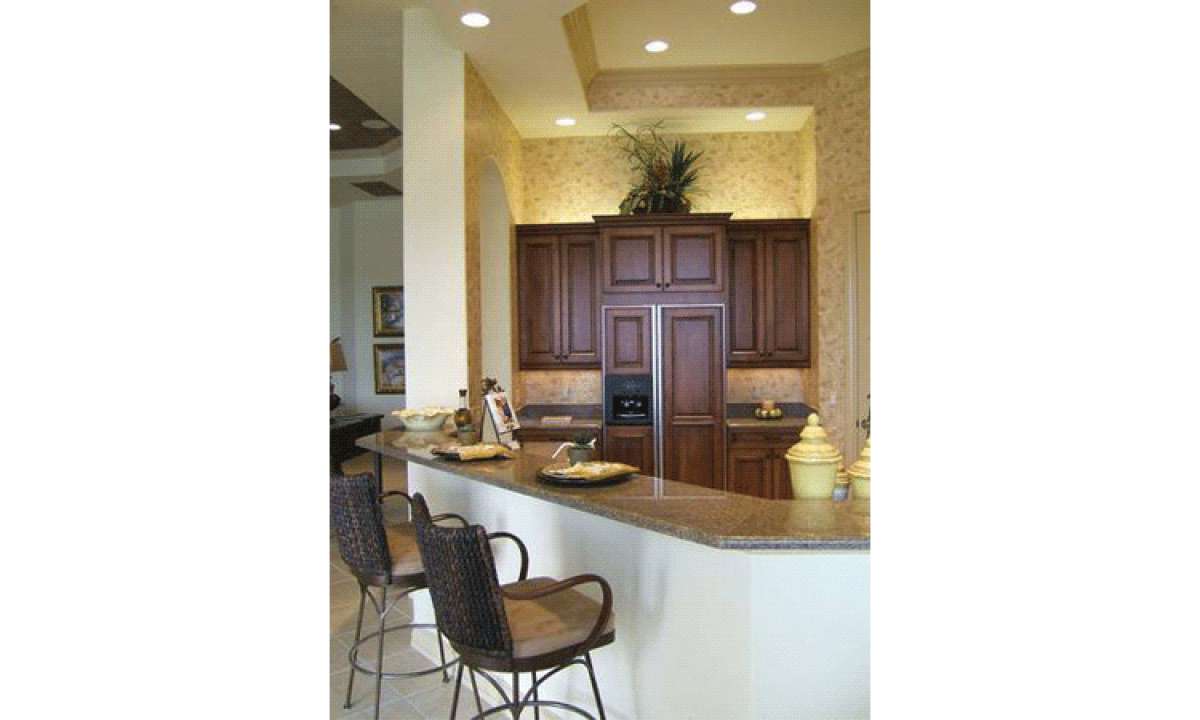

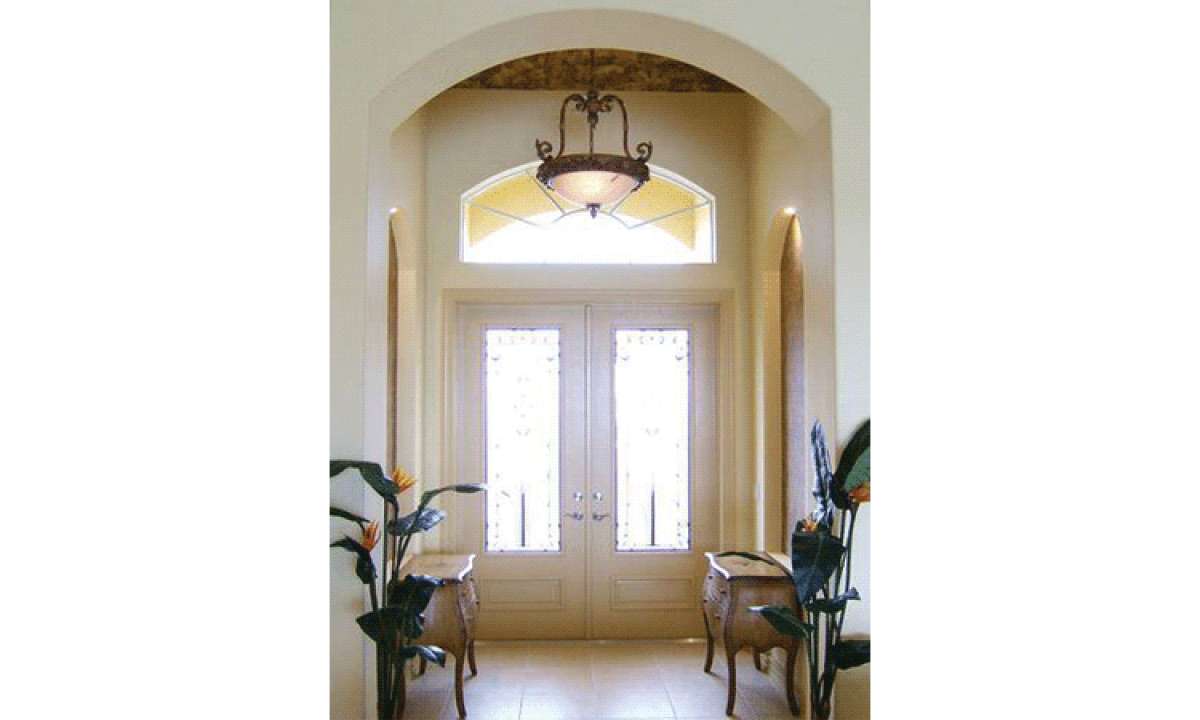

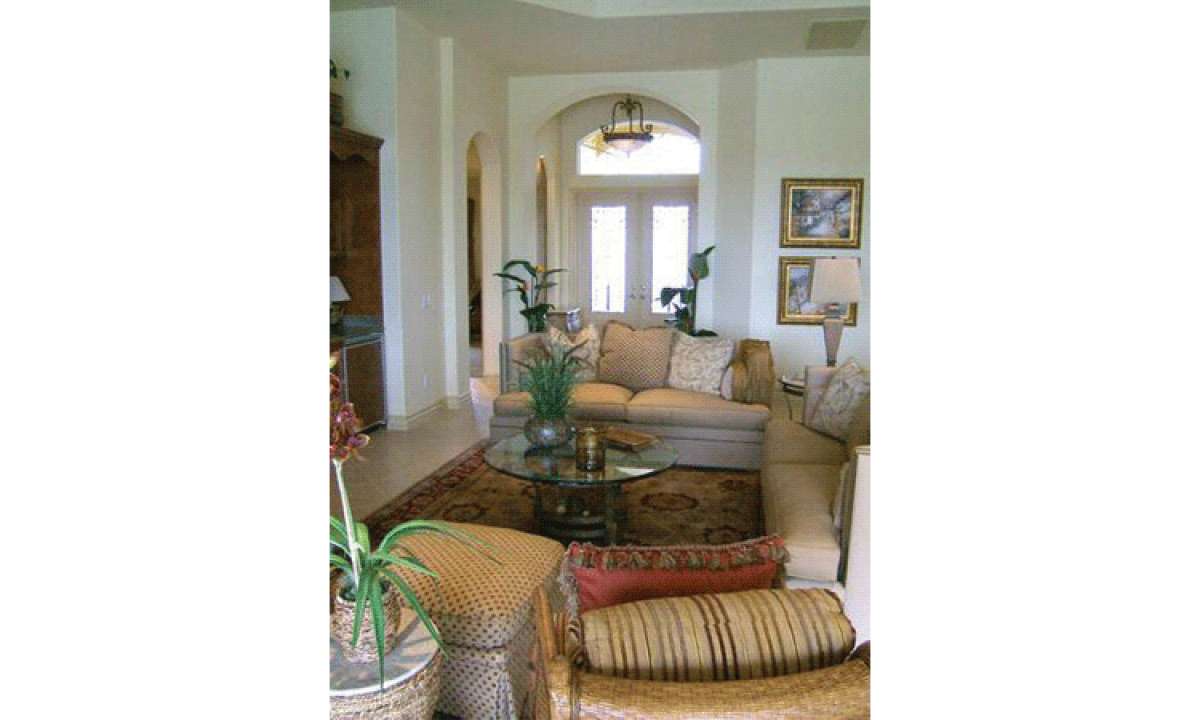

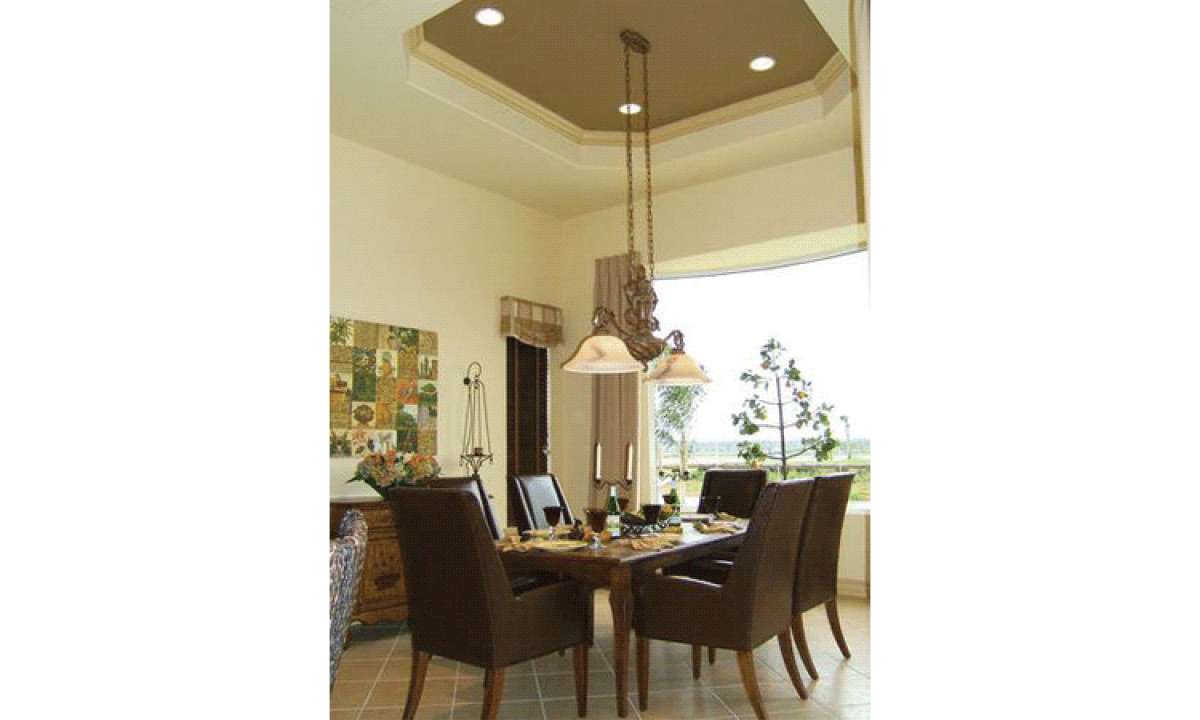

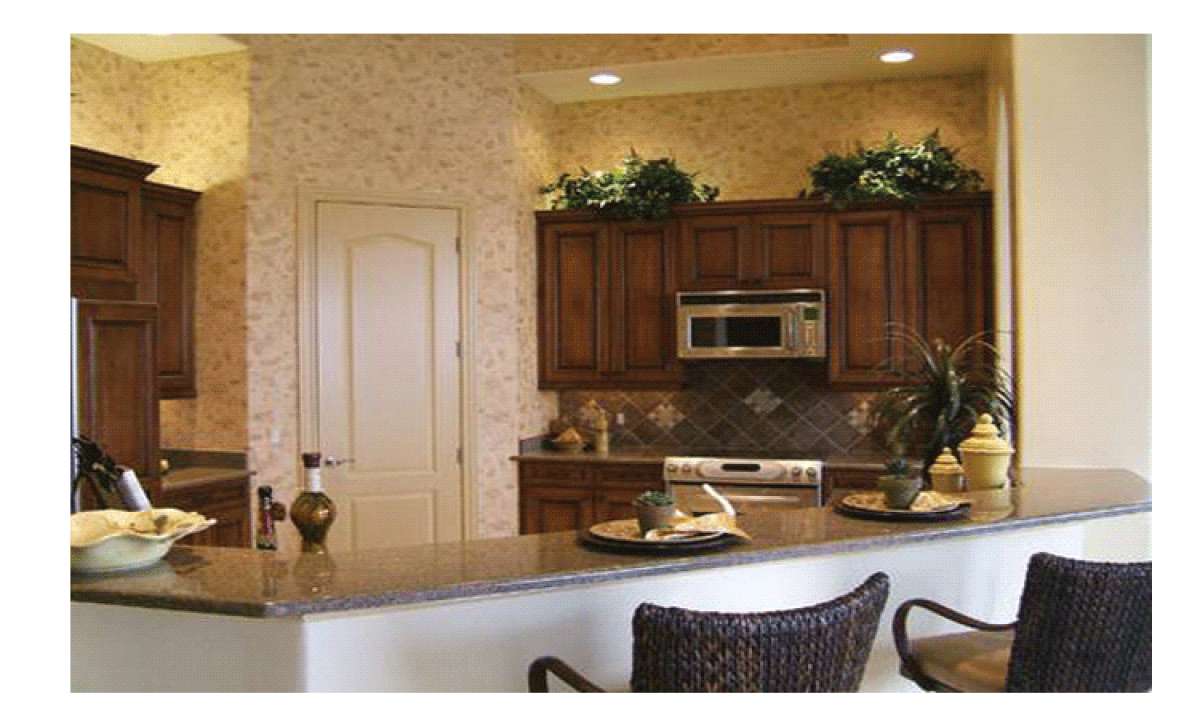

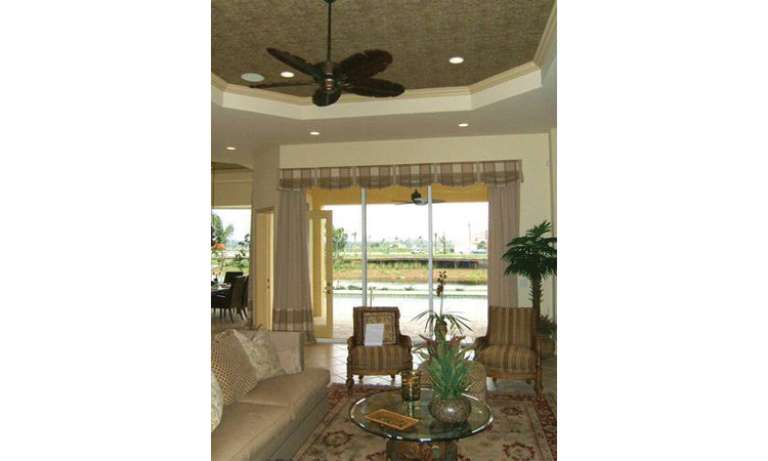

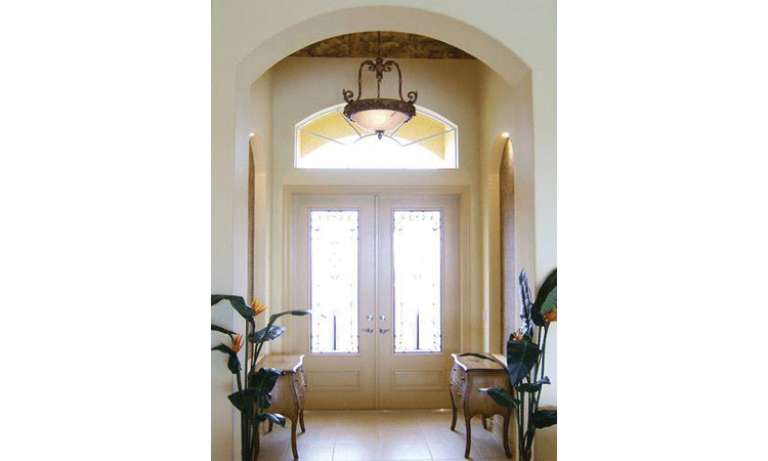

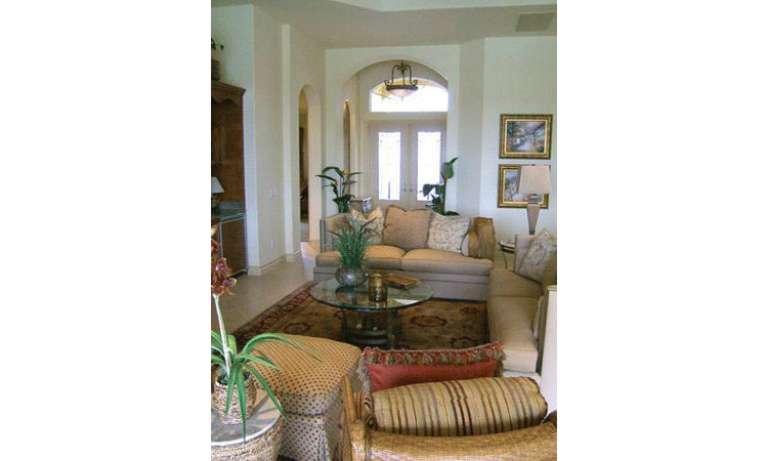

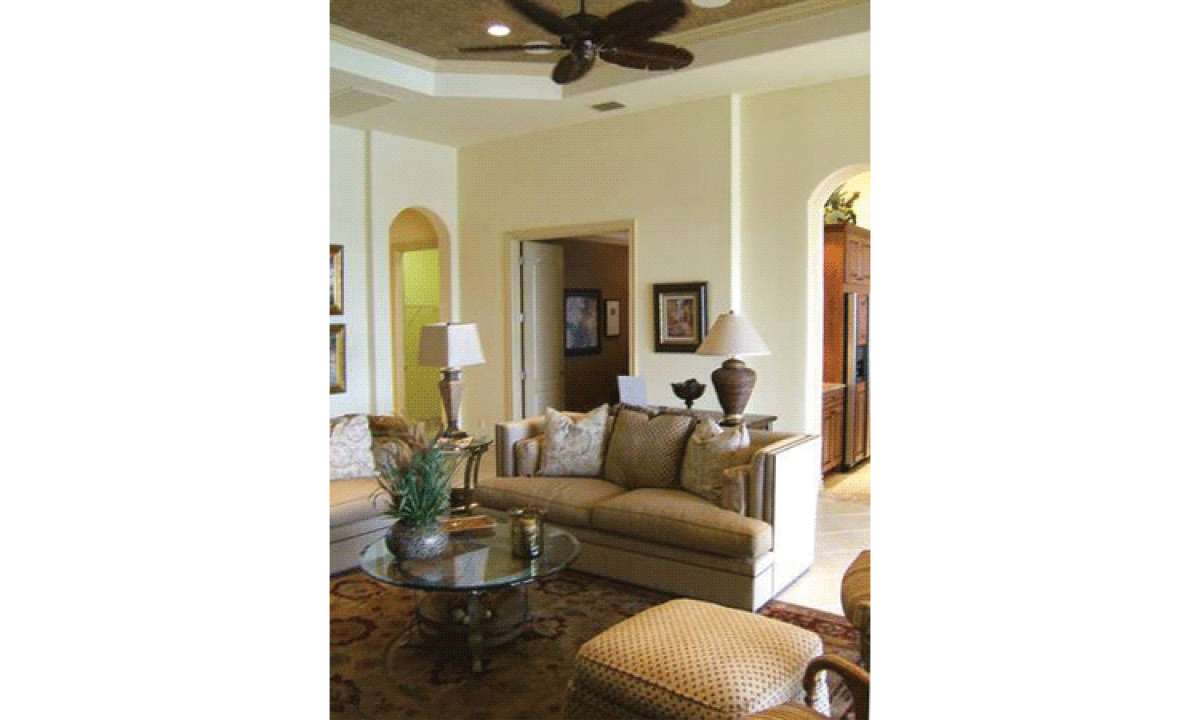

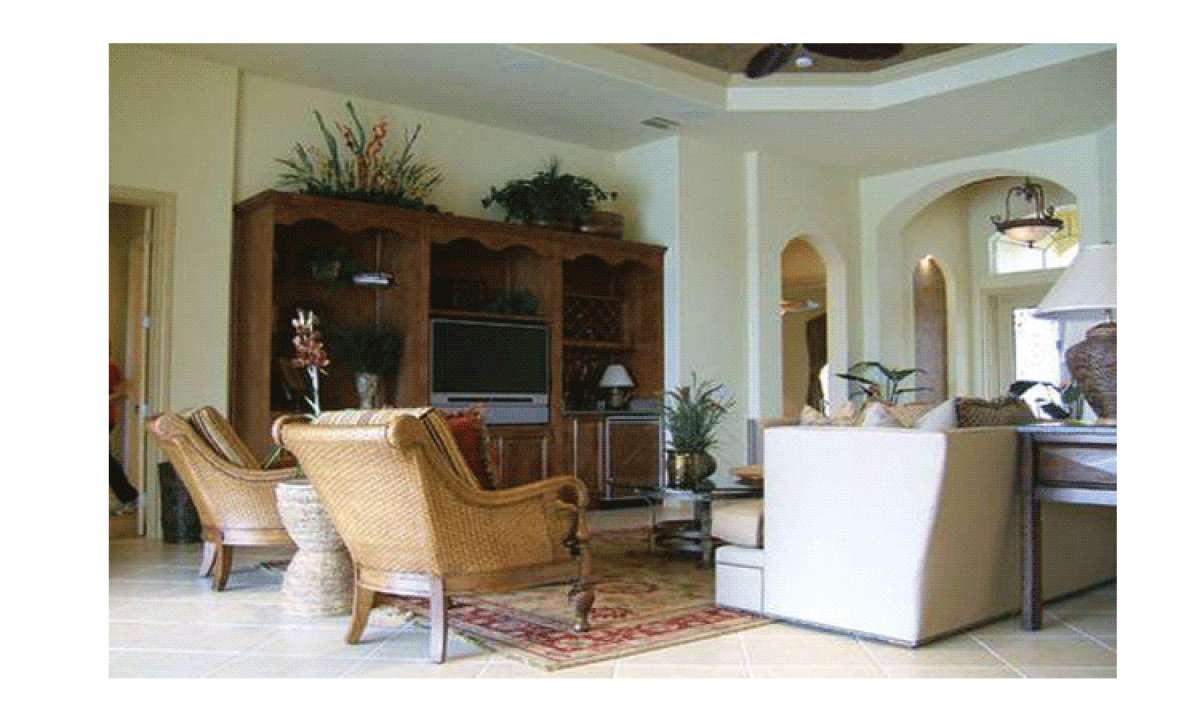

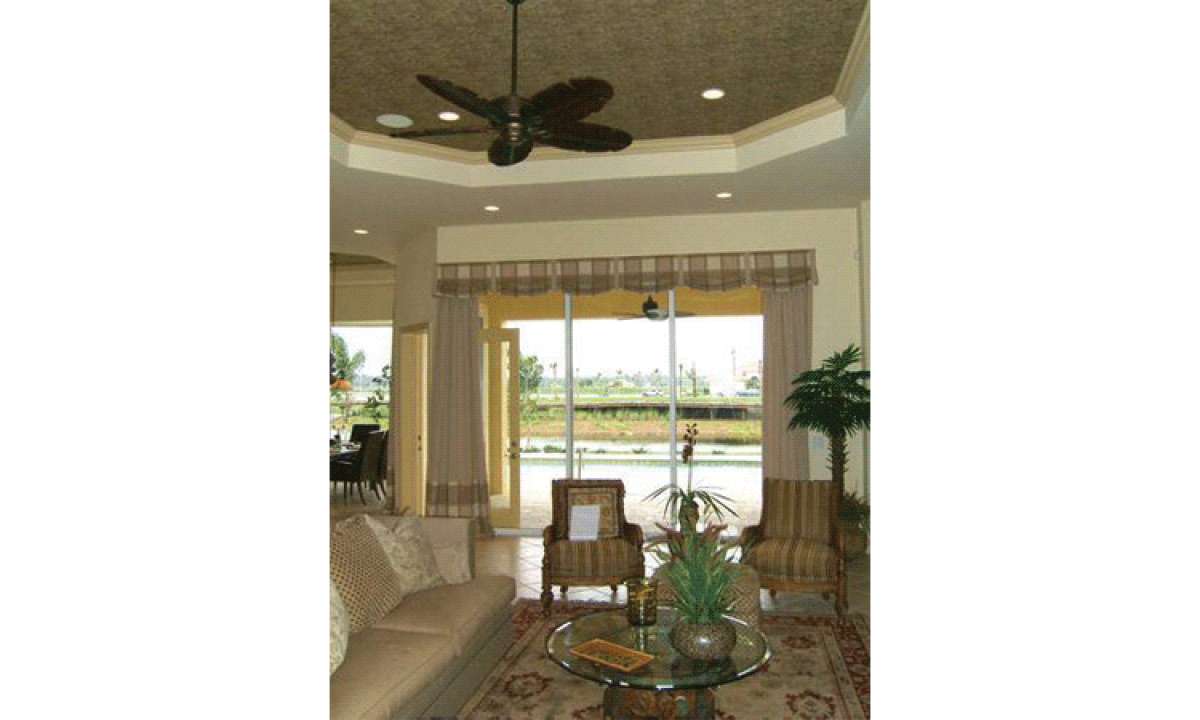

This gorgeously designed Florida house plan features outstanding curb appeal and a generously proportioned one story interior floor plan. Warm Mediterranean design features are highlighted on the exterior and consist of red tile roofing, smooth stucco exterior walls, columned beams and a soaring front entrance. Wonderful window views and a two car courtyard garage entrance add structure and balance to the homes curb appeal. The interior layout features a centrally located great room around which the remainder of the rooms are situated. This layout maintains a family entertaining lifestyle and allows for a casual ambience that all family members can enjoy. There are three bedrooms and four baths found in the home’s approximate 2,692 square feet of living space. The front courtyard entrance grants access into the home’s foyer which is spacious and immediately opens onto the 27’ plus by 21’ plus great room with a trey ceiling accent. There is an open kitchen with a grand peninsula bar and plenty of additional counter and cabinet space. The adjoining dining room is quite spacious with outlining columns, a trey ceiling and a graceful bowed series of window views onto the rear yard. There is an accompanying covered lanai which features exit/entry points onto both the open living concept as well as the master bedroom; this outdoor space is ideal for continued family entertaining and a great spot for family and friends to gather in comfort. There is French door access into the study, which is located off the great room, with double closets, a trey ceiling and window views as well. The two car garage leads to the large utility room, a storage room and the guest powder room.

The third bedroom features good floor space, wall-to-wall closet space and a full private bath with vanity space, a toilet area and a tub/shower combination. The second bedroom and master suite are situated on the opposite side of the home where bedroom two is slightly larger than bedroom three, features plentiful closet space, beautiful window views and a private bath with vanity space, a toilet area and a shower. The master suite occupies the remainder of the wing and is quite large offering a master bedroom with a trey ceiling, a bay window view onto the rear yard and access onto the accompanying lanai. His and her walk-in closets line the spacious hallway to the elegant master bath. Dual vanities, a compartmentalized toilet area, a luxurious corner tub and enormous walk-in shower outline the master bath. This Florida home features an elegant, yet comfortable, interior floor plan and an exterior trimmed in detail and featuring great curb appeal.
