Narrow Lot House Plan 5738-00003EXCLUSIVE PLAN

Sq Ft1,680
1/2 Baths1
Width26' 6"
Depth36' 5"
Narrow Lot House Plan #5738-00003 Elevation Photo

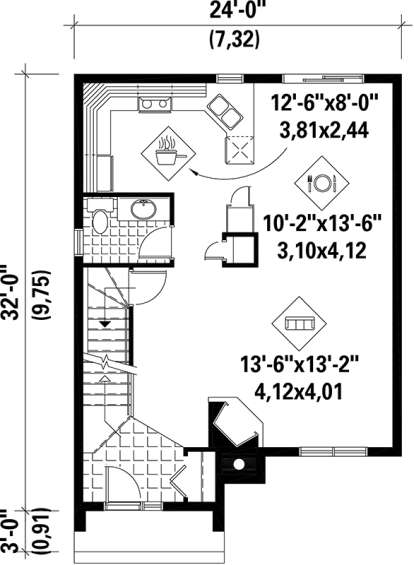

Floorplan 1
Floorplan 1 for House Plan #5738-00003

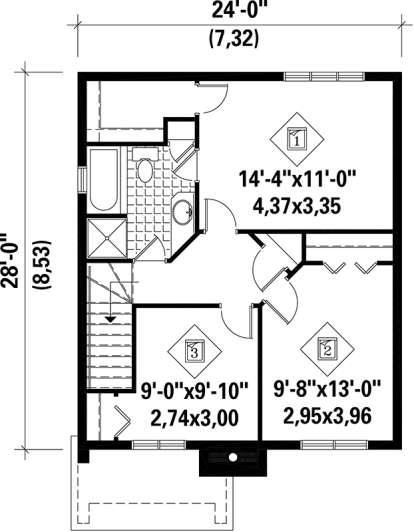

Floorplan 2
Floorplan 2 for House Plan #5738-00003
Narrow Lot House Plan #5738-00003 Elevation Photo
Narrow Lot House Plan #5738-00003 Additional Photo
Narrow Lot House Plan #5738-00003 Elevation Photo
Floorplan 1 for House Plan #5738-00003
Floorplan 2 for House Plan #5738-00003
Narrow Lot House Plan #5738-00003 Elevation Photo
Narrow Lot House Plan #5738-00003 Additional Photo
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5738-00003
Floorplan 2 for House Plan #5738-00003
Floorplan 1
Floorplan 1 for House Plan #5738-00003
Floorplan 2
Floorplan 2 for House Plan #5738-00003

Frequently Asked Questions


What's Included in these plans?

  • Cover Sheet with general notes and artists rendering
  • Heated/Finished square footage calculations from outside of exterior studs, does not include decks, porches, garages, unfinished basements, or attic space.
  • Foundation Plan 1/4"=1'-0" (includes location and sizes of foundation walls, slabs, footings, and grade beams)
  • Floor Plans at each level 1/4"=1'-0"  (includes door and window locations and sizes, all dimensions, room sizes,  location of cabinetry and built-ins)
  • Floor Framing plans at each framed floor level 1/4"=1'-0" (includes floor framing member sizes and spacing and interior bearing walls and posts)
  • Exterior Elevations  1/4"=1'-0"  (includes elevations of all sides of building with all exterior materials, window and door openings, detail callouts, floor heights
  • Building Section  1/4"=1'-0"  (includes a section through the entire building showing construction materials, floor levels, foundation, roof, floors and walls)
  • Interior Elevations 1/4"=1'-0"  (Cabinet elevations at bathrooms, kitchen and laundry rooms) -Roof Plan 1/4"=1'-0"  (includes "birds eye" view of roof with roof slopes, valleys, ridges, saddles, crickets, and locations of gutters and downspouts)
  • Electrical Plans at each finished level 1/4"=1'-0"  (includes suggested locations of lighting, switches, outlets, thermostats, fans, cable TV, data/telephone, and door bells)
  • Wall Sections and Details  Scale varies (includes necessary foundation, framing, and trim and finish details)


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This exclusive Narrow lot house plan features unique craftsman details with cascading roof lines. The interior has a traditional layout, as the first floor is dedicated to the common areas. The open floor concept gives you a great feel for the space as the formal living room, dining area, and kitchen flow together smoothly. Natural light flows through these rooms to create a bright and airy environment. The fireplace is decorated with stacked stone pavement for a handsome appeal and is situated between the living and dining area to circulate warmth throughout the room. The kitchen has a U-shape and offers additional seating along the peninsula. There is a pantry for additional food storage, making plenty for cabinet and counter space to complete the kitchen. The laundry room is spacious and offers counter space and a sink. The water heater and guest powder room complete the main level.

The second floor houses the sleeping quarters. The master bedroom brings in natural light from the wall of windows, has a cantilevered balcony, a walk-in closet, and an en suite. The remaining bedrooms are identical in space with different features. Bedroom #3 enjoys a window seat, while Bedroom #2 enjoys a little bigger closet space. They both share a hall bathroom with dual vanities and a shower/tub combination.
