Narrow Lot House Plan 5633-00207

Sq Ft1,281
1/2 Baths0
Width37' 6"
Depth52' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

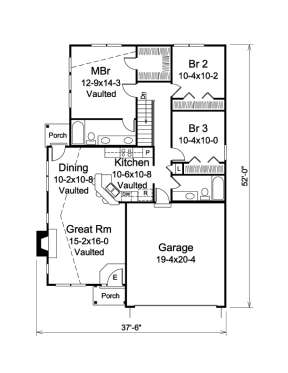

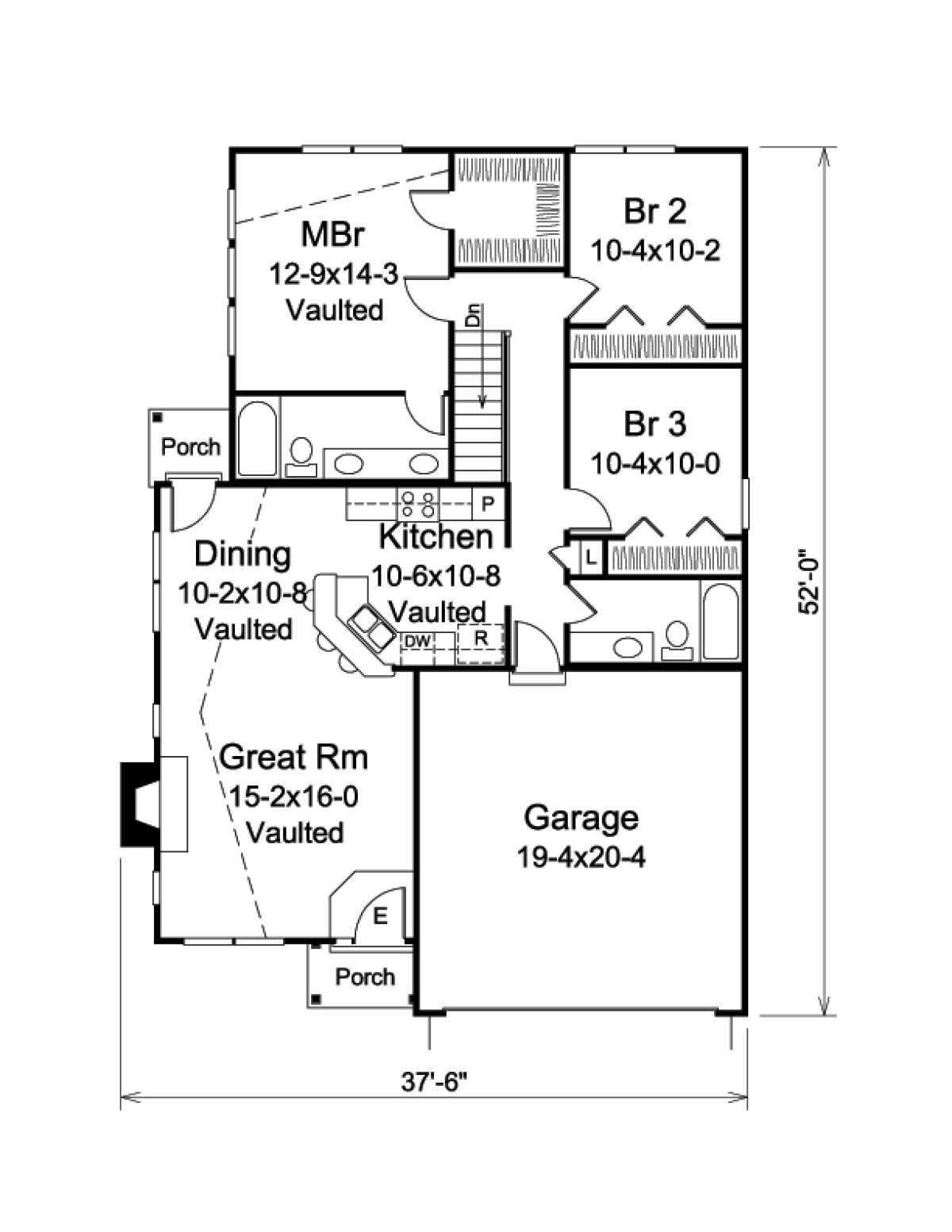

Floorplan 1 for House Plan #5633-00207
Floorplan 1
Floorplan 1 for House Plan #5633-00207

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

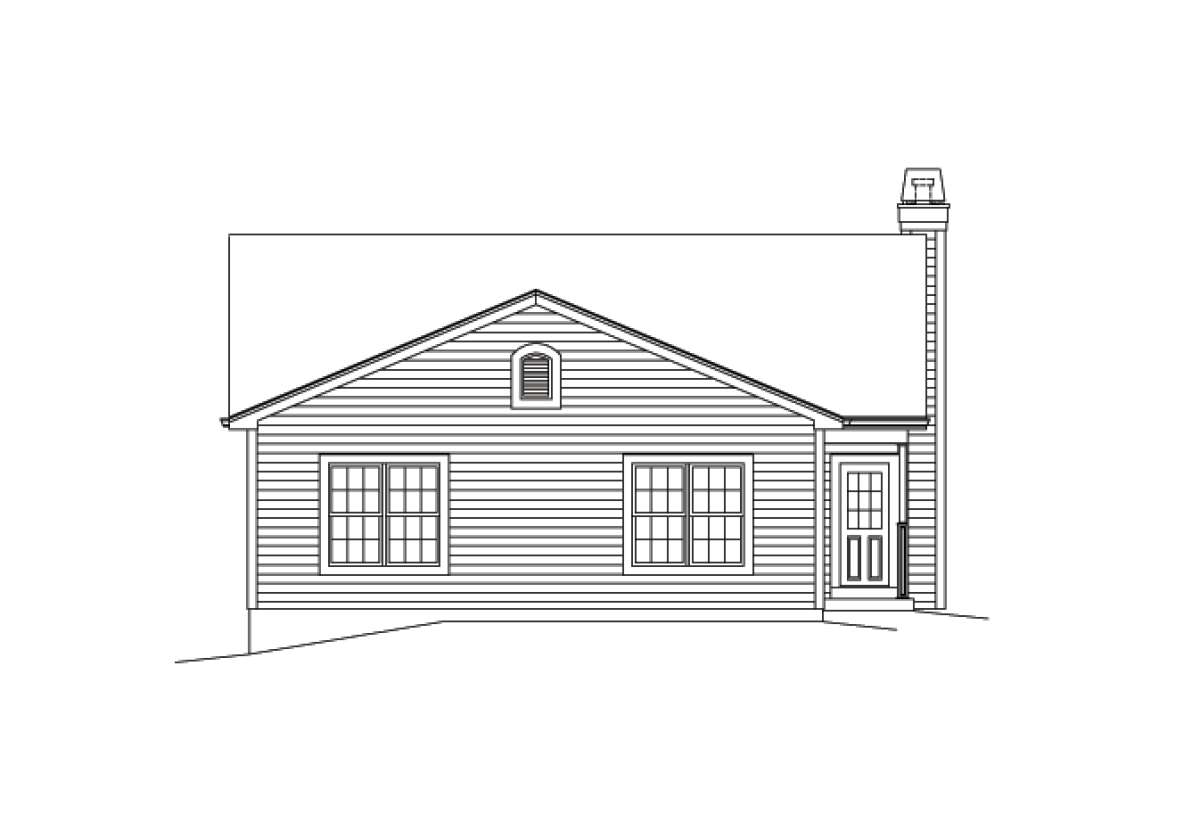

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This charming Cottage home is ideal for a narrow lot with its 37’ plus width and yet, this cozy home provides all the comforts and amenities you and your family desire. The inviting exterior includes a covered porch, great window features allowing for a light and airy interior and simple siding construction. The interior floor plan is highlighted by approximately 1,281 square feet of living space that includes three bedroom and two baths. There is a two car garage with an additional 408 square feet of space and the basement foundation provides expansion possibilities and increased home value. The greeting foyer opens onto the open concept design which features a vaulted great room and a handsome fireplace flanked by picturesque window views. The dining space is also vaulted and provides access to the side porch. The vaulted U-shaped kitchen is highlighted by a breakfast bar designed for casual dining, a separate pantry and additional counter and cabinet space. The hallway houses two family style bedrooms; both are spacious and offer window views and generous closet space. There is a shared hall bath with a large vanity space, toilet area and a tub/shower combination along with a hall linen closet. The master suite is situated at the rear of the home for privacy and features a large vaulted bedroom with a triple wall of windows and an opposite wall of double window views. There is an oversized master walk-in closet and a luxurious master bath highlighted with dual vanities. This quaint Cottage home has an appealing floor plan, space for future expansion and a charming exterior façade.
