Narrow Lot House Plan 5633-00182

Sq Ft1,102
Beds3
Baths2
1/2 Baths0
Stories1
Cars2
Width38' 0"
Depth51' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

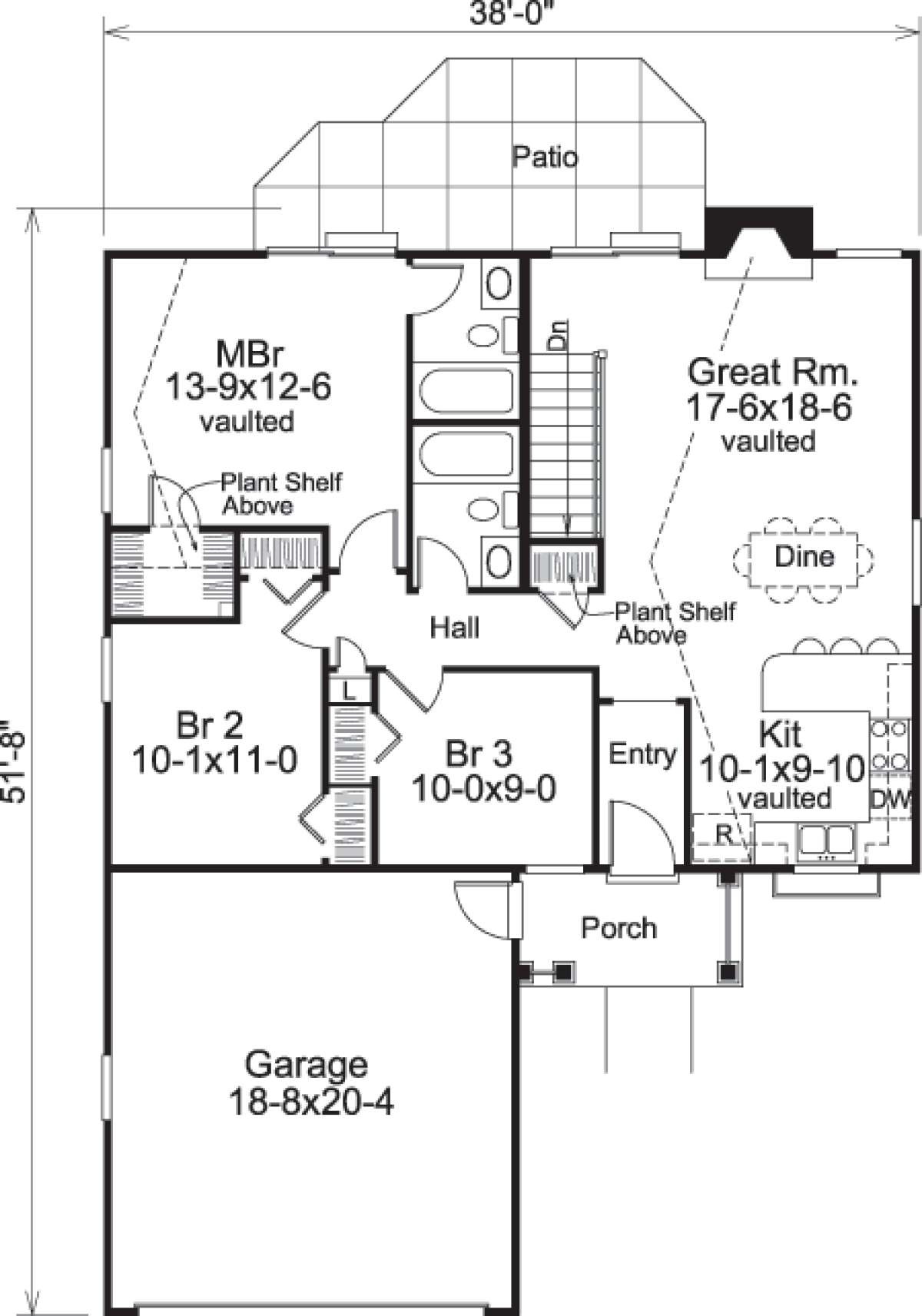

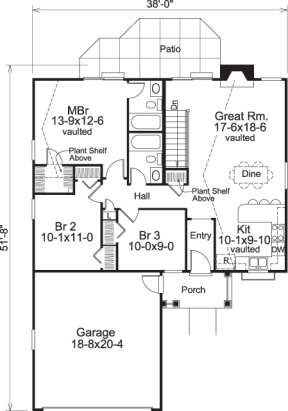

Floorplan 1 for House Plan #5633-00182
Floorplan 1
Floorplan 1 for House Plan #5633-00182


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

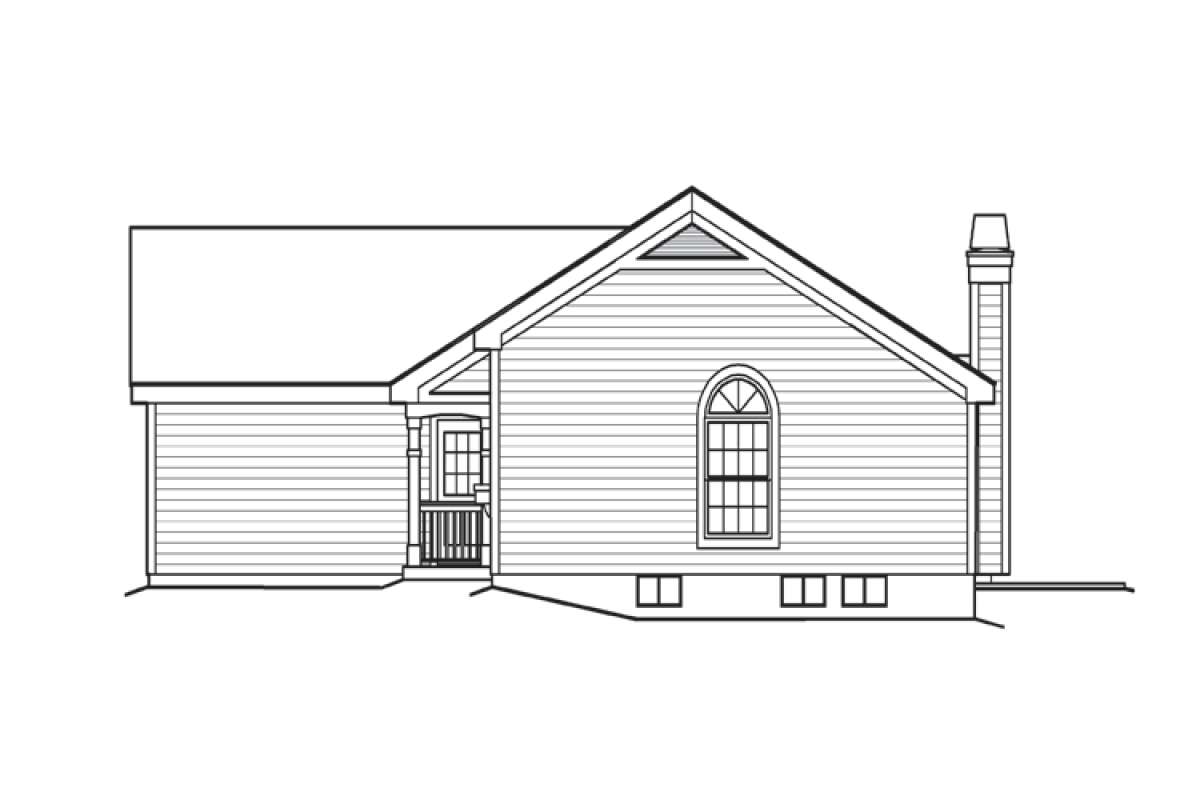

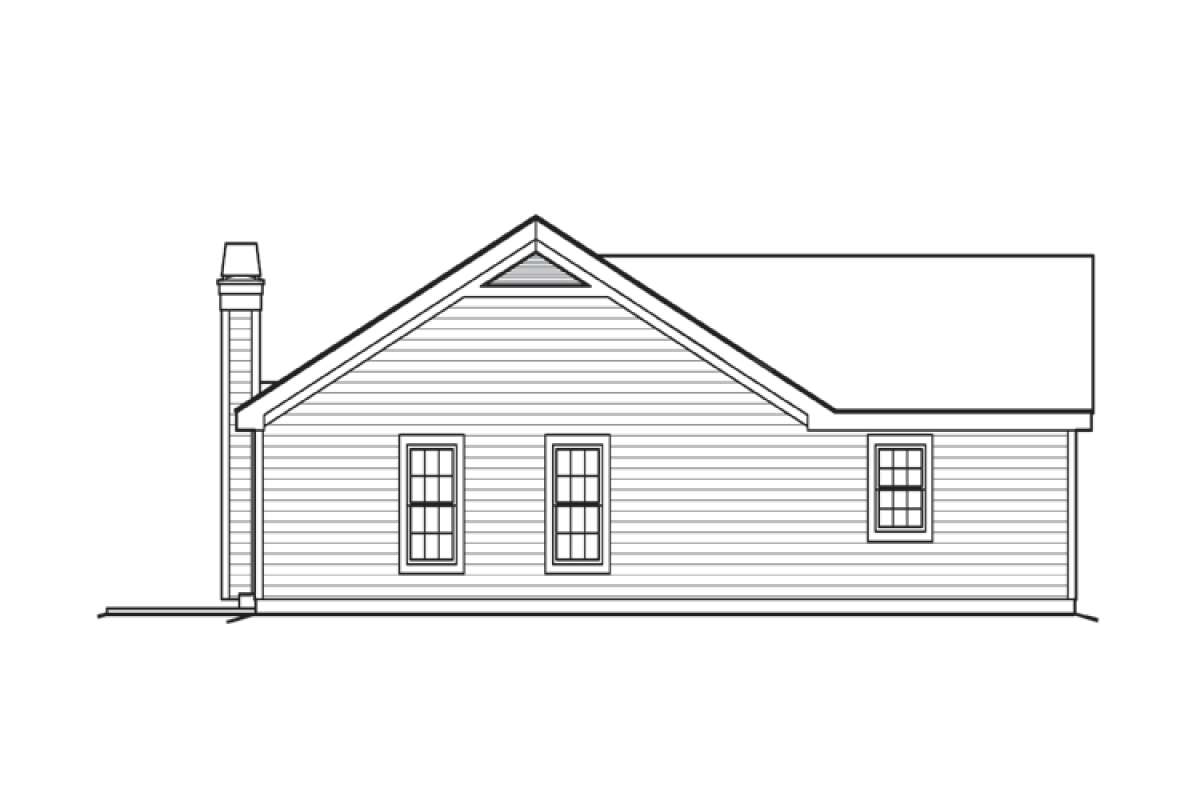

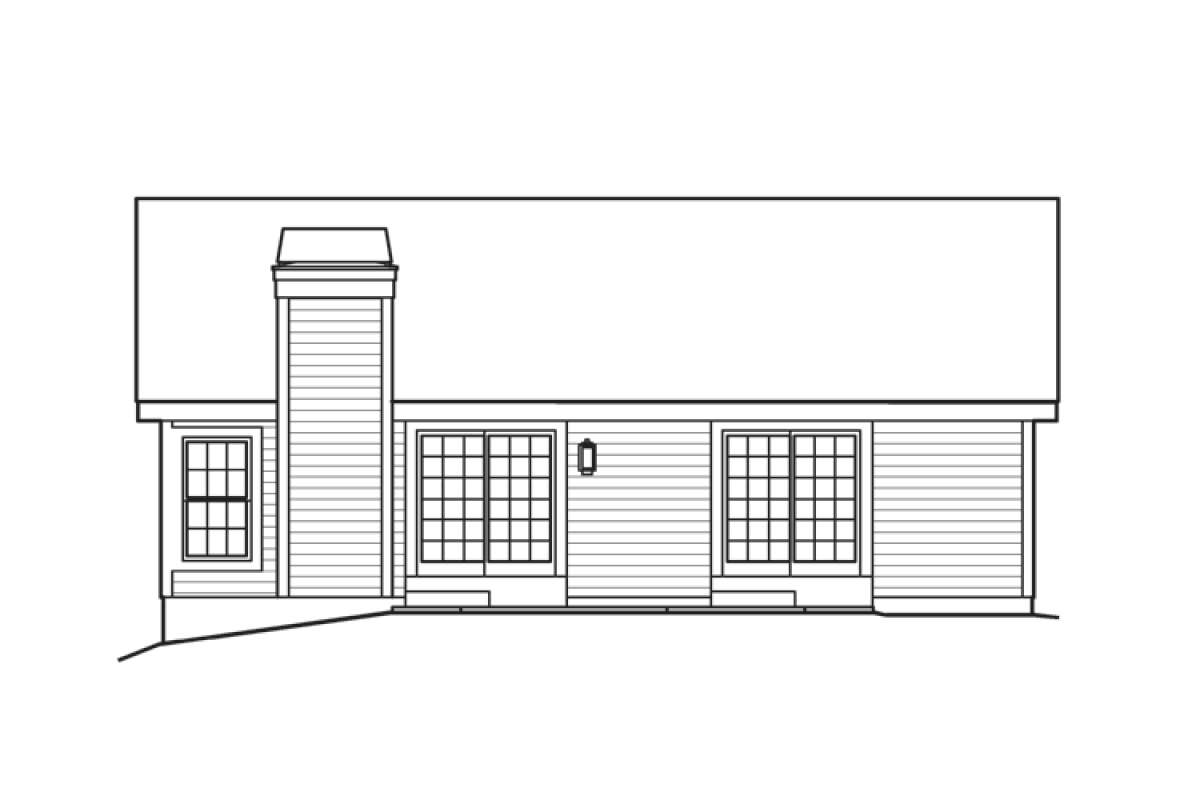

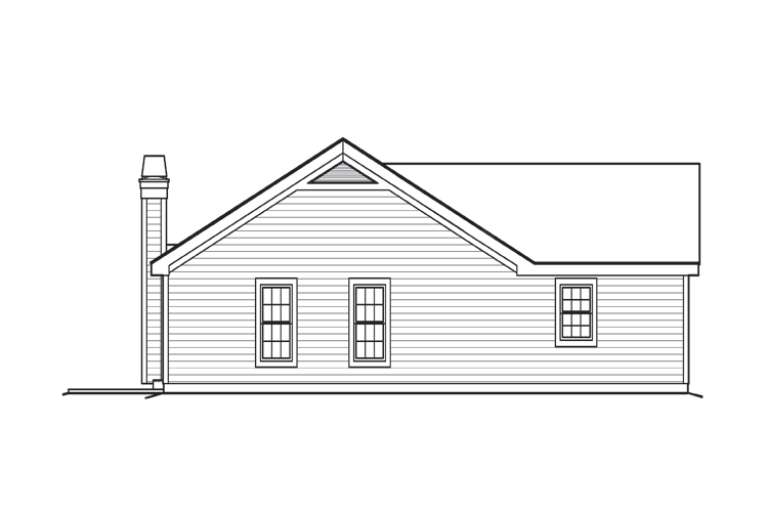

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Country home design is ideal for a narrow lot with its 38’ width and yet, it enjoys a spacious front covered porch. An abundance of charm and style are evident on the exterior façade of the home where Palladian style windows are featured along with clean lines and a covered porch with open railing and columned support beams. The interior floor plan features a great open concept design and lots of private family space as well. There are approximately 1,100 square feet of living space and the basement foundation adds value and versatility to the floor plan. Additionally, the drawings include a crawl space and slab foundation. There are three bedrooms and two baths incorporated into the floor plan and the two car garage adds an additional 380 square feet; perfect for vehicle or assorted other gear storage. The entry foyer opens onto the main living spaces where a planter shelf sits above the coat closet providing beauty and function. There is a great room, measuring in excess of 17’x18’, featuring a handsome fireplace, rear patio access and includes a casual dining space. The U-shaped kitchen boasts of a breakfast bar, loads of modern amenities and great window views above the sink.
The three family styled bedrooms are situated off the main hallway and two bedrooms are generous sized with ample closet space. There is a shared hall bath with vanity space, a toilet and a shower/tub combination and a linen closet is located in the hallway as well. The vaulted master suite is spacious and inviting; a large bedroom space with private patio access is highlighted along with an oversized master walk-in closet. The private en suite bath has a vanity, toilet area and a tub/shower combination. This home offers a flexible and versatile floor with future expansion options and a charming exterior.
