Narrow Lot House Plan 5633-00103

Sq Ft1,299
Beds3
Baths2
1/2 Baths1
Stories1.5
Cars0
Width28' 0"
Depth40' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

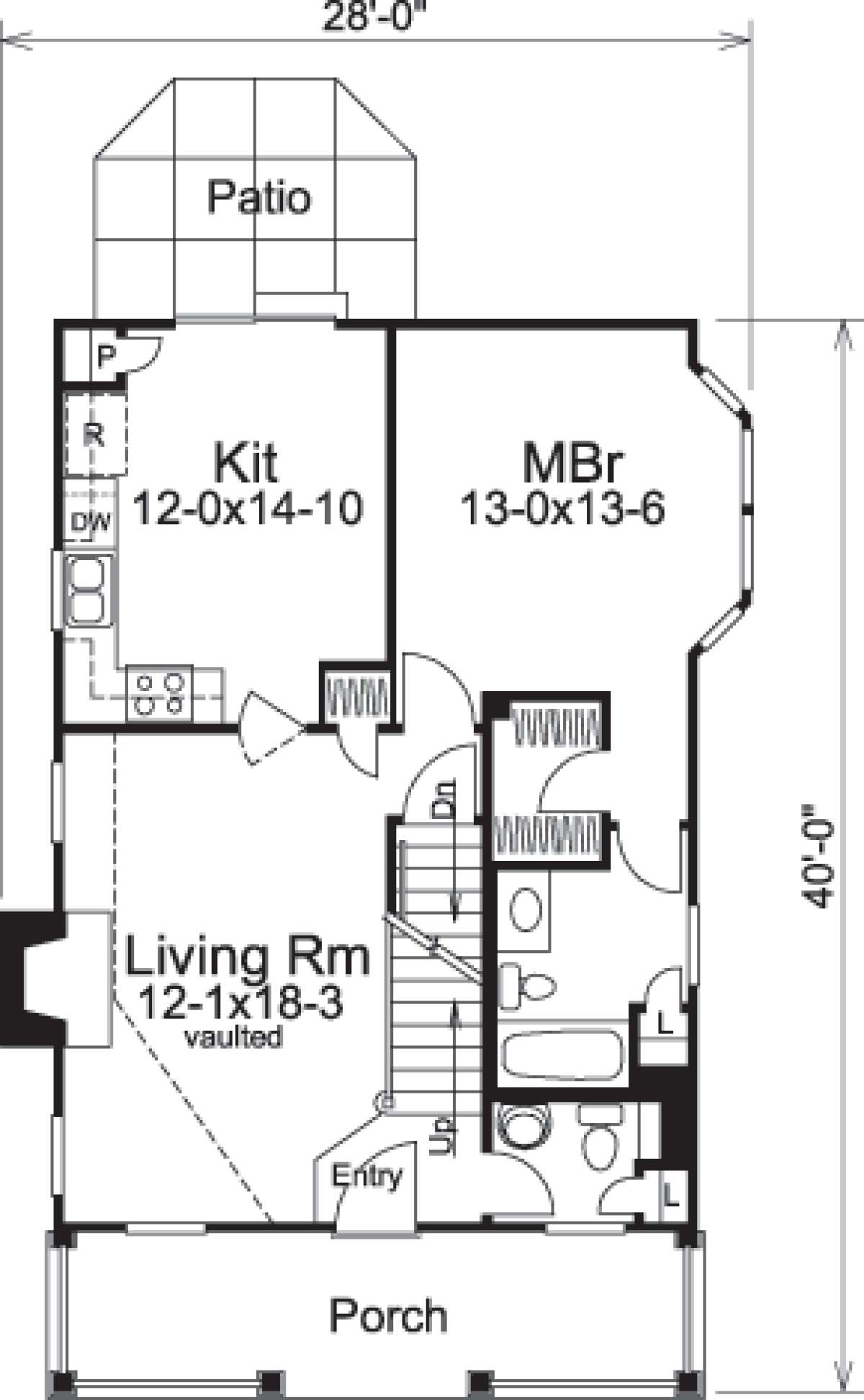

Floorplan 1 for House Plan #5633-00103

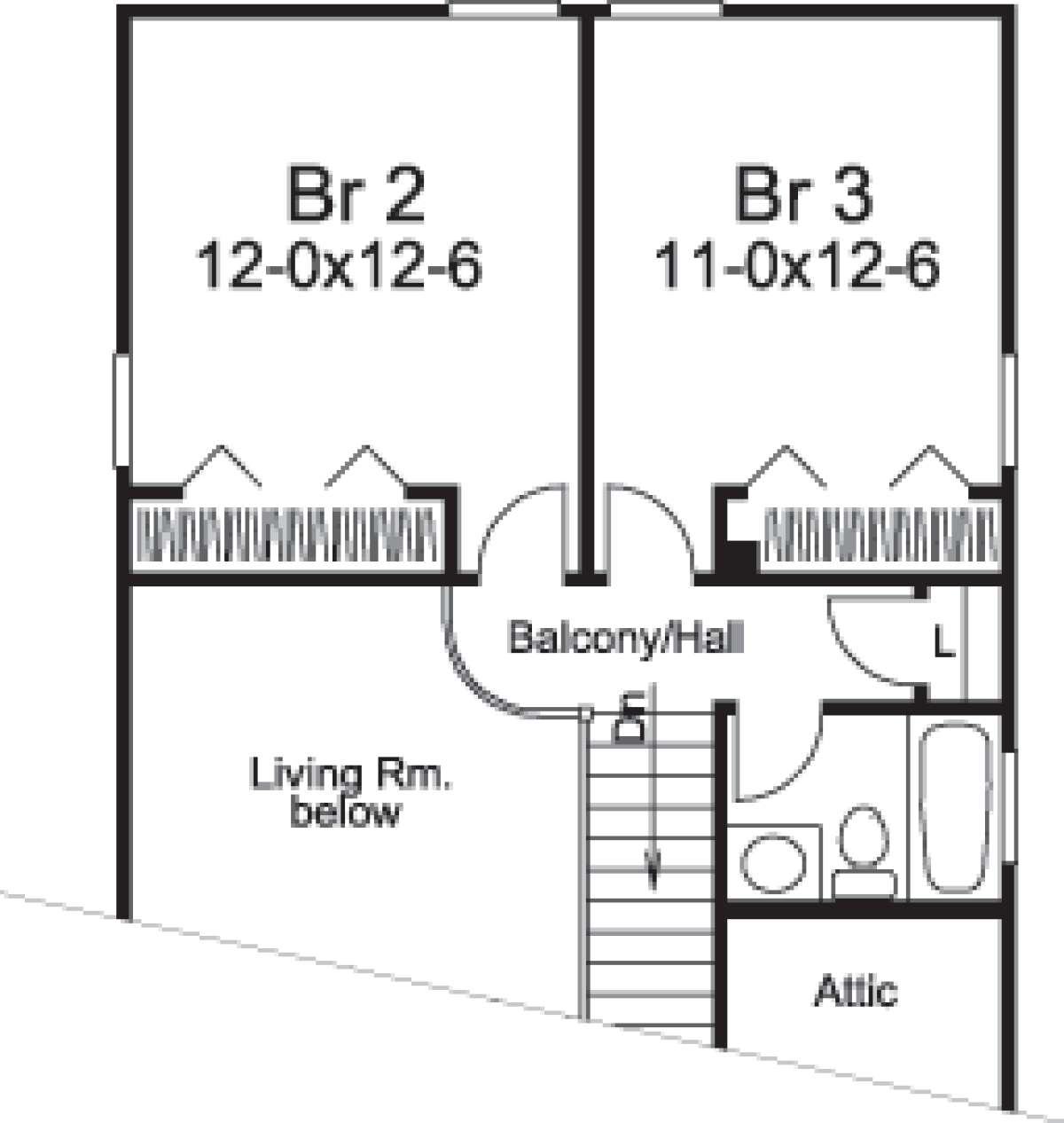

Floorplan 2 for House Plan #5633-00103
Floorplan 1
Floorplan 1 for House Plan #5633-00103
Floorplan 2
Floorplan 2 for House Plan #5633-00103


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

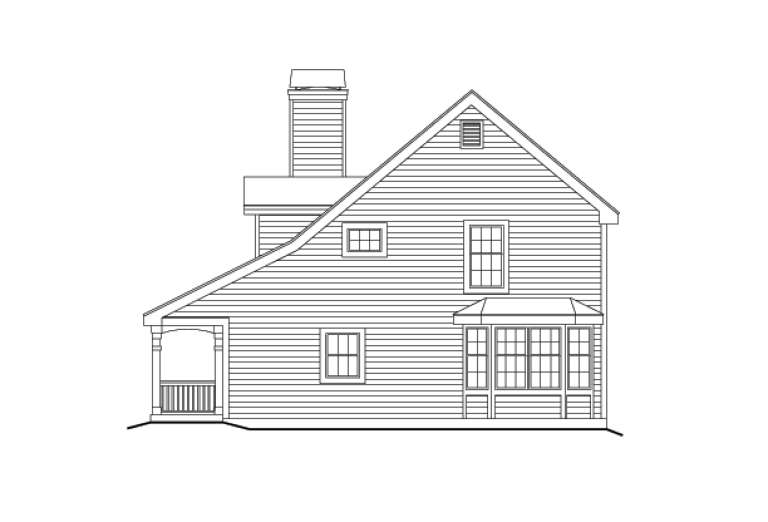

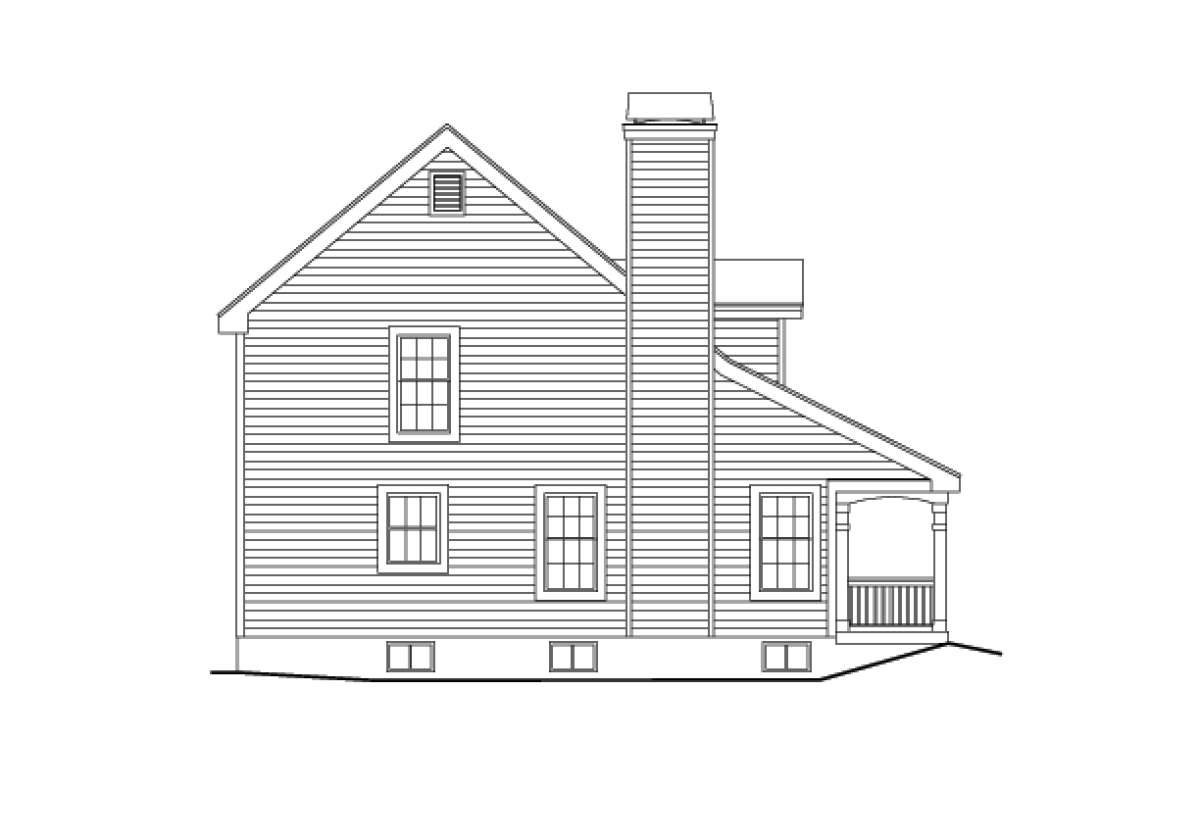

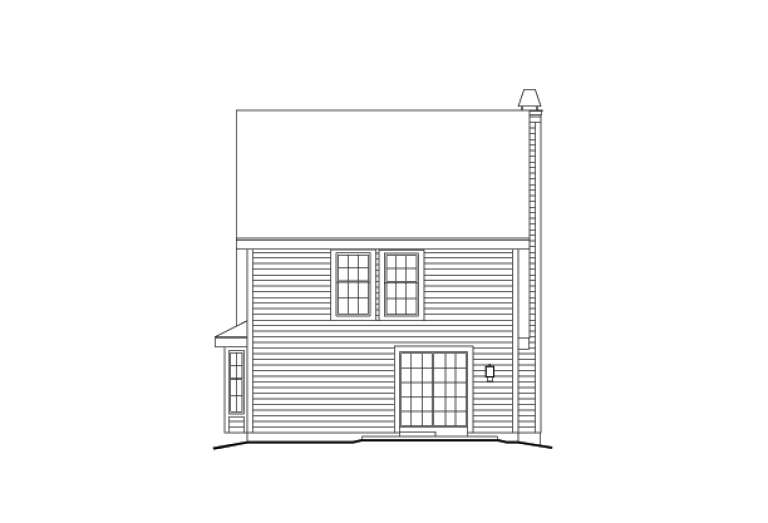

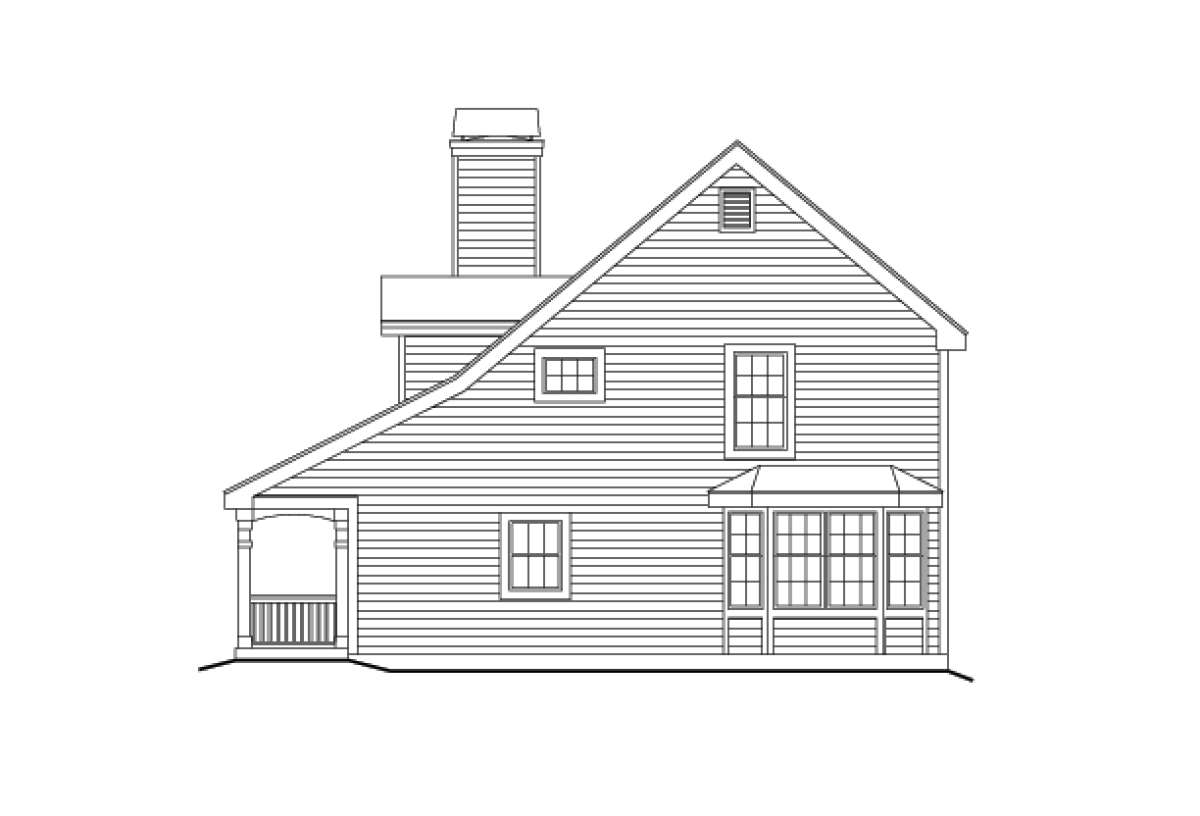

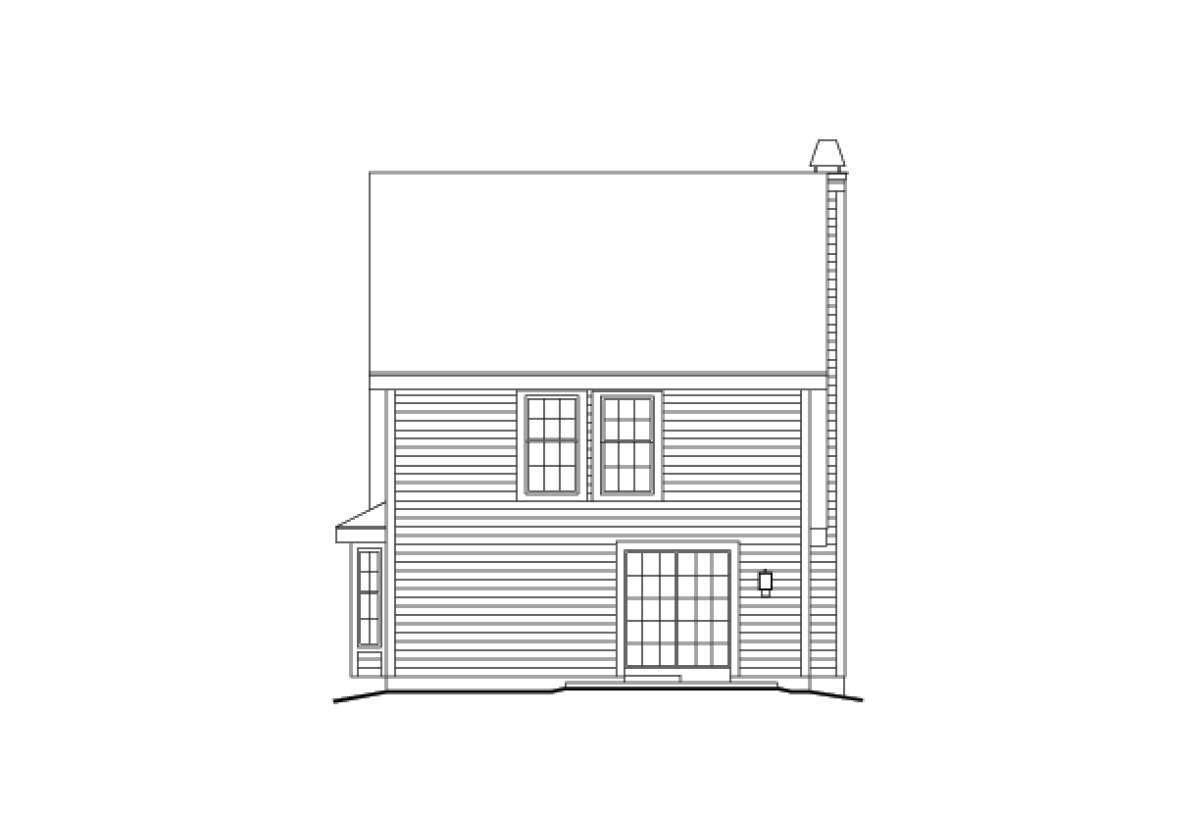

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This enchanting Country style home design features an exterior façade that is comfortable and inviting. There are double window dormers, a simple roof line and a gorgeous front covered porch. The covered porch is highlighted by a multitude of beamed columns and the open railing offsets the porch beautifully. This 1.5 storied home is ideally suited for a narrow lot with its 28’ width and 40’ depth dimensions and the basement foundation adds value and versatility to the floor plan. The floor plan comes in at just under 1,300 square feet of living space and contains three bedrooms and two plus bathrooms. The front porch leads into the greeting foyer which houses the second story staircase and subsequently opens onto the large living room. The room is vaulted and features a handsome fireplace flanked by picturesque window views and there is a coat closet as well. The family friendly kitchen is spacious with a separate pantry, plenty of modern amenities and there is rear patio access. There is a main level master suite which is highlighted by a generous footprint and the master bedroom features a multiple bayed window view. A large master walk-in closet is featured on the way to the master bath which offers a vanity space, toilet area, linen closet and a tub/shower combination. A guest powder room with linen closet completes the first floor living space.
The second story staircase features an overlook into the living room below and there is a large attic storage space as well. Two family style bedrooms are situated at the top of the landing; both bedrooms are spacious with generous closet space. There is a shared hall bath with vanity space, a toilet area, a tub/shower combination and a linen closet is located in the hallway. This home is family friendly with great entertaining space and plenty of private family space.
