Narrow Lot House Plan 5633-00101

Sq Ft2,231
Beds3
Baths2
1/2 Baths1
Stories1.5
Cars2
Width41' 0"
Depth59' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

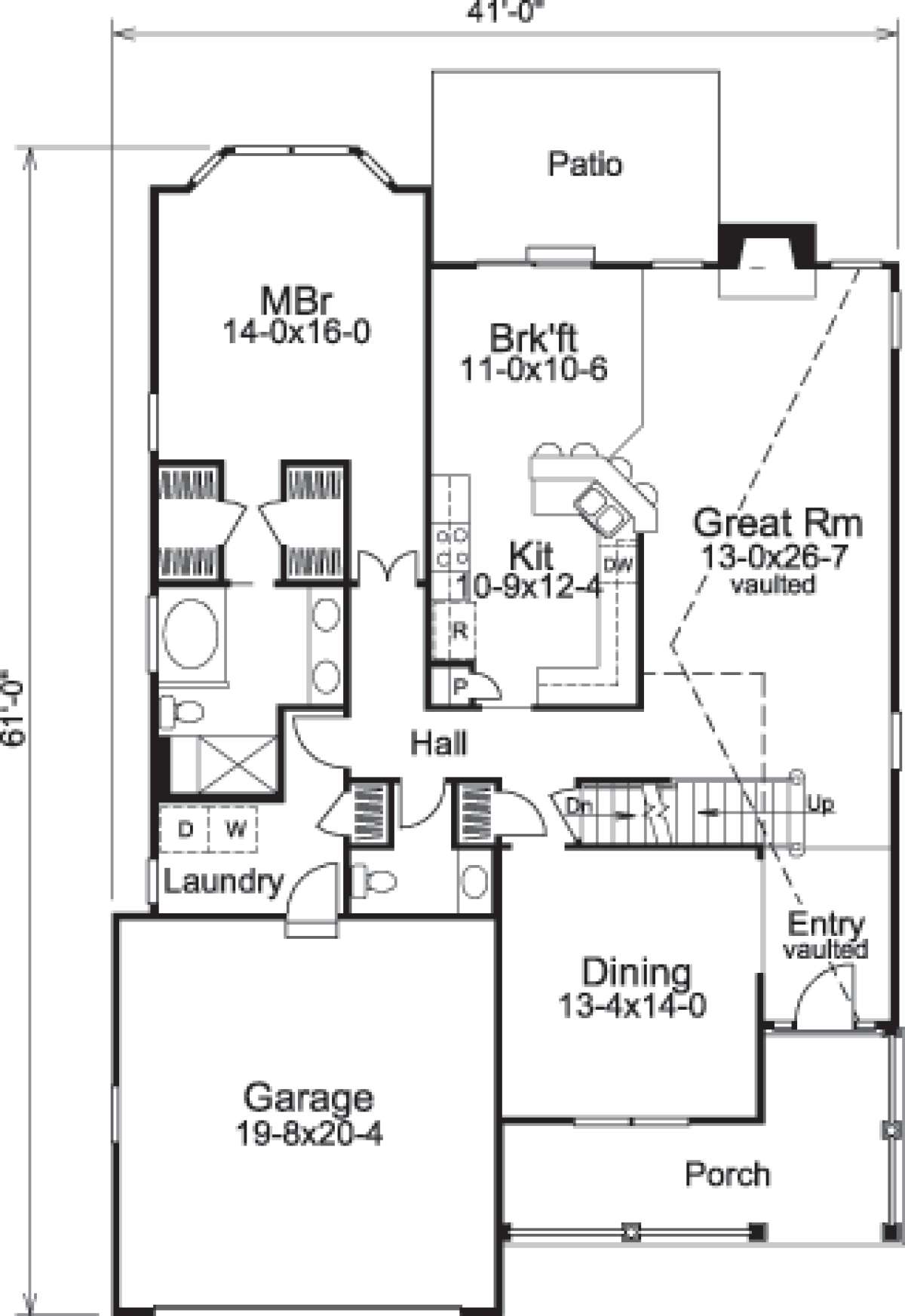

Floorplan 1 for House Plan #5633-00101

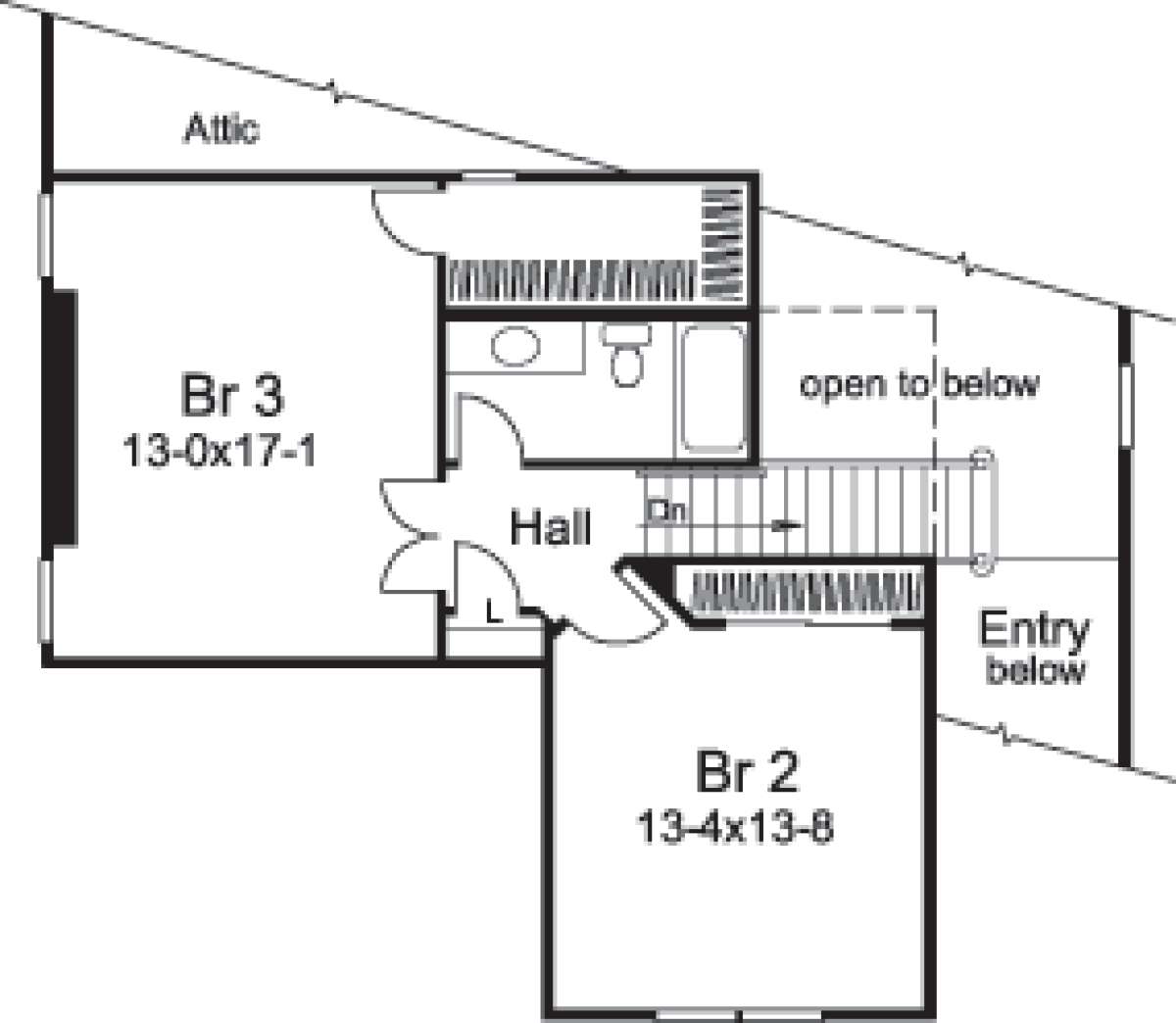

Floorplan 2 for House Plan #5633-00101
Floorplan 1
Floorplan 1 for House Plan #5633-00101
Floorplan 2
Floorplan 2 for House Plan #5633-00101


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

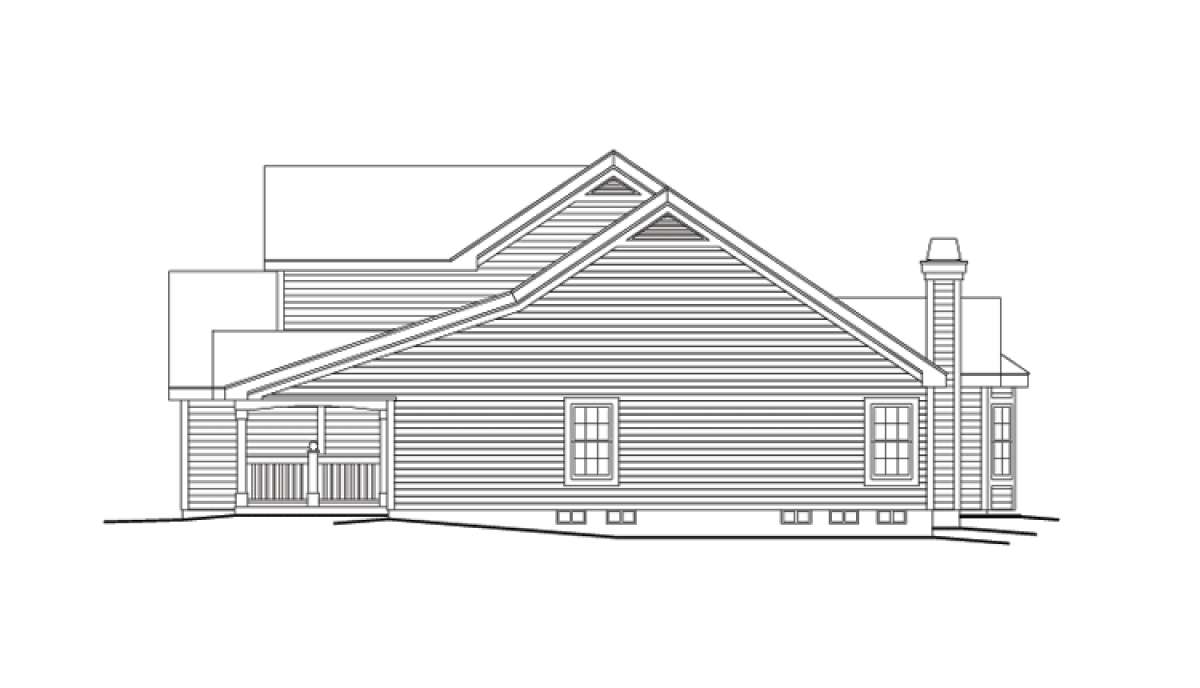

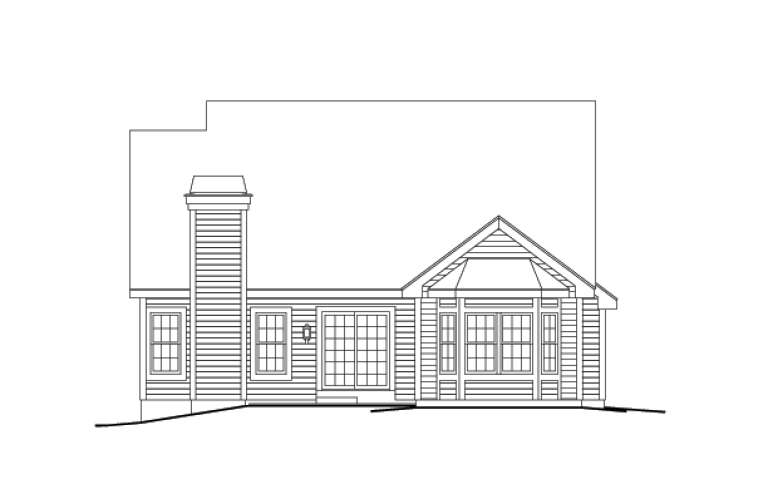

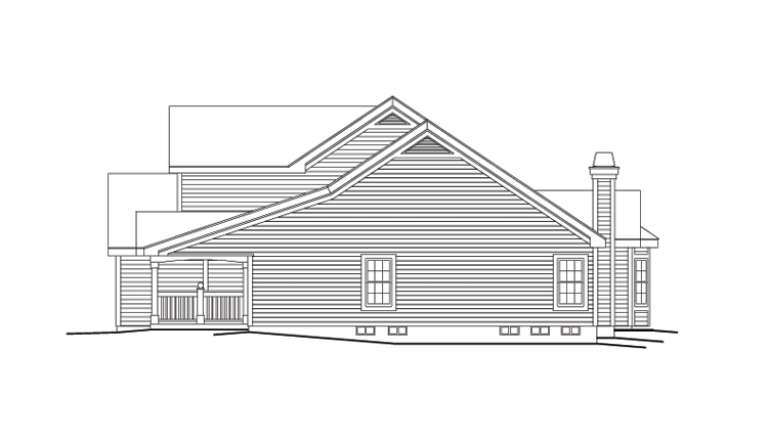

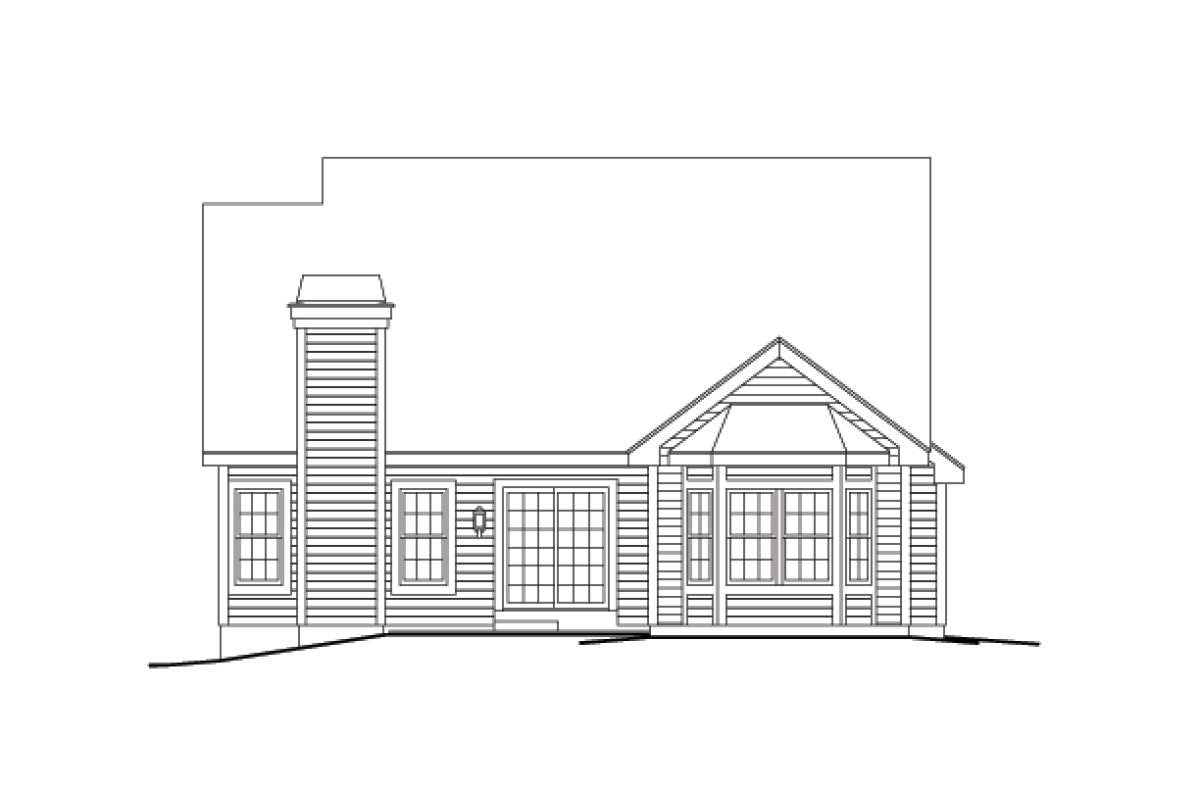

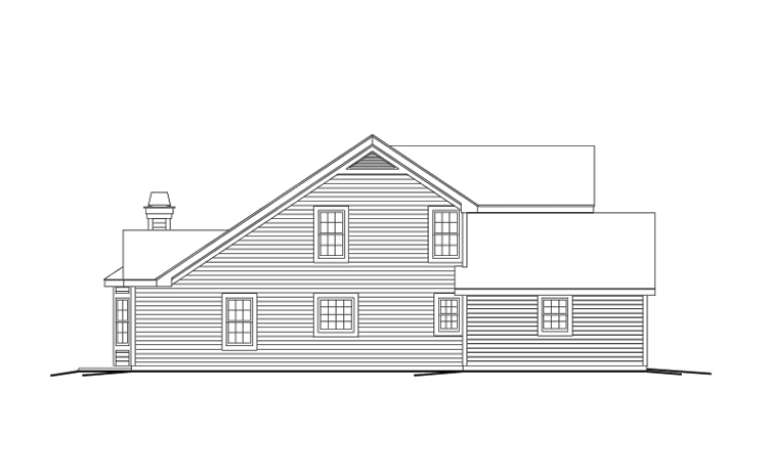

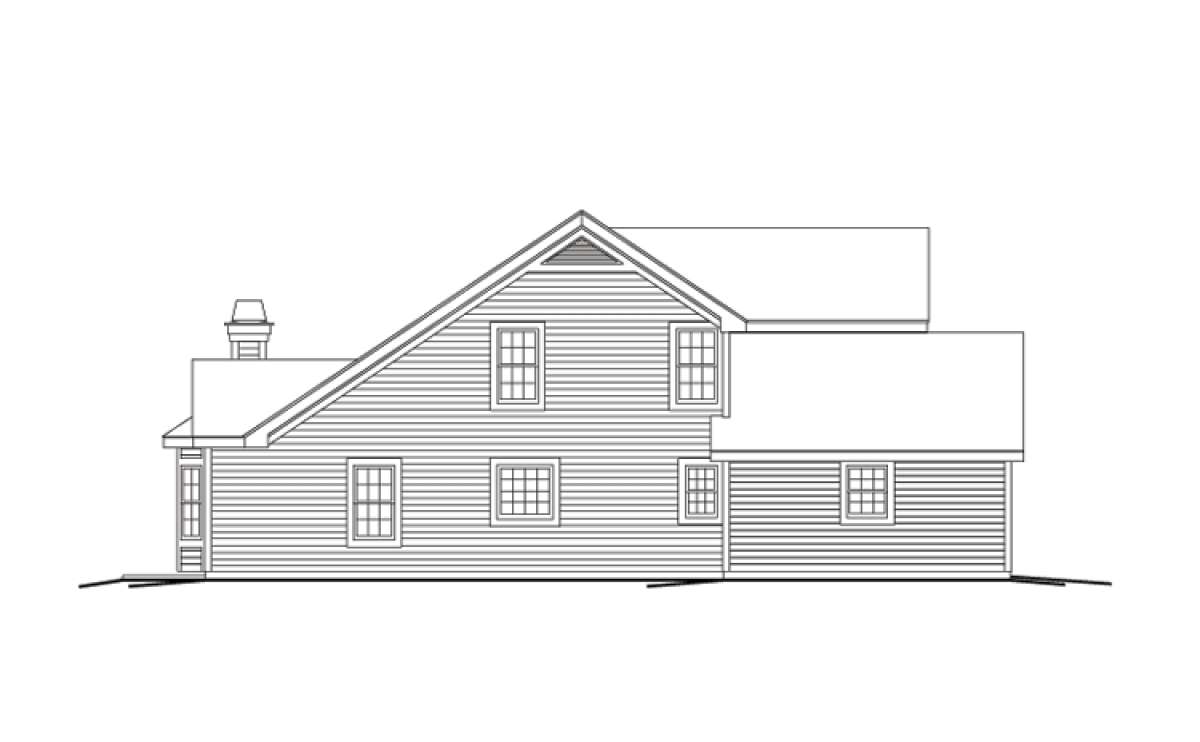

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This home features a spacious and airy floor plan and yet, is ideal for a narrow lot due to its compact 41’ width. The 1.5 storied home fits neatly into the 2,231 approximate square feet of space that incorporates three bedrooms and two plus bathrooms into the home. The home’s drawings also include a basement foundation featuring an additional 1,568 square feet of space which could be easily converted into additional bedrooms, family and/or entertaining space or an in-law suite. The façade is highlighted by a comfortable and attractive exterior featuring multiple gables and a covered front porch. The two story foyer is open to the formal dining room and vaulted great room with a rear wall fireplace. There is a casual dining space adjacent to the kitchen that provides rear patio access. The family friendly kitchen has a separate pantry and open breakfast bar. The combination living and dining spaces are ideal for entertaining and hosting special occasions and family events. The two car garage leads to an interior laundry room for ease and convenience and there is a powder room for guests as well. The master suite is situated on the main floor creating a private and convenient retreat for the homeowner’s enjoyment. French door access leads to a large master bedroom with expansive rear bayed window; his and her walk-in closets line the hallway to the master en suite bath where dual vanities, a separate shower and garden tub provide the upmost in modern amenities.
The second story landing features overlooks into the great room below and there is abundant attic space as well. Two additional bedrooms are situated on this floor along with a shared hall bath with large vanity space and a hall linen closet. Bedroom two is quite spacious with plentiful closet space and the third bedroom is clearly oversized with a massive walk-in closet. This is a great family home where a family can grow in size and the home will continue to provide years of comfort and enjoyment.
