Narrow Lot House Plan 5633-00089

Sq Ft891
Beds1
Baths1
1/2 Baths0
Stories2
Cars2
Width30' 0"
Depth32' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

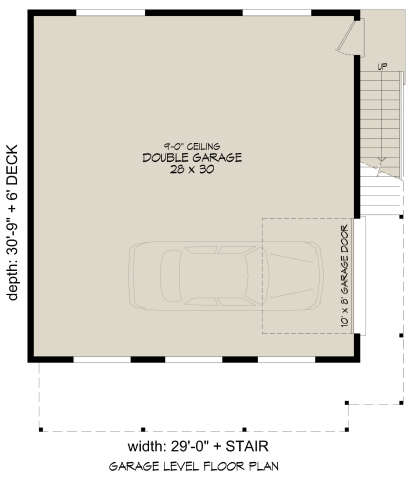

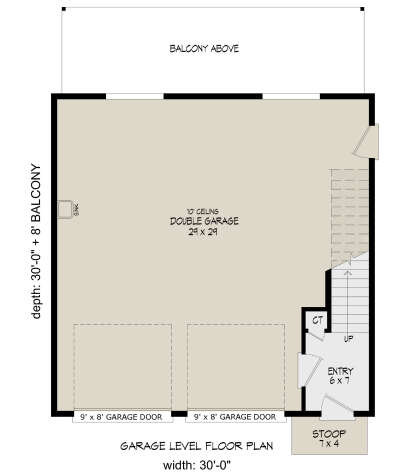

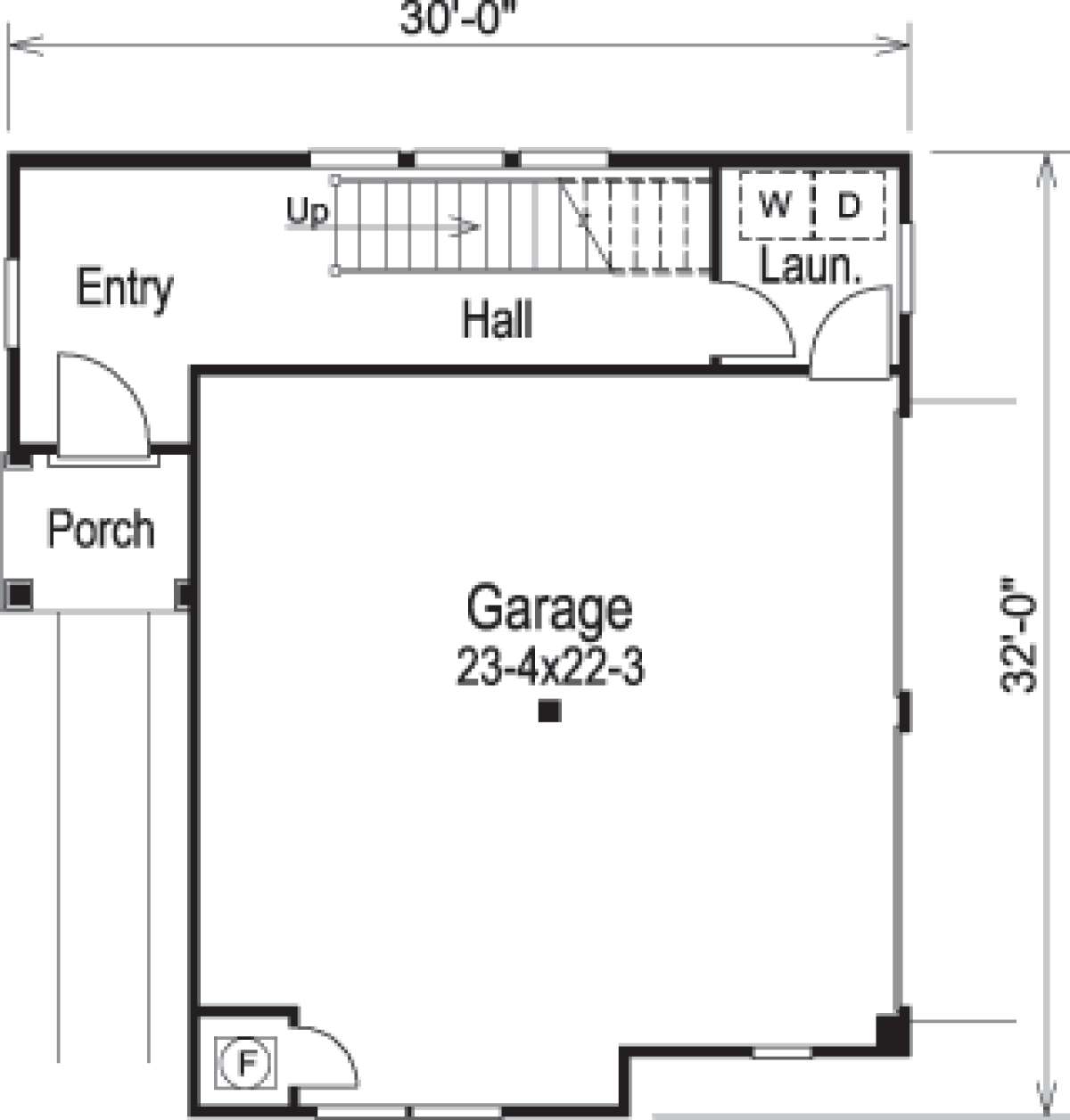

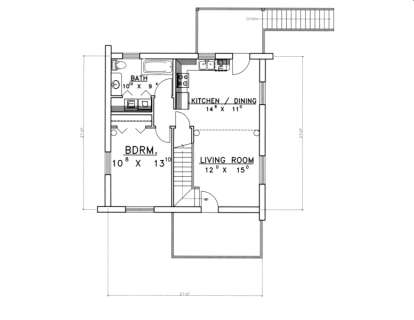

Floorplan 1 for House Plan #5633-00089

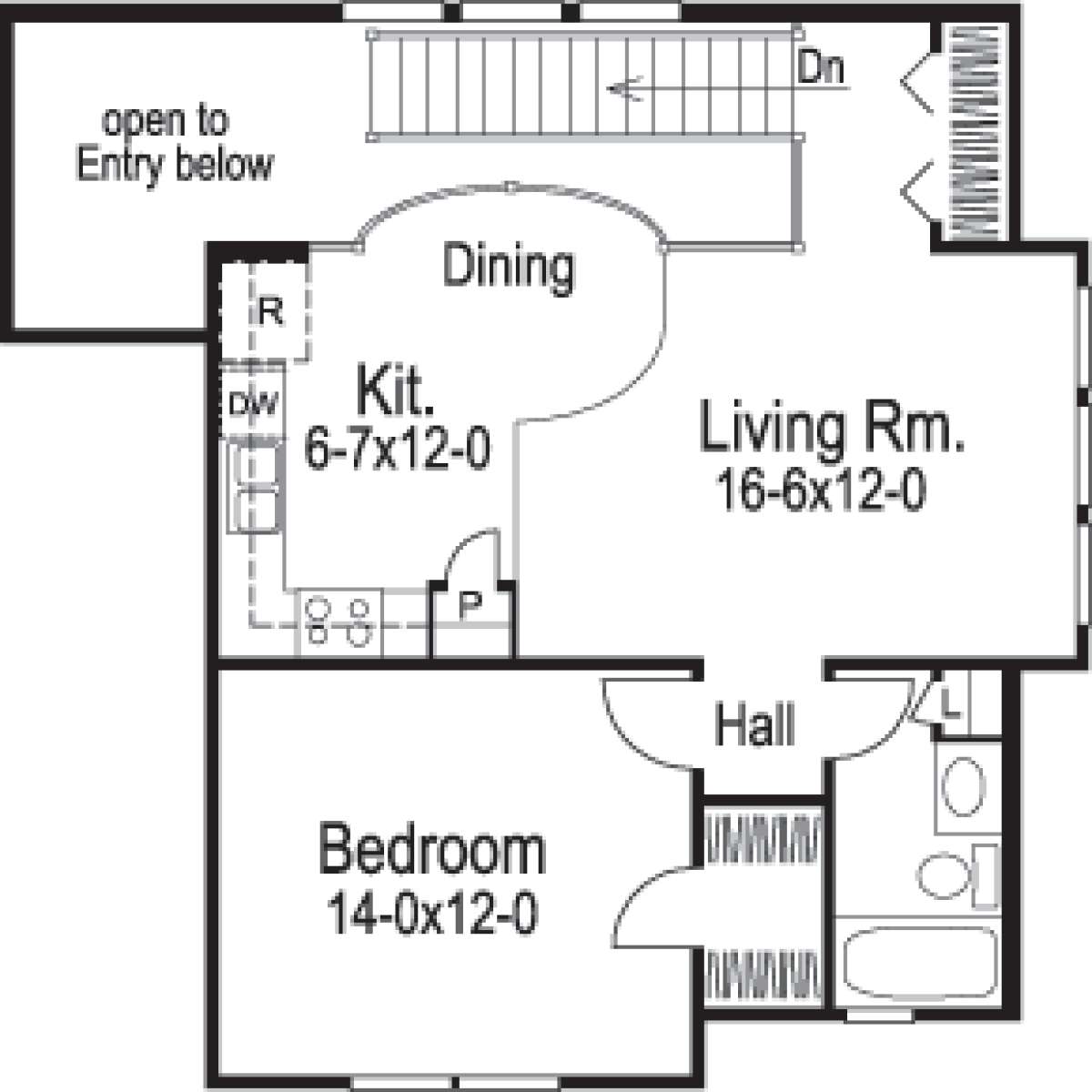

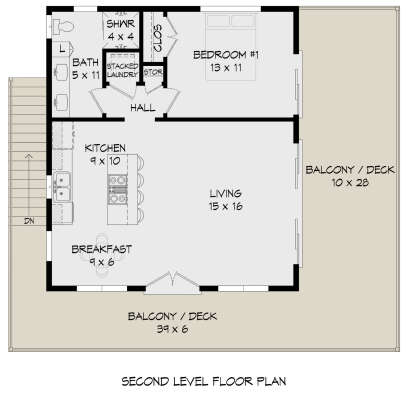

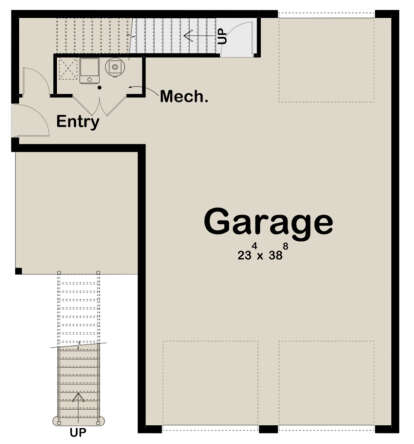

Floorplan 2 for House Plan #5633-00089
Floorplan 1
Floorplan 1 for House Plan #5633-00089
Floorplan 2
Floorplan 2 for House Plan #5633-00089


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

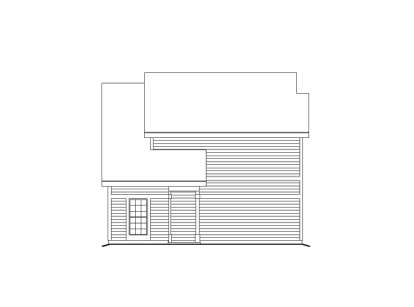

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This narrow lot house plan may be compact; however, it “packs a punch” with its handsome exterior façade and an interior floor plan that is stylish and dramatic. The garage apartment styled plan features an atrium overlook and approximately 891 square feet of living space which encompasses one bedroom and one bath. The two car garage adds an additional 524 square feet and enhances the spacious feel of the home. The exterior of the home is gorgeous with double floors and a vertical reach that is inspiring in the 30’ width by 32’ depth lot. Loads of light infuse the home through the plethora of windows, including the Palladian styled window and the front covered porch which is visually appealing and an inviting space to greet family and friends. The vaulted entry houses the staircase to the spacious second floor and the laundry room is situated at the rear of the entry hallway where there is access to the two car garage as well. The second floor landing features a large storage/coat closet before entering the living room. This space is quite large and features a back triple wall window view and opens onto the kitchen and dining space where a balcony overlooks an atrium window wall. The L-shaped kitchen is another great space with a separate pantry and the back and side walls house modern amenities that allow the space to flow and open up. The bedroom measures 14’x12’, has a double window view and an oversized walk-in closet. The adjacent bath features a linen closet, a vanity, toilet area and a shower/tub combination. This dramatically styled house is a comfortable fit in an urban setting and would suit a young professional couple or empty nesters.
