Florida Plan 5633-00075

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 4,863
Beds 4
Bath 3
1/2 Baths 1
Car 3
Stories 1
Width 111'
Depth 60' 2"

Floorplan Drawings

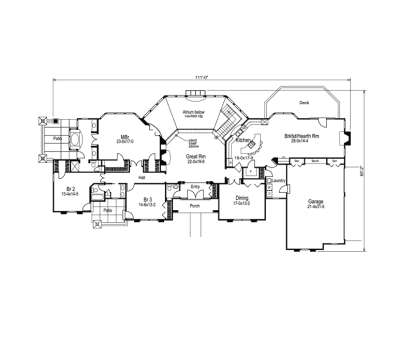

Floorplan 1
Floorplan 1 for House Plan #5633-00075

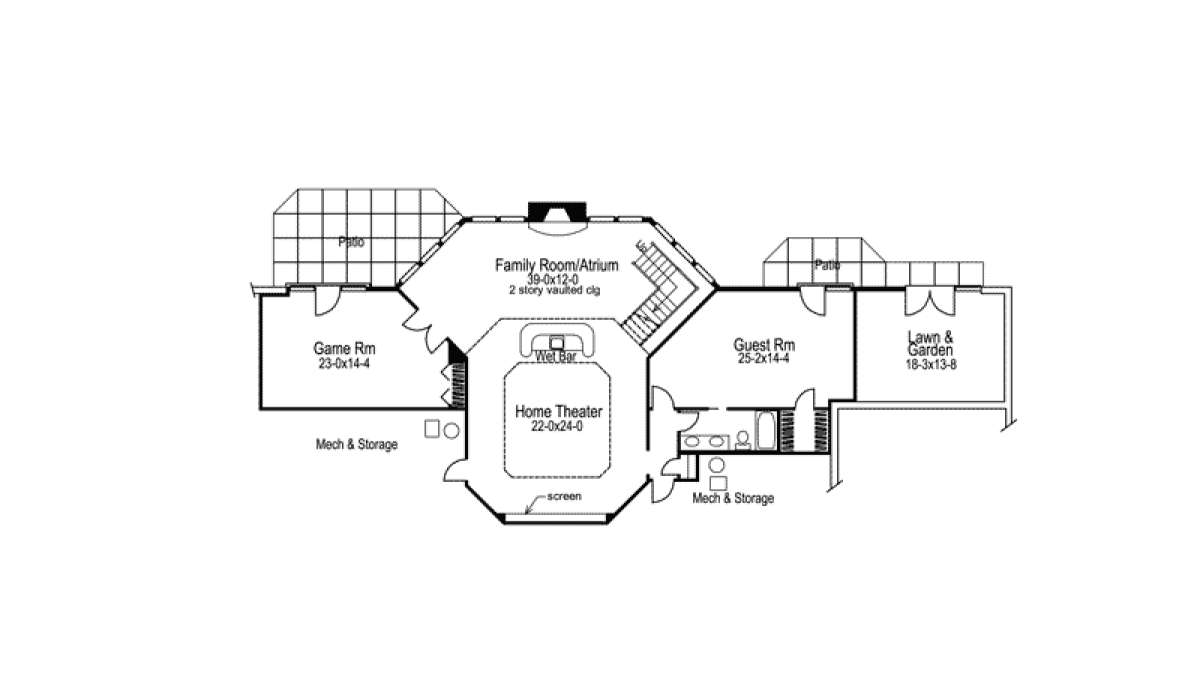

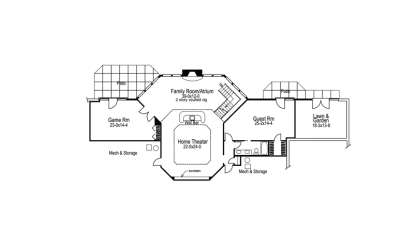

Floorplan 2
Floorplan 2 for House Plan #5633-00075


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

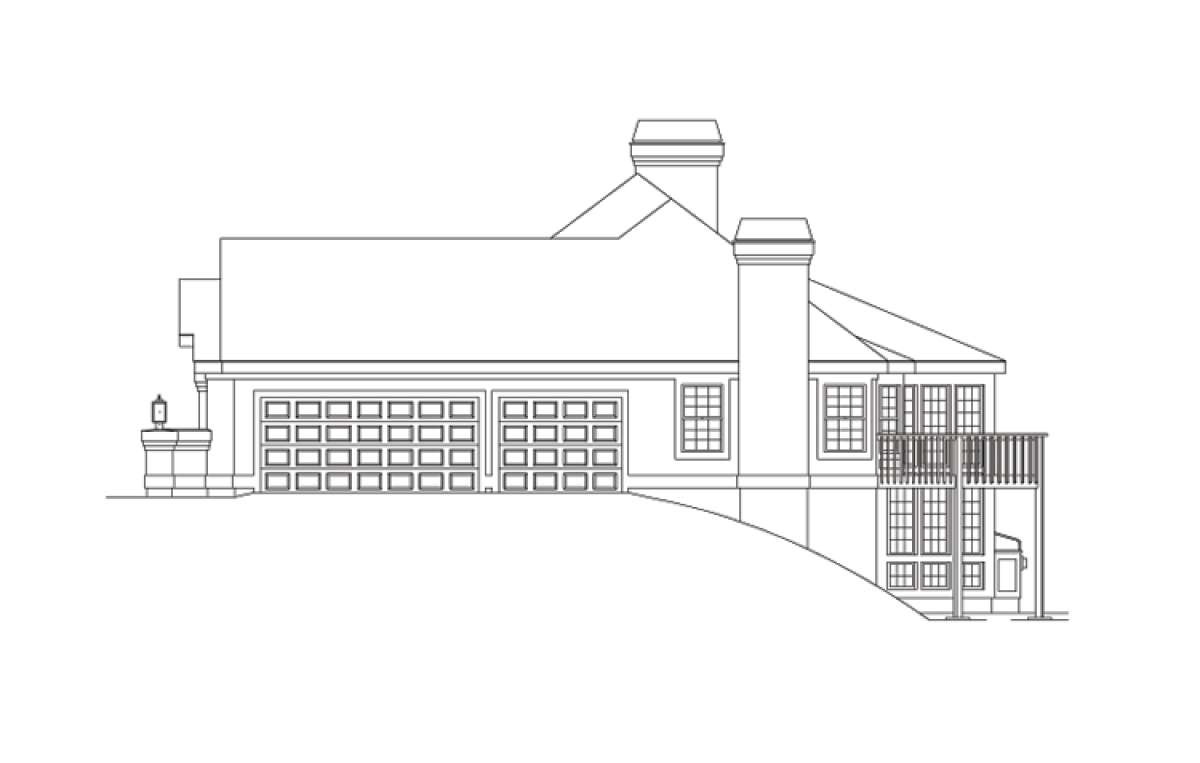

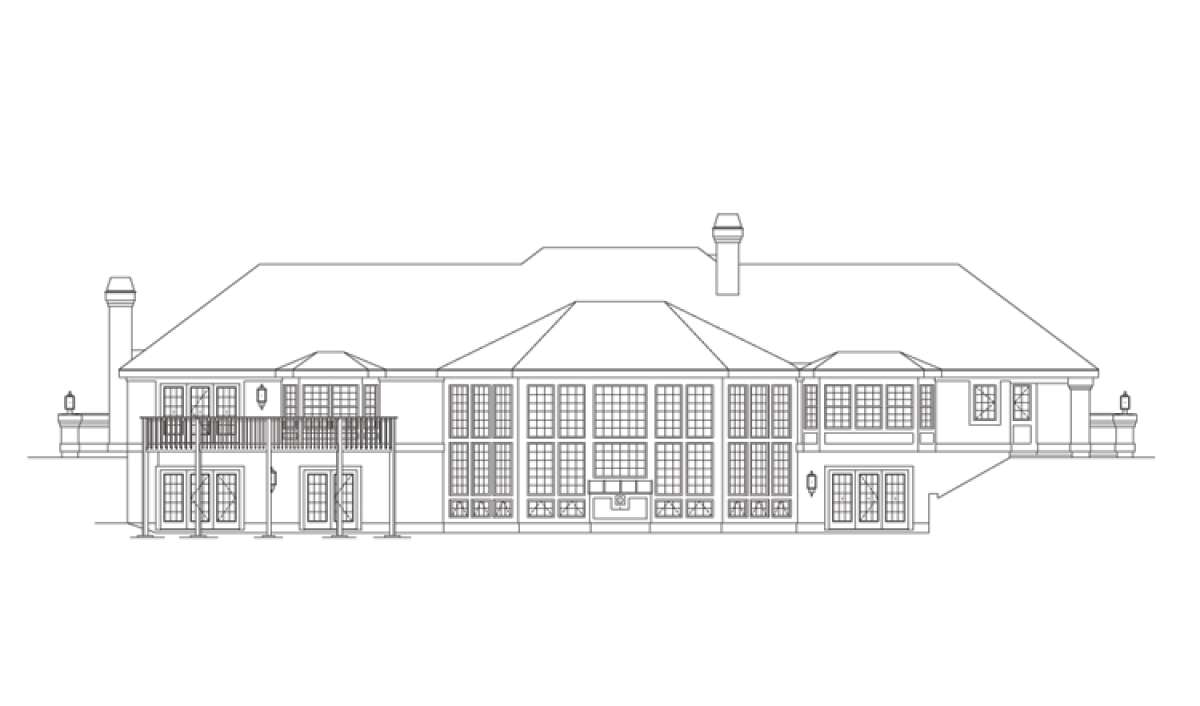

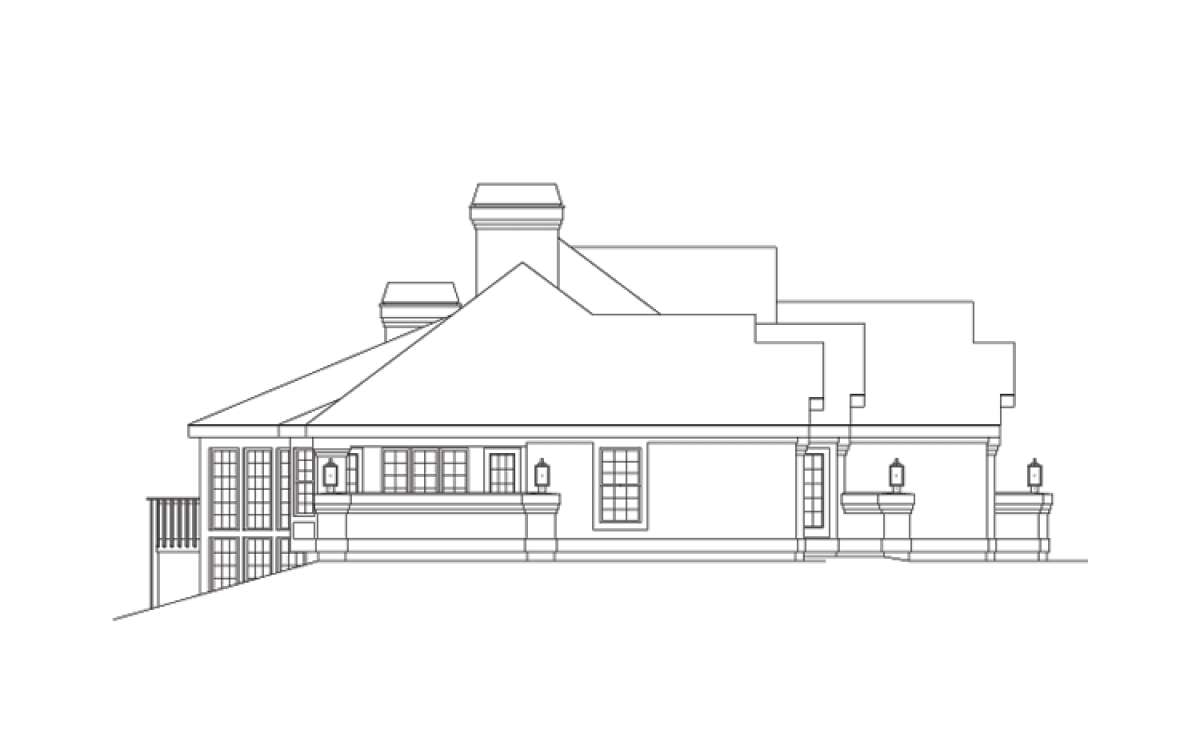

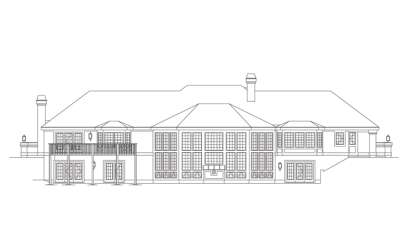

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Mission inspired Florida house plan is a spectacular showcase of innovative architectural design features comprised of expansive interior square footage. The home’s interior is comprised of 4,863 square feet of living space which includes an abundance of entertaining and private family spaces. Spacious and well appointed rooms abound and include a massive centrally located great room with balcony and bay shaped atrium, warming fireplace and built-in cabinetry. A large formal dining room is accessible through French doors and there is an adjacent pass-thru to the grand kitchen. The kitchen features an island snack bar, oversized walk-in pantry, a computer/desk area and atrium overlook. The adjoining breakfast/hearth room features a large bayed window, cozy fireplace, rear deck access and an enormous amount of space to relax and enjoy family time. The family laundry room connects to the three car side entry garage which has additional storage space. There are three bedrooms on the main level of the home; bedrooms two and three are spacious with generous closet space and each has private patio access. A shared hall bath includes double vanities and a linen closet. The master suite is a excellent use of space including an enormous bedroom with sitting area and an atrium overlook. His and her walk-in closets are included and the lavish en suite bath features dual vanities, a separate shower and luxury bathtub with a private courtyard.
The lower level of the home features an impressive sized two story family room/atrium, a spectacular home theatre with wet bar and a separate game room with patio access. There is a guest suite with walk-in closet and private access to the full bath along with amazing storage space which includes lawn and garden storage. This beautifully designed family home is highlighted with an abundance of entertaining space and plenty of family private space.
