Florida House Plan 5633-00026

Sq Ft3,810
Beds3
Baths2
1/2 Baths1
Stories1
Cars3
Width88' 0"
Depth70' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

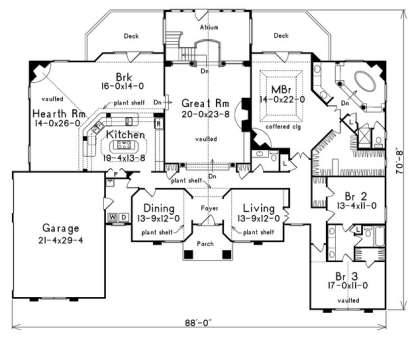

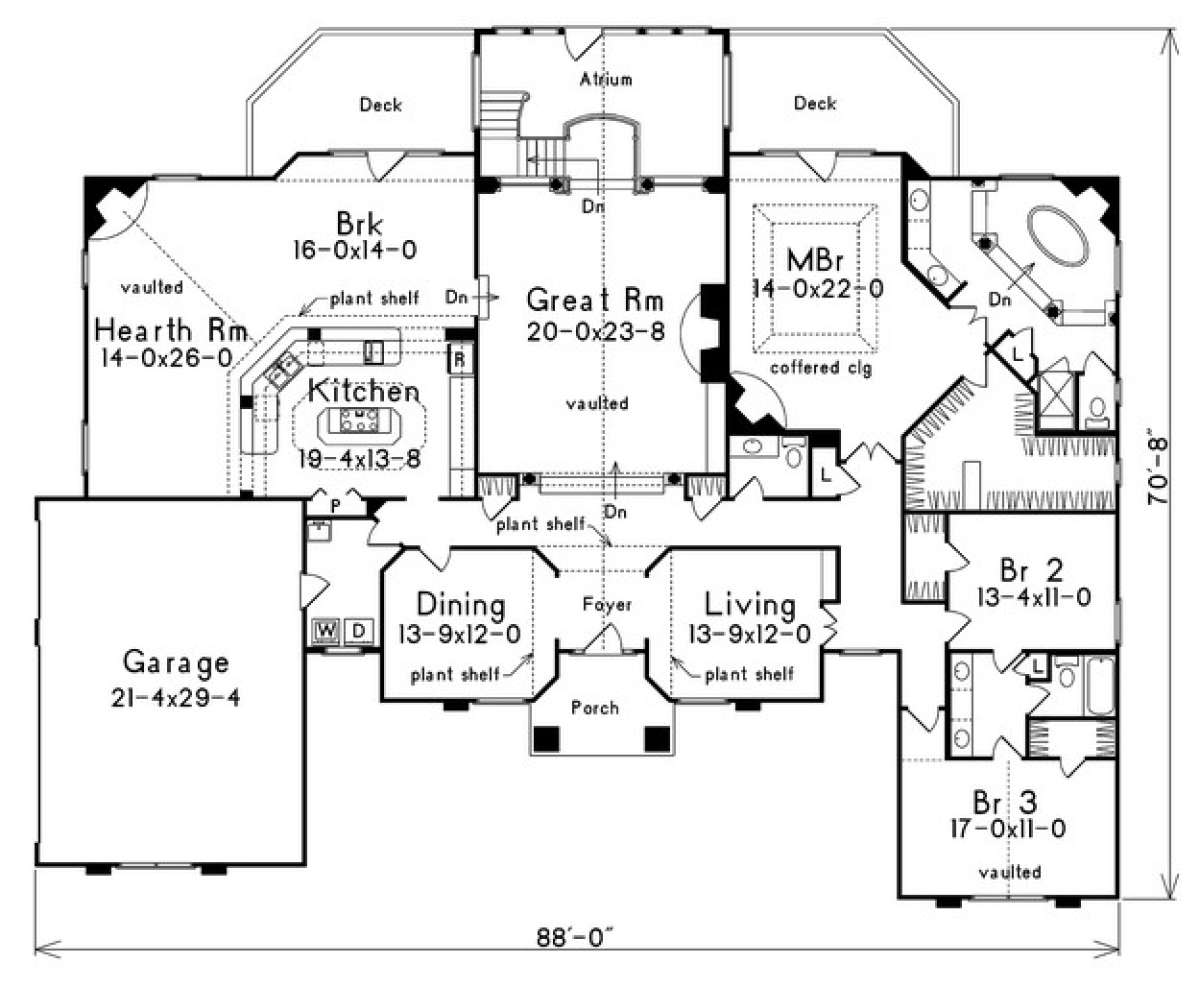

Floorplan 1 for House Plan #5633-00026
Floorplan 1
Floorplan 1 for House Plan #5633-00026


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

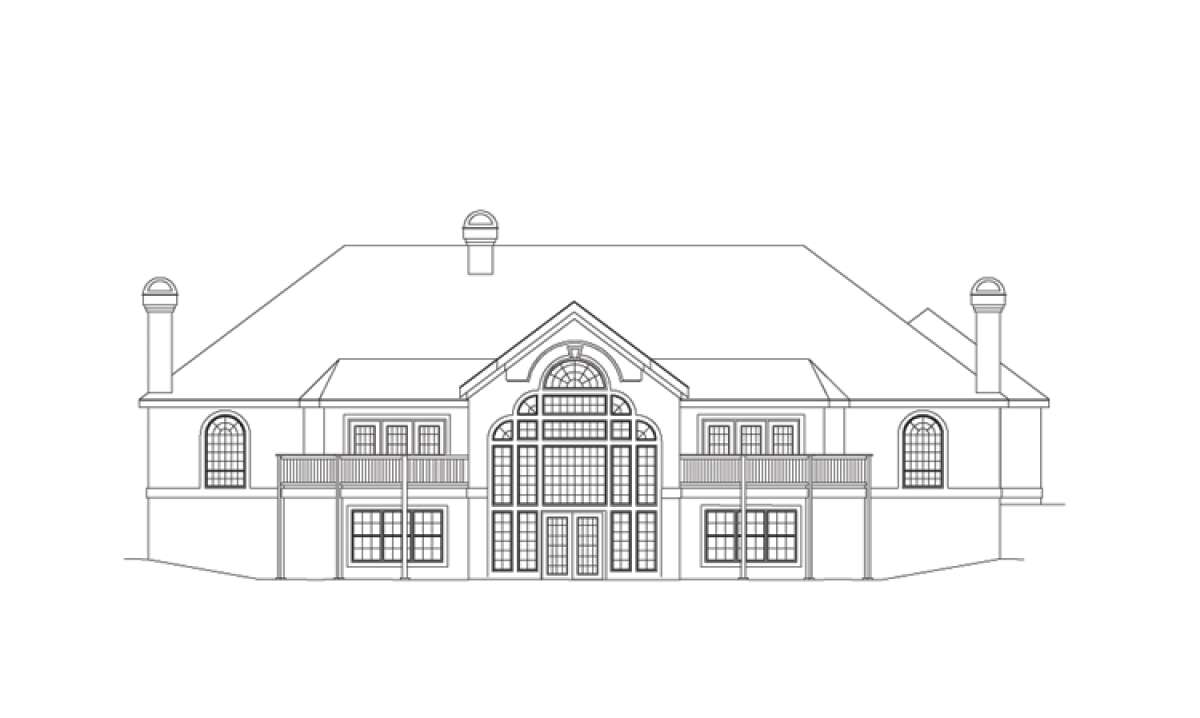

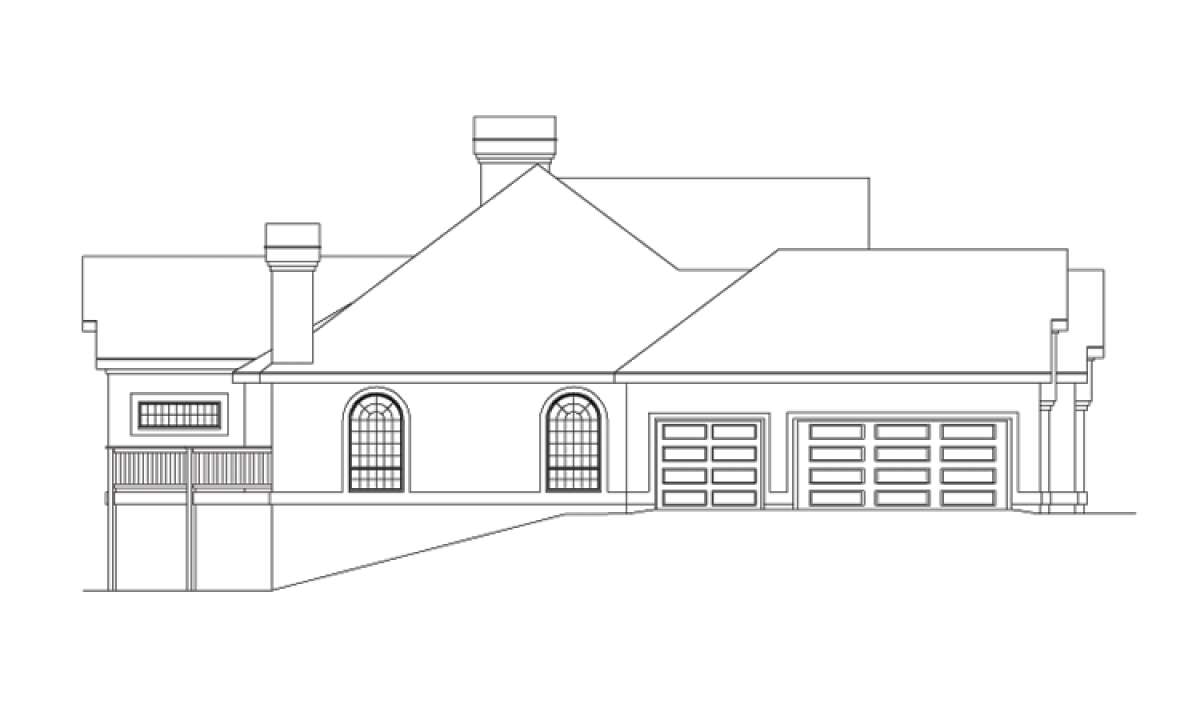

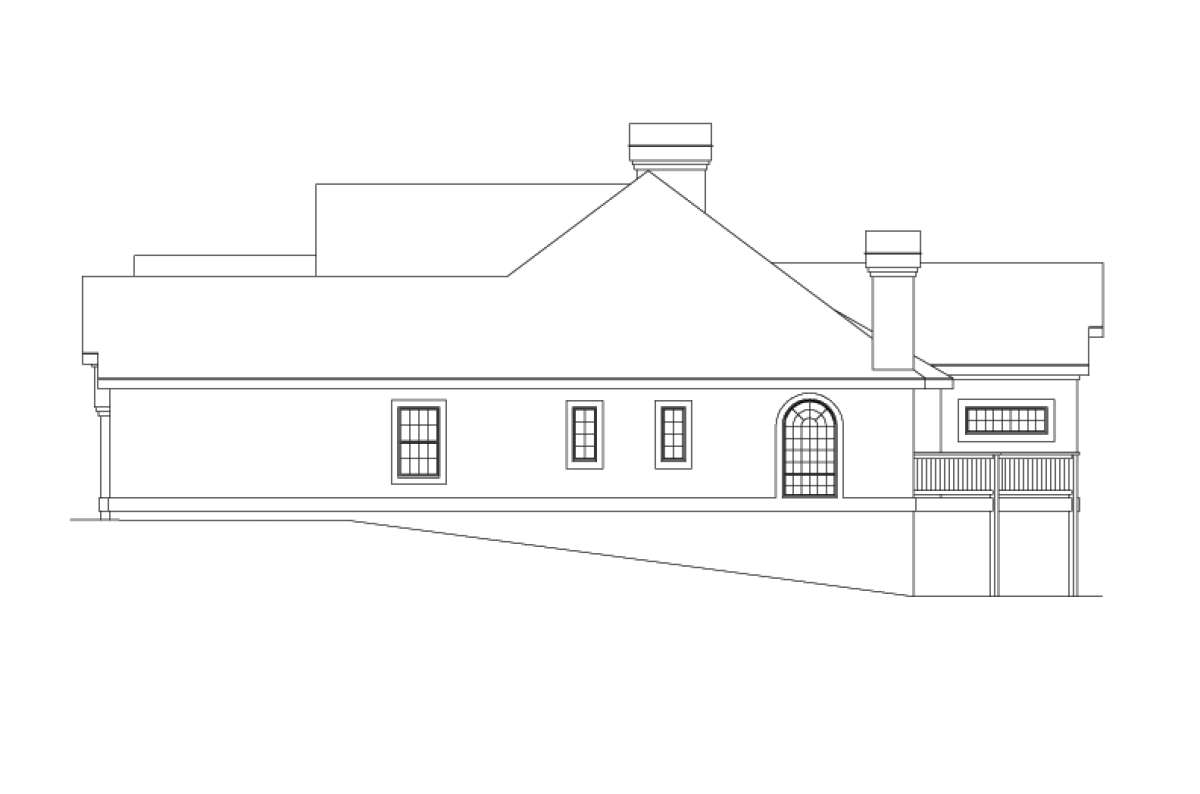

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This contemporary home offers three point symmetrical balance on the home’s exterior façade. A grand entrance coupled with a plethora of Palladian styled windows and stucco finishes are stylish hallmarks of this executive home design. There are in excess of 3,800 square feet of living space in the home which incorporates three bedrooms and two plus bathrooms into the floor plan. The home’s drawings include a walk-out basement foundation which adds additional space, value and versatility to the home. The spacious foyer is flanked by a formal living and dining room; both of which are ideal for entertaining and hosting special family occasions and events. A gallery hall spans the width of the home offering space delineation between the family’s private spaces and the main living areas. There is a centrally located great room which features soaring ceiling heights, a stately fireplace and a rear window wall atrium which allows the space to become light filled. An amazing state-of-the-art kitchen features a center cook top island, a separate pantry and an enormous wraparound snack/breakfast bar. The kitchen opens onto the vaulted hearth room with a warming fireplace and casual breakfast room with deck access. The three car, side entry garage leads to the interior laundry room and there is a powder room for guests.
The family’s sleeping and bathing quarters are situated on the opposite side of the home for privacy and convenience. Bedroom two features spacious floor space and a walk-in closet while the larger third bedroom features vaulted ceilings and a walk-in closet. There is a jack and jill bath with double vanities and a linen closet. The master retreat is true luxury and offers an oasis for the homeowner’s pleasure and comfort. Double French doors lead into the space where a magnificent bedroom with gorgeous coffered ceilings, a corner fireplace and private deck access is revealed. There is an oversized walk-in master closet which would be envied by most bedroom sizes and a lavish en suite bath. The master bath is entered through French doors and contains dual vanities, a large linen closet, separate shower, a compartmentalized toilet and a step-down majestic garden tub with Roman columns and a grand scale window views. This luxurious home features spacious and well appointed rooms along with every modern convenience and amenity a homeowner might desire.
