Narrow Lot House Plan 5633-00008

Sq Ft1,320
Beds3
Baths2
1/2 Baths0
Stories1
Cars0
Width30' 0"
Depth50' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

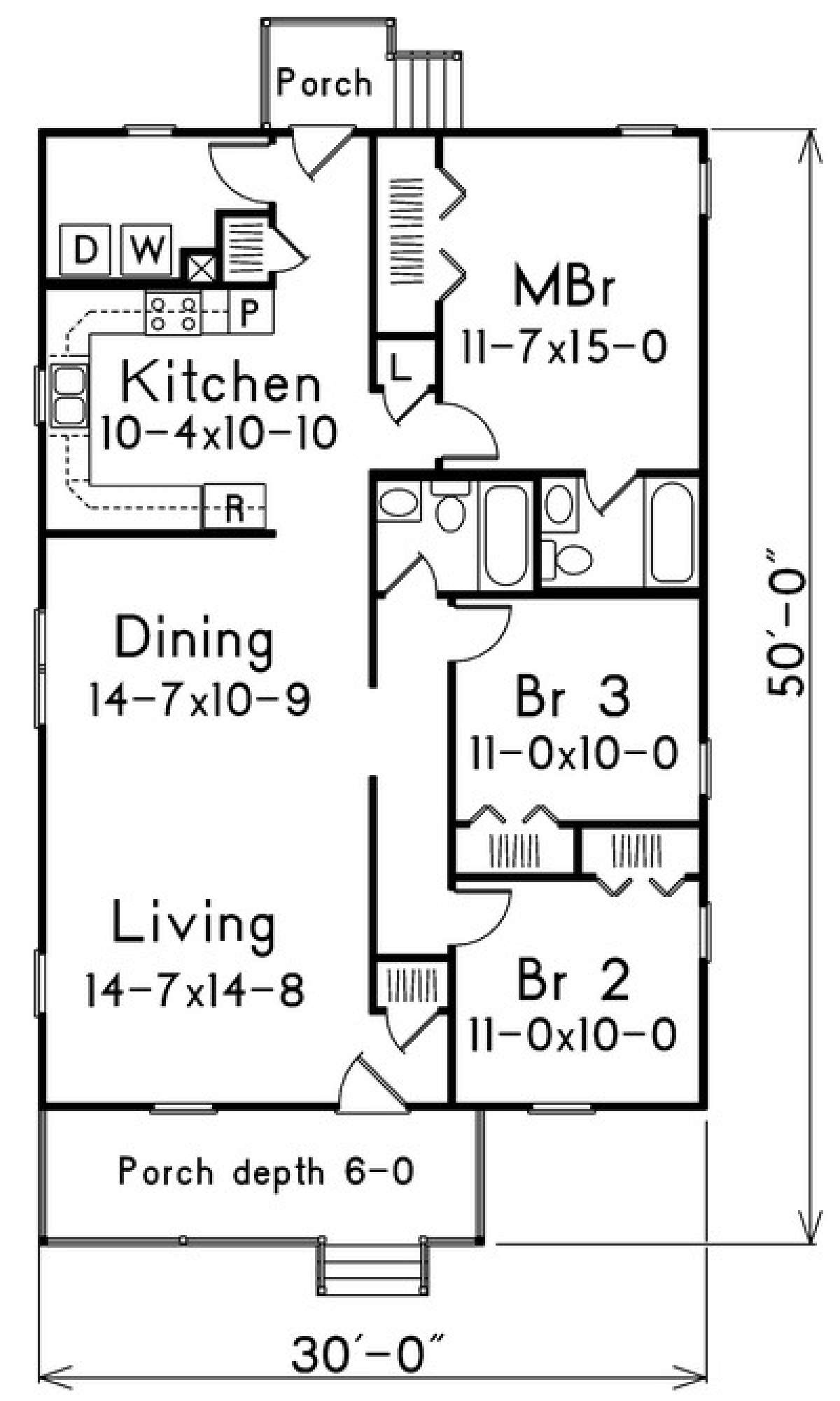

Floorplan 1 for House Plan #5633-00008
Floorplan 1
Floorplan 1 for House Plan #5633-00008


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

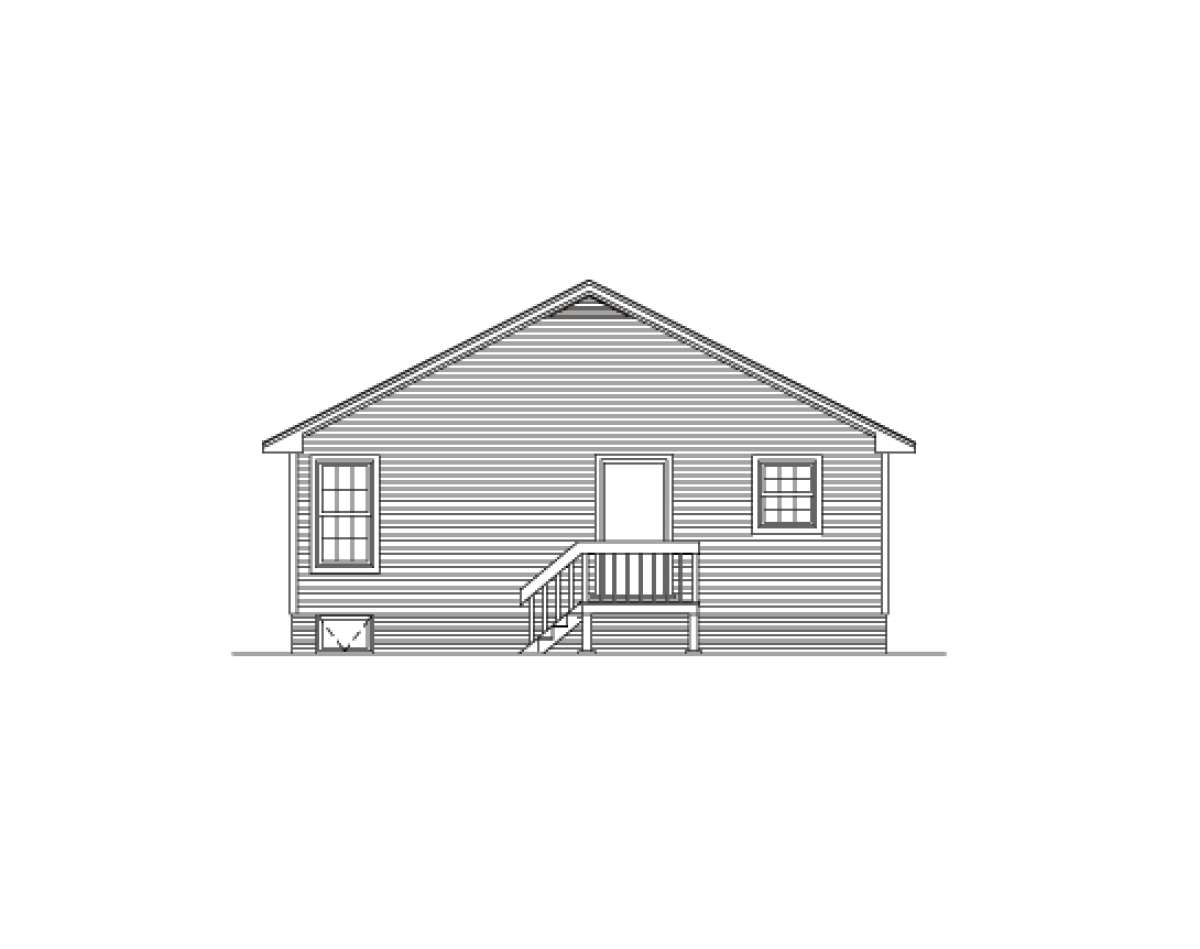

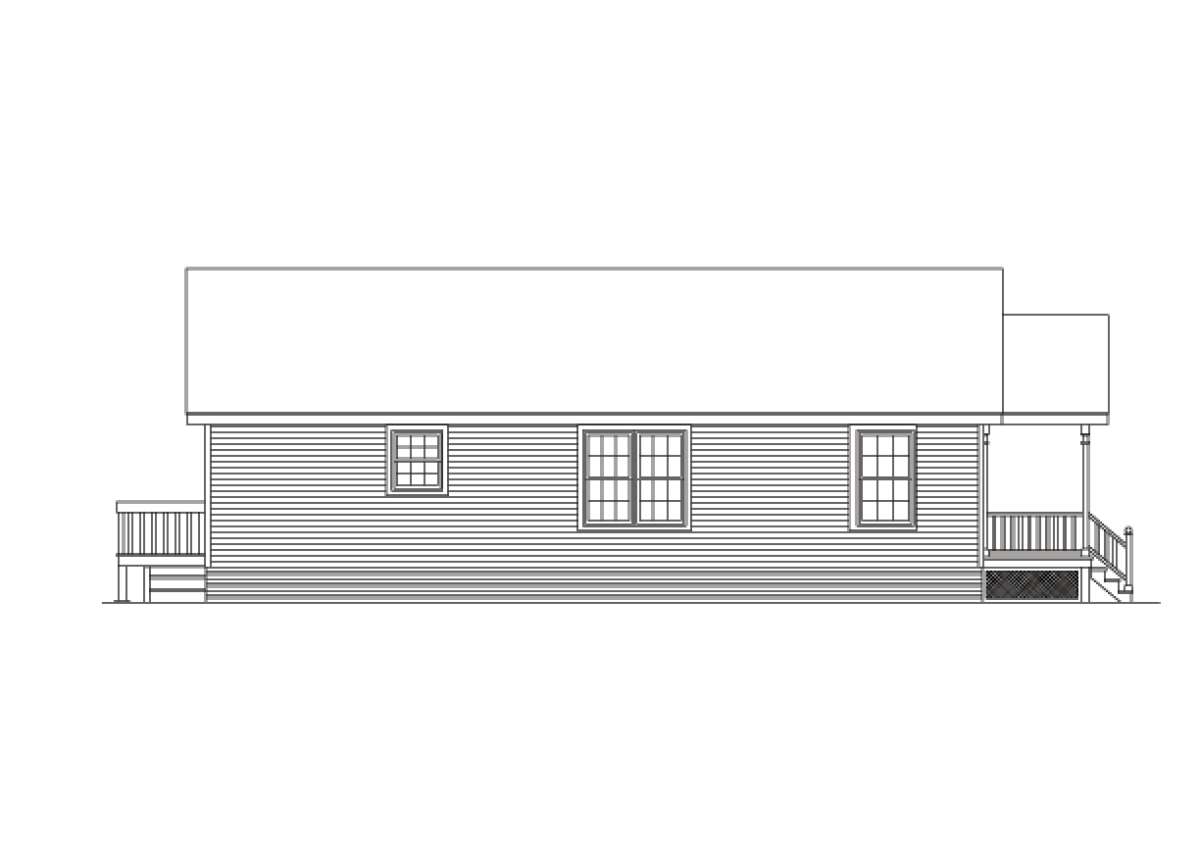

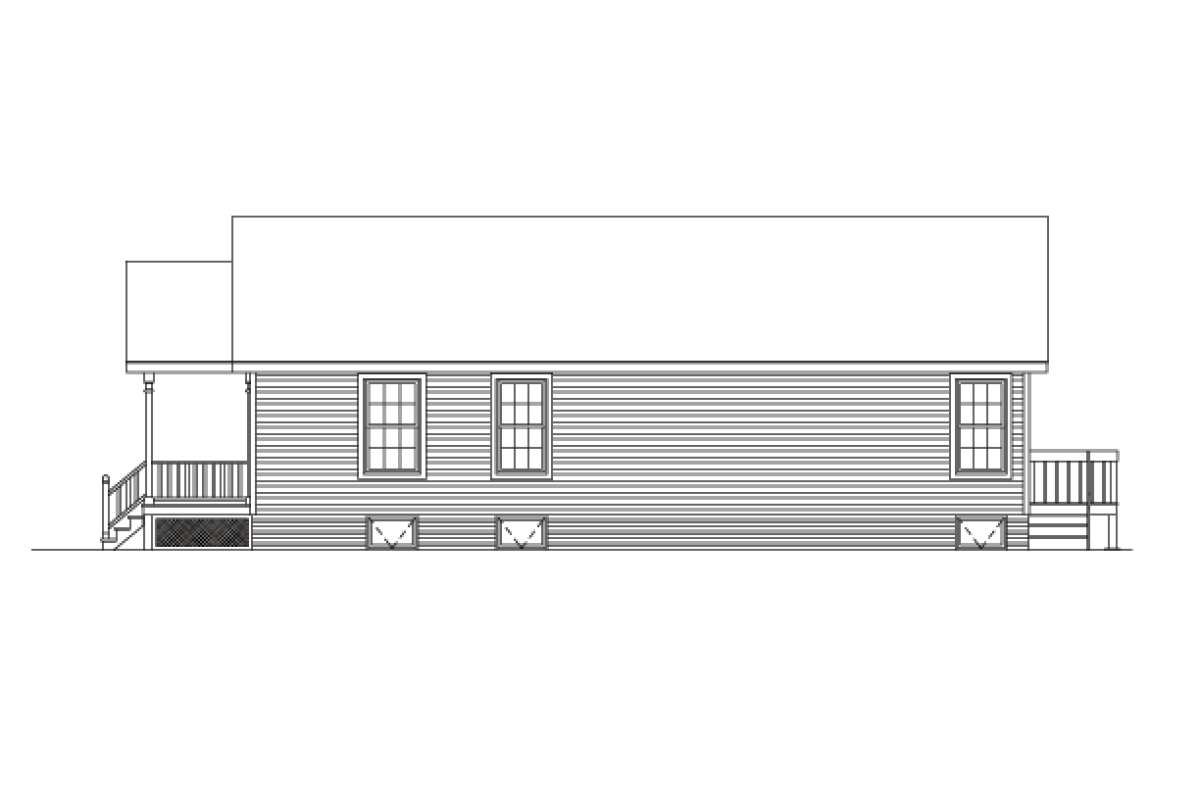

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This narrow lot house plan with its 30’ width dimension is highlighted by a country front porch and an interior floor plan with approximately 1,320 square feet of living space. The exterior façade features an expansive rocking chair front covered porch, siding, brick highlights and a decorative gable. The interior floor plan features three bedrooms and two baths in a single story home. The greeting foyer houses a large coat closet and subsequently opens into the massive living and dining spaces. These rooms feature great entertaining and relaxing space for large gatherings of family and friends. The U-shaped kitchen is highlighted by a separate pantry and a multitude of counter and cabinet space before leading to the rear porch. There is a large utility room and storage space at the rear of the home.
Two family style bedrooms are situated off the main hallway along with a shared bath. The bathroom features a vanity space, toilet area and a tub/shower combination. Both bedrooms are of equal size and are highlighted by window views and generous closet space. There is a linen closet adjacent to the master suite which is located at the rear of the home for privacy. The master bedroom is quite spacious with great window views and an oversized master walk-in closet. The en suite master bathroom features a vanity, a toilet area and a tub/shower combination. This traditional floor plan has plenty of space for a small family, young professionals or empty nesters.
