Craftsman Garage Plan 5631-00267

SALE

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Unfin Sq Ft 1,450
Fin Sq Ft 1,081
Cars 3
Beds 2
Width 54'
Depth 34'

Floorplan Drawings

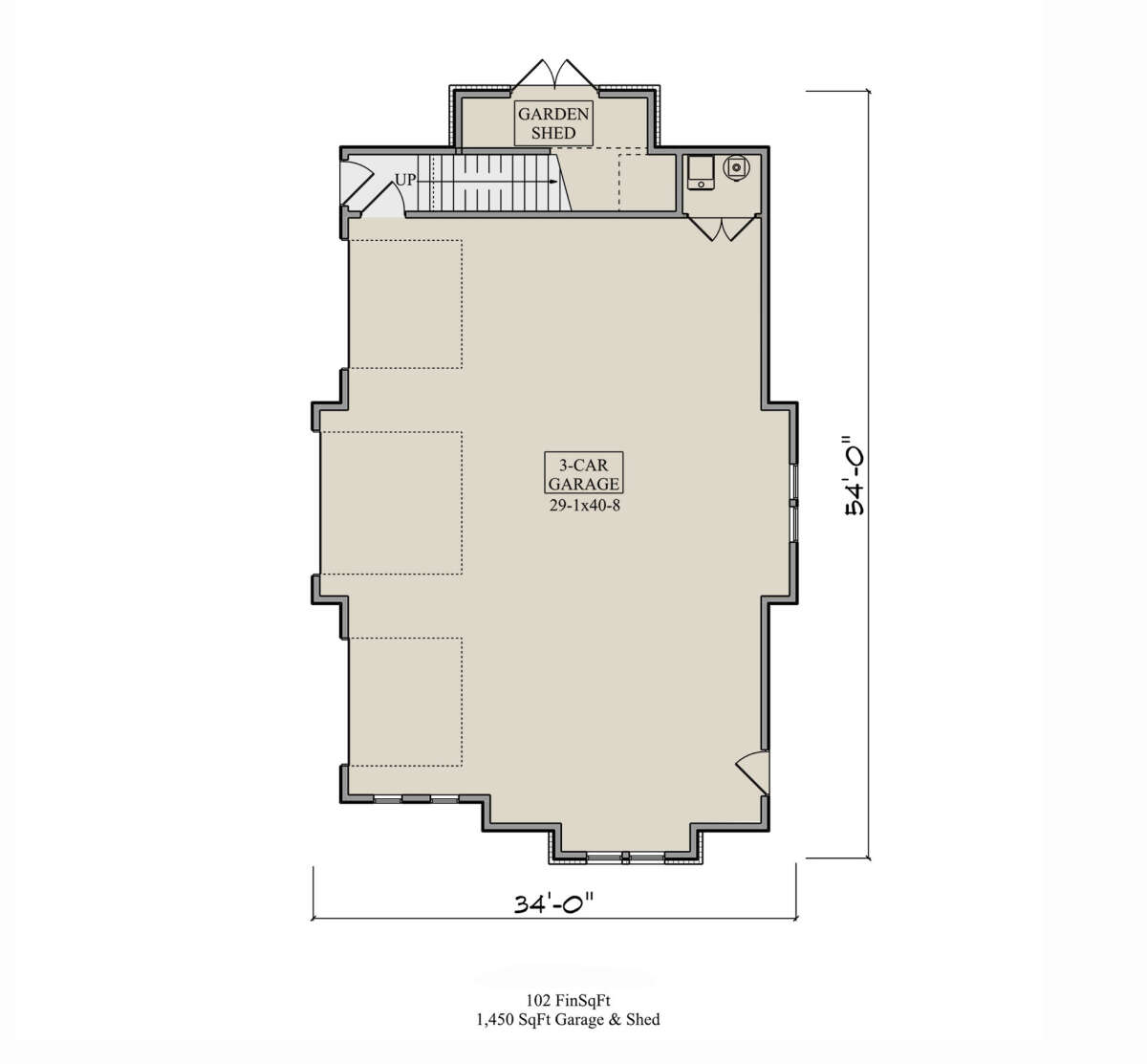

Garage Floor
Garage Floor for House Plan #5631-00267

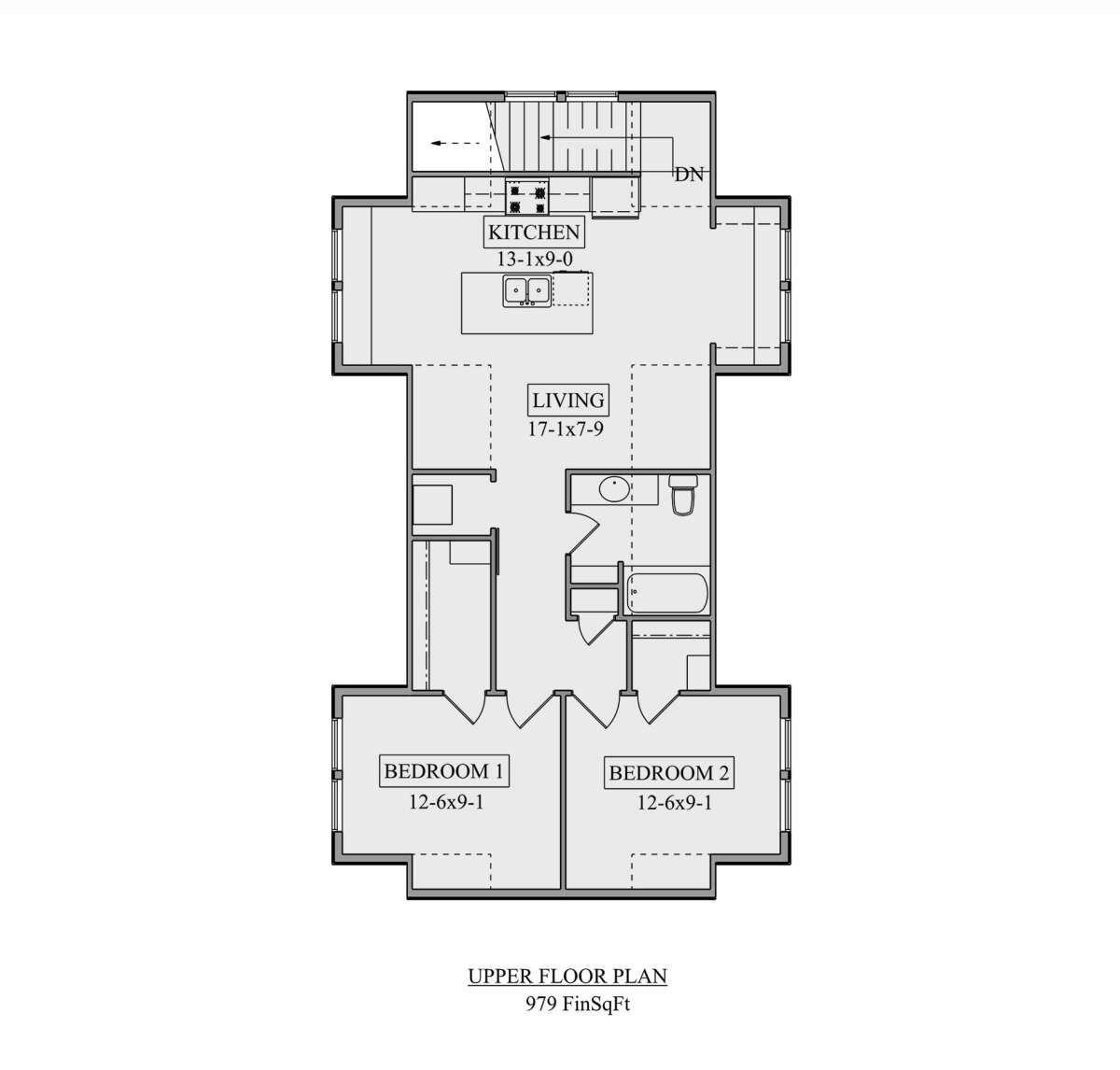

Second Floor
Second Floor for House Plan #5631-00267


What's Included in these plans?

  • Cover Page- includes plan schedule, general notes and square footages
  • Front and Back Elevations- Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Left and Right Elevations-Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Floor Plans (floors per each design)- Scale varies per size of home
  • Foundation Plan (Architectural)- Foundation wall layout and post and beam layouts
  • Roof Plan- Birdseye view showing ridges and valleys
  • Section(s)
  • Electrical Plans

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 3 Car Craftsman Garage Plan features 1,450 unfinished sq. ft., and 1,081 finished sq. ft. America's Best House Plans offers high-quality Garage plans from professional architects and home designers across the country with a best-price guarantee. Our extensive collection of garage plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your desired preferences.
