Florida House Plan 5565-00046

Sq Ft2,550
Beds3
Baths2
1/2 Baths1
Stories1
Cars2
Width61' 4"
Depth77' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

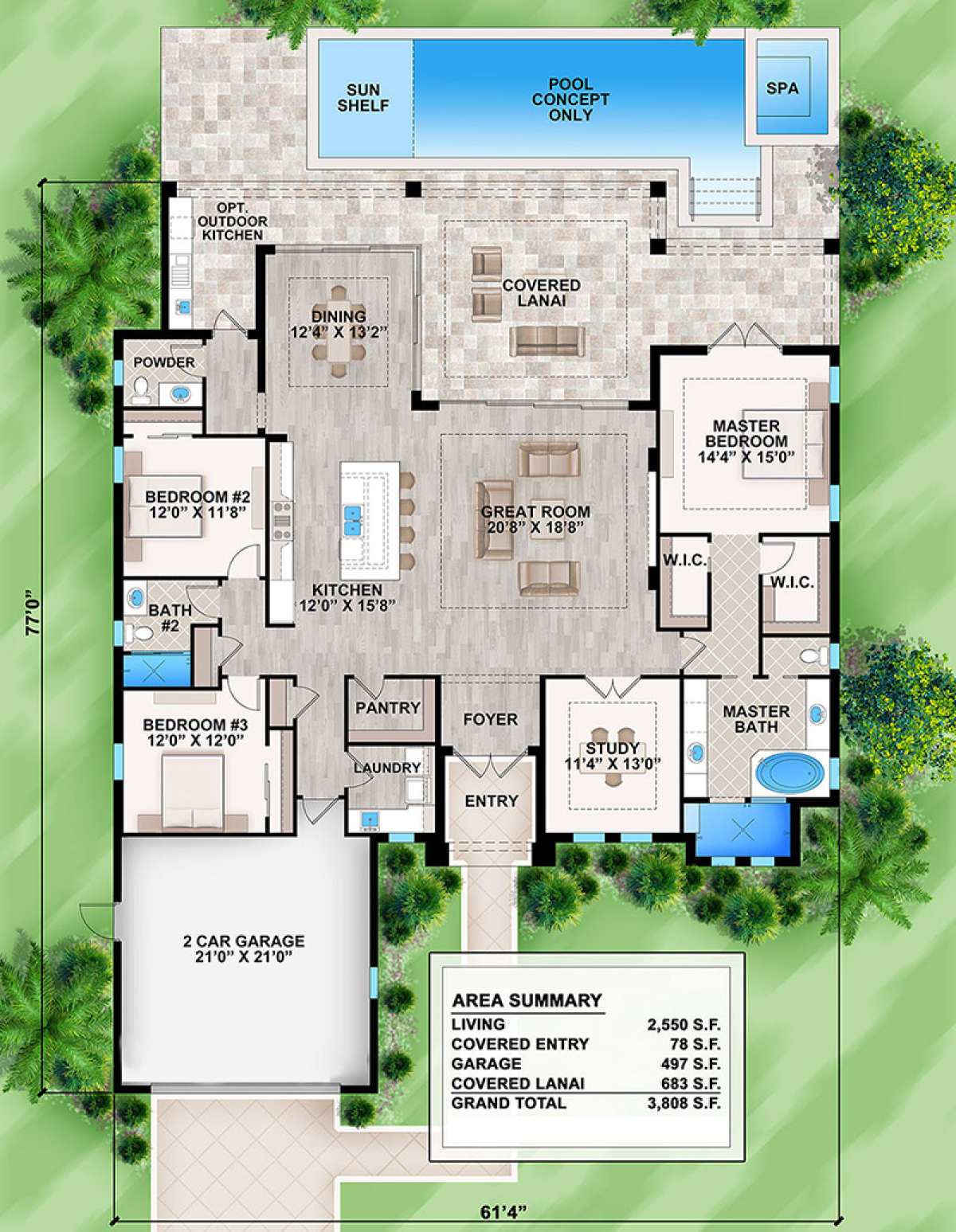

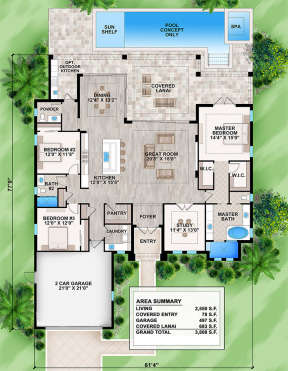

Main Floor for House Plan #5565-00046
Main Floor
Main Floor for House Plan #5565-00046


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Each plan set is drawn at 1/8" to 1/4" = 1' scale and includes the following drawings:

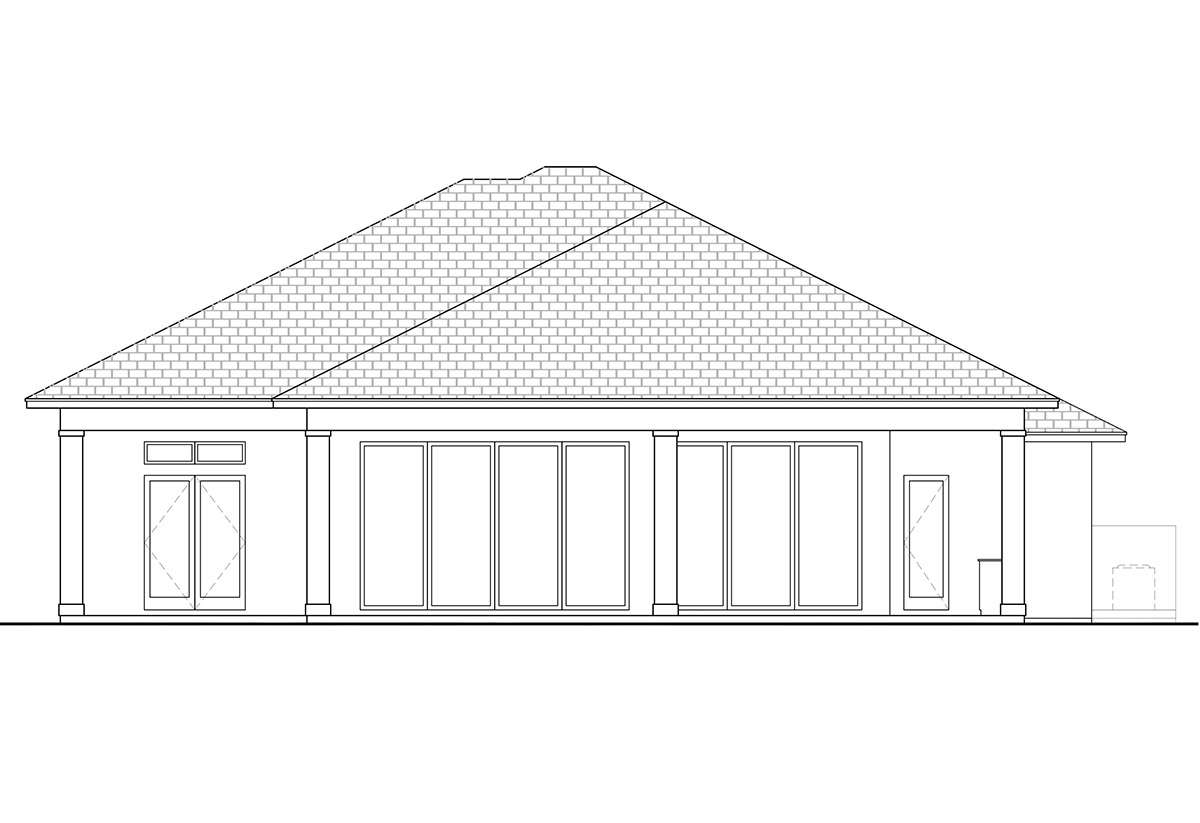

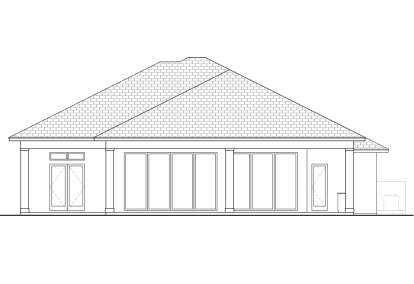

  • Elevations:
    Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan:
    Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any):
    Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation or Slab Plan:
    Floor and Deck Joist Sizes, Spacing and Direction, Rough-In Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
  • Roof Framing:
    Shows roof outlines, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys.
  • Section:
    Shows a cross-section of the home. Shows Floor Joist Size and Spacing, Floor-To-Floor Heights,
    Non-Typical Plate Heights Indicated
  • Electrical Plan:
    A schematic layout of all lighting, switches and electrical outlets.
  • Typical Wall Section and Cut-through Section
  • *Single Build License is included with plan packages of 5 sets or more.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Florida house plan is a beautiful example of luxurious living in an elegant designed home within a moderate amount, approximately 2,550, square feet of living space. There are three bedrooms, two plus baths and a large open floor plan in the one story home. The exterior design is exquisitely detailed and features a soaring front entrance, beautiful window views, exposed rafters and a series of overhead warm wood awnings. There is a two car front entry garage with wonderful detailing and plenty of vehicle and storage space that features a pedestrian door onto the side yard for the loading and unloading of sporting and lawn equipment as well as a secondary entrance into the home’s interior. The main entrance into the home features a gorgeous double door entry with beautiful windows and covered space. Once inside, the open floor plan is revealed and features a large great room, a dining space and gourmet kitchen. The great room is highlighted with stunning entertaining space, a trey ceiling overhead and sliders onto the rear lanai. The outdoor space nearly spans the entire width of the home and features a covered lanai, an optional outdoor kitchen and plenty of room to entertain large gatherings of family and friends in comfort and style. The guest powder room is located at the rear of the home and there is private exterior access from the lanai, without travelling the interior of the home. Back inside, the dining room overlooks the lanai and features double sliders onto the space as well. The grand kitchen is highlighted with a large center island, a breakfast bar and there is a walk-in food storage pantry. The laundry room is conveniently located nearby and features access to the garage for easy home maintenance and a tidy home environment.
